MANIFOLDS AND EXHAUST SYSTEMS - V8

REPAIRS 30-2-17

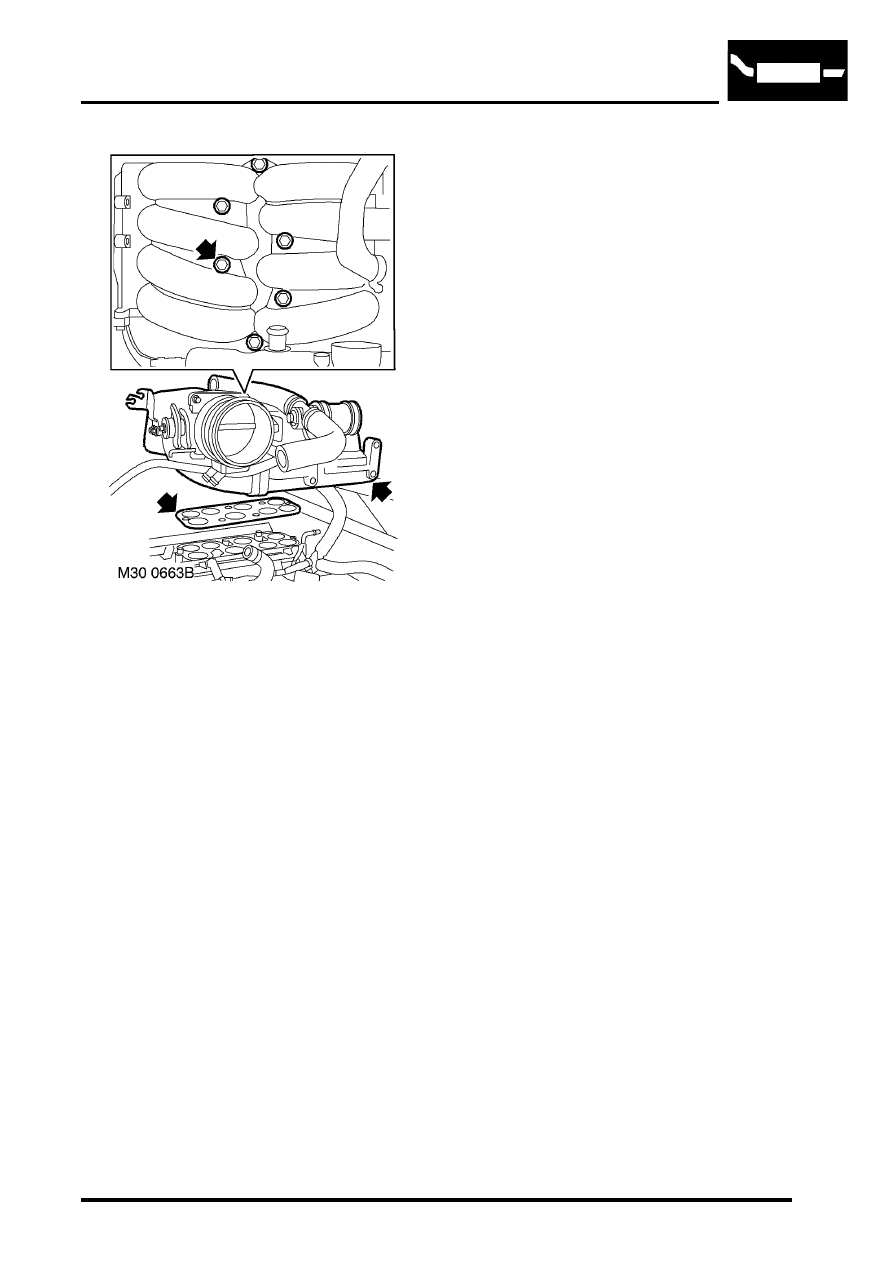

20. Remove 6 bolts securing upper inlet manifold

and remove upper inlet manifold.

21. Collect upper inlet manifold gasket.

Refit

1. Clean upper and lower inlet manifold mating

faces, dowels and dowel holes.

2. Using a new gasket, position upper inlet

manifold. Fit bolts and, working in a diagonal
sequence, tighten to 22 Nm (16 lbf.ft).

3. Connect hose and multiplug to TP sensor.
4. Connect  hose and multiplug to IACV. Secure

hose with clip.

5. Secure ht leads to upper inlet manifold.
6. Position ignition coils, fit  bolts and tighten to 8

Nm (6 lbf.ft).

7. Ensure clip under ignition coils is located on

fuel pipe.

8. Secure engine harness in bulkhead clips.
9. Fit coolant rail bolt and tighten  to 22 Nm (16

lbf.ft).

10. Connect breather hose to inlet plenum.
11. Connect brake servo vacuum pipe to inlet

plenum.

12. Connect EVAP pipe to inlet plenum.
13. Position coolant hoses to throttle body and

secure hose clips.

14. Fit breather hose to throttle body and  secure

clip.

15. Connect multiplug to throttle body.
16. Connect throttle and cruise control  cables and

secure in throttle body cams.

17. Adjust throttle and cruise control cables.

l



 +

 ENGINE MANAGEMENT SYSTEM

- V8, ADJUSTMENTS, Cable - cruise
control.

l



 +

 ENGINE MANAGEMENT SYSTEM

- V8, ADJUSTMENTS, Cable - throttle.

18. Connect air intake hose and tighten clips.

Secure harness to air intake hose.

19. Top-up cooling system



 +

 MAINTENANCE, PROCEDURES,

Cooling system..

20. Fit bonnet.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bonnet.

21. Connect battery earth lead.
22. Fit battery cover and secure with fixings.

MANIFOLDS AND EXHAUST SYSTEMS - V8

30-2-18 REPAIRS

Gasket - inlet manifold - upper  - With
Secondary Air Injection

$% 30.15.24

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Remove bonnet.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bonnet.

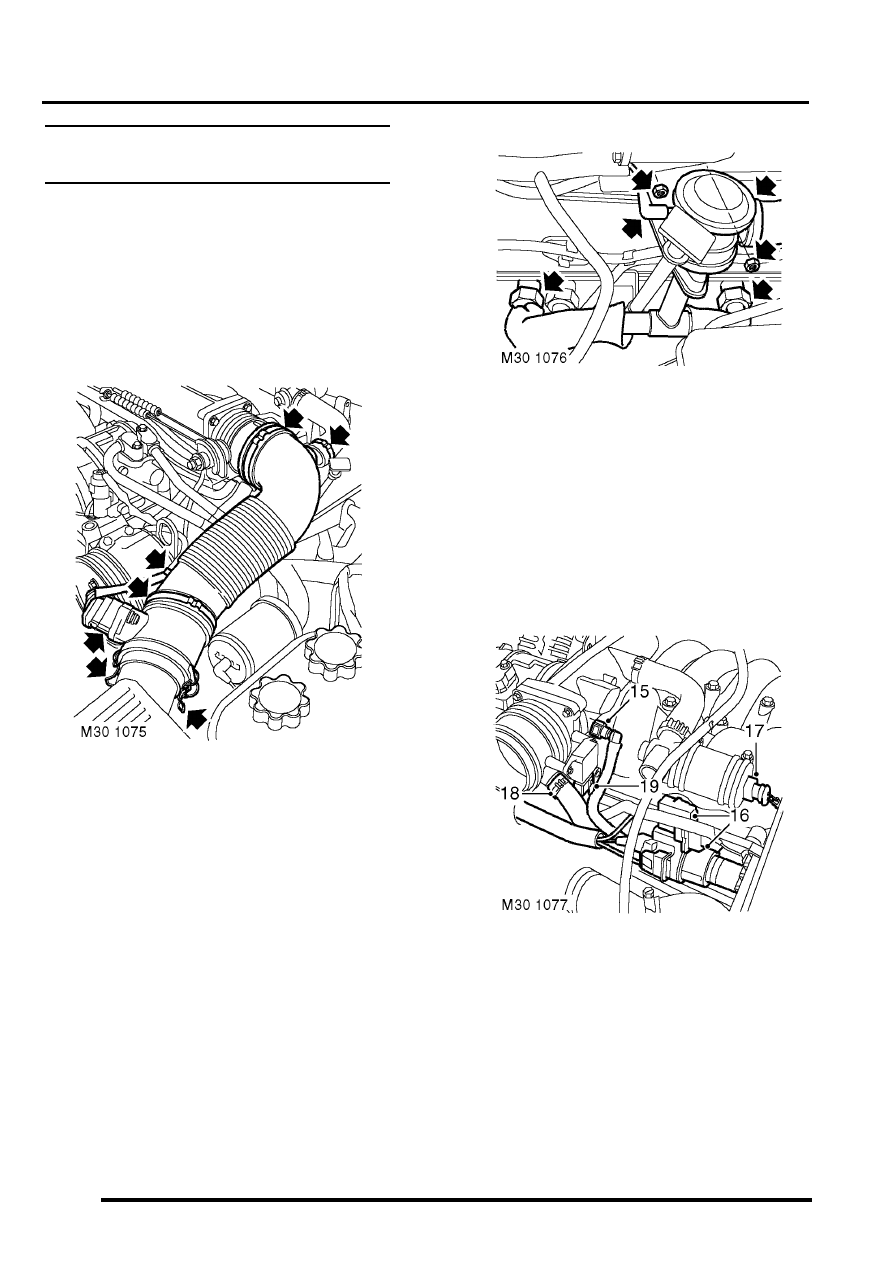

4. Disconnect multiplug from MAF sensor.
5. Release clip on intake hose and release

harness.

Note: Pre 03 MY air intake hose illustrated.

6. Release and disconnect IACV hose.
7. Loosen clip securing air intake hose to throttle

body.

8. Release 2 clips securing MAF sensor.
9. Release and remove air intake hose.

10. Disconnect vacuum hose from air valve.
11. Loosen clip securing air valve hose to air valve.
12. Remove 2 nuts securing air manifold support

bracket to upper inlet manifold.

13. Disconnect 2 air manifold unions from adapters

in cylinder head.

CAUTION: Take care that air manifold pipes
are not damaged during removal of union
nuts.

14. Remove LH air manifold.

15. Disconnect purge valve hose from inlet

manifold.

16. Release purge valve from clips and air control

valve from bracket and lay aside.

17. Disconnect multiplug from IACV.
18. Release clip and disconnect breather hose

from throttle housing.

19. Disconnect multiplug from TP sensor.

MANIFOLDS AND EXHAUST SYSTEMS - V8

REPAIRS 30-2-19

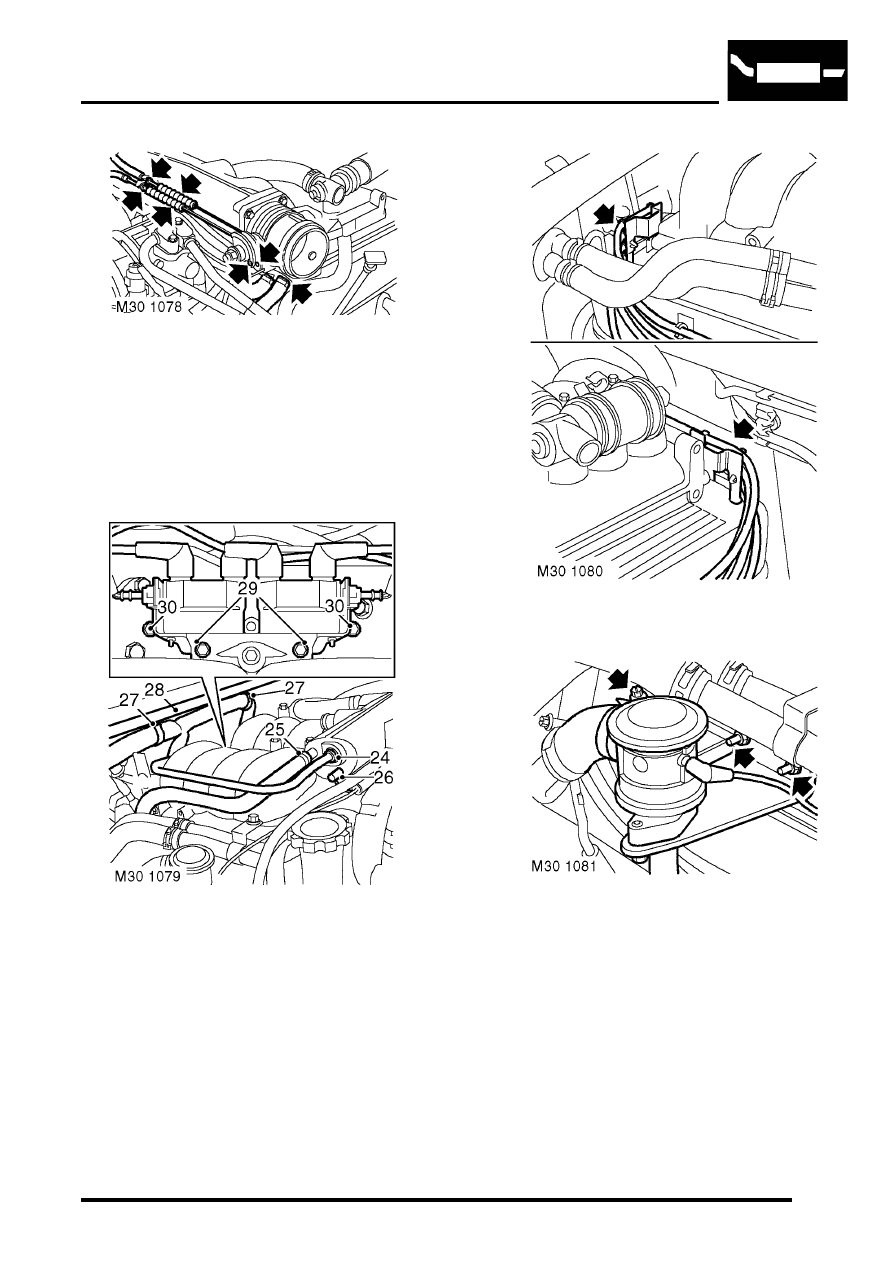

20. Position container to collect spillage.
21. Release clips and disconnect 2 coolant hoses

from throttle housing.

22. Loosen outer cable locknuts and release

throttle and cruise control cables from
abutment.

23. Release throttle and cruise control cables from

clips and throttle cams and position aside.

24. Depress plastic collar and disconnect brake

servo hose from inlet manifold.

25. Release clip and disconnect breather hose

from manifold.

26. Disconnect vacuum hose from manifold.
27. Release engine harness from bulkhead clips

and position aside.

28. Release and remove bonnet seal from rear of

engine bay.

29. Remove 2 bolts securing air pipe and coil

bracket to manifold.

30. Loosen 2 lower bolts securing coil bracket

sufficiently to allow bracket to clear manifold.

31. Release plug leads from upper manifold clips.

32. Loosen clip and disconnect air hose from air

valve.

33. Remove 2 nuts securing RH air manifold

support bracket to upper inlet manifold.

MANIFOLDS AND EXHAUST SYSTEMS - V8

30-2-20 REPAIRS

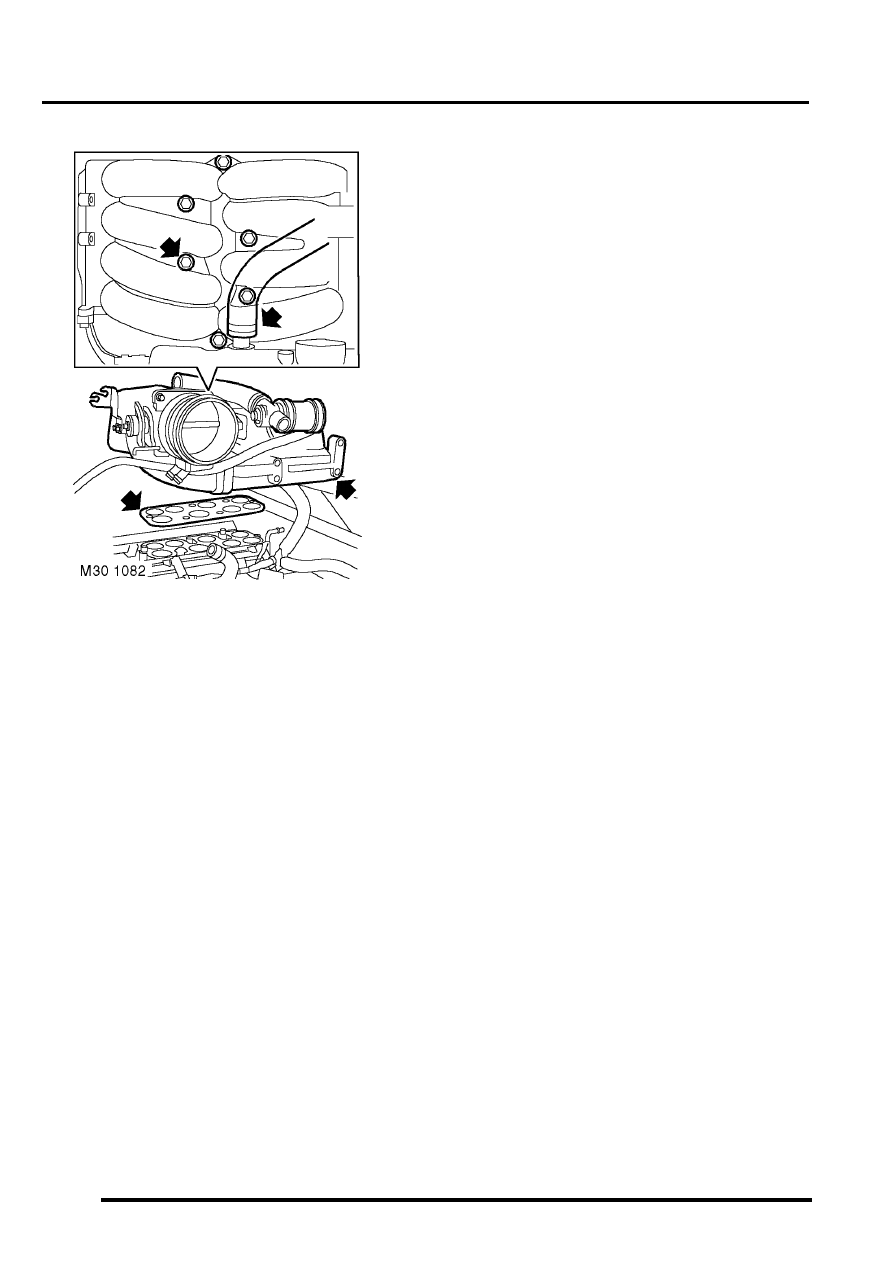

34. Release clip and disconnect IACV hose.
35. Remove 6 bolts securing upper manifold and

remove manifold.

36. Collect upper manifold gasket.

Refit

1. Clean upper and lower inlet manifold mating

faces, dowels and dowel holes.

2. Using a new gasket, position upper inlet

manifold. Fit bolts and, working in a diagonal
sequence, tighten to 22 Nm (16 lbf.ft).

3. Connect IACV hose and secure clip.
4. Connect hose to air valve and tighten clip.
5. Secure plug leads to clips.
6. Fit and tighten nuts securing RH air manifold

support bracket.

7. Align air pipe and coil bracket, fit bolts and

tighten to 8 Nm (6 lbf.ft).

8. Tighten 2 lower bolts securing coil bracket to 8

Nm (6 lbf.ft).

9. Fit bonnet seal.

10. Secure engine harness in bulkhead clips.
11. Connect breather hose to manifold and secure

clip.

12. Connect vacuum hose to inlet manifold.
13. Connect brake servo hose to inlet manifold.
14. Connect throttle and cruise control cables.
15. Adjust throttle cable.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, ADJUSTMENTS, Cable - throttle.

16. Adjust cruise control cable.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, ADJUSTMENTS, Cable - cruise control.

17. Connect coolant hoses to throttle housing and

secure clips.

18. Connect multiplug to TP sensor.
19. Connect breather hose to throttle housing and

secure with clip.

20. Connect multiplug to IACV.
21. Secure purge valve and air control valve to clips

and bracket.

22. Connect purge hose to manifold.
23. Clean air manifold unions.
24. Apply a small amount of engine oil to top of air

manifold union nuts and around air manifold
pipes.

25. Position air manifold and finger tighten both air

manifold union nuts.

CAUTION: Finger tighten union nuts as far
as possible, damage to air manifold pipes or
adaptors may result if this is not done.

26. Tighten both air manifold union nuts to 25 Nm

(18 lbf.ft).

CAUTION: Ensure that air manifold pipes
are not distorted during tightening
operation.

27. Fit nuts securing air manifold support bracket

and tighten to 25 Nm (18 lbf.ft).

28. Connect hose to air valve and tighten clip.
29. Connect vacuum hose to air valve.
30. Fit air intake hose.
31. Connect multiplug to MAF sensor.
32. Secure harness to clip.
33. Connect battery earth lead.
34. Fit battery cover and secure with fixings.
35. Top up cooling system.



 +

 MAINTENANCE, PROCEDURES,

Cooling system.

36. Fit bonnet.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bonnet.
