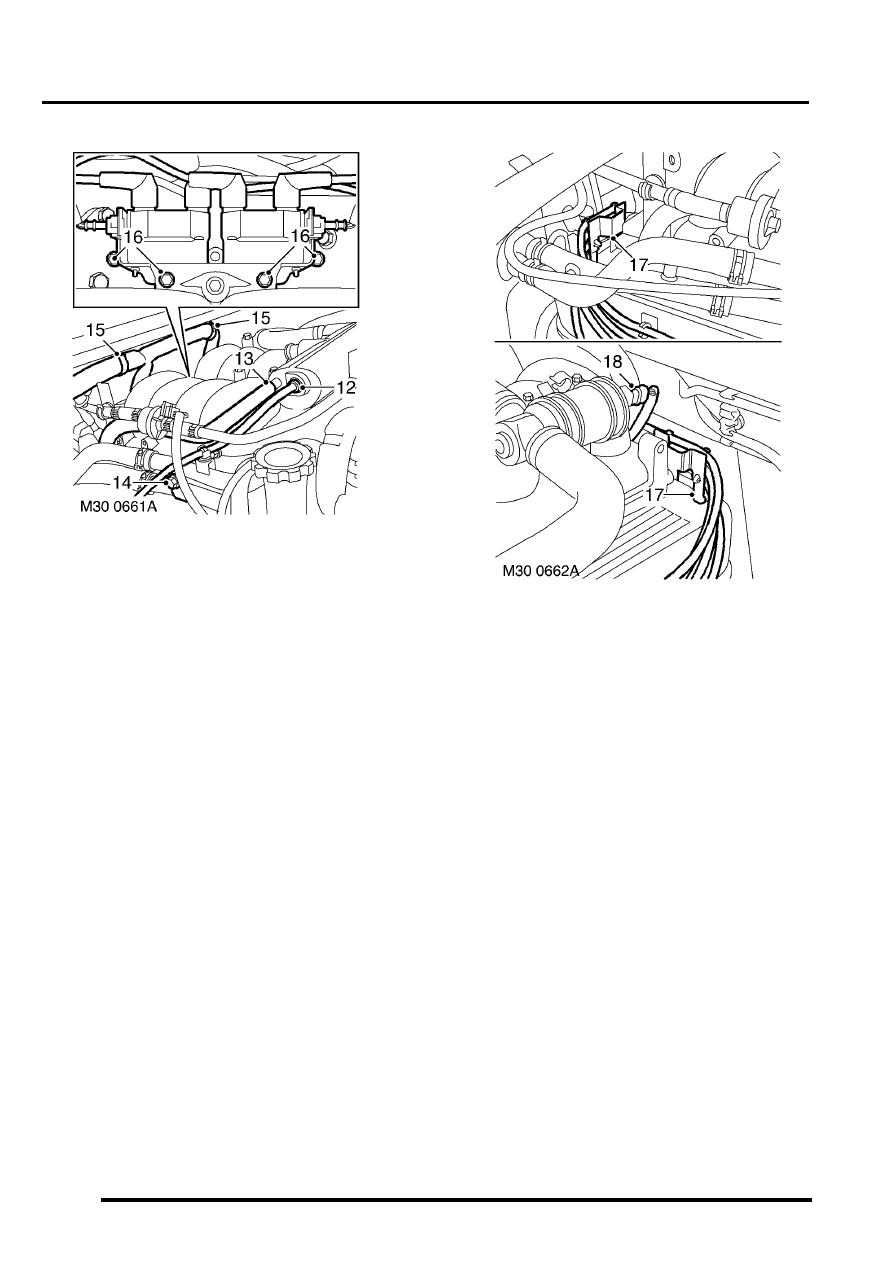

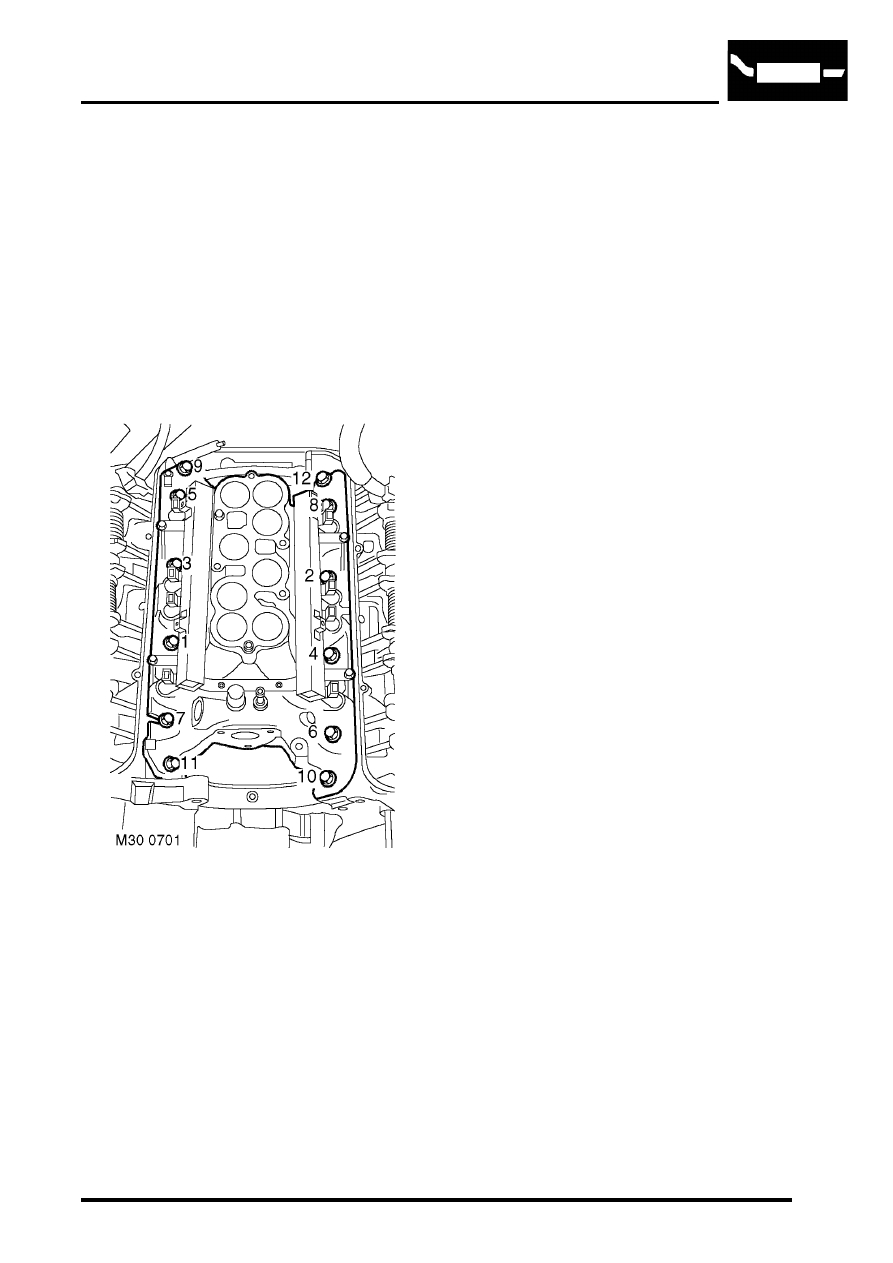

MANIFOLDS AND EXHAUST SYSTEMS - V8 REPAIRS 30-2-13 20. Remove inlet manifold gasket. Refit 1. Clean all traces of sealant from cylinder head and cylinder block notches. 2. Clean mating faces of cylinder block, cylinder head and inlet manifold. 3. Apply sealant, Part No. STC 50550 to cylinder head and cylinder block notches. 4. Fit new gasket seals, ensuring ends engage correctly in notches. 5. Fit new inlet manifold gasket. tighten at this stage. 7. Position inlet manifold to engine. Fit manifold bolts and, working in the sequence shown, 8. Tighten gasket clamp bolts to 18 Nm (13 lbf.ft). 10. Clean top hose outlet pipe mating faces. Nm (16 lbf.ft). 13. Position alternator, fit bolts and tighten to 45 Nm (33 lbf.ft). 14. Position PAS pump to auxiliary housing and locate housing on engine. Fit bolts and tighten 15. Fit and tighten auxiliary housing nut to 10 Nm (7 lbf.ft). 16. Fit bolts securing PAS pump and tighten to 22 Nm (16 lbf.ft). 17. Position oil cooling pipe bracket fit bolt and tighten to 22 Nm (16 lbf.ft). 18. Fit and tighten PAS pump high pressure pipe. (37 lbf.ft). 20. Clean PAS pump pulley mating faces. to 22 Nm (16 lbf.ft). 22. Clean ACE pump dowels and dowel holes. Nm (16 lbf.ft). 24. Fit auxiliary drive belt. REPAIRS, Belt - auxiliary drive. 25. Secure injector harness and connect injector multiplugs. 26. Position top hose and secure clips. l l 28. Check and top up PAS fluid |
