Discovery 2. Manual - part 39





ENGINE - V8

REPAIRS 12-2-29

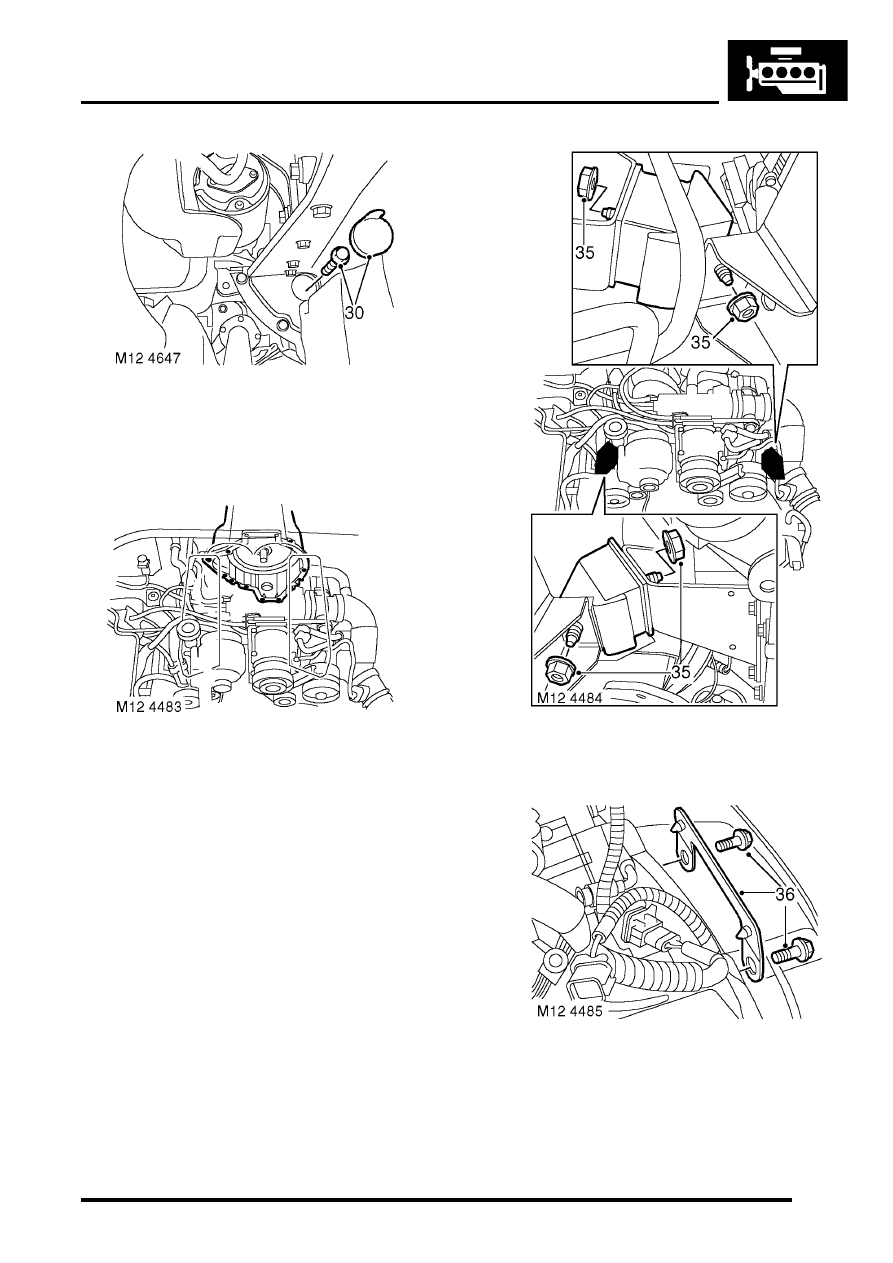

30. Models with automatic gearbox: Remove

access plug and remove 4 bolts securing
torque converter to drive plate.

31. Rotate engine to access bolts.

32. Remove 12 bolts securing engine to  gearbox.

DO NOT remove the top 2 bolts at  this
stage

33. Collect support brackets from bell  housing

bolts.

34. Attach suitable lifting equipment to  engine.

35. Remove 4 nuts securing engine mountings,

raise engine and remove engine mountings.

36. Lower engine, remove top bolts securing

engine to gearbox and collect bracket.

37. Support gearbox on a jack.
38. Release engine from gearbox dowels.
39. With assistance remove engine from  engine

bay.

ENGINE - V8

12-2-30 REPAIRS

Refit

1. Clean mating faces of engine and  gearbox,

dowel and dowel holes.

2. Lubricate splines and bearing surface  on first

motion shaft with grease.

3. With assistance position engine in  engine bay,

align to gearbox and locate on  dowels.

4. Position support brackets, fit bell  housing bolts

and tighten to 50 Nm   (37 lbf.ft).

5. Position engine mountings, fit nuts and  tighten

to  85 Nm (63 lbf.ft).

6. Lower lifting equipment and remove from

engine.

7. Models with automatic gearbox: Align torque

converter to drive plate, fit bolts and tighten to
50 Nm (37 lbf.ft). Fit access plug.

8. Fit exhaust front pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Front pipe.

9. Position oil cooling pipe saddle clamps  and

tighten bolts.

10. Position engine harness into foot well.
11. Connect 5 multiplugs to ECM.
12. Fit toe board and secure with trim  fixings.
13. Connect engine harness earth to body  and

secure with nut.

14. Connect engine harness to main harness

multiplug.

15. Connect multiplug to EVAP purge valve.
16. Connect engine harness multiplugs to  fuse

box.

17. Connect starter lead to fuse box and  secure

with nut.

18. Connect engine harness positive lead to

battery and tighten nut.

19. Fit fuse box cover.
20. Position engine earth lead and secure  with

bolt.

21. Position coolant rail and secure with  bolt.
22. Connect harness clips to coolant rail.
23. Connect hose to coolant rail and coolant  pump

and secure with clips.

24. Connect PAS pump high and low pressure

pipes and secure with clips.

25. Position oil cooling pipe saddle clamp  to PAS

pump housing and secure with bolt.

26. Clean A/C compressor and housing mating

faces, dowels and dowel holes.

27. Position  A/C compressor, fit bolts and tighten

to 22 Nm (16 lbf.ft).

28. Connect  multiplug to A/C compressor.
29. Clean ACE pump and housing mating faces,

dowels and dowel holes.

30. Position ACE pump, fit bolts and  tighten to 22

Nm (16 lbf.ft).

31. Clean all pulley 'V's, fit auxiliary  drive belt,

using a 15mm spanner, release  belt tensioner
secure belt and re-tension  drive belt .

32. Ensure auxiliary drive belt is  correctly located

on all pulleys.

33. Fit radiator.



 +

 COOLING SYSTEM - V8, REPAIRS,

Radiator.

34. Fit top hose and secure with clips.
35. Connect fuel pipe to fuel rail.
36. Position ignition coils and connect ht leads.
37. Fit upper inlet manifold.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Gasket - inlet
manifold - upper - Without Secondary Air
Injection.

38. Fit new oil  filter and refill engine with oil.



 +

 ENGINE - V8, REPAIRS, Filter - oil.



 +

 MAINTENANCE, PROCEDURES,

Engine oil - V8 engine.

39. Top up gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Automatic gearbox.

ENGINE - V8

REPAIRS 12-2-31

Flywheel

$% 12.53.07

Remove

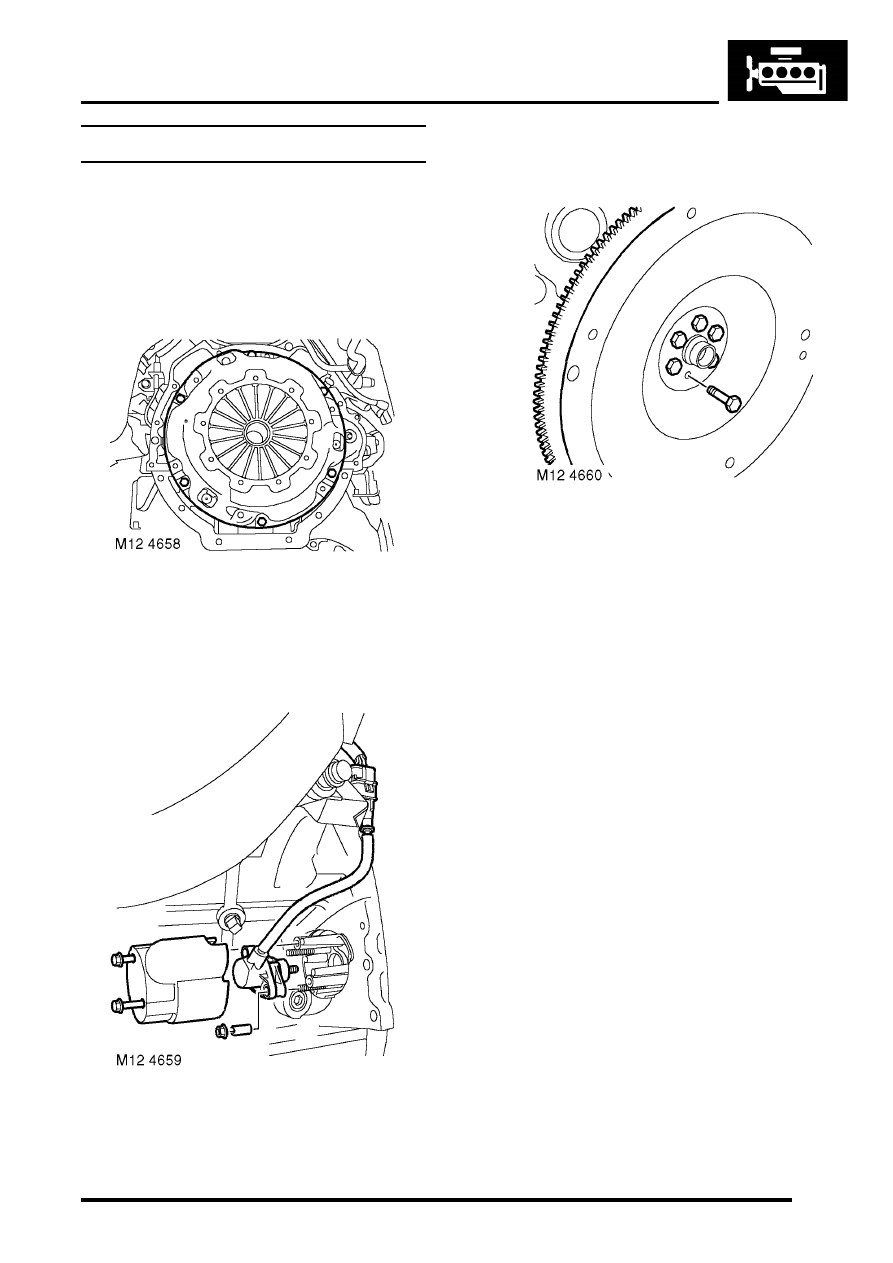

1. Remove gearbox



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

2. Restrain flywheel.

3. Working in sequence, progressively slacken 6

bolts securing clutch cover to  flywheel.
Remove bolts.

4. Remove clutch cover.
5. Remove clutch plate.

6. Release crankshaft sensor multiplug  from

bracket.

7. Remove 2 bolts securing crankshaft  sensor

cover.

8. Remove crankshaft sensor cover.
9. Remove 2 nuts securing crankshaft  sensor.

10. Remove crankshaft sensor.

11. Remove 6 bolts securing flywheel.
12. Remove flywheel.

On early engines, balance weights are on
engine side of flywheel; replacement flywheels
will have balance weights on clutch side of
flywheel.

Refit

1. Clean mating faces of flywheel and  crankshaft,

dowel and dowel hole. Ensure bolt holes in
crankshaft are clean and dry.

2. Fit flywheel to crankshaft and  tighten bolts to

78 Nm (58 lbf.ft).

3. Clean crankshaft sensor and mating face.
4. Fit crankshaft sensor and tighten  nuts to 6 Nm

(4.4 lbf.ft).

5. Fit crankshaft sensor cover and  tighten bolts to

6 Nm (5 lbf.ft).

6. Fit crankshaft sensor multiplug to  bracket.
7. Clean clutch cover, drive plate and  spigot bush

in end of crankshaft. Renew worn components
as necessary.

8. If refitting existing drive plate, apply  'Molycote

FB 180' to splines.

ENGINE - V8

12-2-32 REPAIRS

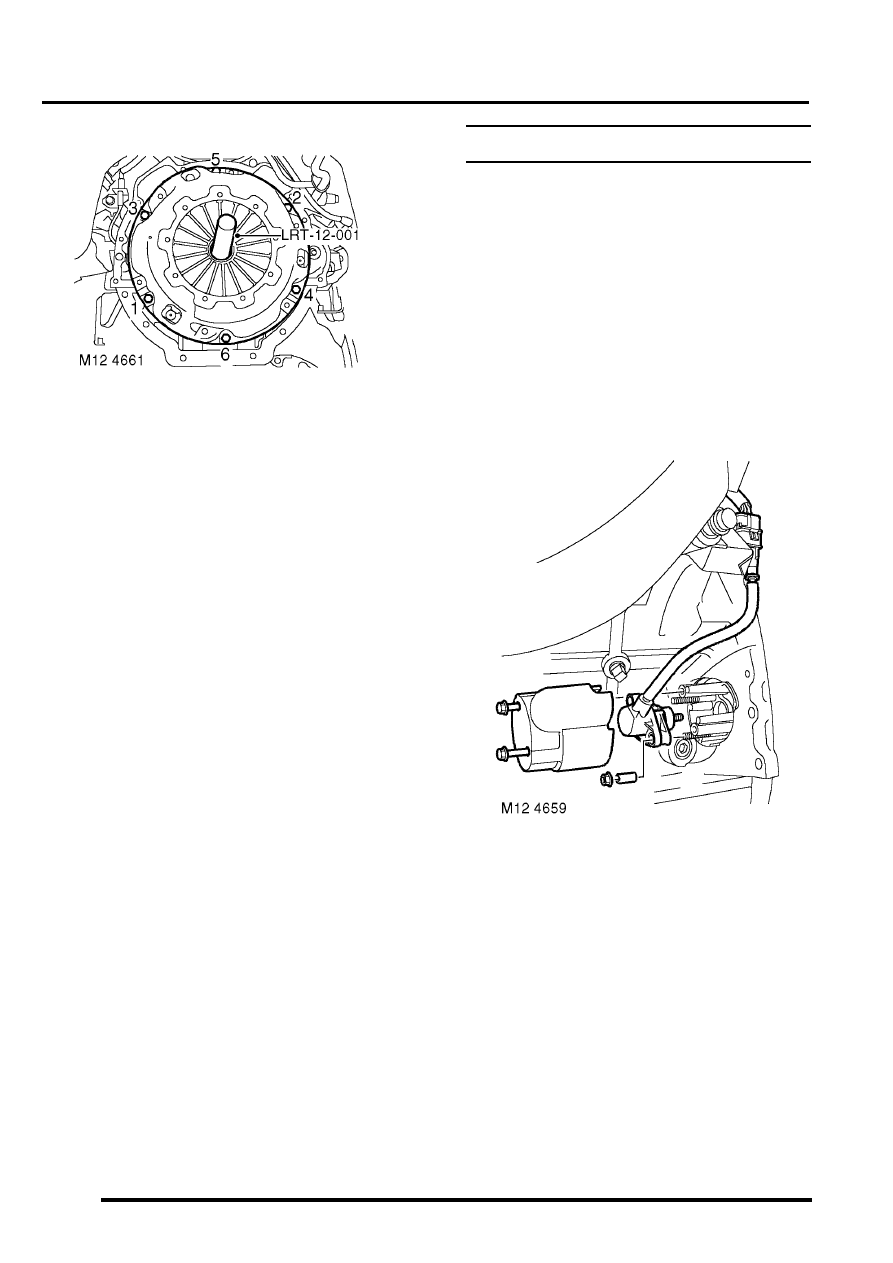

9. Fit alignment tool LRT-12-001   to spigot

bearing in crankshaft.

10. Fit drive plate onto tool LRT-12-001  ensure

side marked 'flywheel side' is towards flywheel.

11. Fit clutch cover and locate on dowels.
12. Fit clutch cover bolts and tighten  in diagonal

sequence to 40 Nm (30 lbf.ft).

13. Fit gearbox assembly.



 +

 MANUAL GEARBOX - R380,

REPAIRS, Gearbox - V8.

Plate - drive - automatic

$% 12.53.13

Remove

Note: Later engines are fitted with a modified
starter ring gear which incorporates the reluctor
plate, spacer and hub. The modified ring gear
may be fitted as a replacement to early
engines.

1. Remove automatic gearbox.



 +

 AUTOMATIC GEARBOX - ZF4HP22

- 24, REPAIRS, Gearbox - convertor and
transfer gearbox - V8.

2. Remove 2 bolts securing CKP sensor  cover.
3. Remove CKP sensor cover.
4. Remove 2 nuts securing CKP sensor.
5. Remove CKP sensor.
