ENGINE - V8

DESCRIPTION AND OPERATION

12-2-1

ENGINE - V8

DESCRIPTION AND OPERATION

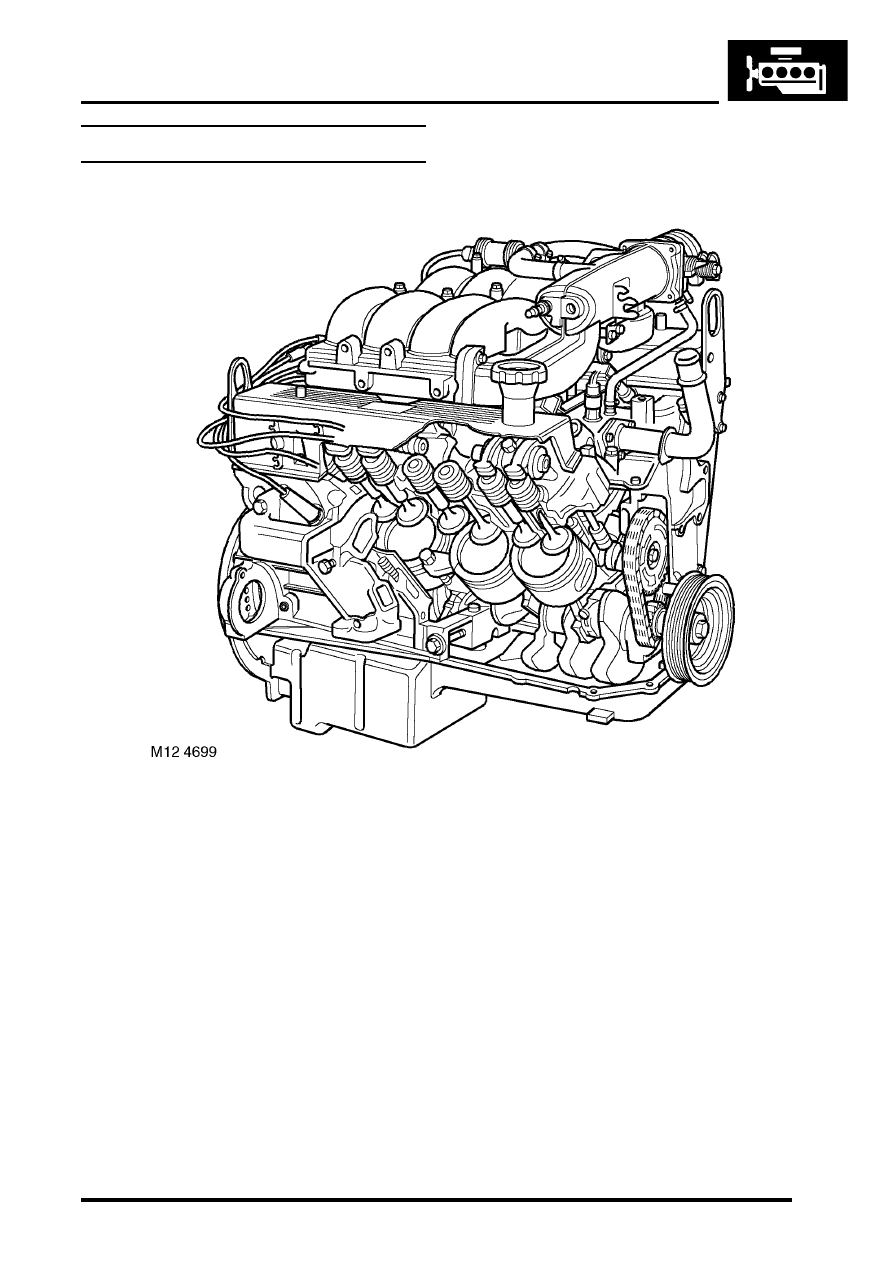

V8 Engine

ENGINE - V8

12-2-2

DESCRIPTION AND OPERATION

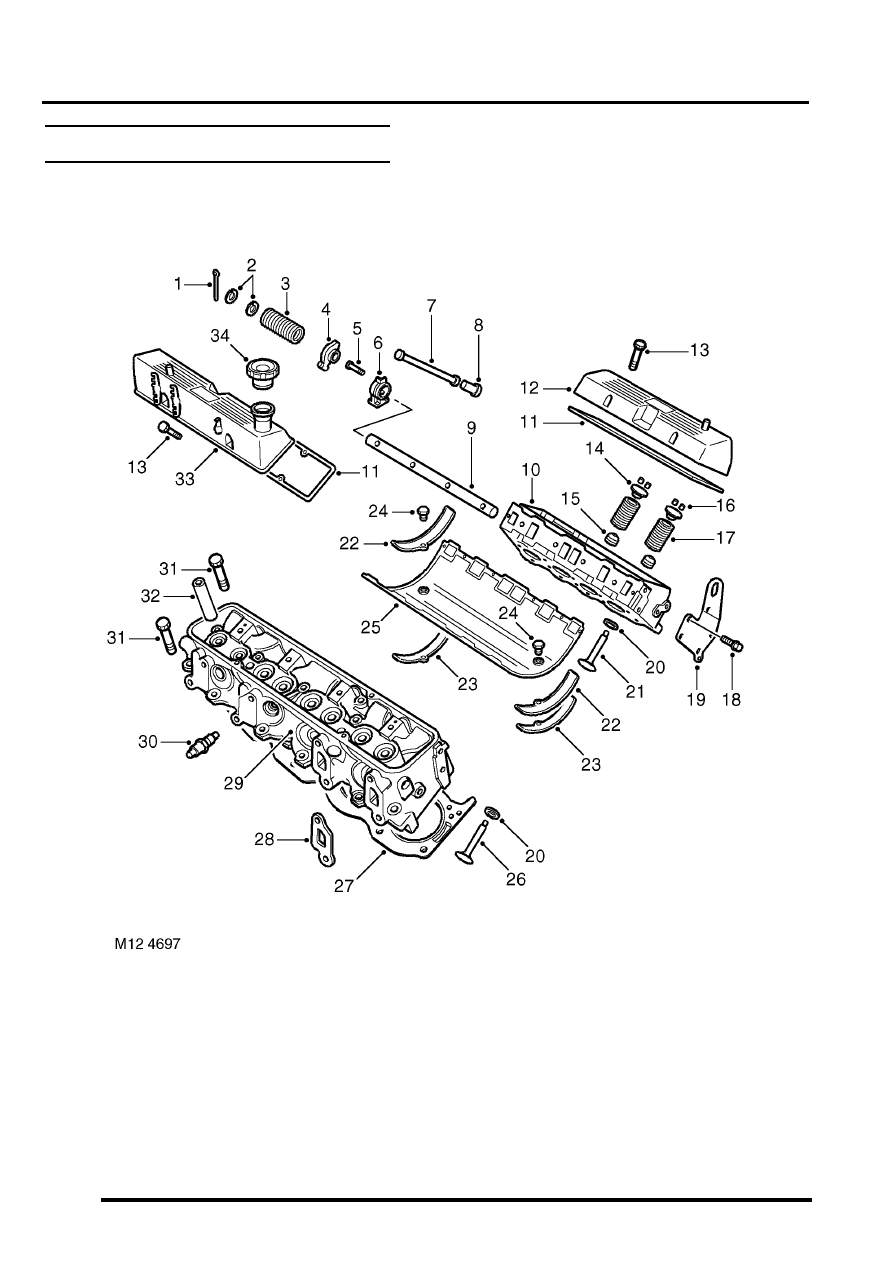

Cylinder head components

ENGINE - V8

DESCRIPTION AND OPERATION

12-2-3

1 Split pin
2 Washers
3 Spring
4 Rocker arm
5 Pedestal bolt
6 Pedestal
7 Push rod
8 Hydraulic tappet
9 Rocker shaft

10 Cylinder head - left hand
11 Gasket - rocker cover
12 Rocker cover - left hand
13 Bolt - rocker cover
14 Valve spring cap
15 Valve stem oil seals
16 Collets
17 Valve spring

18 Bolt - engine lifting bracket
19 Engine lifting bracket
20 Valve seat insert
21 Exhaust valve
22 Clamp - inlet manifold gasket
23 Seal - inlet manifold gasket
24 Bolt - inlet manifold gasket clamp
25 Gasket - inlet manifold
26 Inlet valve
27 Gasket - cylinder head
28 Gasket - exhaust manifold
29 Cylinder head - right hand
30 Spark plug
31 Bolt - cylinder head
32 Valve guide
33 Rocker cover - right hand
34 Engine oil filler cap

ENGINE - V8

12-2-4

DESCRIPTION AND OPERATION

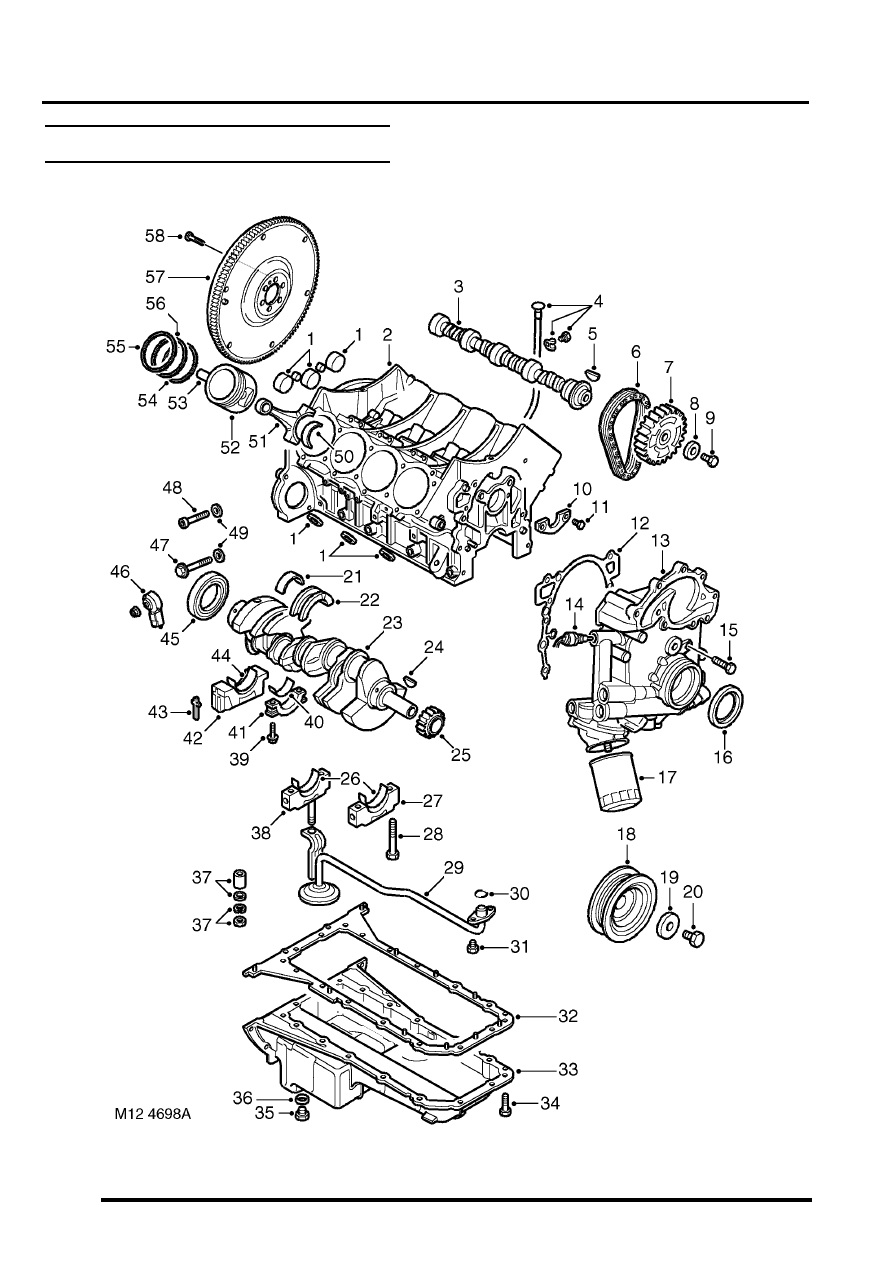

Cylinder block components
