Discovery electrical Manual - part 64





COOLING FANS

K5

CIRCUIT OPERATION

2

Cooling Fan Operation (MFI–T16)

The Cooling Fan 1 (M141) or Cooling Fans (M141,
M142) on vehicles equipped with MFI–T16 engines
operate when any of the following conditions occur:

1. The A/C system is operating.

2. The Engine Control Module (ECM) determines

that Cooling Fan Motor operation is required.

Cooling Fan Operation (MFI–T16) without A/C

With the Ignition Switch (X134) in position II, battery
voltage is applied to the Cooling Fan Relay (K190)
from fuse F3 of the Satellite Fuse Box 1 (P127).
When Cooling Fan Operation is required, the Engine
Control Module (ECM) (Z132) grounds terminal 85 of
the Cooling Fan Relay (K190). The relay energises,
applying battery voltage from fuse F3 of the Engine
Compartment Fuse Box (P125) to the Cooling Fan
Motor 1 (M141). When Cooling Fan Operation is no
longer required, the ECM removes the ground
supply to the Cooling Fan Relay (K190). The Relay
de–energises, removing the voltage supply to the
Cooling Fan Motor 1 (M141).

Cooling Fan Operation (MFI–T16) with A/C

With the Ignition Switch (X134) in position II, battery
voltage is applied to the Ignition Load Relay (K127).
The relay is energised, applying battery voltage to
the Condenser Fan Relay (K109). When Cooling
Fan operation is required, the Engine Control Module
(ECM) (Z132) grounds terminal 85 of the Condenser
Fan Relay (K109). The relay energises, applying
battery voltage from fuse F3 of the Engine
Compartment Fuse Box (P125) to the Cooling Fan
Motors (M141, 142). When Cooling Fan operation is
no longer required, the ECM removes the ground
supply to the Condenser Fan Relay (K109). The
relay de–energises, removing the voltage supply to
the Cooling Fans (M141, M142).

Condenser Fan Operation (NAS) (SFI–V8)

The Condenser Fan Motors (M113, M121) on
vehicles equipped with SFI–V8 engines operate
when any of the following conditions occur:

1.

The A/C system is operating.

2.

The Engine Control Module (ECM) determines
that Condenser Fan Motor operation is required.

With the Ignition Switch (X134) in position II, battery
voltage is applied to the Ignition Load Relay (K127).
The relay is energised, applying battery voltage to
the Condenser Fan Relay (K109). When Condenser
Fan operation is required, the Engine Control Module
(ECM) (Z132) grounds terminal 85 of the Condenser
Fan Relay (K109). The relay energises, applying
battery voltage from fuse F3 of the Engine
Compartment Fuse Box (P125) to the Condenser
Fan Motors (M113, M121). When Condenser Fan
operation is no longer required, the ECM removes
the ground supply to the Condenser Fan Relay
(K109). The relay de–energises, removing the
voltage supply to the Condenser Fan Motors (M113,
M121).

COOLING FANS

K5

CIRCUIT OPERATION

3

Condenser Fan Operation (300Tdi)

The Condenser Fan Motors (M113, M121) on
vehicles equipped with diesel engines operate when
any one of the following conditions occur:

1. Coolant temperature exceeds 100



C (212



F).

2. The A/C is operating.

Condenser Fan with High Coolant Temperature

Operation (300Tdi)

When the Ignition Switch (X134) is in position II,
battery voltage is applied to the Ignition Load Relay
(K127). The relay is energised, applying battery
voltage to the Condenser Fan Relay (K109). If the
coolant temperature exceeds 100



C (212



F), the

Condenser Fan Coolant Temperature Switch (X113)
closes and energises the Condenser Fan Relay
(K109) by applying ground to the relay’s coil. When
the relay is energised, voltage from fuse F3 is
applied to the Condenser Fan Motors (M113, M121)
through the relay’s contacts.

Fan Operation with A/C (300Tdi)

With the Ignition Switch (X134) in position II, battery
voltage is applied to the Ignition Load Relay (K127).
The relay is energised, applying battery voltage to
the Condenser Fan Relay (K109) when the Front
A/C Switch (X225) is turned on and the Front Fan
Speed Switch (X247) is turned to positions I, II, III, or
IV and grounding terminal 86 of the Condenser Fan
Relay (K109). The relay energises, applying battery
voltage from fuse F3 to the Condenser Fan Motors
(M113, M121).

COOLING FANS

K5

4

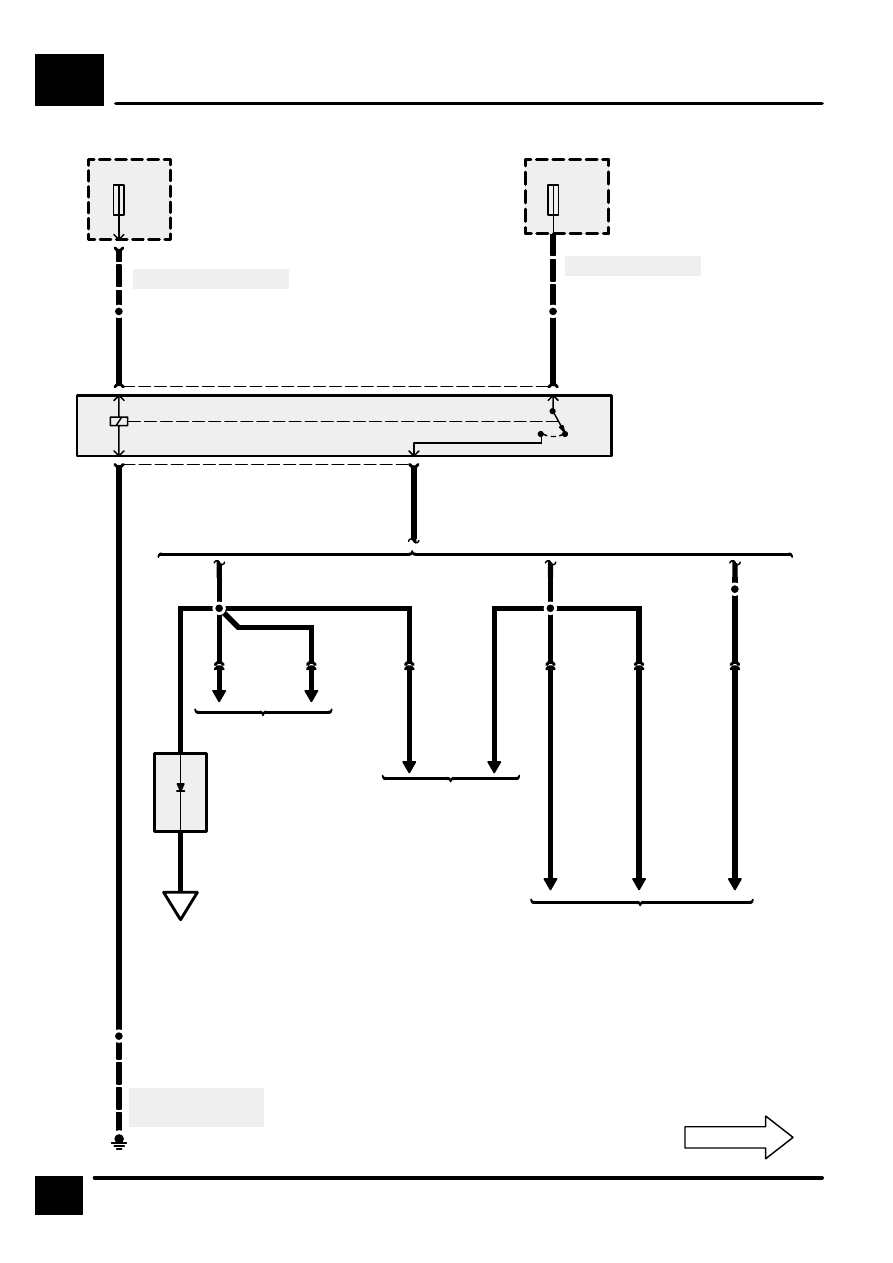

CIRCUIT DIAGRAM

A

S2124

S2041

Z211
Fan Timer Diode

See Ground Dis-
tribution

See Fuse Details

22

C204

LGP

85

30

C2007

NG

See Fuse Details

K127
Ignition Load Re-
lay

85

30

86

87

86

87

GW

B

WG

C2007

MFI–V8

Blower Controls

E200

K5-6

K5-11

K5-8

S2015

HJ10

With Air Condi-
tioning

With Air Condi-
tioning

30

F 6

25 A

P127
Satellite Fuse
Box 1

15

F 15

10 A

P126
Fascia Fuse Box

7

C2073

9

C212

3

C217

7

C2073

9

C212

7

C2073

Compressor
Controls

WG

UR

WG

UR

Blower Controls

S227
HJ4

S227
HJ4

S227
HJ4

Without Air
Conditioning

Except NAS

NAS

HJ13

K5-10

MFI–T16

300Tdi with
EDC

300Tdi with-
out EDC

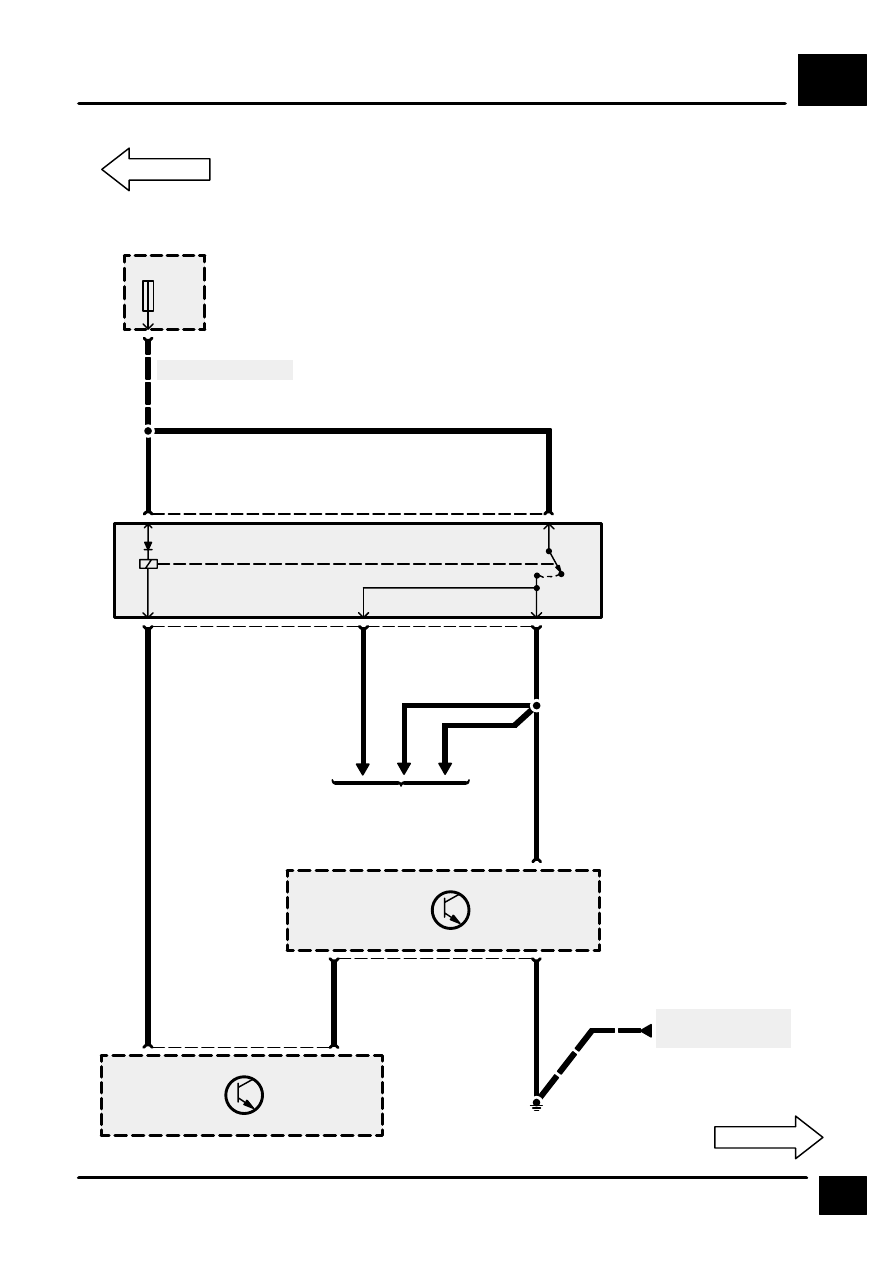

COOLING FANS (MFI–V8)

K5

5

CIRCUIT DIAGRAM

30

F 7

20 A

S224

See Fuse Details

C239

86

NO

30

NLG

1

C100

85

87a

87

2

6

5

12

See Ground Dis-
tribution

UR

NO

NO

BG

B

36

C243

E100

C238

C238

C239

S291

HJ7



86

85

87a

30

87

K116
Engine Control
Load Relay

P125
Engine Compart-
ment Fuse Box

Z118
Fan Control Mod-
ule

Z132
Engine Control
Module (ECM)

Multiport Fuel In-
jection (MFI–V8)

MFI–V8
