Discovery electrical Manual - part 20





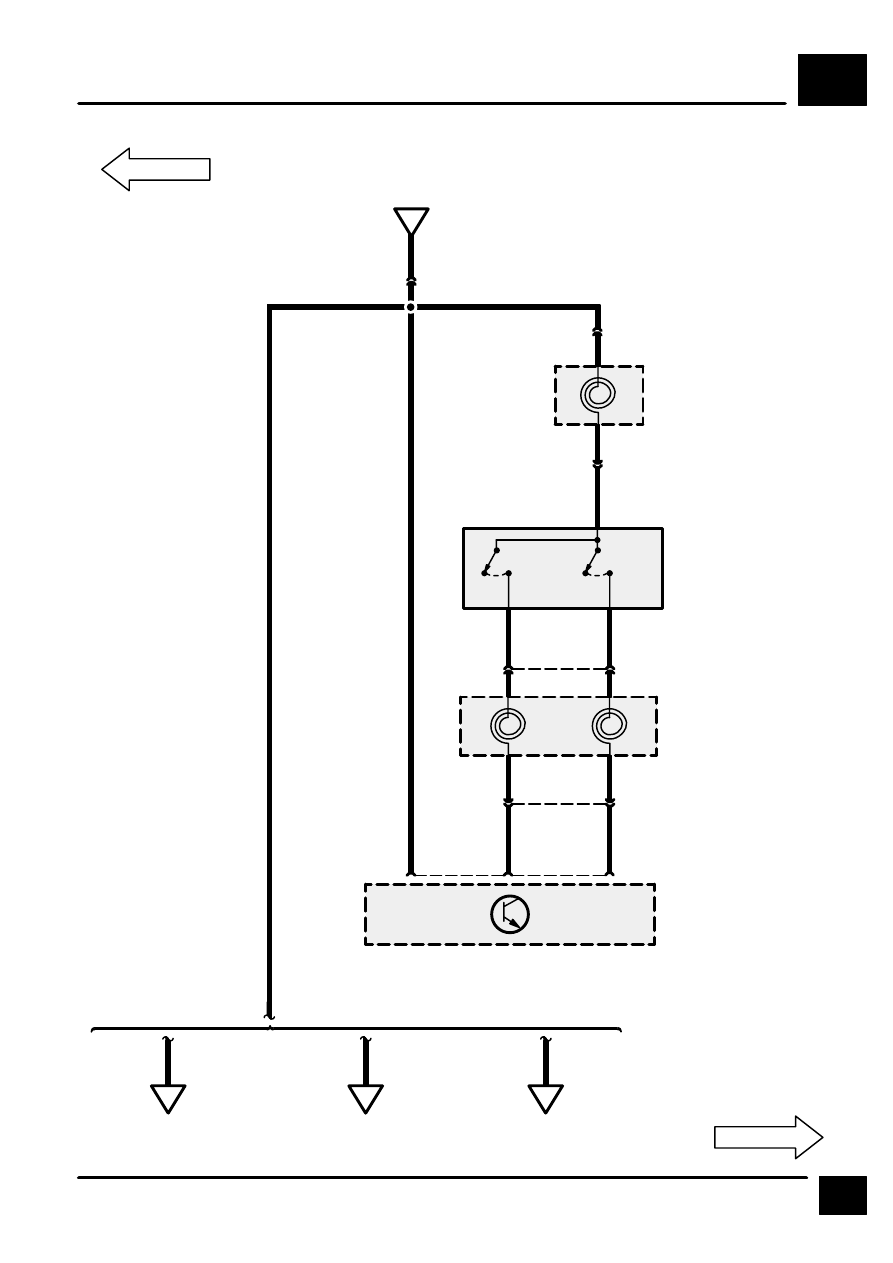

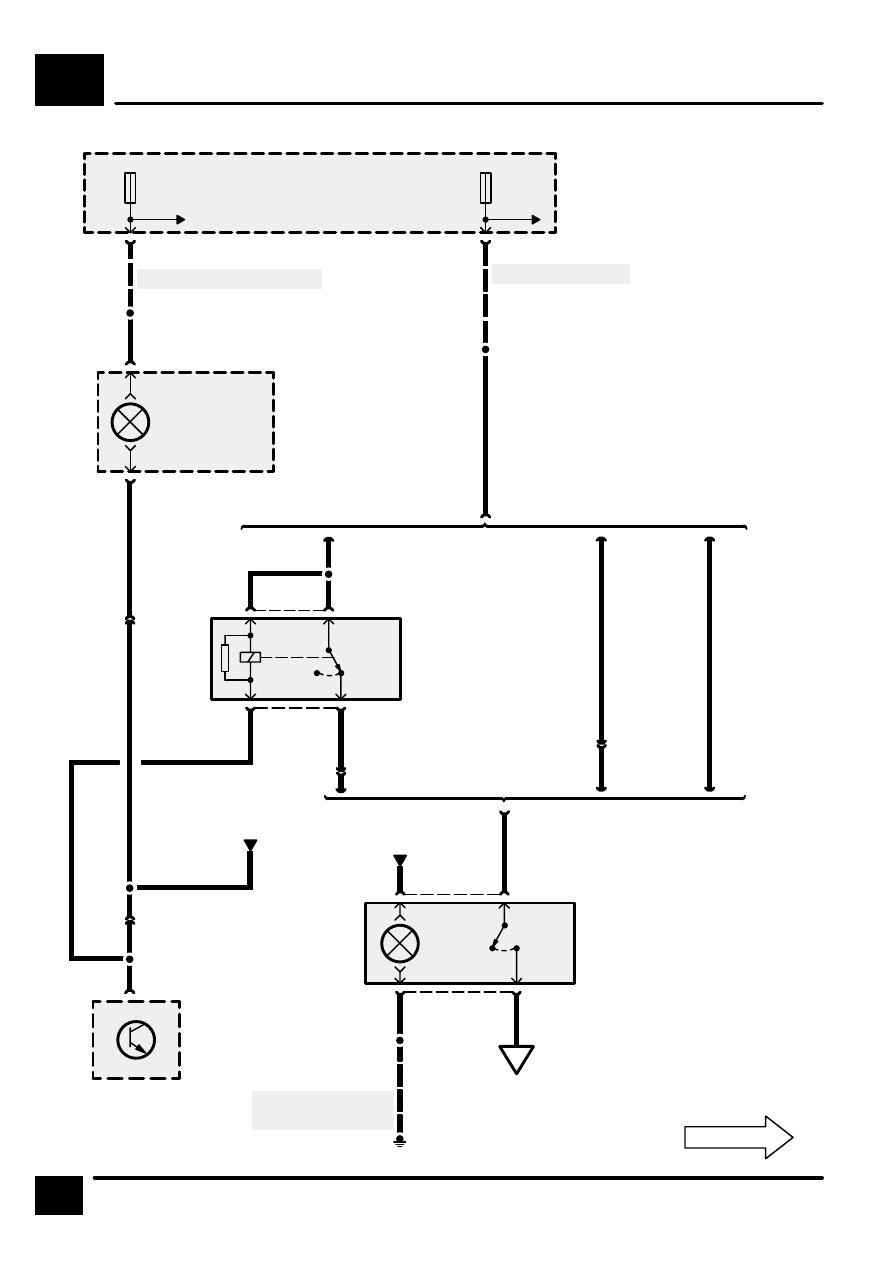

CRUISE CONTROL

B5

CIRCUIT OPERATION

2


$   !

! &!$% &  " !'&"'& %

%&$' &  '%&$   &$!' &  )$ %

%  %  "'%  (!&   &%

 % )& ( %"



The Cruise Control System can be disabled in one of
four ways:

1.

  $'%  ! &$! )&   % "'&   &

"!%&!  $!(  "!)$

! &$!      ('' "'"

$%  & %& %" !$*

2. The RES/DECEL Switch is depressed, signalling

the Cruise Control ECU (Z121) to disengage the
system.

3. The brake pedal is depressed, and a vacuum

valve in the Brake Switch Vent Valve opens
(X112). This vents vacuum to the actuator valve
and releases the throttle.

4. The Voltage applied to Cruise Control ECU

(Z121) terminal 9 is interrupted, causing the
Cruise Control ECU (Z121) to turn off the
vacuum pump and de–energise the vacuum
solenoid valve. This voltage path is interrupted
when the brake pedal is depressed, the Clutch
Pedal is depressed, or the vehicle is in Park or
Neutral. With the brake pedal depressed, the
Brake Switch Vent Valve (X112) moves to 1 and
the circuit is interrupted. With the vehicle in Park
or Neutral, the Park/Neutral Position Switch
(X167) energises the Cruise Control Lockout
Relay (K110) by grounding the relay’s coil. The
relay then opens its contacts, interrupting the
circuit. With the clutch pedal depressed, the
Clutch Switch (X200) moves to 1 and the circuit
is interrupted.

NOTE: For 300 Tdi vehicles equipped with an EDC
Diesel engine, the Cruise Control System can also
be disabled by the Engine Control Module (ECM)
(Z132) when an engine fault has been detected.

CRUISE CONTROL

B5

CIRCUIT OPERATION

3







   (& # %(& #"'%# & "#'

%#!!"

& $$%+ %#

#"&'"' &$

1. Start the engine and depress the Cruise Control

Switch (X115) to activate the Cruise Control
System. Accelerate to approximately 30 mph (50
km/h) and press the SET/ACCEL Switch.
Immediately release the switch and remove foot
from the accelerator pedal. The vehicle should
maintain the speed at which the SET/ACCEL
Switch was pressed.

2. Press the SET/ACCEL Switch and hold at that

position. The vehicle should accelerate smoothly
until the switch is released. The vehicle should
now maintain the new speed at which the
SET/ACCEL Switch was released.

3. Press the RES/DECEL Switch while the vehicle

is in the cruise control mode. The cruise control
should disengage. Slow to approximately 35 mph
(55 km/h) and press the RES/DECEL Switch.
Immediately release the switch and remove foot
from the accelerator. The vehicle should
smoothly accelerate to the previously set speed.
Increase speed using the accelerator pedal.
Releasing the pedal should return the vehicle to
the previously set speed.

4. Depressing the brake pedal should immediately

disengage the Cruise Control System and return
the vehicle to driver’s control at accelerator
pedal. Press the RES/DECEL Switch and the
vehicle should accelerate to the previously set
speed without operation of the accelerator pedal.

5. Press the RES/DECEL Switch and allow the

vehicle to decelerate to below 26 mph (42 km/h).
Press the RES/DECEL Switch and the Cruise
Control System should remain disengaged.

6. Press the SET/ACCEL Switch below 28 mph (45

km/h) and the Cruise Control System should
remain disengaged. Accelerate the vehicle
above 28 mph (45 km/h), press the RES/DECEL
Switch and remove foot from the accelerator
pedal. The vehicle should smoothly adjust to the
previously memorized speed.

7. Pressing the Cruise Control Switch (X115)

should immediately disengage the Cruise Control
System and erase the previously set speed from
ECU memory.

CRUISE CONTROL

B5

4

CIRCUIT DIAGRAM

15

F 14

10 A

15

C208

See Fuse Details

MALFUNCTION

INDICATOR

LAMP (CHECK

ENGINE)

2

C222

1

C222

RS

6

C217

Z142
Instrument
Cluster

P126
Fascia Fuse Box

X115
Cruise Control
Switch

1

C262

4

C262

5

WY

2

RN

0

[1]

Interior Lamps

S253
HJ8

E201

See Ground Dis-
tribution

B

A

B5-5

85

86

30

87a

K234
Cruise Control
Disable Relay

86

87a

C2107

GY

30

C2107

85

S2111

GLG

4

C243

Z132
Engine Control
Module (ECM)

S2103

RS

Warnings and
Indicators

2

C209

S2112

RS

15

F 18

10 A

18

C204

See Fuse Details

S274
HJ1

GLG

22

C217

300Tdi without
EDC

MFI–T16

MFI–V8

300Tdi with EDC

16

C215

GY

NAS

23

C217

23

C217

Except NAS

Except NAS

S214
HJ9

LG

GLG

GY

CRUISE CONTROL

B5

5

CIRCUIT DIAGRAM

S219

Z119
Rotary Coupler

4

C2036

3

C284

5

4

0

10

Z121
Cruise Control
ECU

X266
Steering Wheel
Cruise Switches

[1]

RES/DECEL
Depressed

[2]

SET/ACCEL
Depressed

RW

UW

Z119
Rotary Coupler

[1]

0

[2]

1

C2010

2

C2036

PB

4

C2010

3

GR

YB

W

GR

YB

A

B5-4

12

C209

WY

D

B5-11

C

B5-9

NAS

B

B5-8

Except NAS

Automatic
Transmission

Manual Trans-
mission

Manual Trans-
mission
