Discovery (1995+): Body Repair Manual - part 42





77

PANEL REPAIRS

2

REPAIR

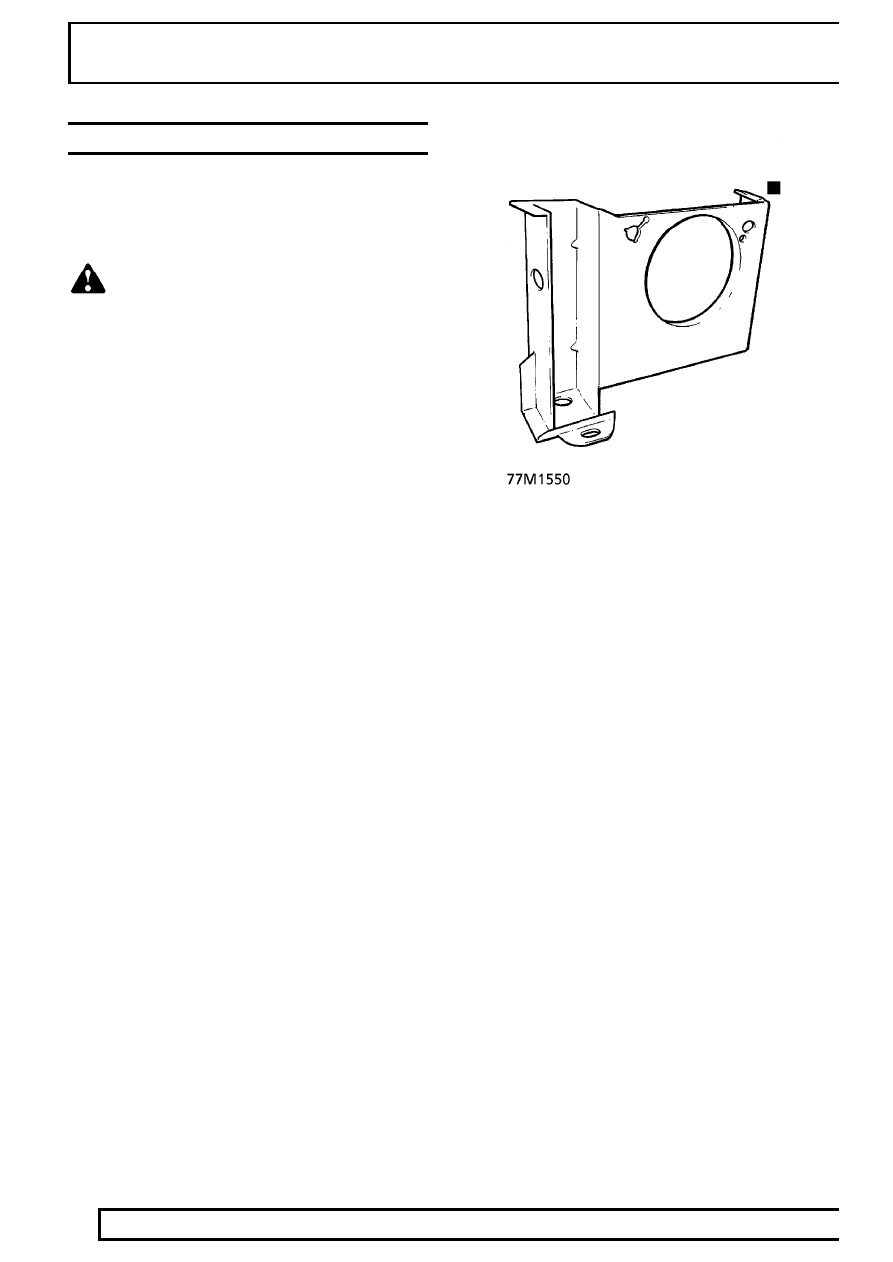

HEADLAMP PANEL

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Disconnect all ECUs.
4. Disconnect airbags and sensor system.

See

SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

5. Disconnect alternator.
6. Remove RH or LH headlight.
7. Remove RH or LH front direction indicator.
8. Remove battery at RH inner wing (RH only).
9. Remove RH or LH wing [fender].

See CHASSIS

AND BODY, Repair.

10. Remove front grille.
11. Remove radiator/oil coolers.
12. Remove power steering fluid reservoir and

bracket at LH of radiator (LH only).

13. Remove ignition coil and bracket at LH of

radiator - on petrol engine vehicles (LH only).

14. Remove owner jack and jack cover at LH inner

wing (LH only).

15. Remove engine air cleaner box at LH inner wing

(LH only).

16. Remove battery at RH inner wing (RH only).

Refit

17. Prepare and clean panel joint faces. Punch or

drill hole in headlamp panel top outer corner for
plug welding as shown.

18. Reverse removal procedure.
19. Remove stands and lower vehicle.

PANEL REPAIRS

3

REPAIR

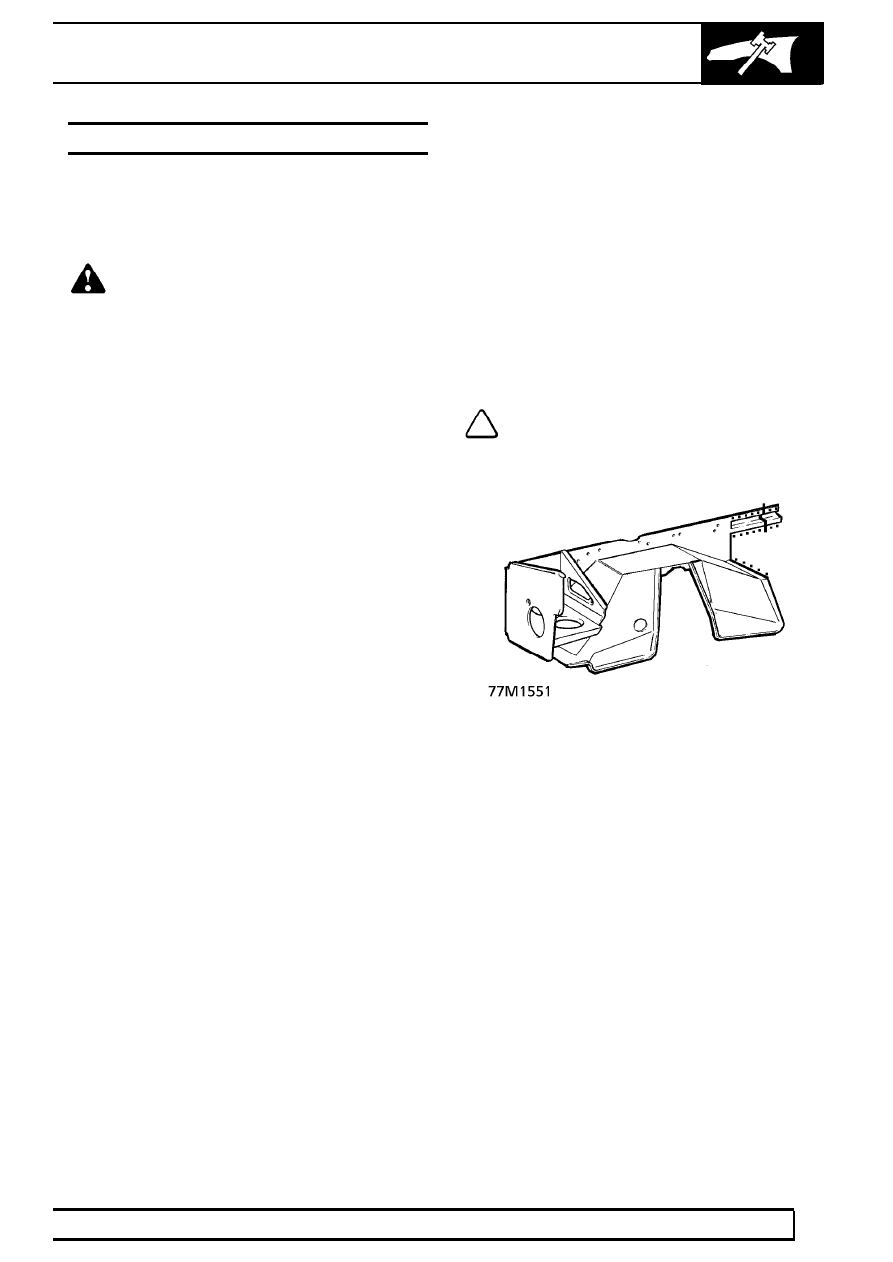

VALANCE AND WHEELARCH

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Disconnect all ECUs.
4. Disconnect airbags and sensor system.
5. Remove driver’s or passenger’s airbag module.

See SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

6. Disconnect alternator.
7. Remove RH or LH headlight.
8. Remove RH or LH front direction indicator.
9. Remove battery at RH inner wing.

10. Remove ignition coil and bracket at LH of

radiator (petrol engine vehicles).

11. Remove power steering fluid reservoir at LH of

radiator.

12. Remove RH or LH wing [fender].

See CHASSIS

AND BODY, Repair.

13. Remove front grille.
14. Remove radiator/oil coolers.
15. Remove expansion tank and bracket on RH

inner wing (RH only).

16. Remove charcoal canister and bracket on RH

inner wing (RH only).

17. Remove fuse box - engine compartment and

bracket at RH inner wing (RH only).

18. Remove lower steering shaft and universal joints

(RH only).

19. Remove steering wheel (RH only).
20. Remove upper steering column (RH only).

21. Remove RH or LH front shock absorber
22. Remove engine air intake box at LH inner wing

(LH only).

23. Remove bonnet [hood].

See CHASSIS AND

BODY, Repair.

24. Remove modulator unit at LH inner wing (LH

only).

25. Remove brake servo assembly (RH only).
26. Remove weatherstrips at upper edge of

bulkhead and inner wing.

27. Remove air intake plenum cowl.

See CHASSIS

AND BODY, Repair.

Refit

NOTE: In this operation the valance and
wheelarch is fitted in combination with a
front panel assembly and wing extension

panel.

28. Prepare and clean panel joint faces. Punch or

drill holes in new valance and wheelarch for plug
welding, and cut new panel to form seam welded
butt joint with existing panel as shown.

29. Reverse removal procedure.
30. Remove stands and lower vehicle.

77

PANEL REPAIRS

4

REPAIR

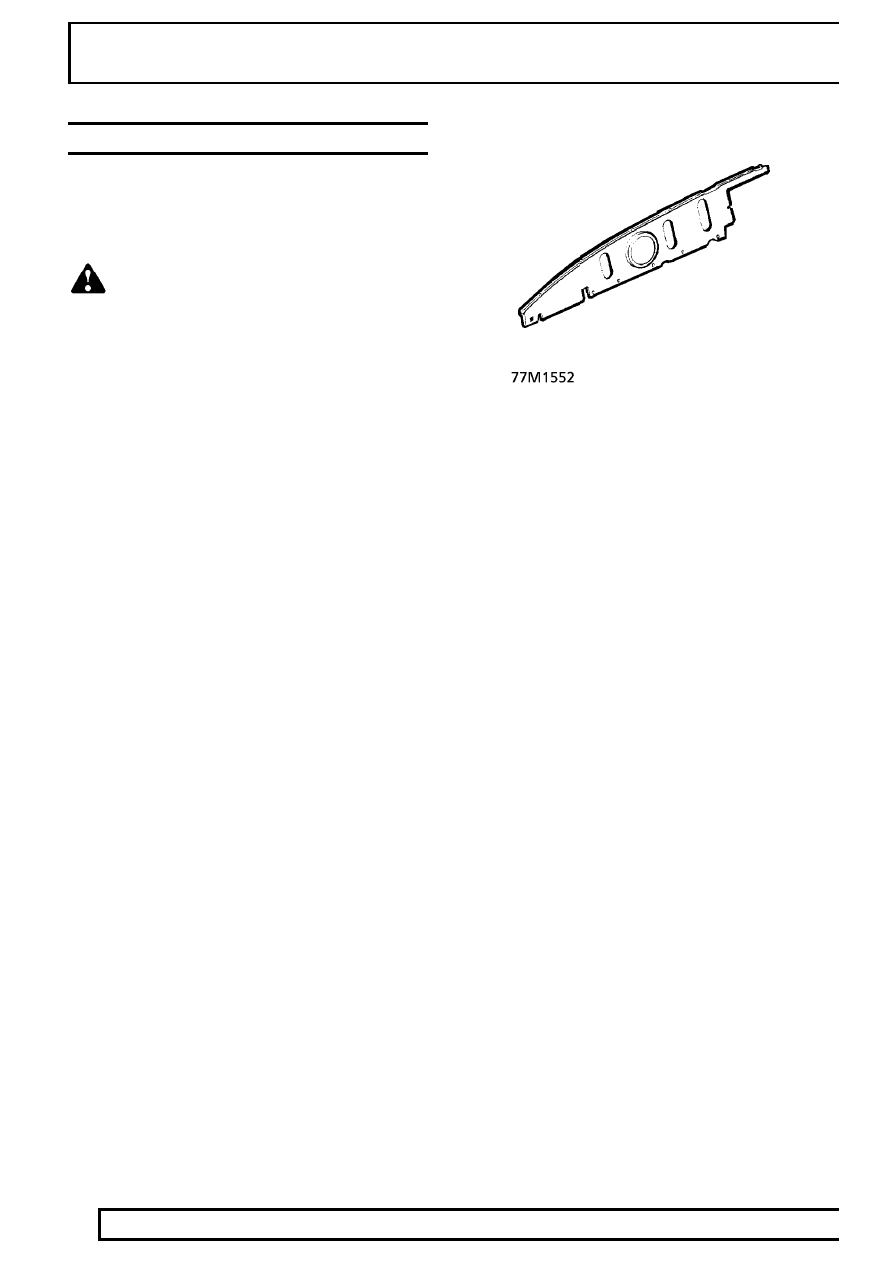

WING EXTENSION PANEL

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Disconnect all ECUs.
4. Disconnect airbags and sensor system.

See

SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

5. Disconnect alternator.
6. Remove RH or LH headlight.
7. Remove RH or LH front direction indicator.
8. Remove battery at RH inner wing.
9. Remove RH or LH wing [fender].

See CHASSIS

AND BODY, Repair.

10. Remove expansion tank and bracket on RH

inner wing (RH only).

11. Remove charcoal canister and bracket on RH

inner wing, if fitted (RH only).

12. Remove fuse box - engine compartment and

bracket at RH inner wing (RH only).

13. Remove engine air intake box at LH inner wing

(LH only).

14. Remove bonnet [hood].

See CHASSIS AND

BODY, Repair.

15. Remove modulator unit at LH inner wing (LH

only).

16. Remove brake servo assembly (RH only).
17. Remove weatherstrips at upper edge of

bulkhead and inner wing.

18. Remove air intake plenum cowl.

See CHASSIS

AND BODY, Repair.

Refit

19. Prepare and clean panel joint faces. Punch or

drill hole in lower front corner of new wing
extension panel for plug welding as shown.

20. Reverse removal procedure.
21. Remove stands and lower vehicle.

PANEL REPAIRS

5

REPAIR

FRONT DOOR OUTER PANEL

Remove

1. Remove front door.

See CHASSIS AND BODY,

Repair.

2. Remove front door trim panel.

See CHASSIS

AND BODY, Repair.

3. Remove window lift motor, door lock actuator

and door harness, if fitted.

4. Remove exterior mirror.
5. Remove the door glass and regulator, door lock,

and inner and outer release handles.

See

CHASSIS AND BODY, Repair.

6. Remove door and with hinge halves noting the

thickness of shims fitted, to assist with refitting.
See CHASSIS AND BODY, Repair.

7. Remove the existing door outer panel by

grinding off the edge of the flange.

8. Clean door frame and remove all trace of

sealant.

9. Prime all bare metal with etch primer.

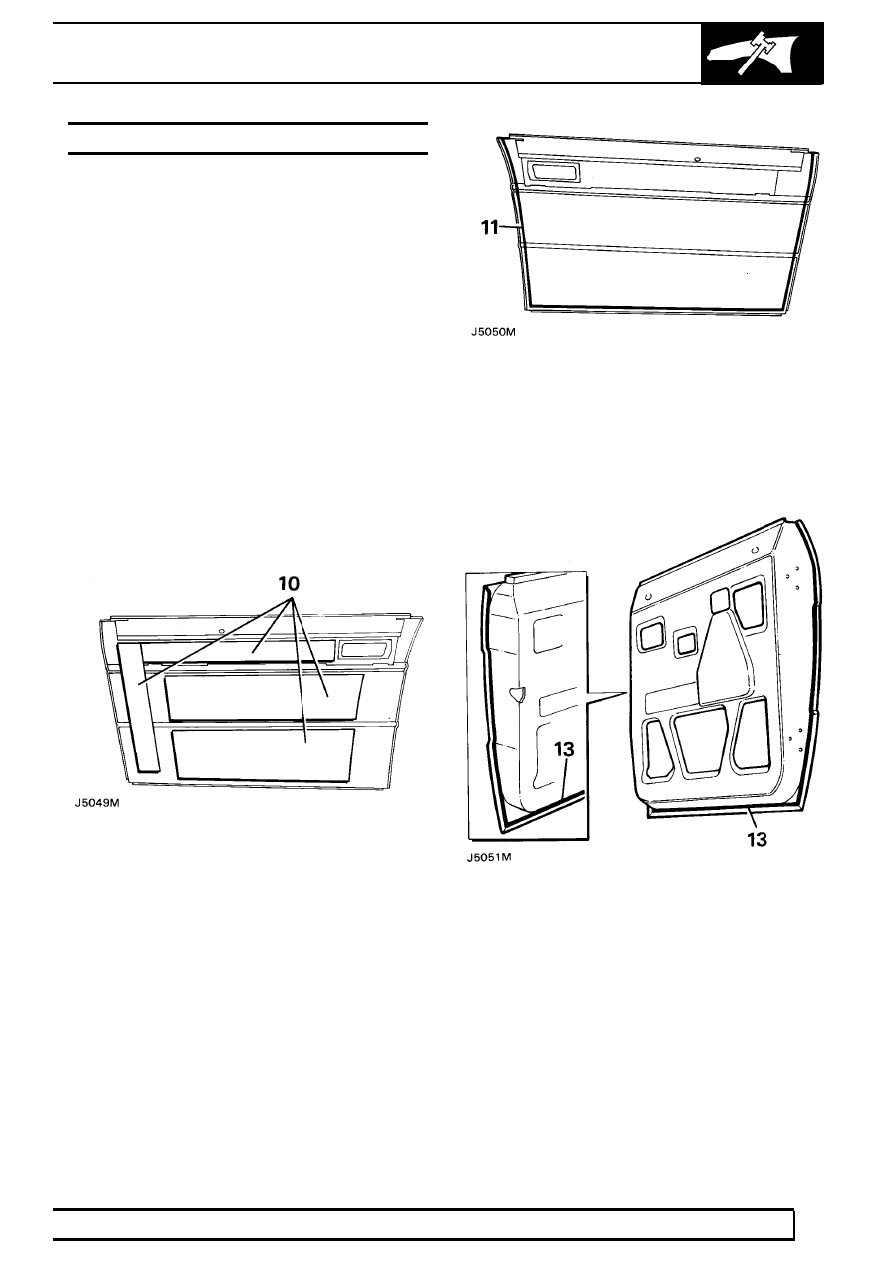

10. Apply Supra SDP25 self adhesive sound

deadening pads to replacement panel locations
illustrated.

11. Apply a (minimum thickness 4 mm (1/8 in) bead

of 3M 8684 Flexseal to outer edge of new outer
panel.

12. Fit new door outer panel to door frame and

clinch the flange.

13. Apply a bead of Flexseal to outer edge of

clinched joint. Work the bead as required to
achieve a smooth, cosmetically acceptable seal.

14. Paint panel as necessary.

See Panels,

15. Refit associated parts to door in reverse order of

removal.

16. Refit door to vehicle. Adjust as necessary to

achieve a satisfactory fit.
