Discovery (1995+): Body Repair Manual - part 30





76

CHASSIS AND BODY

58

REPAIR

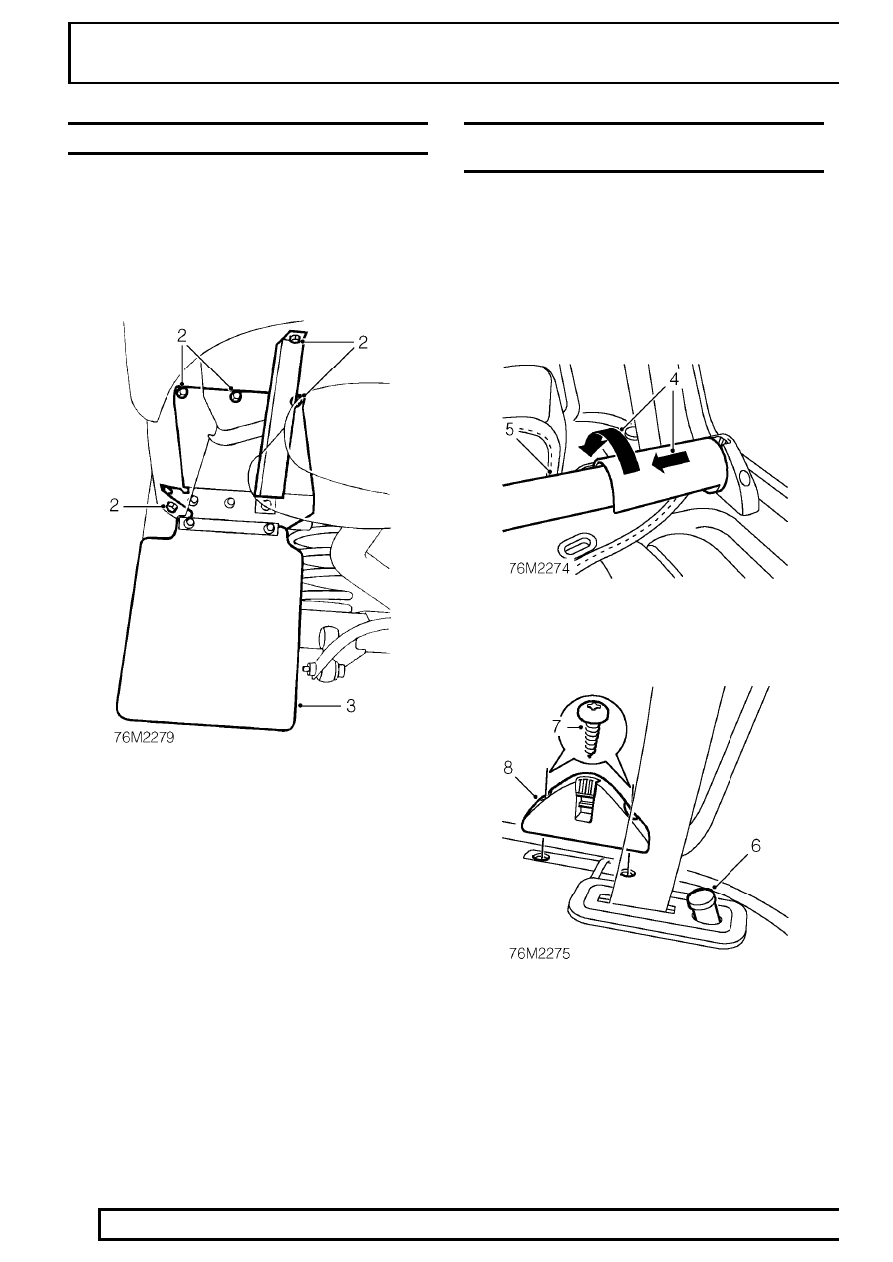

MUD FLAP - REAR - LH

Service repair no - 76.10.85

Remove

1. Remove rear compartment lower trim panel.

See this section.

2. Remove 5 nuts and bolts securing mud flap to

body and bumper valance.

3. Remove mud flap.

Refit

4. Position mud flap to body, fit bolts and tighten

nuts to

10 Nm (7 lbf ft) .

5. Fit rear compartment lower trim panel.

See this

section.

REAR COMPARTMENT LOWER TRIM PANEL - LH
- WITH REAR AIR CONDITIONING FITTED

Service repair no - 76.13.03/20

Remove

1. Remove rear fold down seat.

See this section.

2. Remove fold down rear seat belts.

See this

section.

3. Remove ’E’ post trim casing.

See this section.

4. Release load space cover end sleeve from

mounting bracket.

5. Remove load space cover.

6. Press rear seat squab release button and fold

squab forward.

7. Remove 2 screws securing load space cover

mounting bracket.

8. Remove mounting bracket.

CHASSIS AND BODY

59

REPAIR

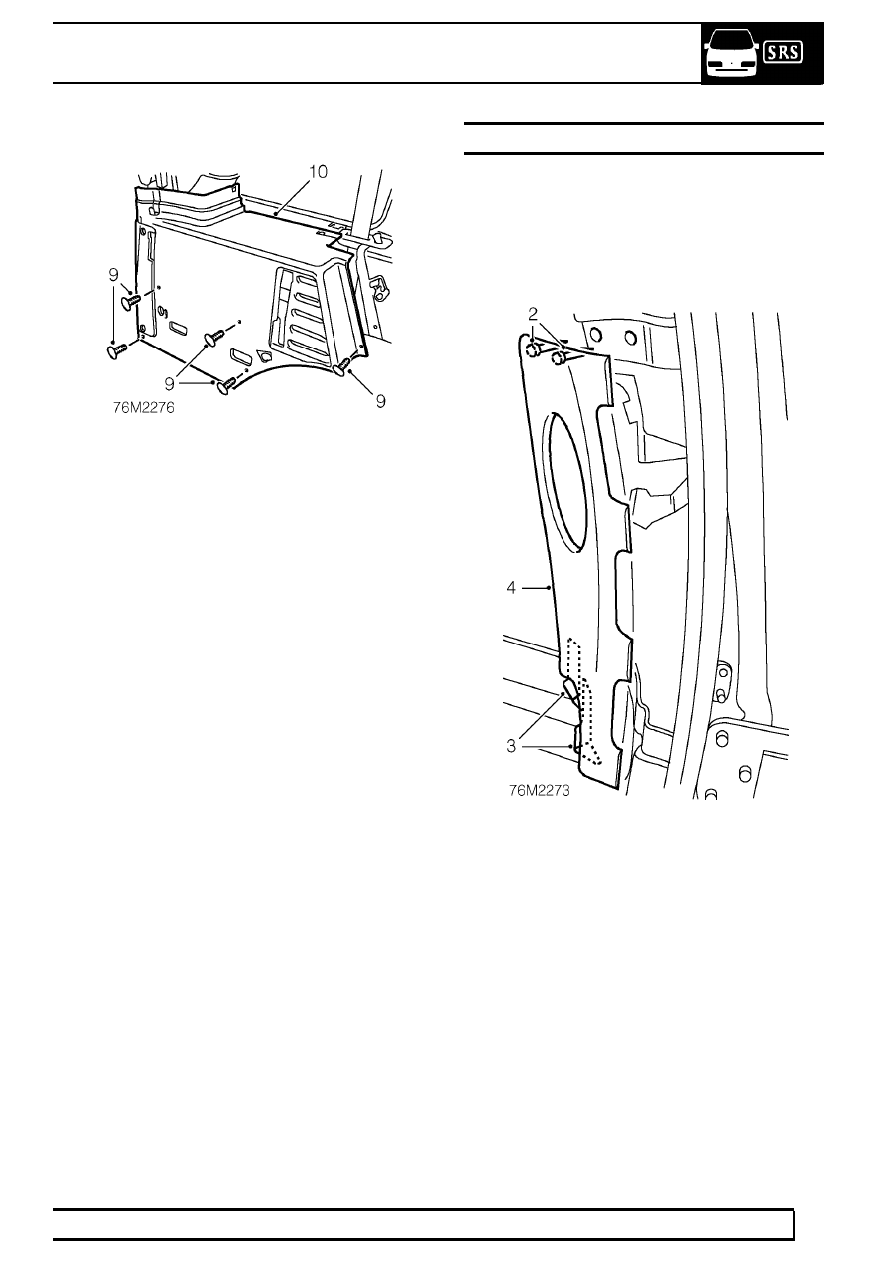

9. Remove 5 trim studs securing trim panel.

10. Remove trim panel.

Refit

11. Fit and align trim panel.
12. Fit trim panel retaining studs.
13. Position load space cover mounting bracket and

secure with screws.

14. Fold rear seat squab back and secure to latch.
15. Position load space cover to mounting brackets

and secure.

16. Fit ’E’ post trim casing.

See this section.

17. Fit fold down rear seat belts.

See this section.

18. Fit rear fold down seat.

See this section.

’E’ POST TRIM CASING - RH

Service repair no - 76.13.13/03

Remove

1. Remove rear speaker.

See ELECTRICAL,

Repair.

2. Release 2 ’E’ post finisher retaining studs from

alpine light trim.

3. Release 2 ’E’ post finisher retaining clips from

lower trim panel.

4. Remove ’E’ post finisher.

Refit

5. Position ’E’ post finisher clips to lower trim panel.
6. Secure ’E’ post finisher studs to alpine light trim.
7. Fit rear speaker.

See ELECTRICAL, Repair.

76

CHASSIS AND BODY

60

REPAIR

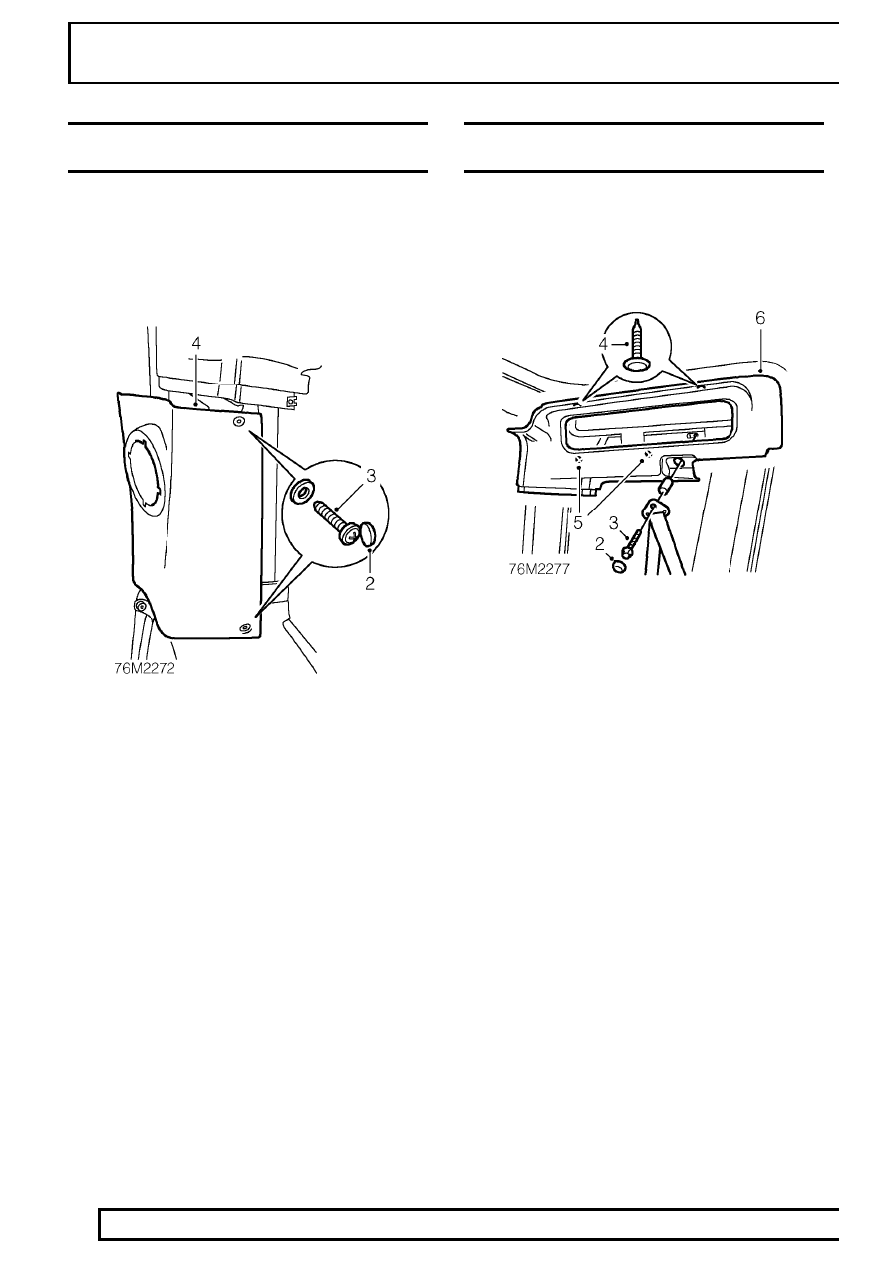

’E’ POST TRIM CASING - LH - WITH REAR AIR
CONDITIONING FITTED

Service repair no - 76.13.13/20

Remove

1. Remove rear speaker.

See ELECTRICAL,

Repair.

2. Release 2 trim casing retaining screw covers.
3. Remove 2 screws securing trim casing.
4. Remove trim casing.

Refit

5. Fit and align trim casing.
6. Fit and tighten screws securing trim casing and

fit covers.

7. Fit rear speaker.

See ELECTRICAL, Repair.

ALPINE LIGHT TRIM CASING - LH - WITH REAR
AIR CONDITIONING FITTED

Service repair no - 76.13.20/20

Remove

1. Remove ’E’ post trim casing.

See this section.

2. Remove rear seat belt anchorage retaining bolt

cover.

3. Remove bolt securing rear seat belt anchorage.
4. Remove 2 trim studs securing trim casing.
5. Release trim casing from 2 retaining studs.
6. Remove trim casing.

Refit

7. Fit and align trim casing and secure with studs.
8. Fit 2 trim studs securing trim casing.
9. Position seat belt anchorage, fit bolt and tighten

to

20 Nm (15 lbf ft) .

10. Fit cover to seat belt anchorage bolt.
11. Fit ’E’ post trim casing.

See this section.

CHASSIS AND BODY

61

REPAIR

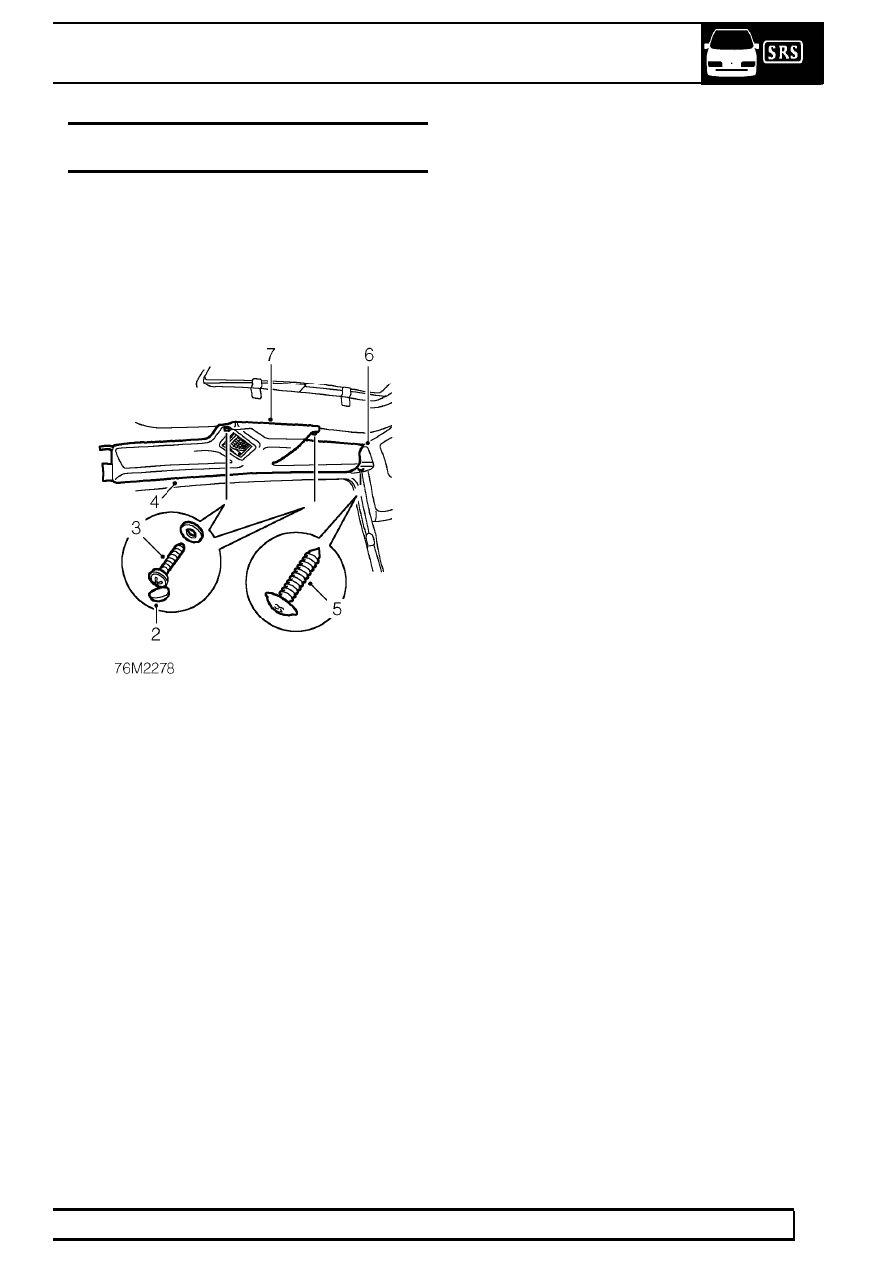

REAR DOOR UPPER TRIM PANEL - WITH REAR
AIR CONDITIONING FITTED

Service repair no - 76.13.72/20

Remove

1. Remove alpine light trim casing.

See this

section.

2. Release 2 trim panel retaining screw covers.
3. Remove 2 trim panel retaining screws.
4. Release rear edge of trim panel from body.
5. Remove screw securing rear header duct to

alpine light duct.

6. Release rear header duct from alpine light duct.
7. Remove trim panel assembly.

Dismantle

8. Remove 2 vents from trim panel.
9. Remove screw securing rear header duct to trim

panel.

10. Remove rear header duct.

Rebuild

11. Fit rear header duct to new trim panel and

secure with screw.

12. Fit vents to trim panel.

Refit

13. Position trim panel and connect rear header duct

to alpine light duct.

14. Fit and tighten screw securing rear header duct

to alpine light duct.

15. Secure rear edge of trim panel to body.
16. Fit and tighten screws securing trim panel.
17. Secure trim panel retaining screw covers.
18. Fit alpine light trim casing.

See this section.
