Discovery (1995+): Body Repair Manual - part 24





76

CHASSIS AND BODY

34

REPAIR

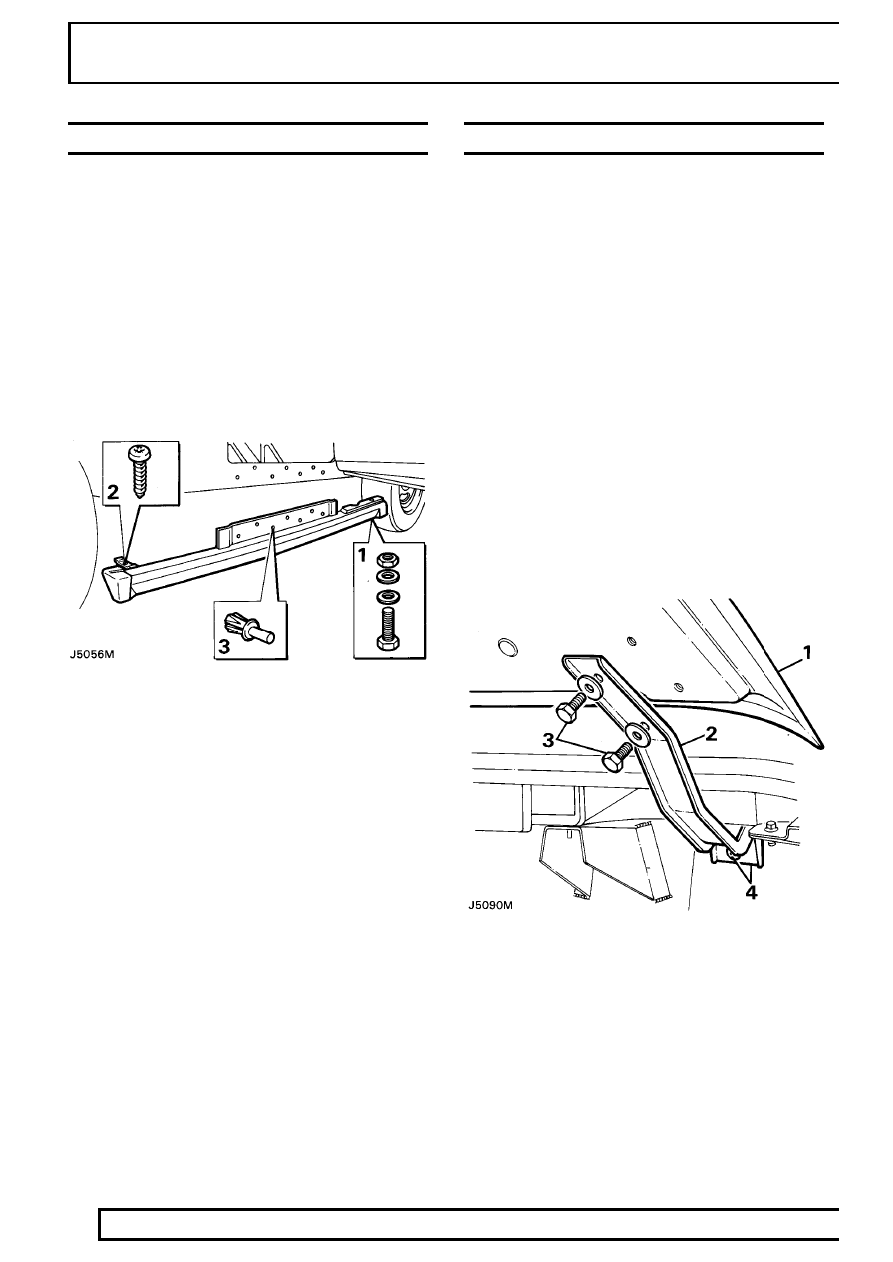

SILL FINISHER

Service repair no - 76.76.05

Remove

1. Remove the nut, bolt and washer securing the

front of the sill finisher to the wing [fender]
support bracket.

2. Remove the screw securing the bracket at the

rear end of the finisher to the sill.

3. Using a suitable punch, remove the inserts from

the seven plastic retainers and withdraw the
finisher from the sill.

Refit

4. Reverse removal procedure. Using new plastic

retainers.

BONNET [HOOD]

Service repair no - 76.16.01

Remove

1. Open the bonnet [hood] and support with the

stay.

2. Mark the position of the hinges to the bonnet

[hood].

3. With the assistance of a second operator,

remove the hinge to bonnet [hood] securing
screws, remove the support stay and lift bonnet
[hood] from the vehicle. Note the quantity of
shims fitted between the hinge and bonnet
[hood].

Refit

4. Reverse removal procedure. Ensuring that it

aligns with the wings [fenders], cowl panel and
front grille before fully tightening the securing
bolts.

CHASSIS AND BODY

35

REPAIR

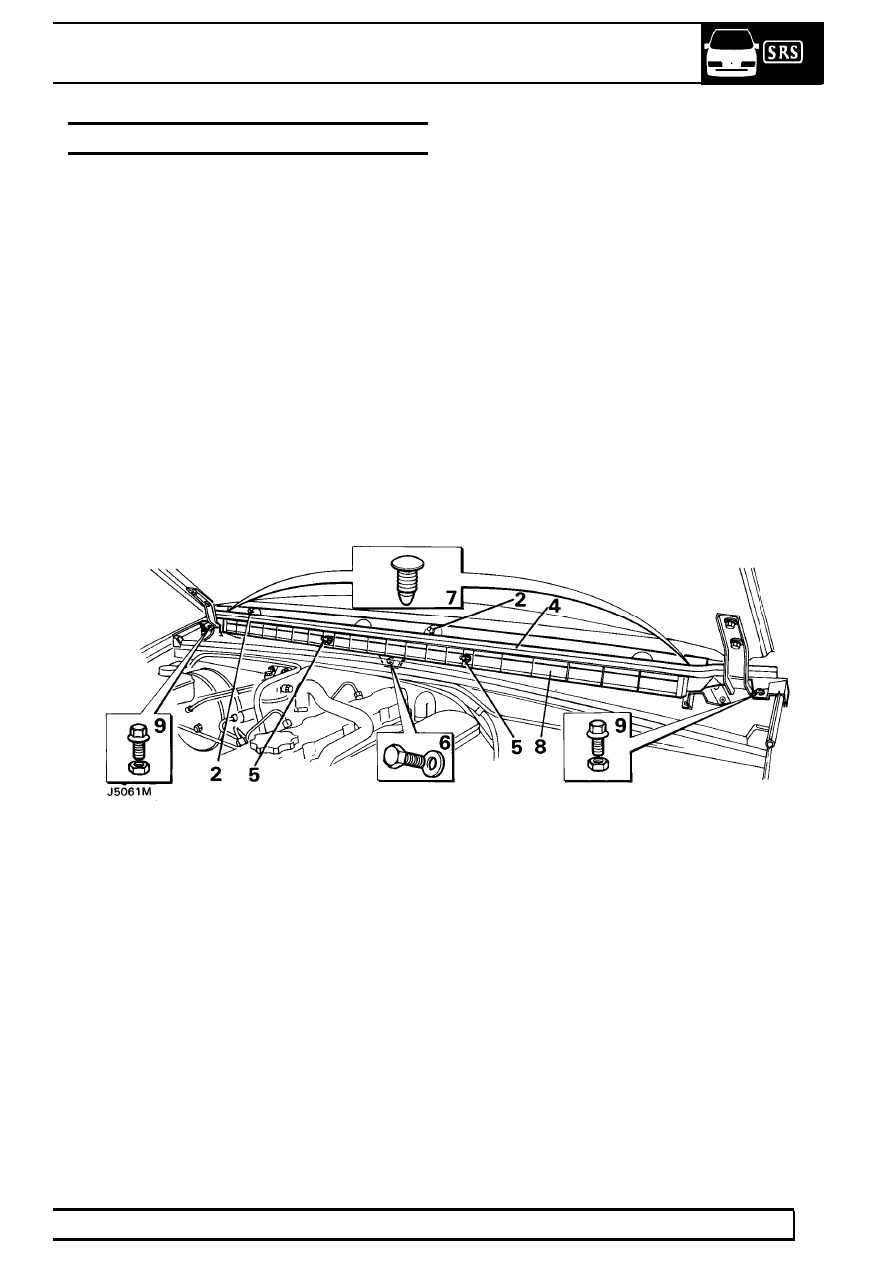

AIR INTAKE PLENUM COWL

Service repair no - 76.11.08

Remove

1. Remove the windscreen wiper arms.
2. Remove the securing nuts and the steel and

rubber washers from the wiper spindles.

3. Open the vehicle bonnet [hood].
4. Remove the rubber seal from the cowl flange.
5. Release the screen washer tubes from the

washer jets on the cowl.

6. Remove the centre bolt securing the cowl centre

section.

7. Remove the retainers securing the centre

section to the outer section.

8. Detach the centre section from the bulkhead.
9. Remove the nuts and bolts and detach the outer

sections of the cowl.

Refit

10. Reverse removal procedure.

76

CHASSIS AND BODY

36

REPAIR

SUNROOF ELECTRIC/MANUAL

Introduction

Twin sunroofs are fitted to the vehicle, the open/close
sequence for both electric and manual versions
sharing the same operation:-

A Closed position,
B Tilt position,

C Fully open position. When fully open the sunroof

slides back in a tilt position over the vehicle roof.

The electric front and rear sunroofs, operated by roof
mounted switches are controlled by an electronic
control unit. A roof mounted isolation switch is also
fitted to cut off power to the rear sunroof.

On manual sunroofs a pull down handle is used,
incorporating a depress button that locks the handle
after each sequence.

Twin sun blinds are installed in the clamping frame of
the sunroof and can be drawn forwards
independently.

CHASSIS AND BODY

37

REPAIR

SUNROOF GLASS FRONT AND REAR

Service repair no - 76.82.64

Remove

1. Open sunroof to tilt position.
2. Using a right angled screwdriver remove four

retaining screws and detach sunroof glass from
upper frame. Retain capnuts and washers.

Refit

3. Locate sunroof glass in upper frame complete

with capnuts and loosely fit retaining screws.

4. Close sunroof and move glass centrally in upper

frame.

5. Open to tilt position and tighten retaining screws.

CAUTION: Ensure washers under capnuts
do not twist or spread out when tightening
retaining screws.

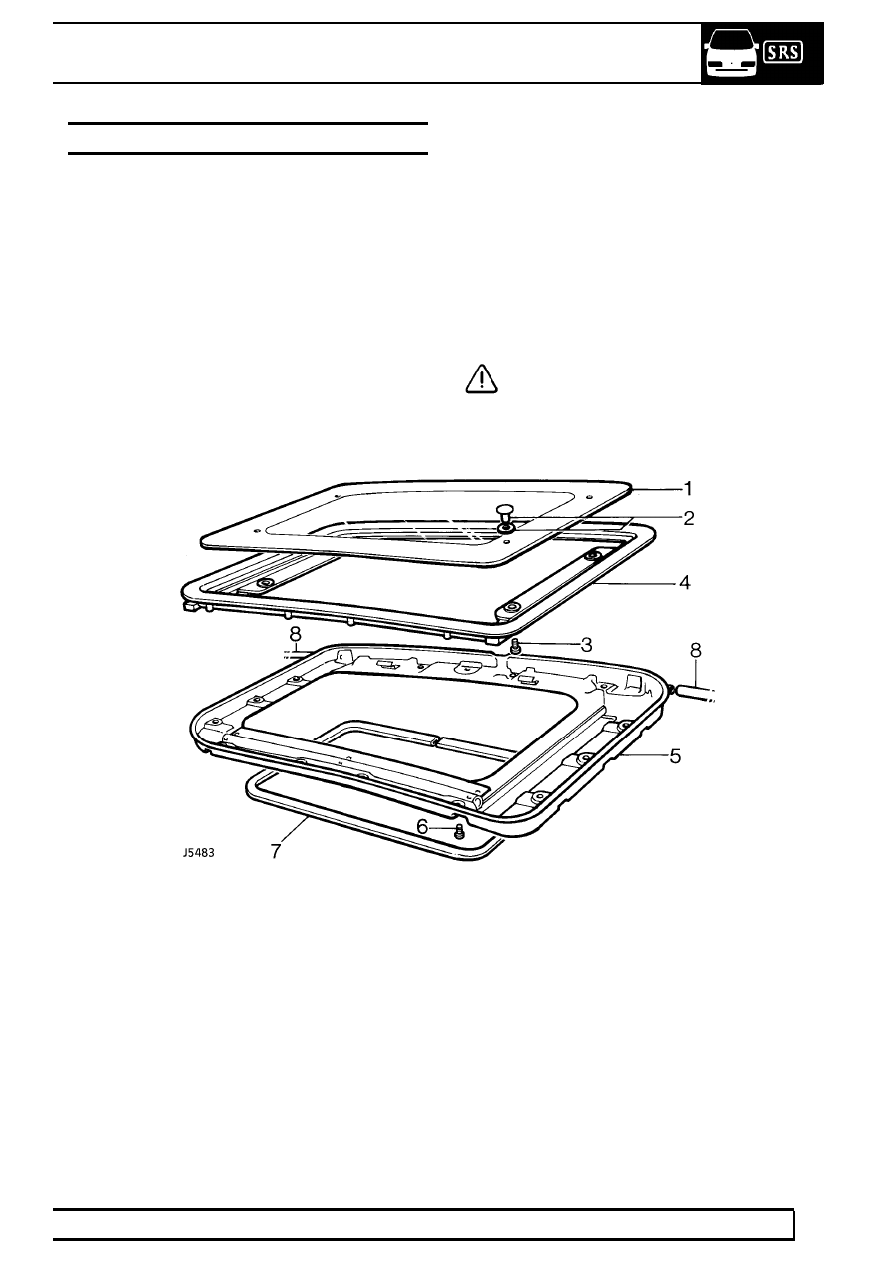

Sunroof components

1. Glass panel
2. Capnut and washer
3. Screw
4. Upper frame assembly

5. Clamping frame assembly
6. Screw
7. Edging trim
8. Drain tube
