Discovery (1995+): Body Repair Manual - part 21





76

CHASSIS AND BODY

22

REPAIR

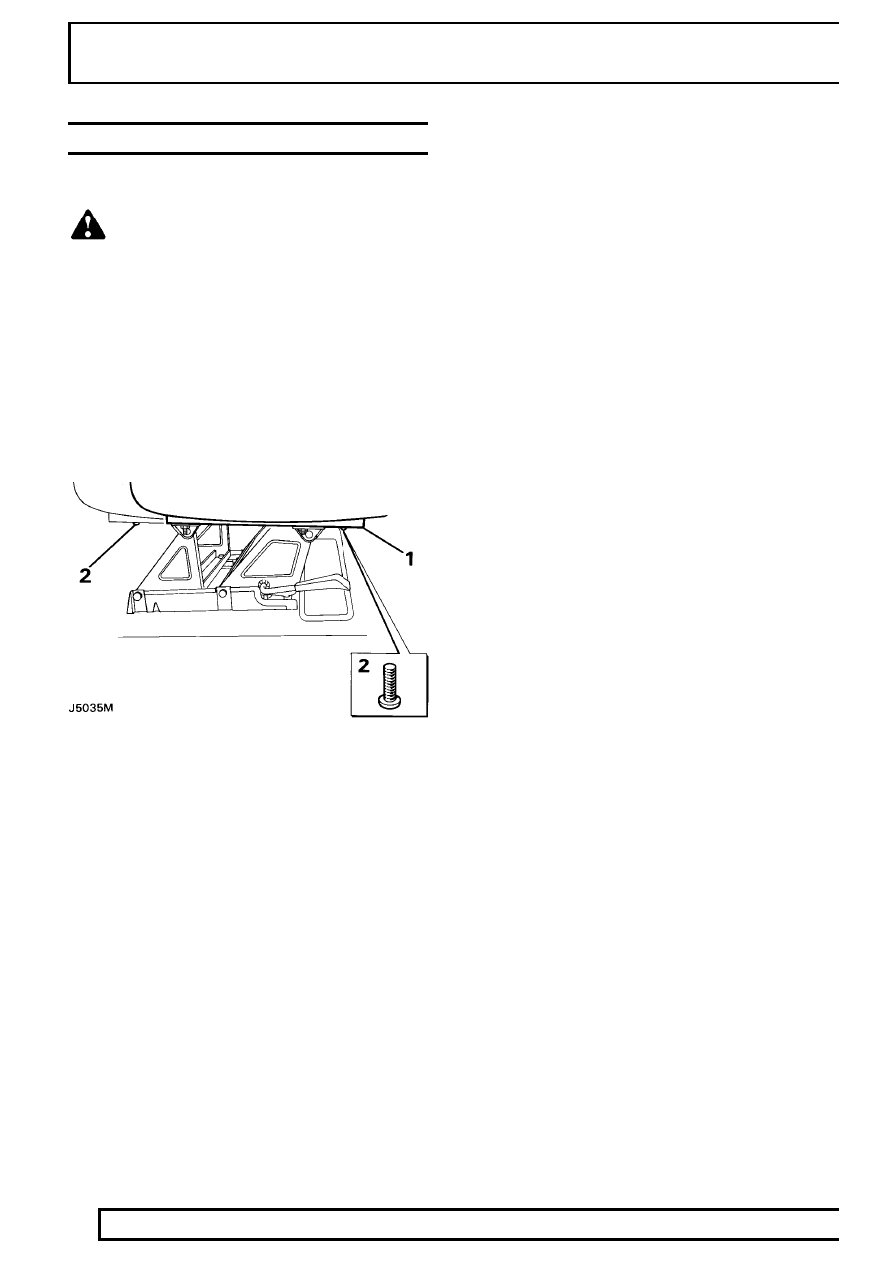

FRONT FOLDING SEATS 3 DOOR VEHICLES

Service repair no - 76.70.01

WARNING: Care must be taken if the seat
lifting mechanism is operated when the
seat is removed from the base otherwise

personal injury could occur.

Remove

1. Slide the seat to the full extent rearwards and

remove the rear seat to base securing bolts.

2. Slide the seat forward and remove the front seat

to base securing bolts.

3. Lift the seat from the base and withdraw from the

vehicle.

Refit

4. Reverse removal procedure.
5. Tighten all securing bolts to

22 Nm (16 lbf ft) .

CHASSIS AND BODY

23

REPAIR

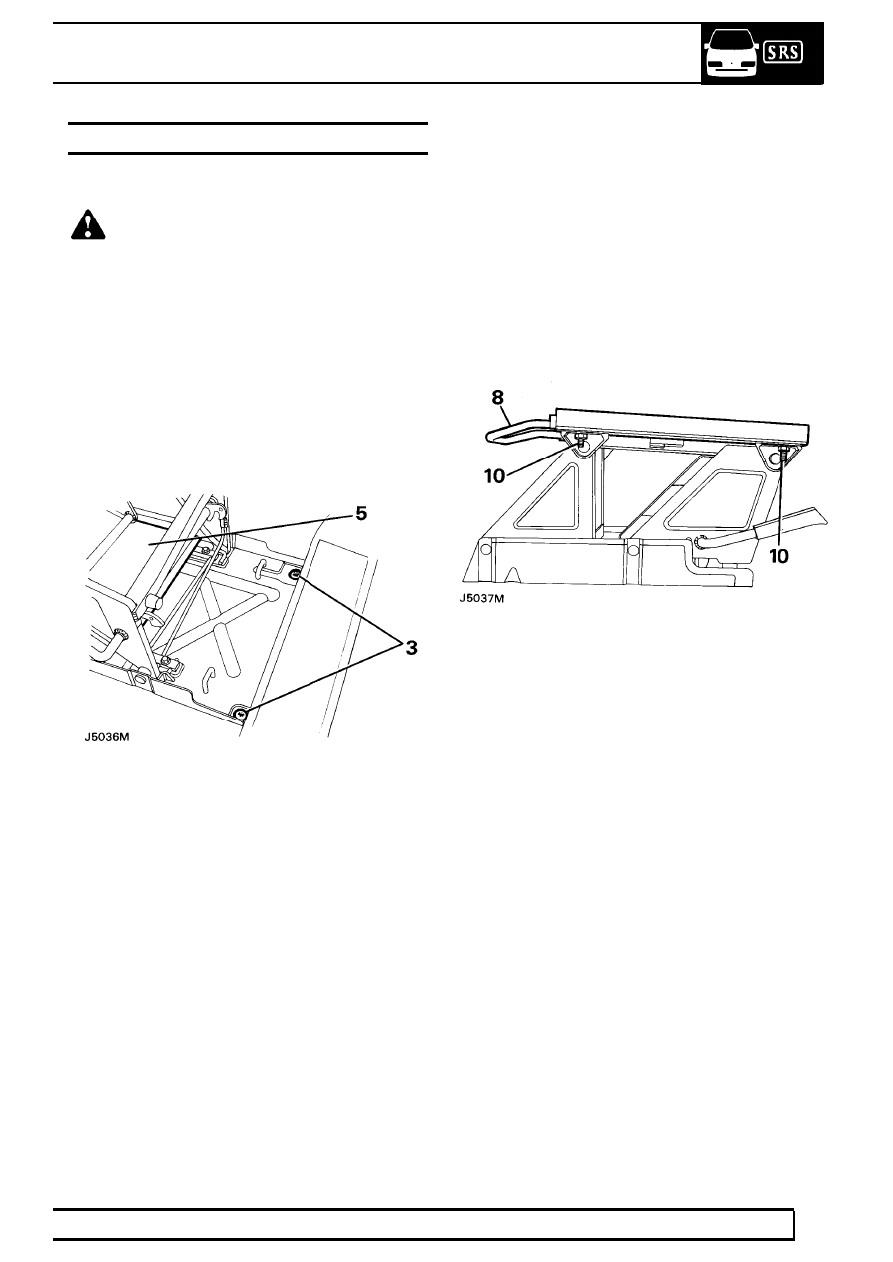

SEAT BASE

Service repair no - 76.70.06/25

WARNING: Care must be taken if the seat
lifting mechanism is operated when the
seat is removed from the base otherwise

personal injury could occur.

Remove

1. Remove the seat from the base.
2. Carefully operate the seat mechanism to raise it

to the tilt position.

3. Remove the two bolts securing the rear of the

base to the floor.

4. Return the seat mechanism to the upright

position.

5. Pull the carpet flap forward to expose the front

securing bolts, remove the bolts and lift out the
seat base.

Refit

6. Reverse removal procedure.

SEAT BASE RUNNERS

Remove

7. Remove the seat from the base.
8. Spring the release handle off its locations on the

runners.

9. Slide the runners forward sufficient to gain

access to the rear securing bolts and rearward
for the front bolts.

10. Remove the bolts and withdraw the runners.

Refit

11. Fit the runners and release handle.
12. Reverse removal procedure.
13. Refit the seat to the base.

76

CHASSIS AND BODY

24

REPAIR

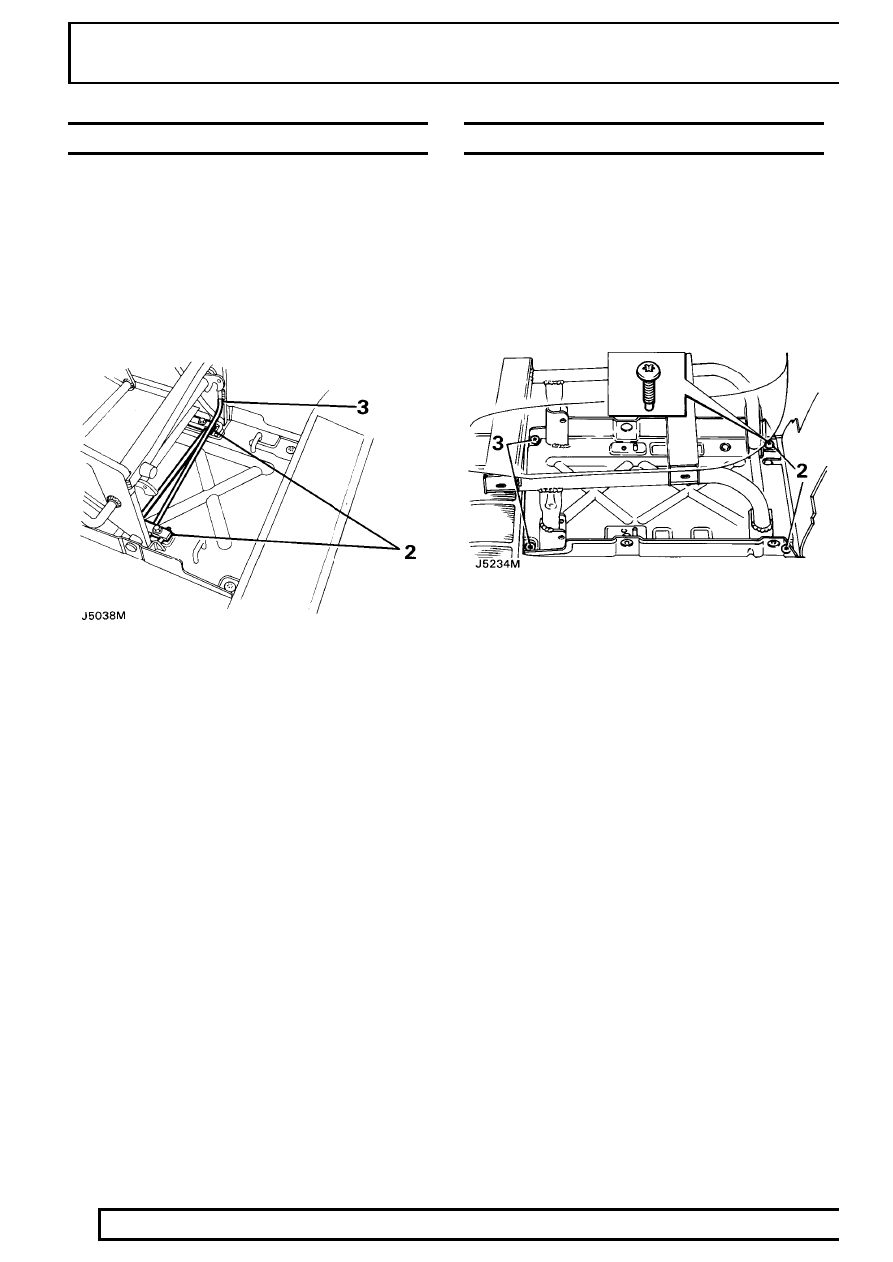

SEAT BASE TORSION BARS

Service repair no - 76.71.34

Remove

1. Tilt the seat assembly forward.
2. Remove the torsion bar clamps.
3. Extract the right angled ends of the torsion bars

from the brackets on the seat base and
withdraw.

Refit

4. Reverse removal procedure.

FRONT SEATS 5 DOOR VEHICLES

Service repair no - 76.70.01

Remove

1. Remove the finisher from the seat base.
2. Slide the seat to the full extent rearwards and

remove the front base to floor securing screws.

3. Slide the seat forwards and remove the rear

base to floor securing screw.

4. Lift the seat and base assembly and withdraw

from the vehicle.

Refit

5. Reverse removal procedure.
6. Tighten rear base to floor securing screws to

29

Nm (21 lbf ft) .

7. Tighten front base to floor securing screws to

22

Nm (16 lbf ft) .

CHASSIS AND BODY

25

REPAIR

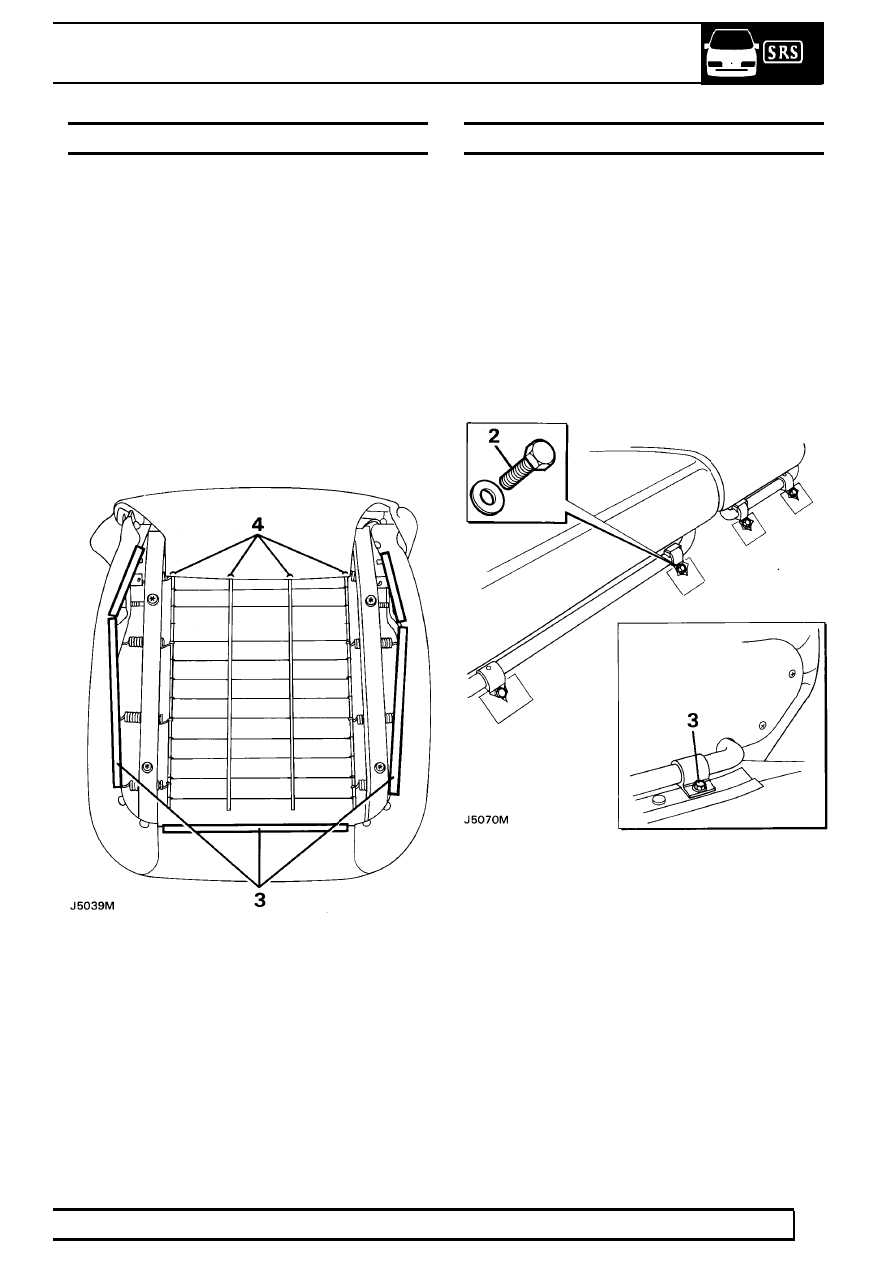

FRONT SEAT COVERS

Service repair no - 76.70.14

Cushion

Remove

1. Remove the seat from the base.
2. Invert the seat on a suitable clean bench.
3. Detach the seat cover retaining clips from the

frame.

4. Release the four wire hooks securing the squab

cover to the lower spring frame.

5. Release the cushion rear clip from the frame and

detach the cushion complete with cover.

6. Remove the cover from the cushion.

Refit

7. Reverse removal procedure.

REAR PASSENGER SEAT

Service repair no - 76.70.37

Remove

1. Feed the seat belts through the seats into the

rear compartment.

2. With the seats in the upright position, remove the

bolts from the front of the hinges.

3. Fold the seats forward, remove the bolts from

the rear of the hinges and withdraw the seats
from the vehicle.

Refit

4. Reverse removal procedure.
5. Tighten fixing bolts to

8 Nm (6 lbf ft) .
