Land Rover Discovery. Manual - part 218





ELECTRICAL

1

OVERHAUL

DISTRIBUTOR-LUCAS 35DLM8

Overhaul

DISTRIBUTOR CAP

Service repair no - 86.35.10

1. Unclip and remove cap
2. Fit a new cap if faulty.
3. Clean cap and HT brush with a lint free cloth.

ROTOR ARM

Service repair no - 86.35.16

1. Pull rotor arm from shaft.
2. Fit a new rotor arm if faulty.

INSULATION COVER (FLASH SHIELD)

Service repair no - 86.35.40

1. Remove cover secured by three screws.
2. Fit a new cover if faulty.

VACUUM UNIT

Service repair no - 86.35.21

1. Remove two screws from vacuum unit securing

bracket. Disengage vacuum unit connecting rod
from pick-up base plate connecting peg.
Withdraw vacuum unit from distributor body.

AMPLIFIER MODULE

Service repair no - 86.35.30

1. Remove two screws and withdraw module.
2. Remove gasket.
3. Remove two screws and cast heatsink.

WARNING: Amplifier module is a sealed
unit containing Beryllia. This substance is
extremely dangerous if handled. DO NOT

attempt to open or crush module.

PICK-UP AND BASE PLATE ASSEMBLY

Service repair no - 86.35.42

1. Use circlip pliers to remove circlip retaining

reluctor on rotor shaft.

2. Remove flat washer, and ’O’ ring recessed in top

of reluctor.

3. Gently withdraw reluctor from shaft, taking care

not to damage teeth.

NOTE: Coupling ring fitted beneath
reluctor.

4. Remove three support pillars and cable

grommet. Lift out pick-up and base plate
assembly.

NOTE: Do not disturb two barrel nuts
securing pick-up module, otherwise air
gap will need re-adjustment.

5. Fit a new pick-up and base plate assembly if

module is known to be faulty, otherwise check
pick-up winding resistance (2k-5k ohm).

Reassemble

6. This is mainly a reversal of dismantling

procedure, noting following points:

86

ELECTRICAL

2

OVERHAUL

LUBRICATION

Apply clean engine oil:

a.

A spot into rotor spindle before fitting rotor
arm.

Apply Omnilube 2 (or equivalent) grease.

b.

Auto advance mechanism.

c.

Pick-up plate centre bearing.

d.

Pre tilt spring and its rubbing area (pick-up
and base plate assembly).

e.

Vacuum unit connecting peg (pick-up and
base plate assembly).

f.

Connecting peg hole in vacuum unit
connecting rod.

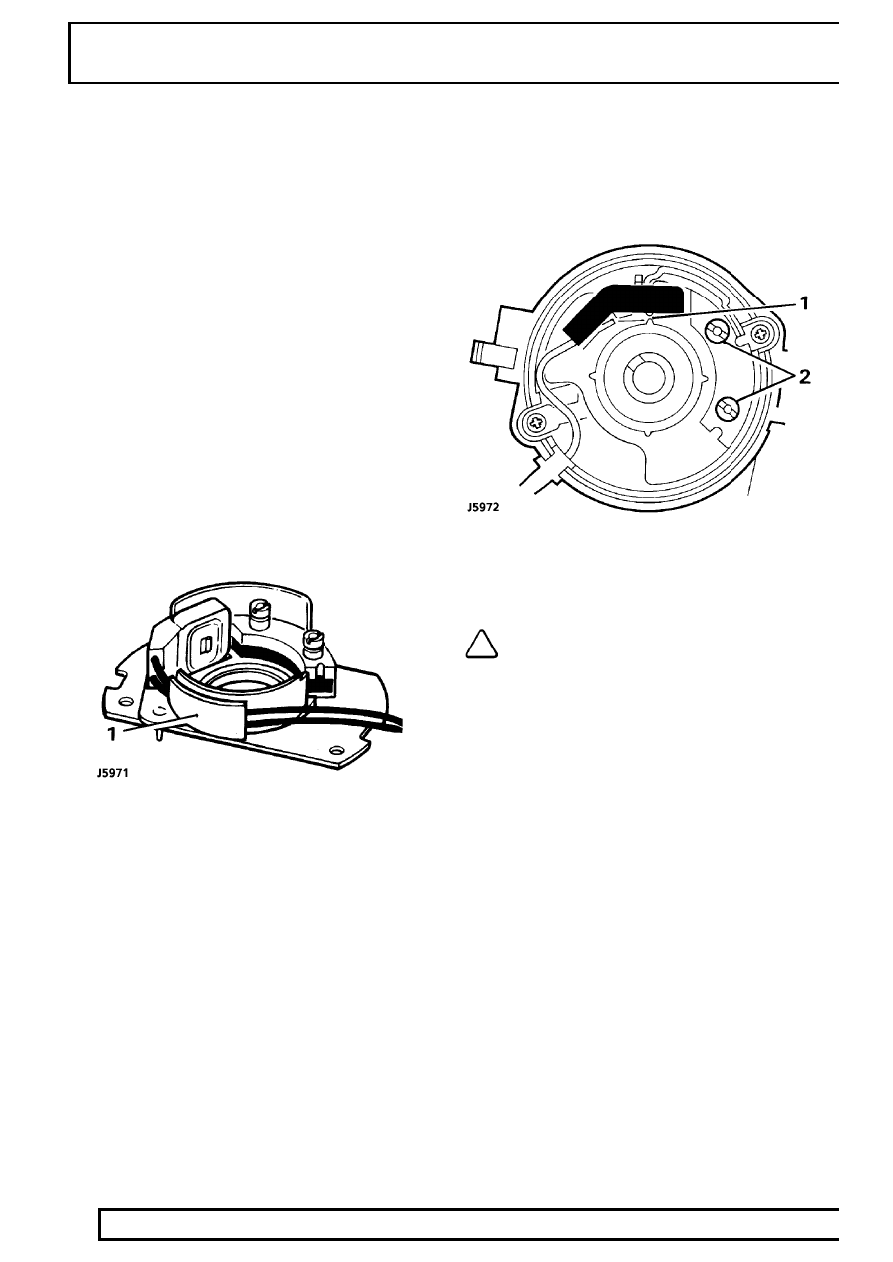

Fitting pick-up and base plate assembly

1. Pick-up leads must be prevented from fouling

rotating reluctor. Both leads should be located in
plastic guide as illustrated. Check during
re-assembly.

Fitting reluctor

2. Slide reluctor as far as it will go on rotor shaft,

rotate reluctor until it engages with coupling ring
beneath pick-up base plate. Distributor shaft,
coupling ring and reluctor are ’keyed’ and rotate
together. Fit ’O’ ring, flat washer and retaining
circlip.

Pick-up air gap adjustment

1. Air gap between pick-up limb and reluctor teeth

must be set within specified limits, using a
non-ferrous feeler gauge.

2. If adjustment is necessary, loosen two barrel

nuts to set the air gap.

See ENGINE TUNING

DATA, Information, Engine 3.9 V8i

NOTE: When original pick-up and base
plate assembly has been refitted, air gap
should be checked, and adjusted if

necessary.

When fitting a new assembly air gap will require
adjusting to within specified limits.

Amplifier module

1. Before fitting module, apply MS4 Silicone grease

or equivalent heat-conducting compound to
amplifier module backplate, seating face on
distributor body and both faces of heatsink
casting.

ELECTRICAL

1

SPECIFICATIONS, TORQUE

TORQUE VALUES

NOTE: Torque wrenches should be regularly checked for accuracy to ensure that all fixings are
tightened to the correct torque.

Nm

Generator
Generator mounting bracket to cylinder head

34

............................................

Generator to mounting bracket

24

..................................................................

Generator shaft nut

35

....................................................................................

Generator through bolts

5

..............................................................................

Generator rectifier bolts

3,5

.............................................................................

Amplifier module screws

1,2

............................................................................

Amplifier heat sink screws

1,2

.........................................................................

Auxiliary driving lamp mounting bolts

15

.........................................................

Distributor clampbolt

20

..................................................................................

Distributor pick-up bearing plate support pillars

1,2

.........................................

Distributor pick-up barrel nuts

1,2

....................................................................

Distributor vacuum unit

2

...............................................................................

Torque values below cover all screws and bolts used, unless specified otherwise.

METRIC

Nm

M5

6

......................................................................................................

M6

9

......................................................................................................

M8

25

.....................................................................................................

M10

45

...................................................................................................

M12

90

...................................................................................................

M14

105

..................................................................................................

M16

180

..................................................................................................

UNC / UNF

1/4

9

......................................................................................................

5/16

24

...................................................................................................

3/8

39

.....................................................................................................

7/16

78

...................................................................................................

1/2

90

.....................................................................................................

5/8

136

....................................................................................................
