ELECTRICAL

35

REPAIR

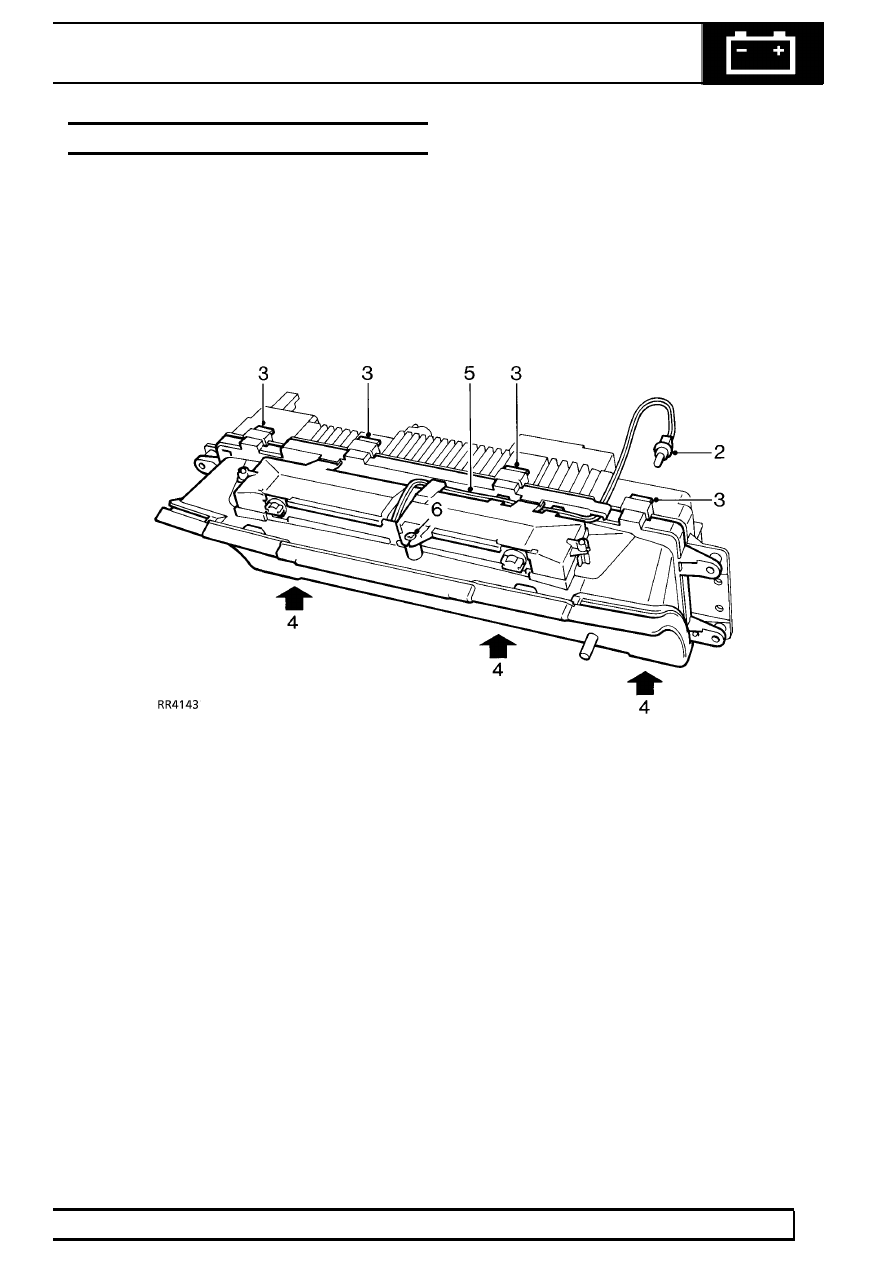

INSTRUMENT COWL AND ILLUMINATION BOARD

Service repair no - 88.20.06 - Instrument cowl
Service repair no - 88.20.22 - Illumination board

Remove

1. Remove binnacle,

See Instrument binnacle

Instrument cowl

2. Remove bulb holder from binnacle.
3. Release 4 clips securing top of cowl to binnacle.
4. Release 3 clips securing bottom of cowl to

binnacle, remove cowl.

Illumination board

5. Release bulb holder wires from clip.
6. Remove screw securing illumination board to

cowl, remove board.

Refit

Illumination board

7. Position illumination board to cowl, fit and tighten

screw.

8. Secure bulb holder wires in clip.

Instrument cowl

9. Ensure instrument face plate is correctly

positioned.

10. Position cowl to binnacle ensuring speedometer

trip passes through hole in cowl.

11. Secure cowl retaining clips.
12. Fit bulb holder in binnacle.
13. Fit binnacle.

See Instrument binnacle

86

ELECTRICAL

36

REPAIR

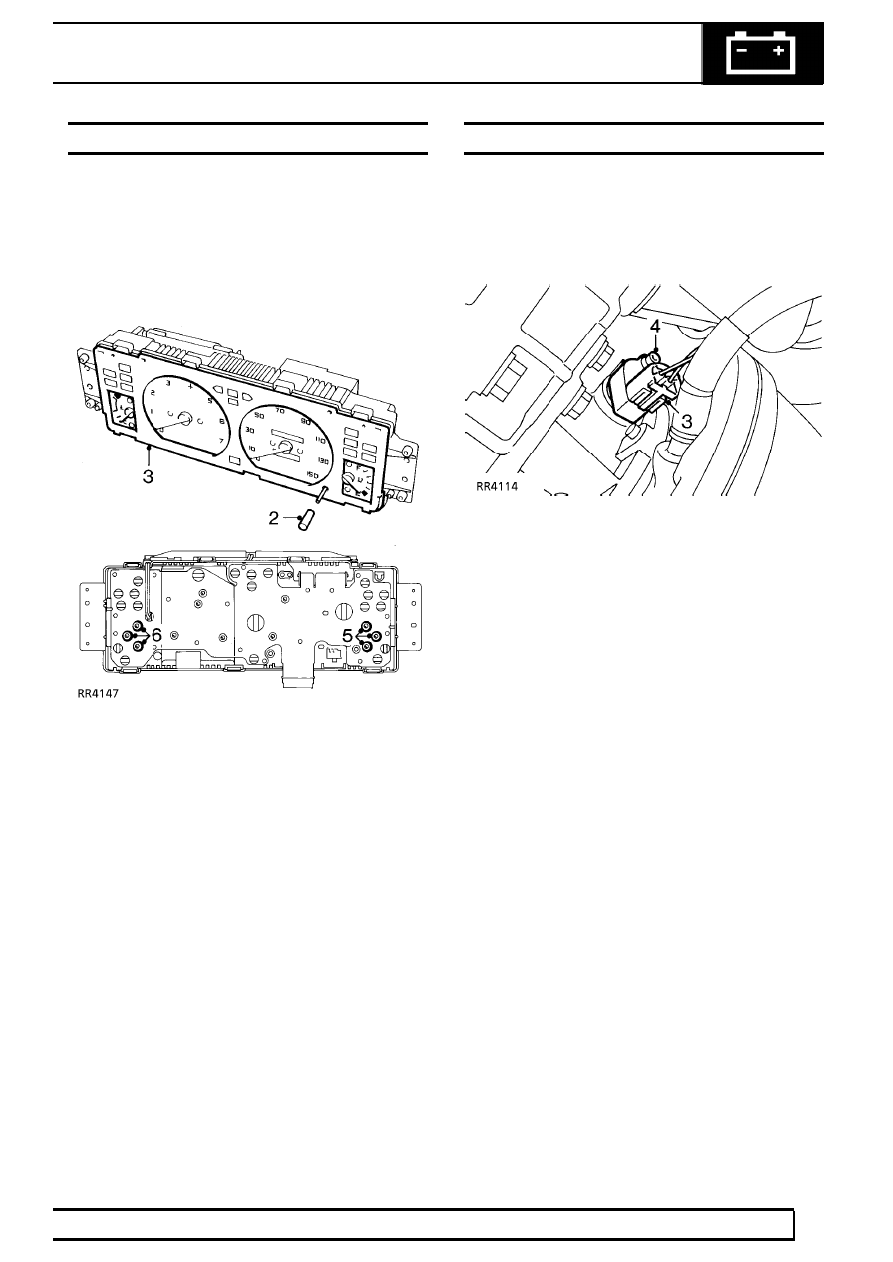

SPEEDOMETER

Service repair no - 88.30.01

Remove

1. Remove instrument cowl.

See Instrument

cowl and illumination board

2. Remove speedometer trip reset button sleeve.
3. Remove instrument face plate.
4. Remove 4 screws securing speedometer,

remove speedometer.

Refit

5. Reverse removal procedure.

TACHOMETER

Service repair no - 88.30.21

Remove

1. Remove circuit board.

See Circuit board

2. Remove instrument cowl.

See Instrument

cowl and illumination board

3. Remove speedometer trip reset button sleeve.
4. Remove instrument face plate.
5. Remove 3 screws securing tachometer to

binnacle, remove tachometer.

Refit

6. Reverse removal procedure.

ELECTRICAL

37

REPAIR

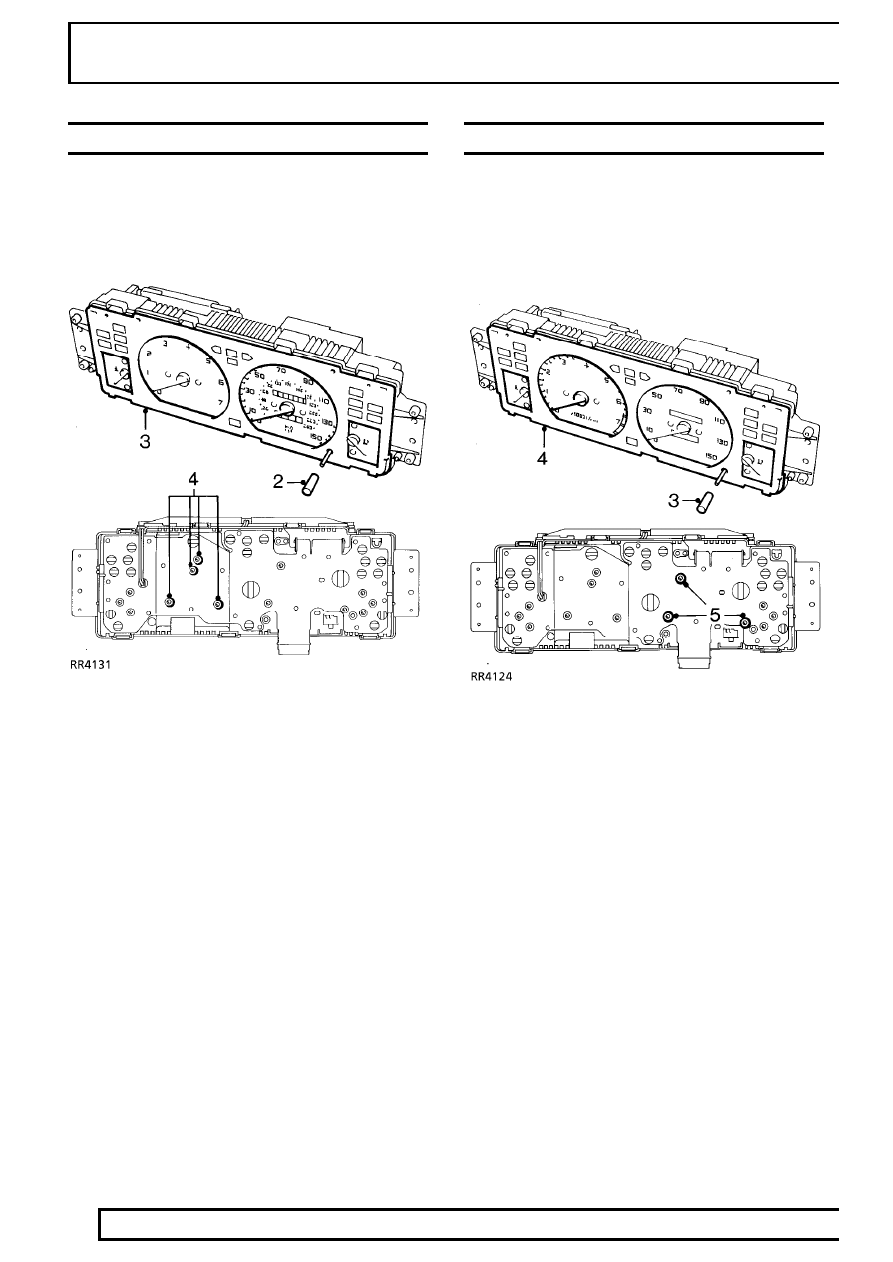

COOLANT TEMPERATURE AND FUEL GAUGES

Service repair no - 88.25.14 - Coolant temperature
gauge
Service repair no - 88.25.26 - Fuel gauge

Remove

1. Remove instrument cowl.

See Instrument

cowl and illumination board

2. Remove speedometer trip reset button sleeve.
3. Remove instrument face plate.

Coolant temperature gauge

4. Remove circuit board,

See Circuit board

5. Remove 3 screws securing coolant temperature

gauge to binnacle, remove gauge.

Fuel gauge

6. Remove 3 screws securing fuel gauge to

binnacle, remove gauge.

Refit

7. Reverse removal procedure.

SPEEDOMETER TRANSDUCER

Service repair no - 88.30.14

Remove

1. Position vehicle on ramp and chock wheels.
2. Raise ramp.

3. Disconnect multiplug from transducer.
4. Remove bolt securing transducer, remove

transducer.

Refit

5. Reverse removal procedure.

86

ELECTRICAL

38

REPAIR

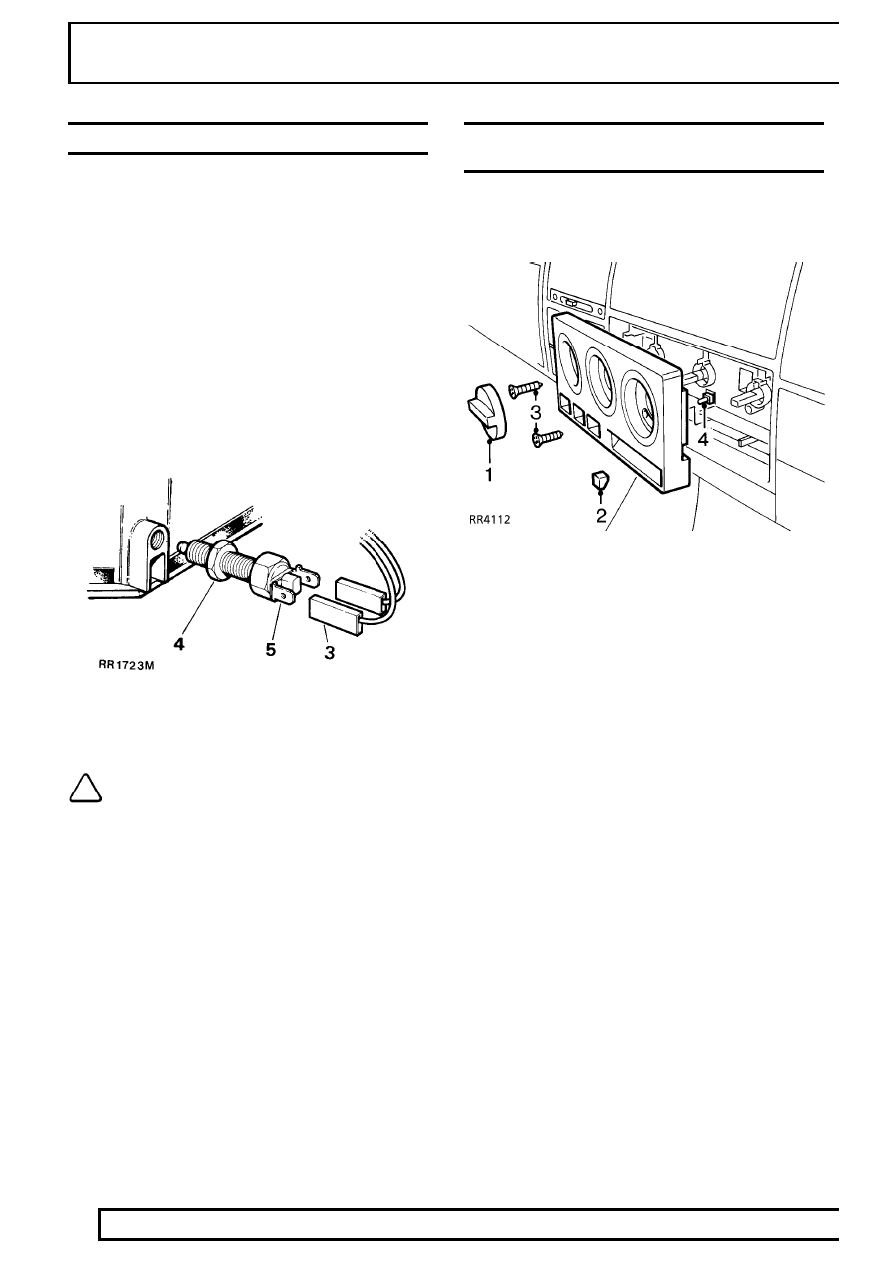

REVERSE LIGHT SWITCH

Service repair no - 37.27.01

Manual Gearbox

Remove

Reverse light switch is located at rear of selector
housing, accessible from beneath vehicle.

1. Place vehicle on suitable ramp.
2. Disconnect the battery negative lead.
3. Disconnect electrical leads.
4. Release lock-nut.
5. Remove switch.

NOTE: Reverse light switch requires
re-setting on reassembly.

6. Select reverse gear.
7. Connect 12 volt supply and test lamp across

switch terminals.

8. Screw switch into housing until test lamp is

illuminated. Screw switch in a further half turn,
tighten locknut.

9. Connect electrical leads.

10. Reconnect the battery negative lead.

HEATER/VENTILATION AND AIR CONDITIONING
CONTROL PANEL BULB

Service repair no - 86.45.73

Remove

1. Carefully pull 3 rotary knobs off switches.
2. Prise blower speed control knob off lever.
3. Remove 2 screws securing panel, ease panel

away from fascia.

4. Pull bulb from holder.
5. Insert new bulb in holder.

Refit

6. Reverse removal procedure.
