ELECTRICAL

15

REPAIR

Refit

9. If removed fit the mounting plate to the actuator.

10. Engage the actuator operating rod with hooked

end of the actuator link.

11. Fit the actuator and mounting plate to the door

and loosely secure with the four screws.

12. Set the mounting plate with the screws in the

centre of the slotted holes, then tighten the
screws.

13. Connect the actuator lead to the door harness.
14. Reconnect battery negative lead.
15. With the sill locking button held in position, set

the bellcrank to approximately the position it
would be in if the sill button was depressed to
half of its total movement.

16. At this setting check the electrical operation of

the door lock. Adjust the mounting plate as
necessary to achieve the correct setting. Fully
tighten the securing screws on completion.

17. Refit the vapour barrier.
18. Connect the sill button operating rod to the

bellcrank, hold in position, fit the door trim panel
and the door pull.

BULB REPLACEMENT

For bulb type and rating refer to rating shown on the
bulb or bulb replacement list.

See GENERAL

SPECIFICATION DATA, Information, Bulbs

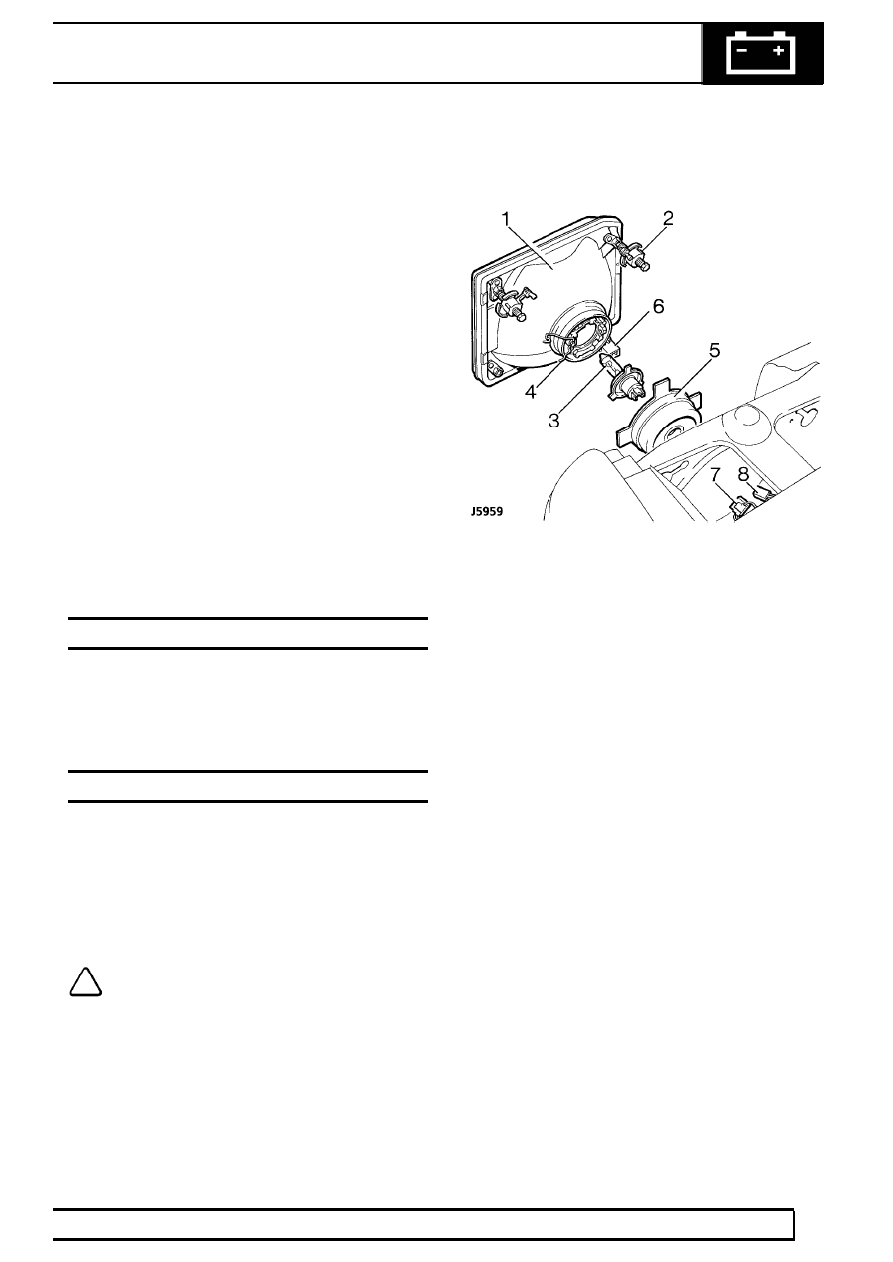

HEADLIGHT

Service repair no - 86.40.02/13

Remove

1. Rotate three retaining clips 10 degrees, to align

with slots in headlight mounting plate.

2. Withdraw light unit

NOTE: Detach adjustment operating rod
on vehicles fitted with headlight levelling.

3. Disconnect electrical multiplugs and remove

headlight unit.

4. Release spring clips and withdraw headlight

bulb.

Key

1. Headlight
2. Retaining clips
3. Bulb
4. Spring clip
5. Cover
6. Bulb sidelight
7. Plug
8. Plug sidelight

Refit

5. Reverse removal procedure.

86

ELECTRICAL

16

REPAIR

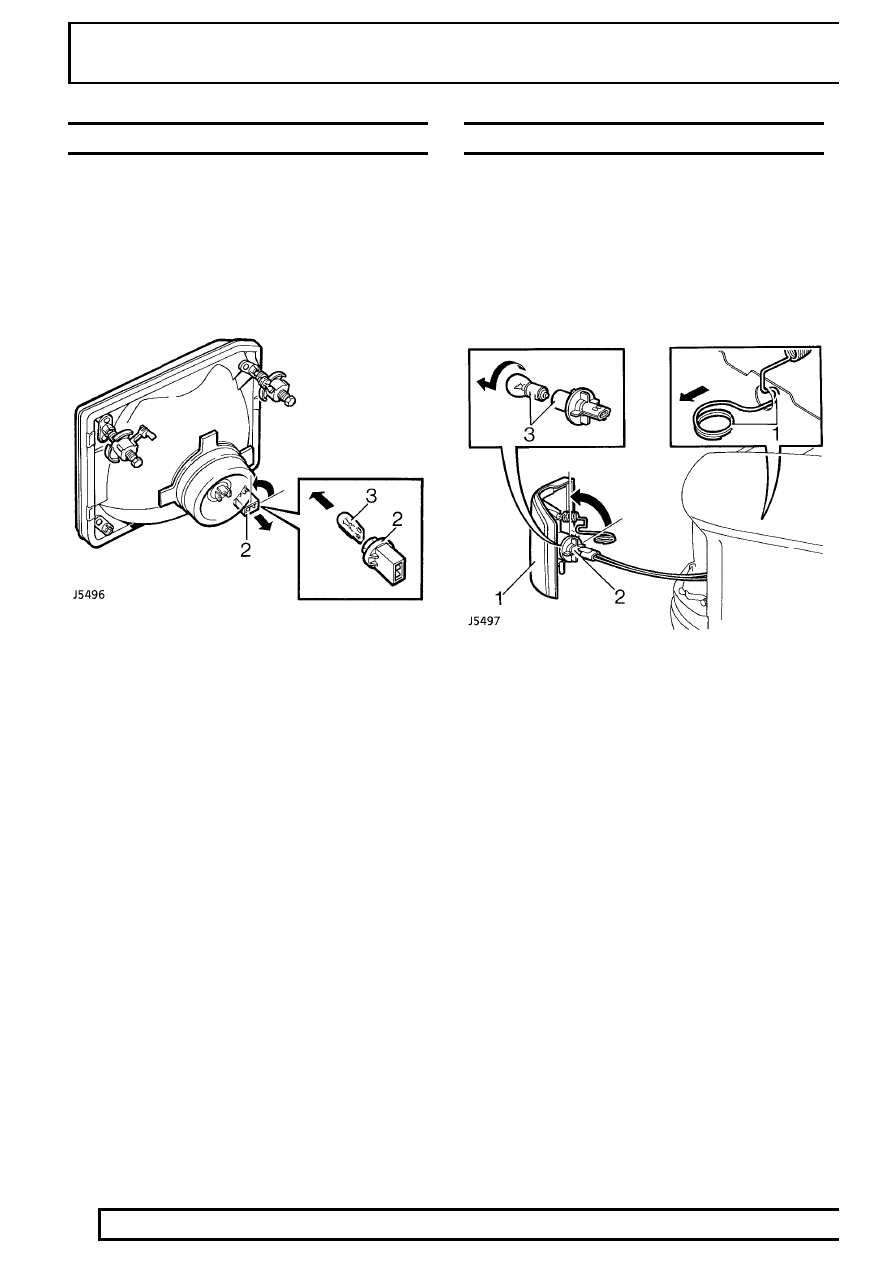

SIDELIGHT BULB

Service repair no - 86.40.33

Remove

1. Remove headlight,

See Headlight

2. Disengage bulb holder by twisting a quarter turn

anti-clockwise.

3. Withdraw bulb from holder.

Refit

4. Reverse removal procedure.

FRONT DIRECTION INDICATORS

Service repair no - 86.40.41

Remove

1. Pull spring clips, release from location and lift out

direction indicator unit.

2. Turn bulb holder anti-clockwise to release from

indicator unit.

3. Push and twist the bulb to remove.

Refit

4. Reverse removal procedure. When replacing

light unit, locate the two lugs at the bottom of the
lens before re-engaging spring clips.

ELECTRICAL

17

REPAIR

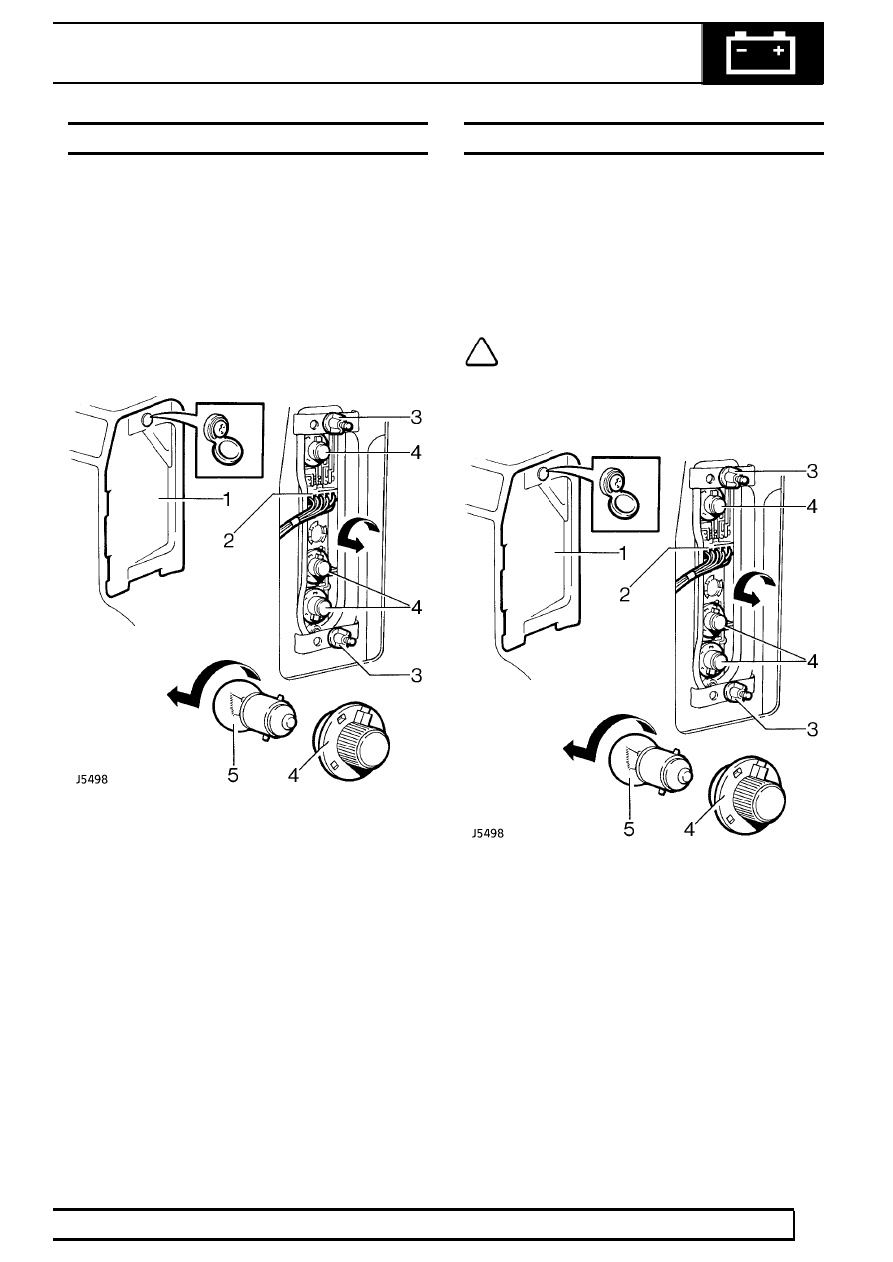

REAR LIGHT UNIT

Service repair no - 86.40.74

Remove

1. Pull out side facing seat or pocket cover.
2. Unscrew fastener and remove access panel.
3. Disconnect wiring harness multi-plug from light

unit.

4. Remove retaining nuts and withdraw light unit

from rear of vehicle.

Key

1. Access panel
2. Multiplug
3. Retaining nut
4. Bulb holder
5. Bulb

Refit

5. Reverse removal procedure. Ensure that the

rubber seal is seated correctly.

STOP, REVERSING, FOG GUARD BULBS

Service repair no - 86.40.74

Remove

1. Pull out side facing seat or pocket cover.
2. Unscrew fastener and remove access panel.
3. Turn bulb holder anti-clockwise to release.
4. Remove bulb.

NOTE: On vehicles fitted with rear air
conditioning remove access panel
housing rear loadspace light to gain

access.

Key

1. Access panel
2. Multiplug
3. Retaining nut
4. Bulb holder
5. Bulb

Refit

5. Reverse removal procedure.

86

ELECTRICAL

18

REPAIR

REAR LIGHTS, BUMPER MOUNTED

Service repair no - 86.41.42

Remove

1. From behind bumper disconnect light plugs.
2. Unscrew two retaining nuts and remove light unit

from bumper.

Refit

3. Reverse removal procedure.

NOTE: The black lead plug fits into the
direction indication light, the white lead
plugs into the tail light, the bulb holder

being colour coded red.

DIRECTION INDICATOR, TAIL LIGHT BULBS

Service repair no - 86.41.43

Remove

1. Turn bulb holder anti-clockwise to release from

light unit.

2. Push and twist the bulb to remove.

Refit

3. Reverse removal procedure.
