Land Rover Discovery. Manual - part 207





ELECTRICAL

7

REPAIR

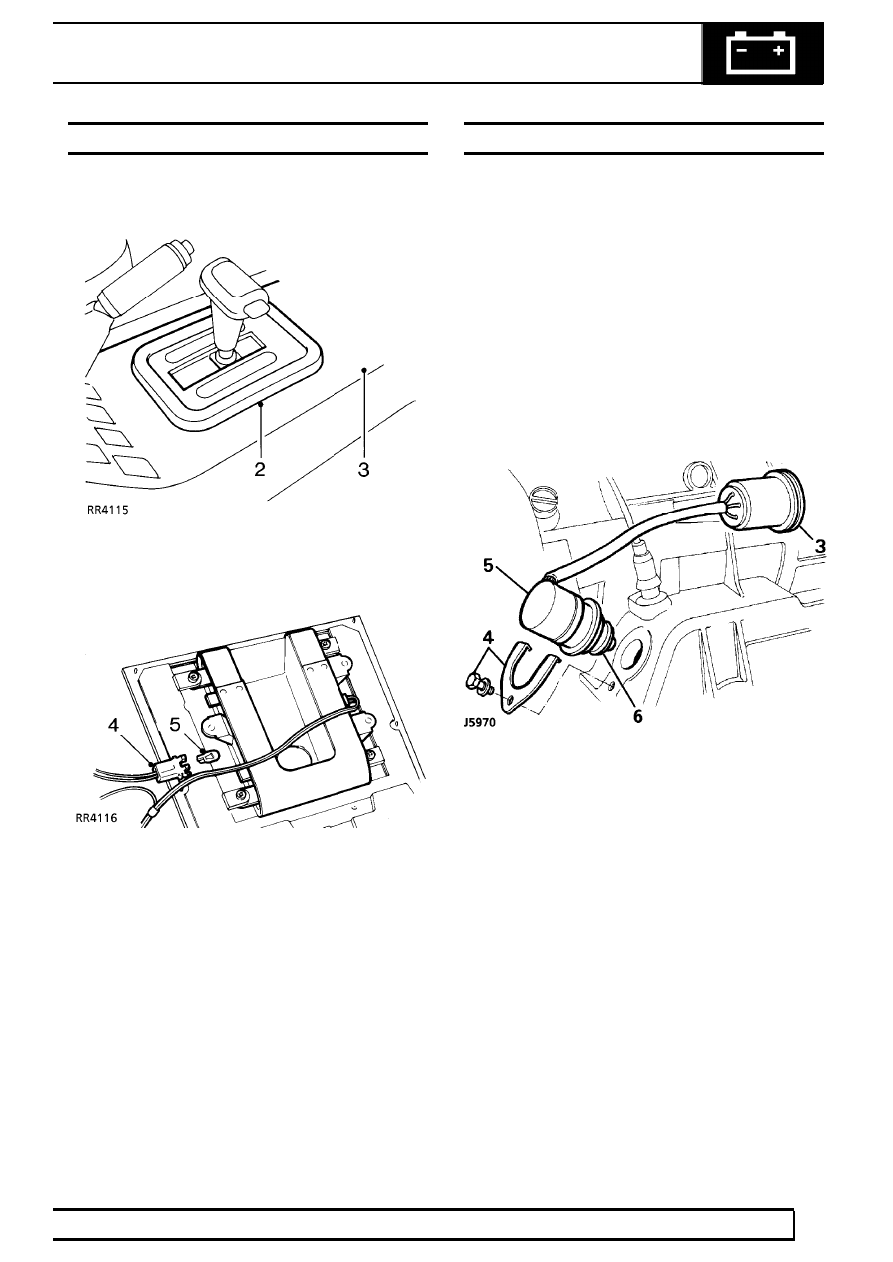

AUTOMATIC GEAR SELECTOR-PANEL BULB

Service repair no - 86.45.40

1. Disconnect battery negative lead.

2. Carefully prise quadrant finisher out of surround.
3. Carefully prise rear of surround away from

centre console.

4. Pull appropriate bulb holder from fitted position.
5. Remove bulb from holder.

Refit

6. Reverse removal procedure

START INHIBIT / REVERSE LIGHT SWITCH

Service repair no - 44.15.19

Automatic gearbox

Remove

Reverse light switch is an integral part of start inhibitor
switch. It is located on left hand side of gearbox,
accessible from beneath vehicle.

1. Place vehicle on suitable ramp [hoist].
2. Disconnect battery negative lead.
3. Disconnect multi-plug.
4. Release clamp bolt, remove clamp.
5. Remove switch.

Refit

6. Fit a NEW ’O’ ring to switch.
7. Reverse removal procedure.

86

ELECTRICAL

8

REPAIR

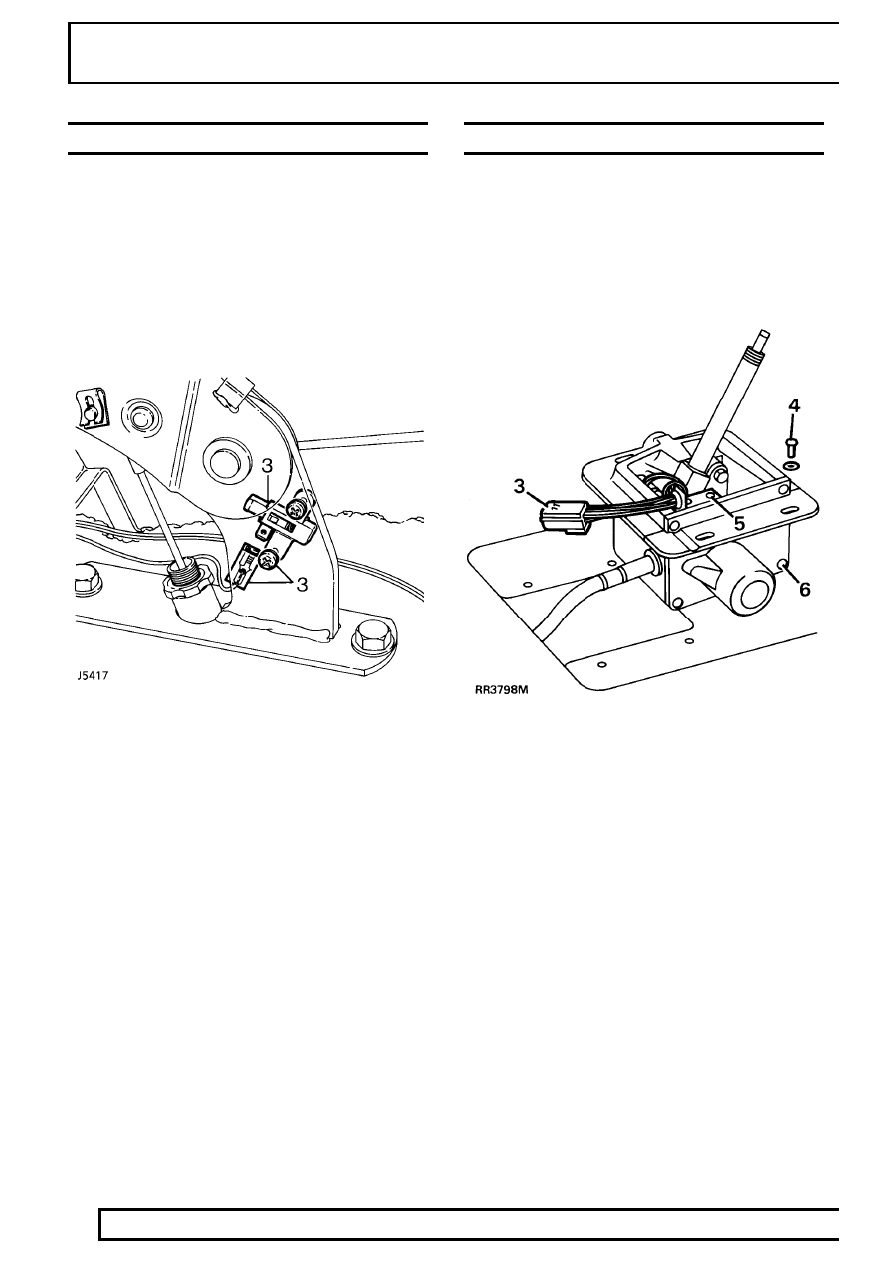

PARK BRAKE WARNING SWITCH

Service repair no - 86.65.45

Remove

1. Disconnect battery negative lead.
2. Remove four screws and move aside window lift

switch panel.

3. Remove two screws, manoeuvre switch from

park brake and disconnect electrical lead.

Refit

4. Reverse removal procedure.

GEAR SELECTOR-INTERLOCK

Interlock solenoid

Remove

1. Disconnect battery negative lead.
2. Remove gear selector head and illumination

panel.

See CHASSIS AND BODY, Repair,

Centre console

3. Disconnect electrical multiplug.
4. Remove screws and lift gear selector

mechanism above housing.

5. Remove screws from microswitch support

bracket.

6. Remove screws and separate side cover from

housing.

ELECTRICAL

9

REPAIR

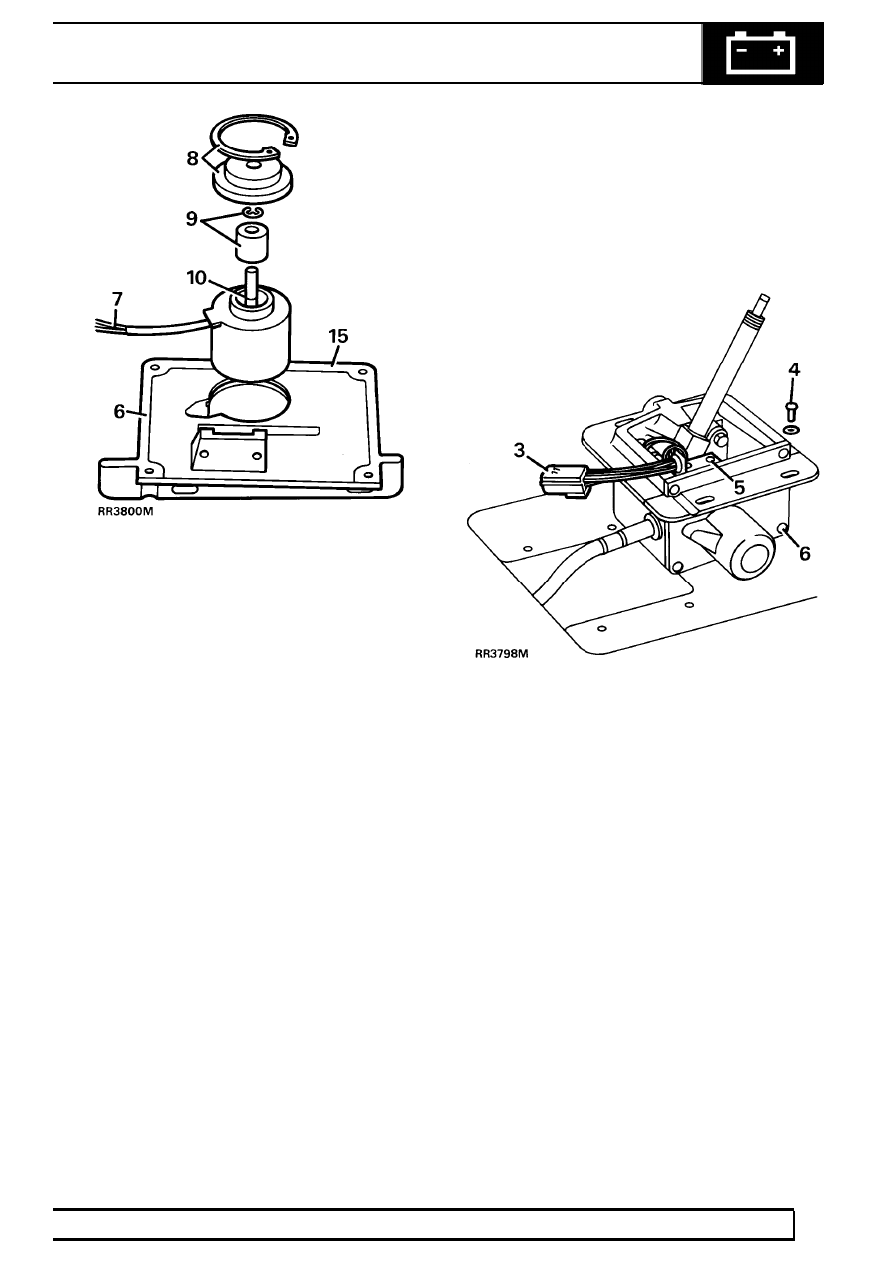

7. Disconnect wiring solenoid to multiplug.
8. Remove circlip and retainer plate.
9. Remove clip and centre sleeve.

10. Refit clip into groove on spindle and lever

against it to remove solenoid from housing.

Refit

11. Fit solenoid with wiring positioned into side cover

recess.

12. Fit sleeve and new clip.
13. Fit retaining plate and circlip.
14. Connect wiring to multiplug.
15. Apply sealant and fit side cover to housing. Use

Silcoset 152 sealant or equivalent.

16. Grease all moving parts of gear selector

mechanism. Use Rocol E1A or equivalent
grease.

17. Reverse removal procedure. 1 to 5.

Interlock microswitch onto castellated plate.

Remove

1. Disconnect battery negative lead.
2. Remove gear selector head and illumination

panel

See CHASSIS AND BODY, Repair,

Centre console

3. Disconnect electrical multiplug.
4. Remove screws and lift gear selector

mechanism above housing.

5. Remove screws from microswitch support

bracket.

6. Remove screws and separate side cover from

housing.

7. Disconnect wiring microswitch to multiplug.

86

ELECTRICAL

10

REPAIR

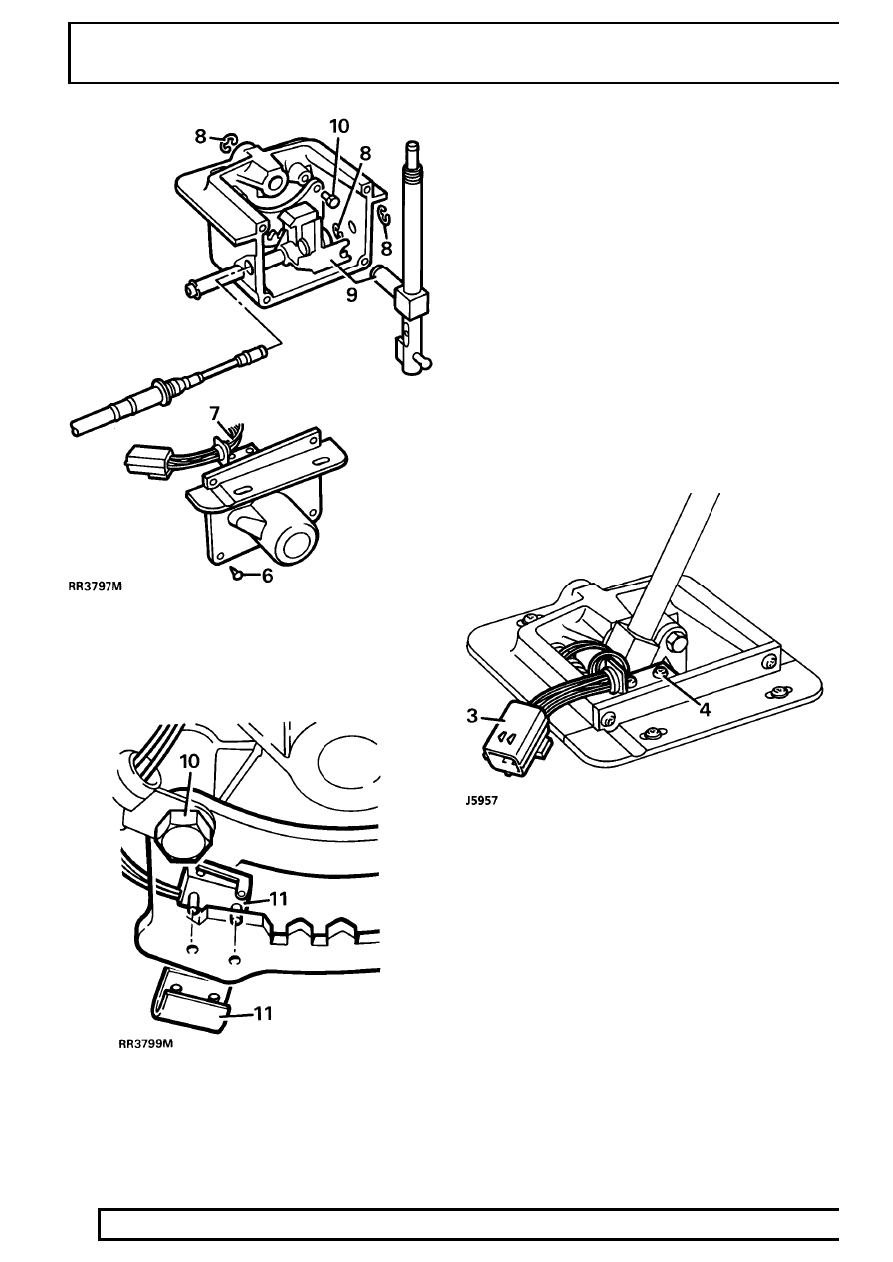

8. Remove 3 clips as shown.
9. Slide trunnion forward and remove gear selector

arm.

10. Remove bolts securing coxcomb.
11. Remove microswitch retaining clip and

microswitch.

Refit

12. Reverse removal procedure, correctly

positioning microswitch.

13. Apply Loctite 242E to castellated plate bolts.

Tighten to

9Nm.

14. Grease all moving parts of gear selector

mechanism. Use Rocol E1A or equivalent
grease.

15. Apply Silcoset 152 sealant or equivalent and fit

side cover to housing.

Interlock microswitch onto side cover

Remove

1. Disconnect battery negative lead.
2. Remove gear selector head and illumination

panel

See CHASSIS AND BODY, Repair,

Centre console

3. Disconnect electrical multiplug.
4. Remove screws from microswitch support

bracket.

5. Disconnect wiring microswitch to multiplug.

Refit

6. Reverse removal procedure. Correctly

positioning microswitch.

7. Grease all moving parts of gear selector

mechanism. Use Rocol E1A or equivalent
grease.
