WIPERS AND WASHERS

3

REPAIR

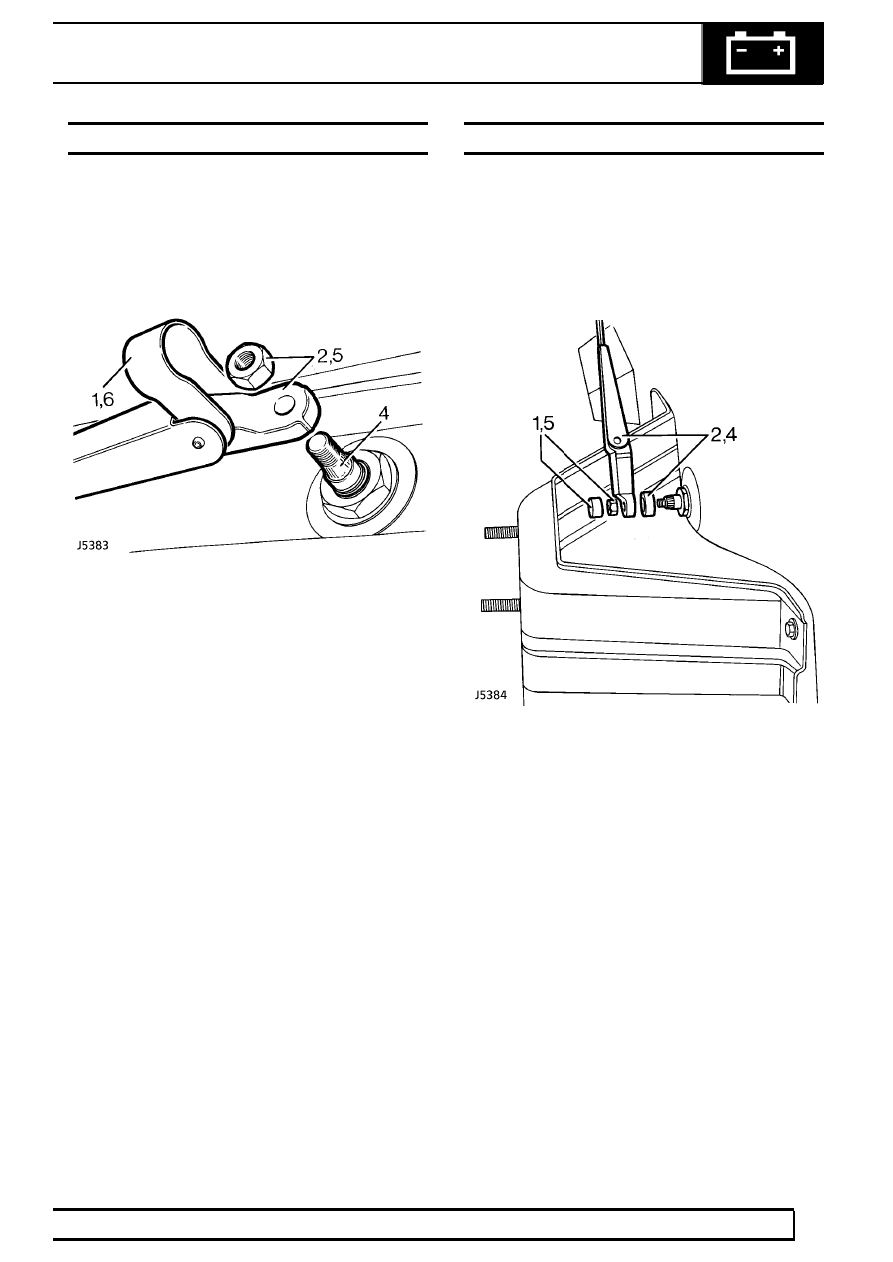

WIPER ARMS - WINDSCREEN

Service repair no - 85.15.01.

Remove

1. Lift wiper arm end cap to gain access to securing

nut.

2. Remove nut and withdraw wiper arm from

splined boss.

Refit

3. Allow wiper motor to move to ’park’ position.
4. Push arm onto splined boss, locating it so that

wiper blades are clear of windscreen rail.

5. Fit and tighten securing nut.
6. Push end cap over securing nut.
7. Operate wiper on a wet windscreen to ensure

blades do not over travel.

WIPER ARM - REAR WINDOW

Service repair no - 84.35.01.

Remove

1. Remove plastic nut cover and wiper arm

securing nut.

2. Withdraw wiper arm and grommet from splined

boss.

Refit

3. Allow wiper motor to move to ’park’ position.
4. Fit spacer and wiper arm to splined boss so that

the wiper blade is clear of rear window surround.

5. Fit and tighten securing nut.
6. Push plastic nut cover into position.
7. Check operation of wiper.

84

WIPERS AND WASHERS

4

REPAIR

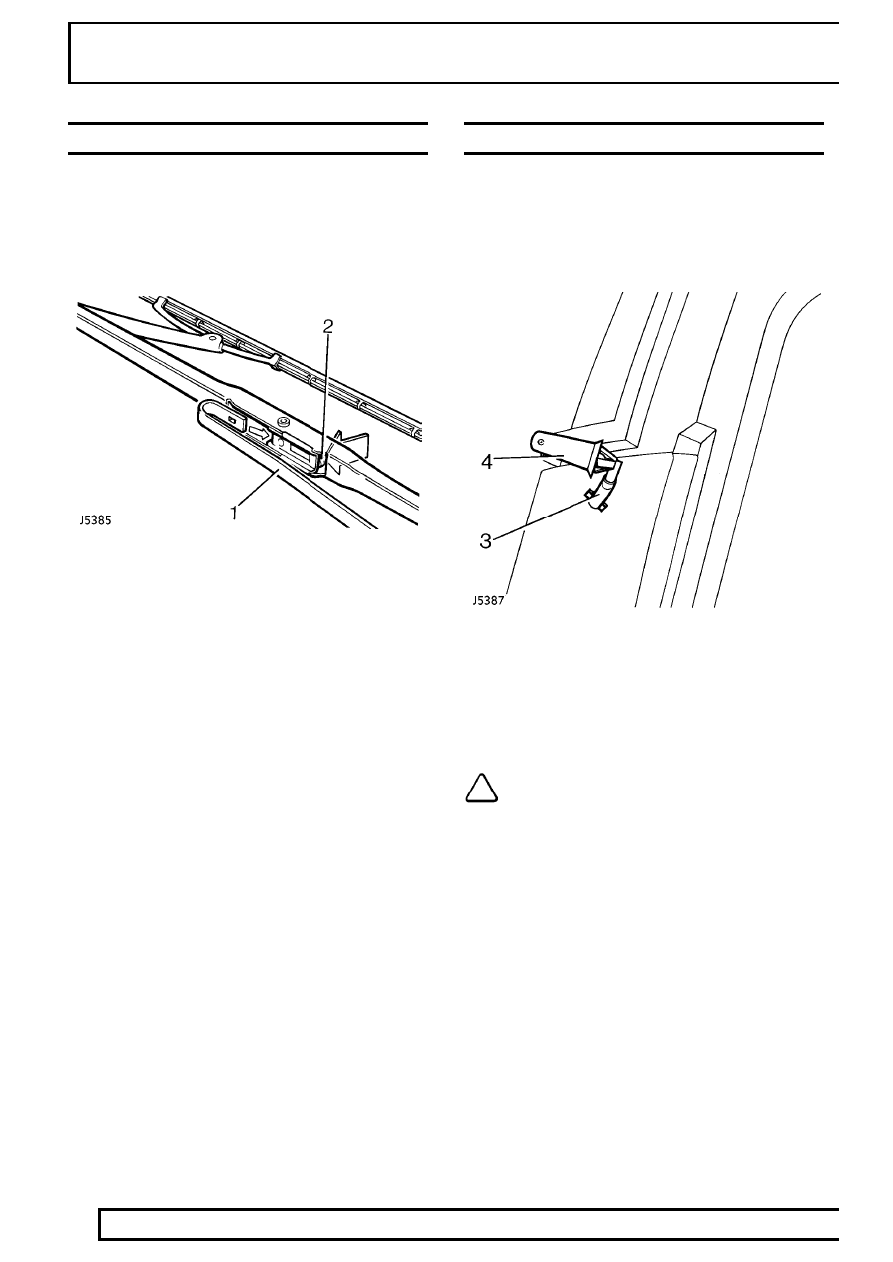

WIPER BLADES

Service repair no - 84.15.05

Remove

1. Pull wiper blade away from screen.
2. Depress spring clip and withdraw blade from

hooked end of wiper arm.

Refit

3. Reverse removal procedure. 1 and 2.

REAR WINDOW WASHER JET

Service repair no - 84.30.09

Remove

1. Turn washer jet in a clockwise direction to

release it from the rear quarter panel.

2. Remove rear quarter/speaker trim panel.

3. Feed washer tubing through rear quarter panel

to allow removal of washer jet.

4. Remove washer jet from tubing.

Refit

5. Reverse removal procedure. 1 to 4.

NOTE: The tubing run from the reservoir to
rear door washer jet differs between left
and right hand drive vehicles. On right

hand vehicles the tubing run is on the left hand
side of the roof. On left hand drive vehicles, the
right side.

See Description and operation,

Windscreen Wiper and Washer Operation

WIPERS AND WASHERS

5

REPAIR

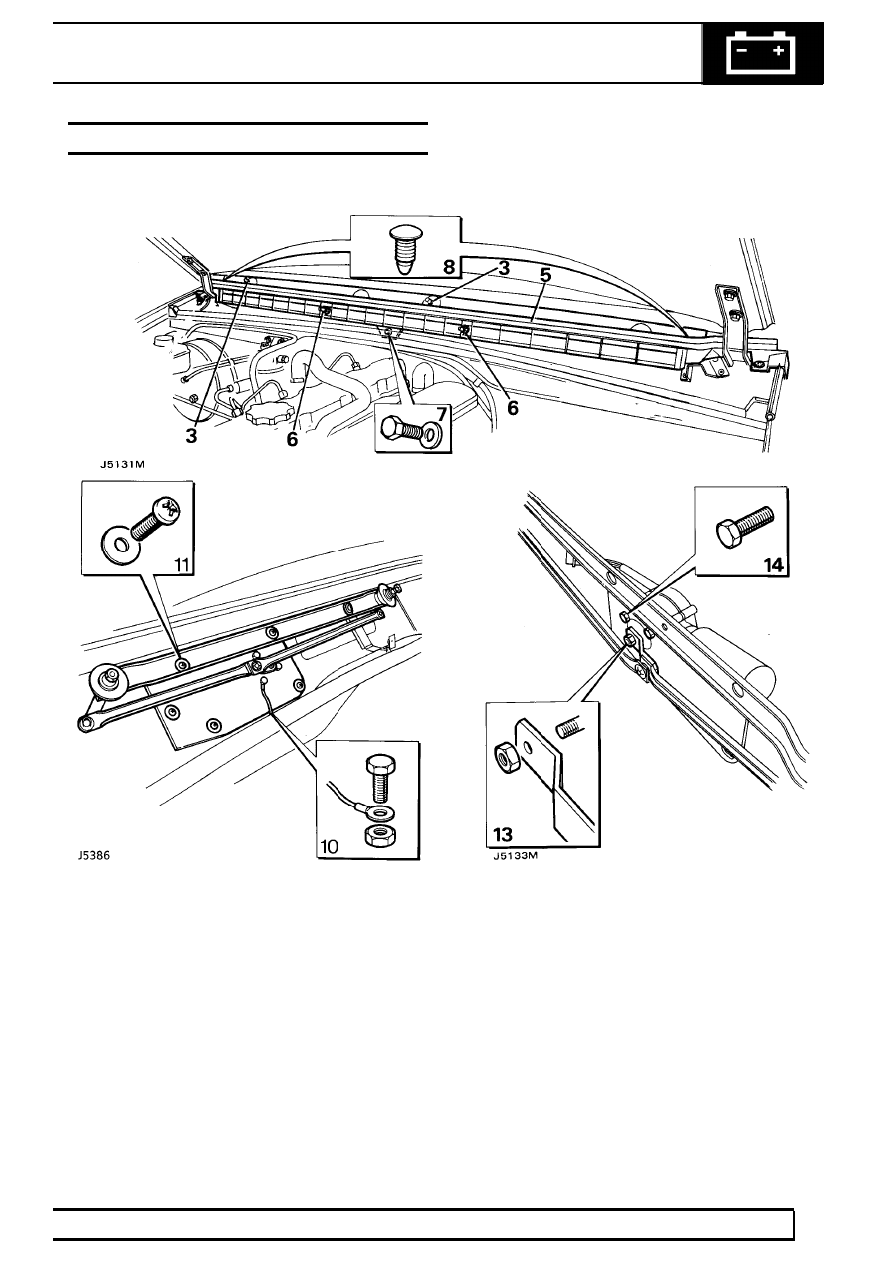

WINDSCREEN WIPER MOTOR AND LINKAGE

Service repair no - 84.15.12.

Remove

1. Disconnect battery negative lead.
2. Remove windscreen wiper arms.

See Wiper

arms - Windscreen

3. Remove securing nuts and steel and rubber

washer from wiper spindles.

4. Open the bonnet [hood].
5. Remove rubber seal from cowl flange.
6. Disconnect tubing from windscreen washer jets.
7. Remove centre bolt from cowl.
8. Remove retainers securing centre section of

cowl to outer sections.

9. Detach centre section of cowl.

10. Remove nut and bolt securing wiper motor

negative lead to body.

11. Remove five screws securing wiper

motor/linkage support plate.

12. Lift assembly clear of bulkhead, disconnect

wiper motor multi-plug and withdraw assembly.

13. Remove wiper motor spindle nut and release

rotary connecting link from spindle.

14. Remove wiper motor retaining bolts and

withdraw negative lead and wiper motor from
support plate.

15. The linkage arms can be detached by removing

the retaining clips and withdrawing the arms and
washers.
Note location of plain and wavy washers for
reassembly purposes.

84

WIPERS AND WASHERS

6

REPAIR

Refit

16. Reverse removal procedure.
17. Fit wiper motor to support plate using new

sealing bushes at the motor spindle as
necessary.

18. When positioning assembled motor and support

plate use a new seal and bushes, if necessary.

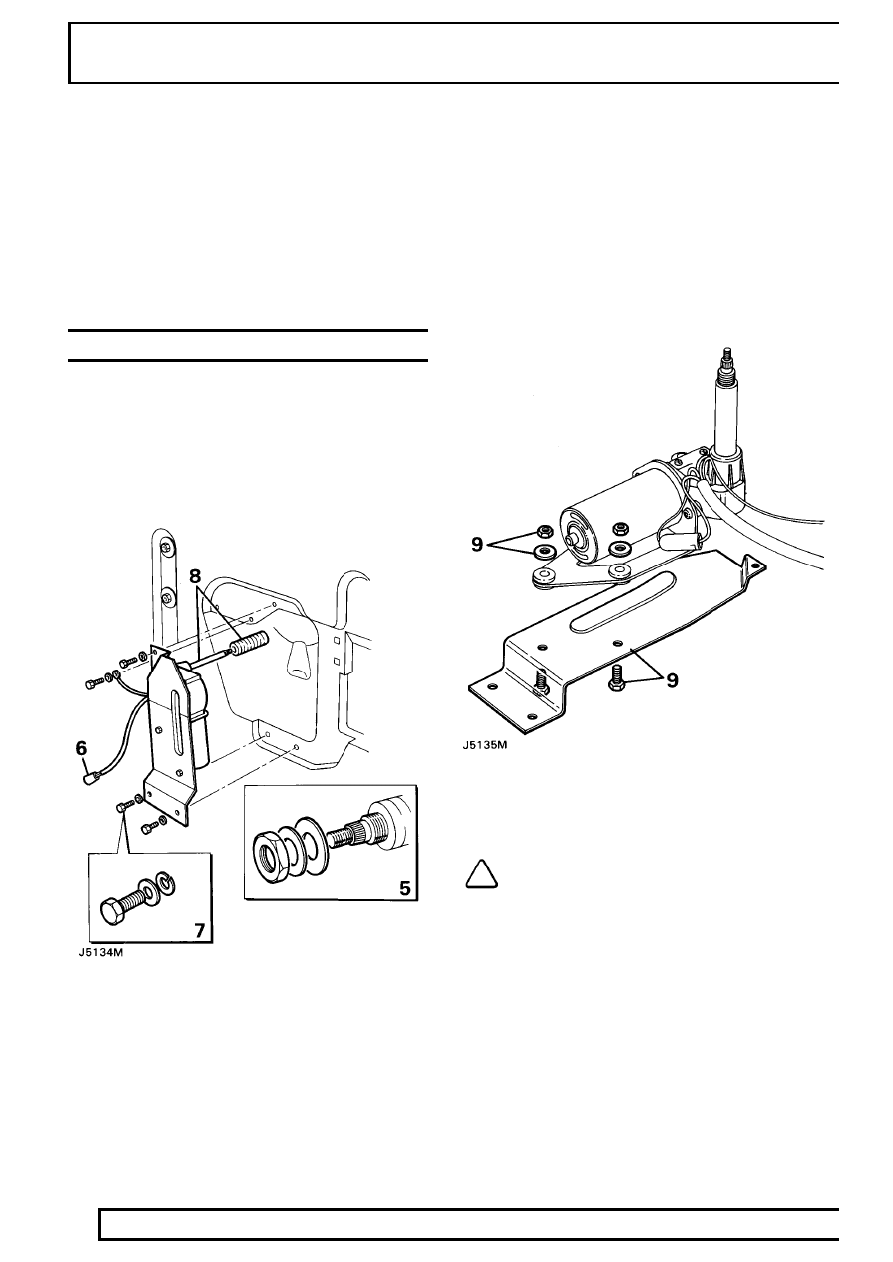

REAR DOOR WIPER MOTOR

Service repair no - 84.35.12.

Remove

1. Disconnect battery negative lead.
2. Remove rear door trim panel.
3. Remove spare wheel.

4. Remove wiper arm and grommet.
5. Remove nut, plain washer and seal from drive

spindle.

6. From inside the door, disconnect wiper motor

leads from door harness at multi-plug.

7. Remove bolts securing wiper motor mounting

bracket and negative lead to inner door panel.

8. Withdraw motor spindle from outer door panel

and manoeuvre wiper motor from door casing
complete with the spindle spacer.

9. Remove two rubber mounted nuts securing

mounting bracket to motor and detach bracket.

Refit

10. Reverse removal procedure. 1 to 9.

NOTE: If a new wiper motor assembly has
been fitted, before fitting the wiper arm.
Reconnect battery negative lead. Operate

wiper motor to ensure that motor spindle is in
park position.
