Land Rover Discovery. Manual - part 198





82

AIR CONDITIONING

26

REPAIR

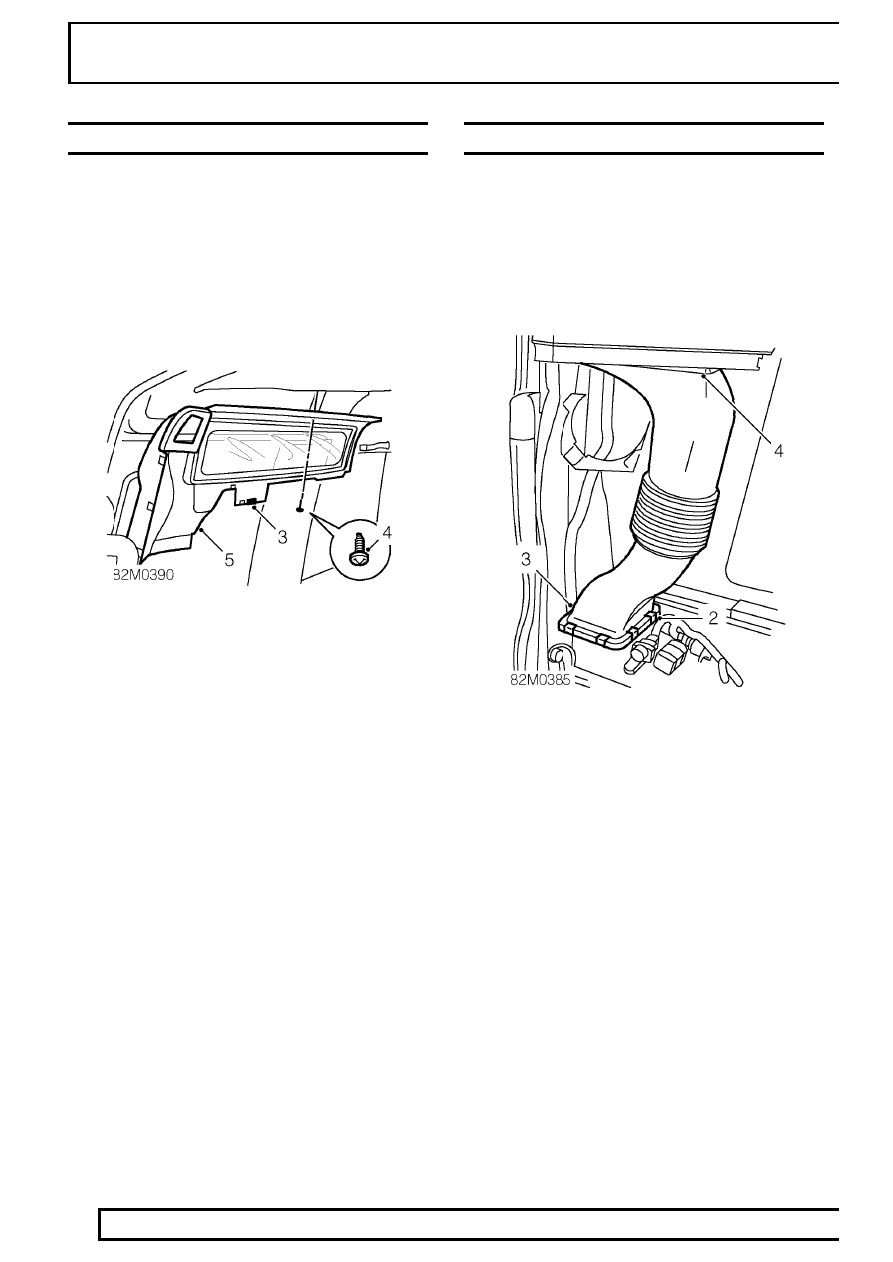

ALPINE LIGHT DUCT

Service repair no - 82.26.21

Remove

1. Remove evaporator to alpine light duct.

See

evaporator to alpine light duct

2. Remove rear door upper trim panel.

See

CHASSIS AND BODY, Repair, rear door
upper trim panel - with rear air conditioning
fitted

3. Remove clip securing alpine light duct to body

flange.

4. Remove screw securing alpine light duct.
5. Manoeuvre alpine light duct from headlining and

’D’ post finishers and remove duct.

Refit

6. Position alpine duct and manoeuvre into

position.

7. Fit and tighten screw securing alpine duct to

body.

8. Fit clip securing alpine duct to body flange.
9. Fit rear door upper trim panel.

See CHASSIS

AND BODY, Repair, rear door upper trim
panel - with rear air conditioning fitted; Refit

10. Fit evaporator to alpine light duct.

See

evaporator to alpine light duct; Refit

EVAPORATOR TO ALPINE LIGHT DUCT

Service repair no - 82.26.22

Remove

1. Remove rear compartment lower trim panel.

See CHASSIS AND BODY, Repair, rear
compartment lower trim panel - lh - with rear
air conditioning fitted

2. Remove 4 clips securing duct to evaporator.
3. Release duct from evaporator.
4. Remove duct from alpine light.

Refit

5. Fit duct to alpine light.
6. Position duct to evaporator ensuring rear of duct

flange is positioned beneath body panel flange.

7. Fit clips securing duct to evaporator.
8. Fit rear compartment lower trim panel.

See

CHASSIS AND BODY, Repair, rear
compartment lower trim panel - lh - with rear
air conditioning fitted; Refit

AIR CONDITIONING

27

REPAIR

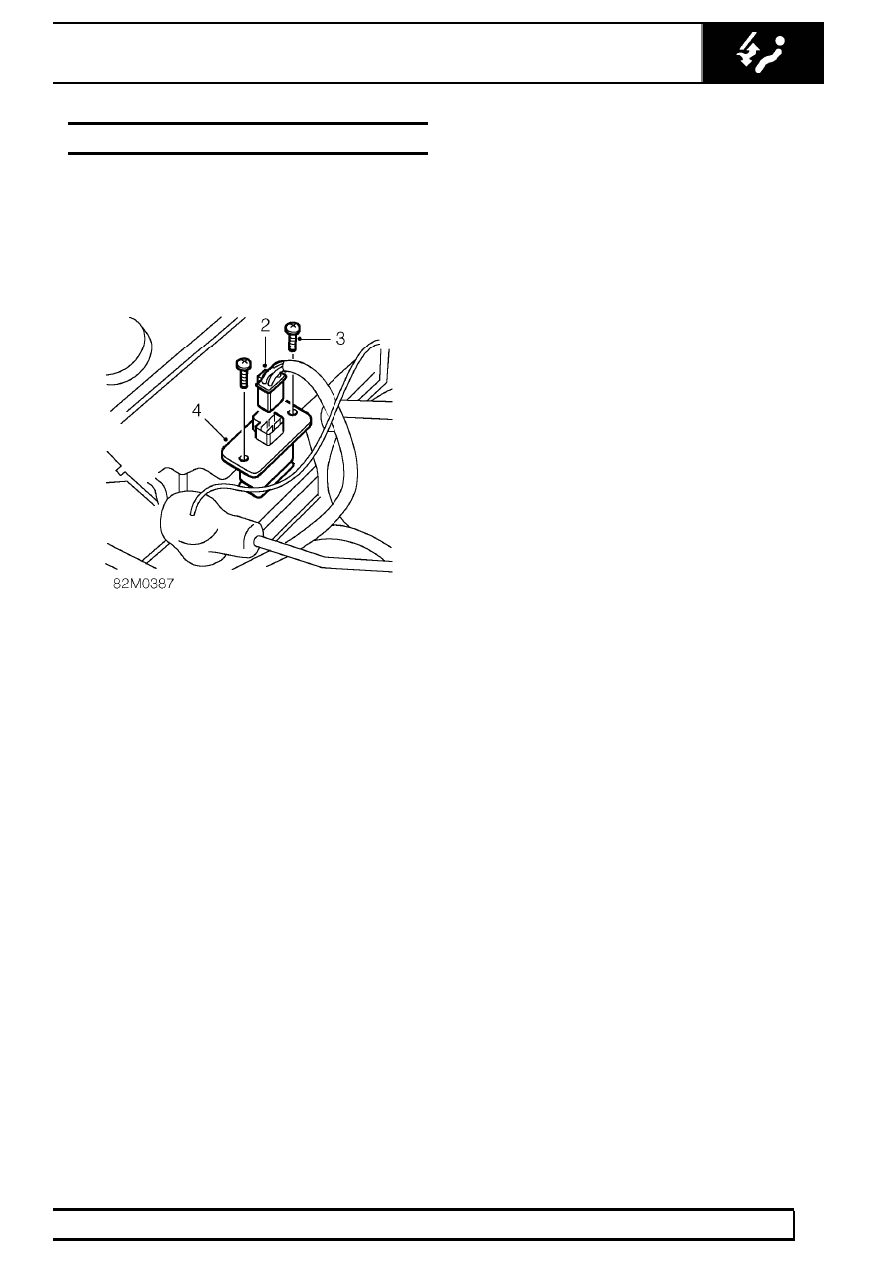

BLOWER MOTOR RESISTOR - REAR

Service repair no - 82.26.23

Remove

1. Remove evaporator/blower motor assembly.

See evaporator/blower motor assembly -
rear

2. Disconnect multiplug from resistor.
3. Remove 2 screws securing resistor to blower

motor casing.

4. Remove resistor.

Refit

5. Fit resistor to blower motor casing and secure

with screws.

6. Connect multiplug to resistor.
7. Fit evaporator/blower motor assembly.

See

evaporator/blower motor assembly - rear;
Refit

AIR CONDITIONING

1

SPECIFICATIONS, TORQUE

TORQUE VALUES

NOTE: Torque wrenches should be regularly checked for accuracy to ensure that all fixings are
tightened to the correct torque.

Nm

Air conditioning
Compressor flange bolts

10

............................................................................

Receiver drier union bolts

6

...........................................................................

Dual pressure switch

11

..................................................................................

Pressure pipe union nuts - M16

14

.................................................................

Discharge pipe union nuts - M22

22

...............................................................

Suction pipe union nuts - M24

33

...................................................................

AIR CONDITIONING CHARGE DATA

Total oil in system

180ml - 6.3Fl oz

...........................................................................

Total refrigerant in system

0,90kg - 32Fl oz

..............................................................

Total refrigerant in system with rear air conditioning

1,15kg - 40Fl oz

.......................

WIPERS AND WASHERS

1

DESCRIPTION AND OPERATION

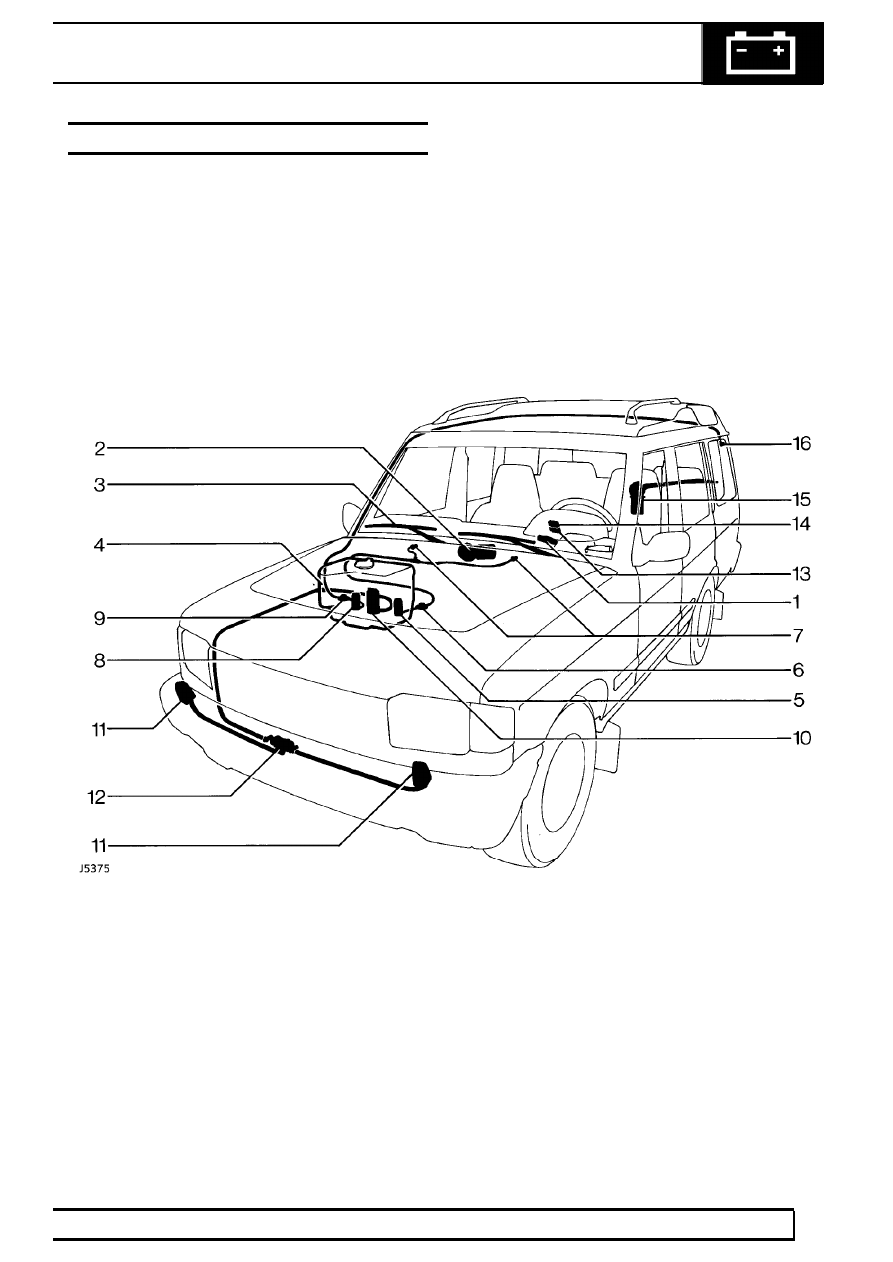

WINDSCREEN WIPER AND WASHER OPERATION

The illustration below locates and identifies the main
components of the windscreen and washer system
which is operated by a multi-switch on the right hand
side of the steering column.
All functions of the system are described in the
following paragraphs.

1. Multi-switch
2. Wiper motor
3. Wiper arm/blade
4. Washer reservoir
5. Windscreen washer motor/pump
6. Non return valve
7. Washer jet
8. Rear window washer motor pump
9. Non return valve

10. Headlamp power wash motor/pump
11. Headlamp power washer jet
12. Non return valve
13. Rear window wiper switch
14. Rear window washer switch
15. Rear window wiper motor, arm and blade
16. Washer jet
