Land Rover Discovery. Manual - part 196





82

AIR CONDITIONING

18

REPAIR

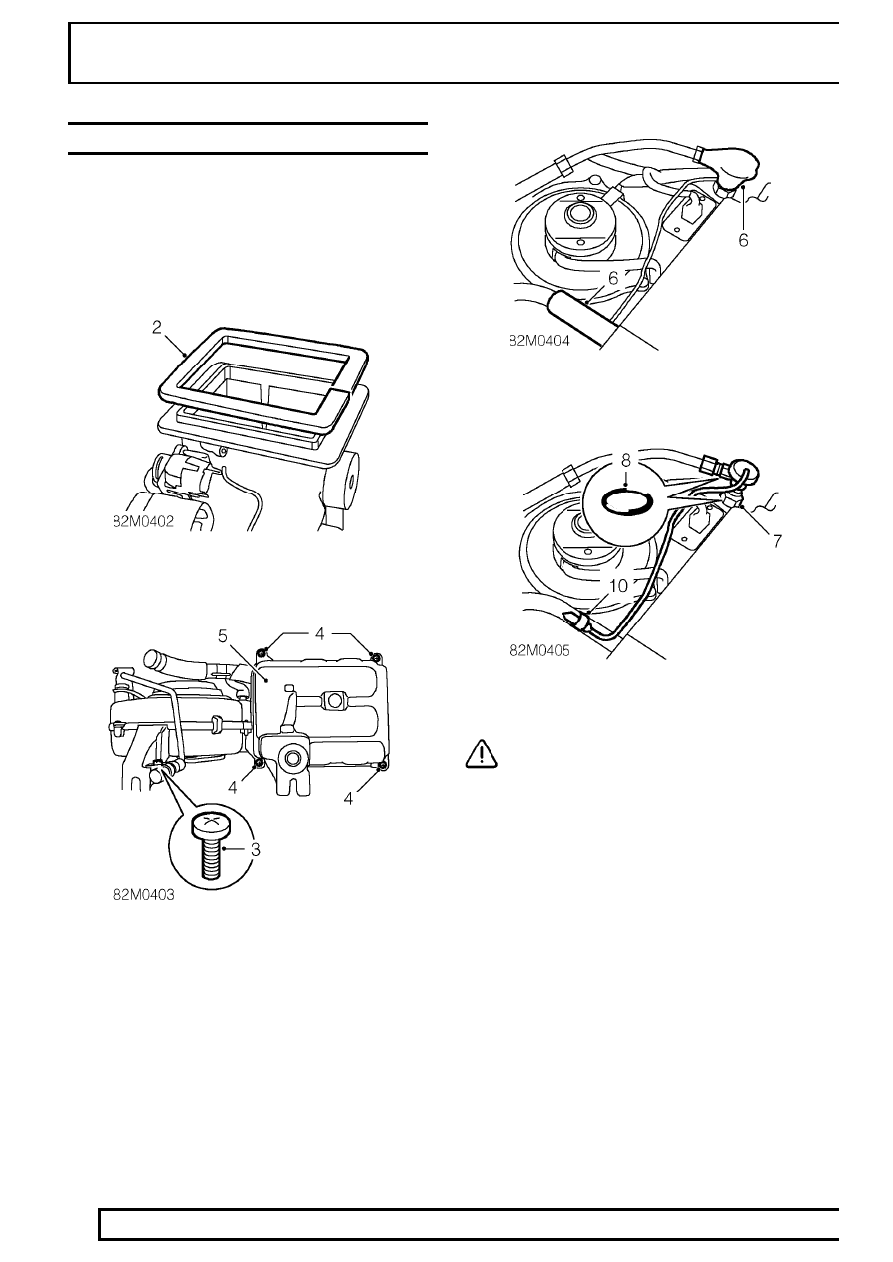

EVAPORATOR - REAR

Service repair no - 82.26.08

Remove

1. Remove evaporator/blower motor assembly

harness.

See harness - evaporator/blower

motor assembly - rear

2. Remove foam seal from evaporator to alpine

light duct flange.

3. Remove screw securing air conditioning

pressure pipe ’P’ clip to casing.

4. Remove 4 screws securing evaporator/blower

motor lower casing.

5. Remove lower casing.

6. Remove foam insulation from expansion valve

and expansion valve probe.

7. Loosen expansion valve to evaporator union.

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

8. Remove and discard ’O’ ring from evaporator

pipe.

9. Plug expansion valve to evaporator connections.

10. Remove expansion valve probe retaining clip.

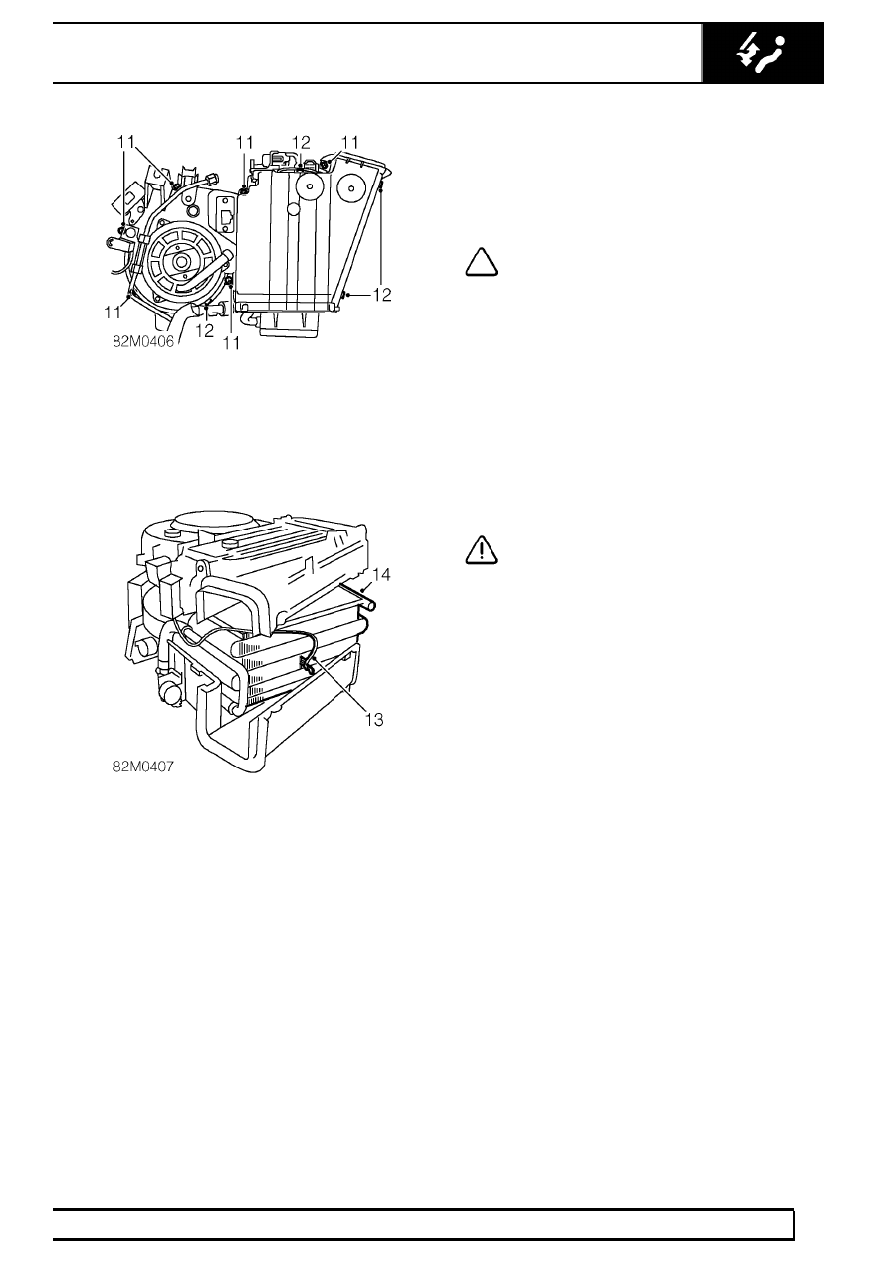

AIR CONDITIONING

19

REPAIR

11. Remove 6 screws securing evaporator/blower

motor casing halves.

12. Remove 4 clips securing evaporator/blower

motor casing halves.

13. Separate evaporator/blower motor casing whilst

extracting the thermostat probe from evaporator
matrix.

14. Remove evaporator.

Refit

15. Position evaporator and align to casing.
16. Position casing halves together whilst inserting

thermostat probe into evaporator matrix.

NOTE: Ensure thermostat probe is
positioned correctly through casing.

17. Fit clips securing evaporator/blower motor

casing halves.

18. Fit and tighten screws securing

evaporator/blower motor casing halves.

19. Position expansion valve probe to evaporator

pipe and secure with clip.

20. Remove plugs from expansion valve and

evaporator pipe connections.

21. Lubricate NEW ’O’ ring and fit to evaporator

pipe.

22. Position expansion valve to evaporator pipe and

tighten union to

22 Nm .

CAUTION: Use 2 spanners when loosening
or tightening air conditioning pipe unions.

23. Remove backing paper from NEW foam

insulation.

24. Fit foam insulation to expansion valve and

expansion valve probe.

25. Position evaporator/blower motor lower casing

and secure with screws.

26. Position air conditioning pressure pipe ’P’ clip to

evaporator/ blower motor casing and secure with
screw.

27. Remove backing paper from NEW

foam,evaporator to alpine light duct, flange seal.

28. Fit foam seal to evaporator/blower motor casing

flange.

29. Fit evaporator/blower motor assembly harness.

See harness - evaporator/blower motor
assembly - rear; Refit

82

AIR CONDITIONING

20

REPAIR

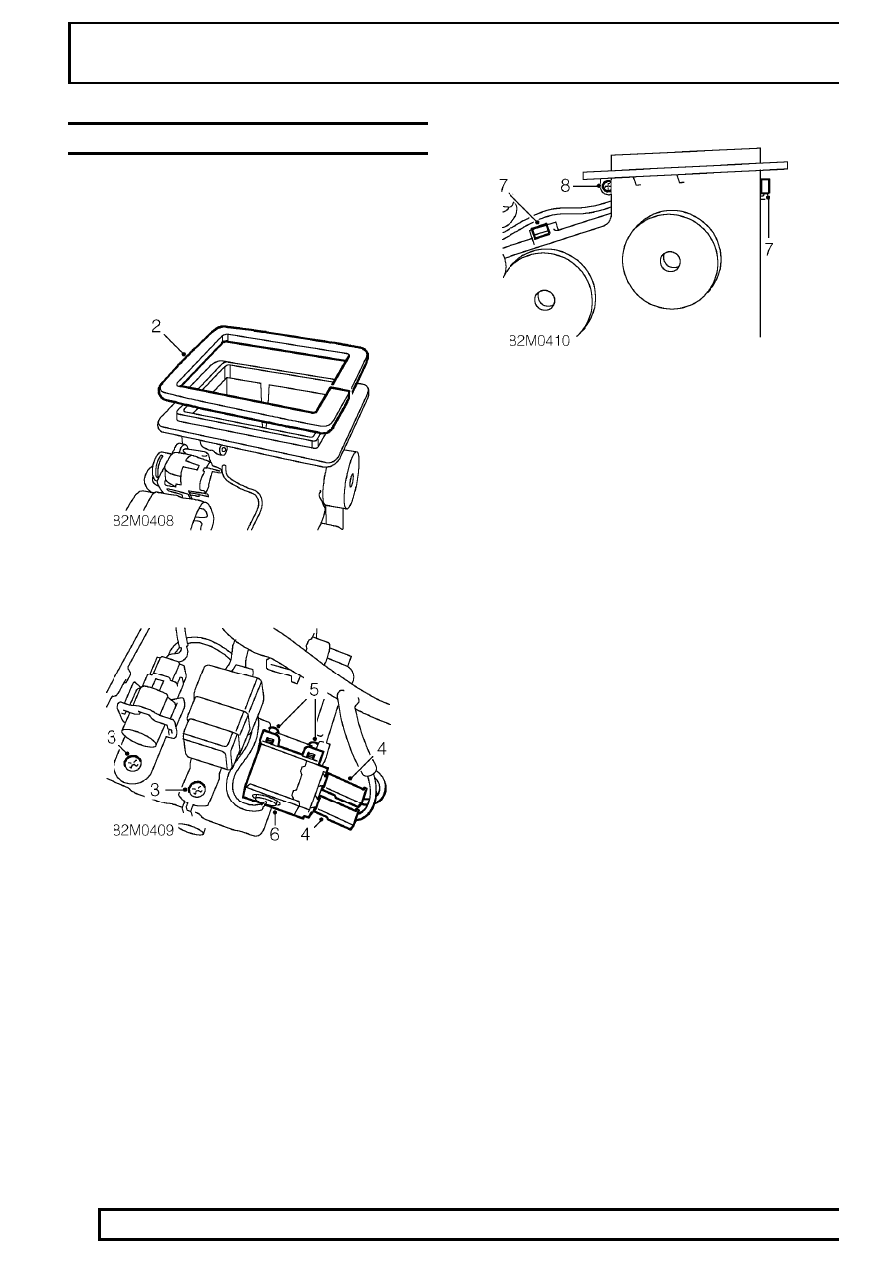

THERMOSTAT - REAR

Service repair no - 82.26.09

Remove

1. Remove evaporator/blower motor assembly

harness.

See harness - evaporator/blower

motor assembly - rear

2. Remove foam seal from evaporator to alpine

light duct flange.

3. Remove screws securing 2 relay mounting

brackets to evaporator/blower motor casing and
position aside.

4. Disconnect 2 Lucars from thermostat.
5. Loosen 2 screws securing thermostat.
6. Release thermostat from bracket.

7. Remove 2 clips securing evaporator/blower

motor casing halves.

8. Remove screw securing evaporator/blower

motor casing halves.

9. Separate casing sufficiently to enable removal of

thermostat probe from casing.

10. Remove thermostat.

Refit

11. Position thermostat fixings to casing and tighten

screws.

12. Connect Lucars to thermostat.
13. Separate casing sufficiently to enable fitment of

thermostat probe to casing.

14. Fit and tighten screw securing casing halves.
15. Fit clips securing casing halves.
16. Remove backing paper from NEW foam,

evaporator to alpine light duct, flange seal.

17. Fit foam seal to evaporator/blower motor casing

flange.

18. Fit evaporator/blower motor assembly harness.

See harness - evaporator/blower motor
assembly - rear; Refit

AIR CONDITIONING

21

REPAIR

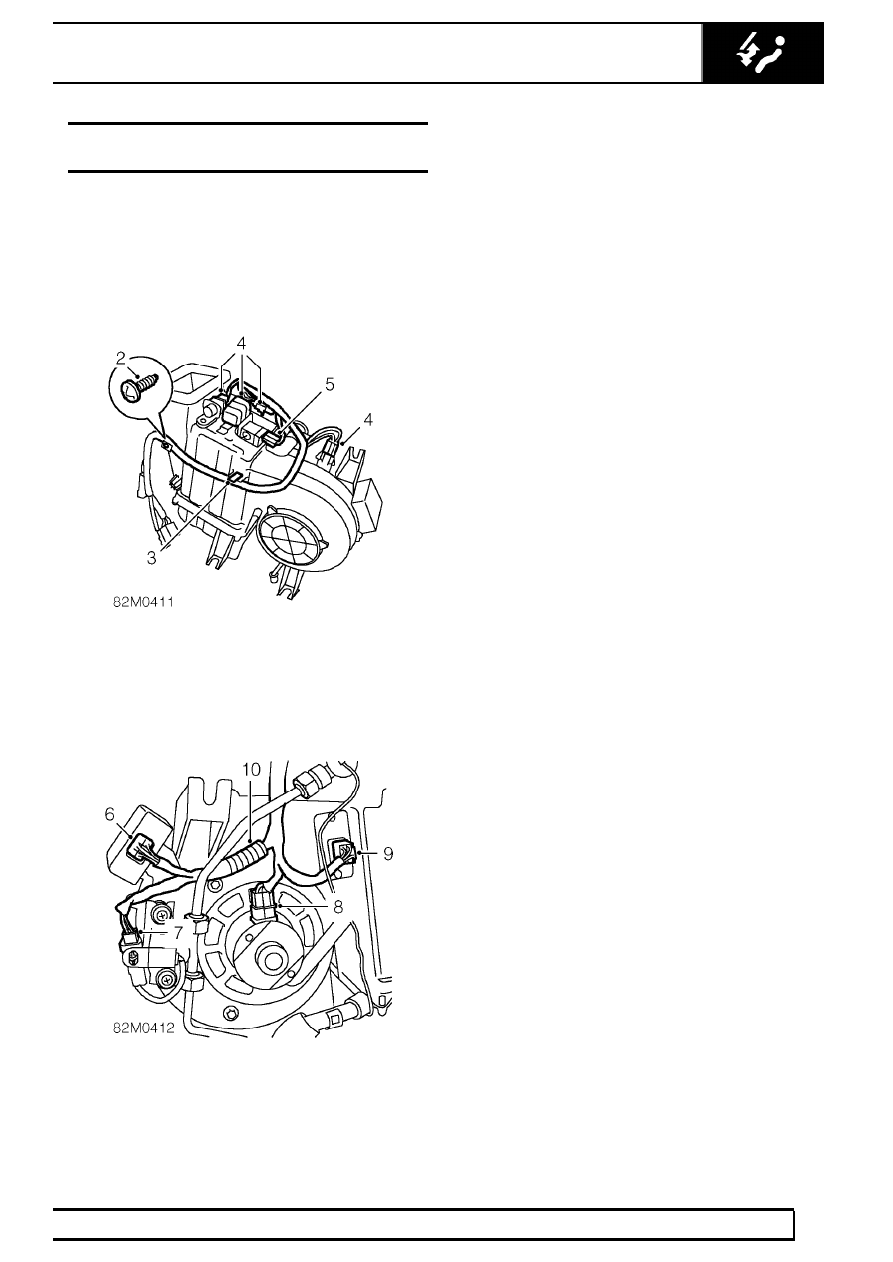

HARNESS - EVAPORATOR/BLOWER MOTOR
ASSEMBLY - REAR

Service repair no - 82.26.12

Remove

1. Remove evaporator/blower motor assembly.

See evaporator/blower motor assembly -
rear

2. Remove screw securing harness retaining clip to

casing.

3. Release harness clip from casing tag.
4. Disconnect 4 relay multiplugs.
5. Disconnect 2 Lucars from thermostat.

6. Disconnect multiplug from ECU.
7. Release control valve solenoid multiplug from

mounting bracket and disconnect multiplug.

8. Disconnect multiplug from blower motor.
9. Disconnect multiplug from resistor.

10. Remove harness.

Refit

11. Fit harness and route into position.
12. Connect multiplug to resistor.
13. Connect multiplug to blower motor.
14. Connect control valve solenoid multiplug and

secure multiplug to mounting bracket.

15. Connect multiplug to ECU.
16. Connect Lucars to thermostat.
17. Connect multiplugs to relays.
18. Secure harness clip to casing tag.
19. Fit screw securing harness retaining clip to

casing.

20. Fit evaporator/blower motor assembly.

See

evaporator/blower motor assembly - rear;
Refit
