Land Rover Discovery. Manual - part 187





HEATING AND VENTILATION

5

REPAIR

RECIRCULATION SWITCH

Service repair no - 80.10.27

Remove

1. Release fascia centre louvre vent panel from its

fitted position to gain access to rear of panel.
See CHASSIS AND BODY, Repair, Dash
Panel Central Louvre Panel

2. Disconnect multiplug from switch
3. From the rear, push switch out of panel.

Refit

4. Reverse removal procedure.

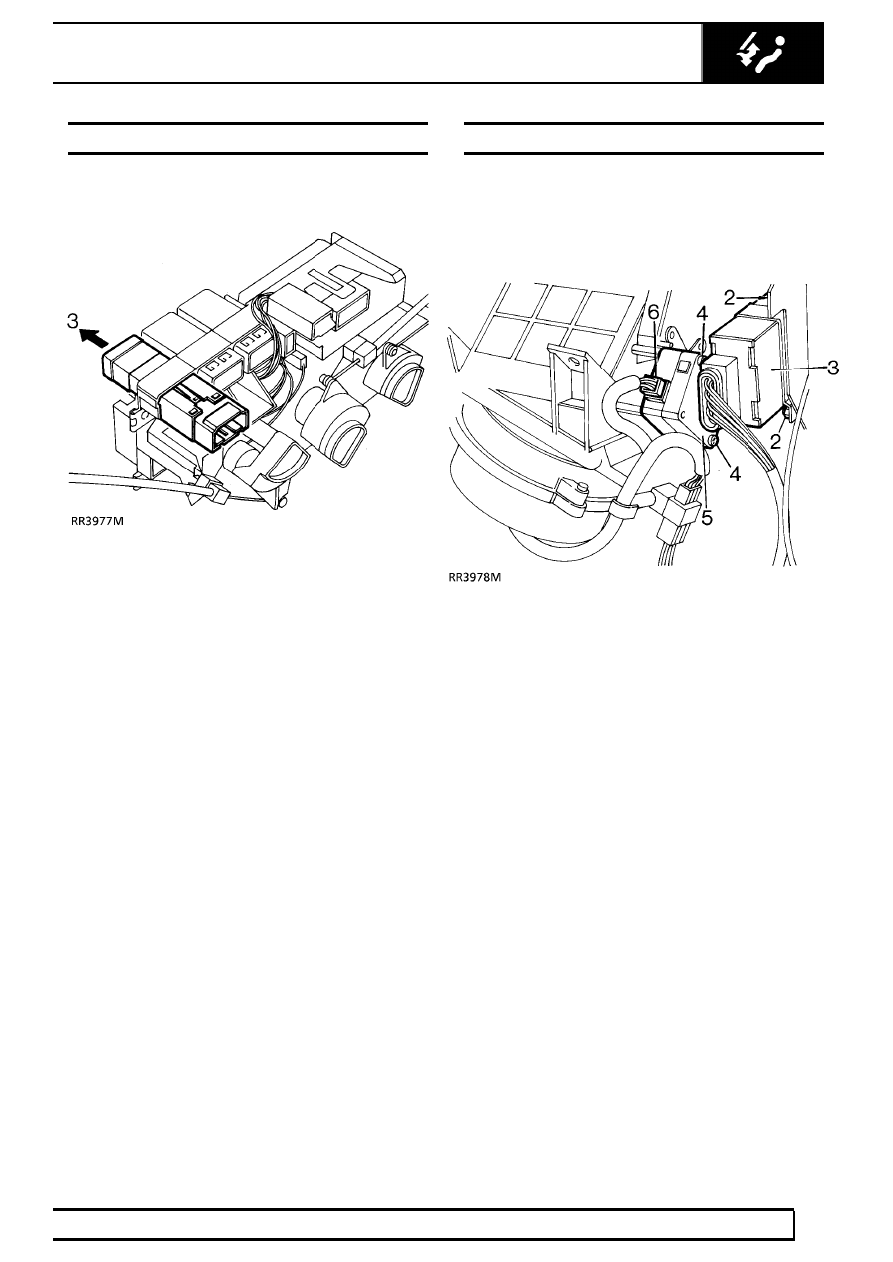

RECIRCULATION FLAP SOLENOID

Service repair no - 80.10.43

Remove

1. Open glove box, manoeuvre side springs

through cut-outs and lower lid.

2. Remove 2 locknuts securing cruise control ECU

to bracket.

3. Position cruise control ECU aside.
4. Remove 2 screws securing recirculation

solenoid to casing.

5. Release solenoid from lever.
6. Disconnect multiplug and remove solenoid.

Refit

7. Reverse removal procedure.

80

HEATING AND VENTILATION

6

REPAIR

BLOWER MOTOR UNIT - HEATER AND AIR
CONDITIONING

Service repair no - 80.20.17
Service repair no - 82.25.54.

Remove

1. Move seats to rear most position.
2. Disconnect battery negative lead.
3. Remove fascia panel assembly.

See CHASSIS

AND BODY, Repair, Dash Panel Assembly

4. Remove 2 nuts securing lower brackets to

toeboard.

5. Manoeuvre blower unit from heater unit and

remove.

Refit

6. Reverse removal procedure. Ensure seal

between blower and heater unit is tight.

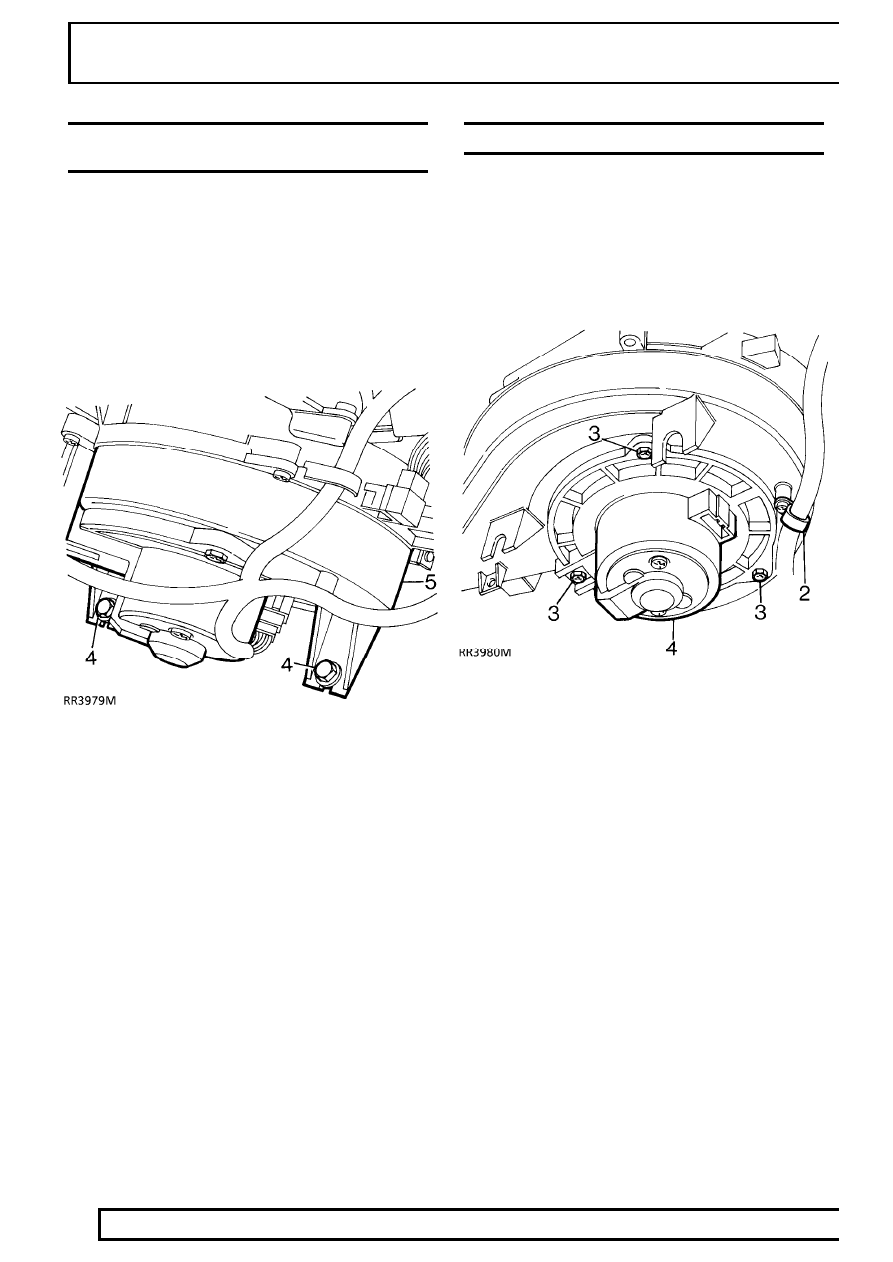

BLOWER MOTOR

Service repair no - 80.20.17
Service repair no - 82.25.33.

Remove

1. Remove blower motor unit.

See Blower Motor

Unit - Heater and Air Conditioning

2. Release wiring harness retaining clip.
3. Remove 3 screws securing casing.
4. Remove blower motor assembly.

HEATING AND VENTILATION

7

REPAIR

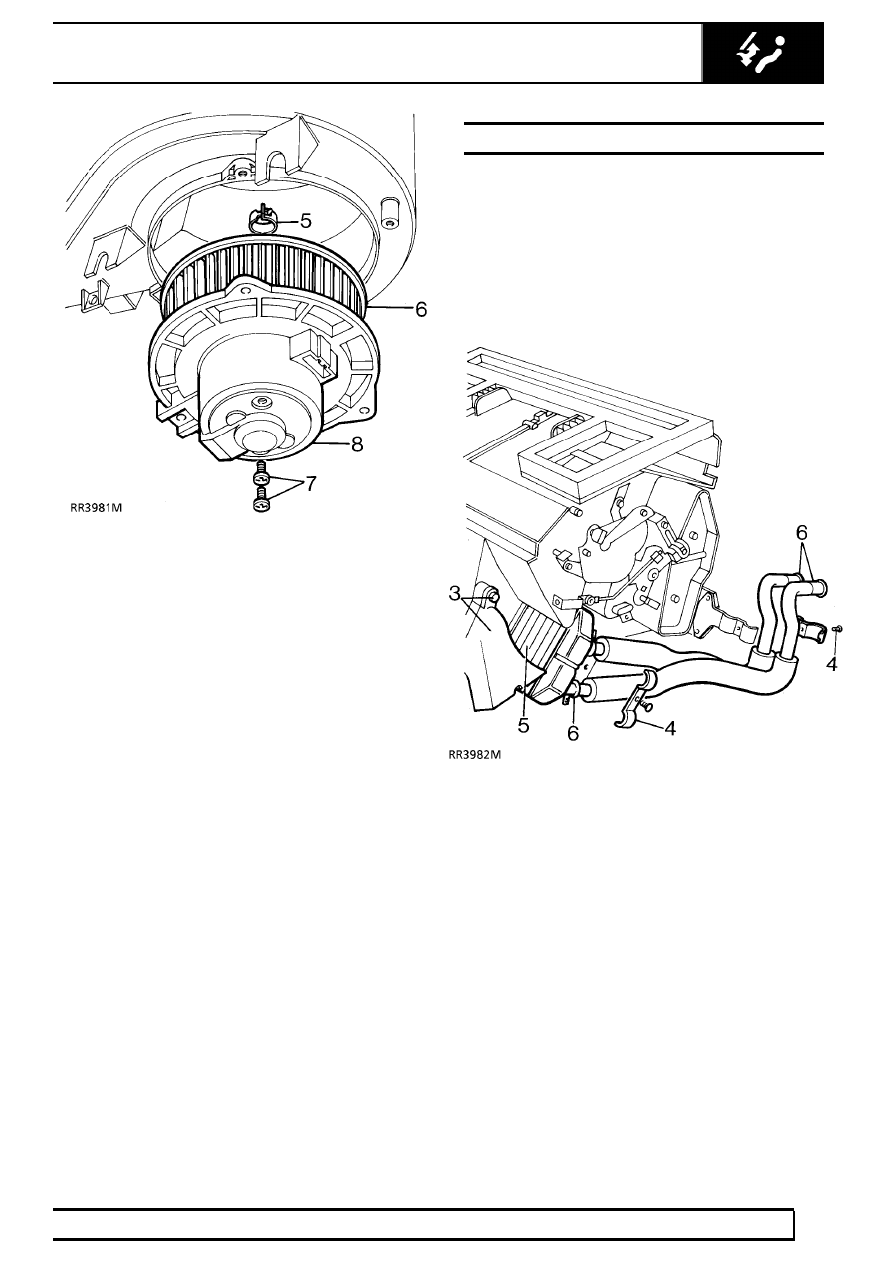

5. Remove fan retaining clip.
6. Remove fan.
7. Remove 2 screws securing motor to casing.
8. Remove blower motor.

Refit

9. Reverse removal procedure.

HEATER MATRIX

Service repair no - 80.20.29

Remove

1. Remove heater unit.

See AIR CONDITIONING,

Repair, Heater and Cooler Unit

2. Remove evaporator.

See AIR CONDITIONING,

Repair, Evaporator and Expansion Valve

3. Remove 2 screws and remove RH side footwell

outlet.

4. Remove heater pipe clips.
5. Slide heater matrix from casing.
6. Release 2 clips and remove 2 heater pipes from

matrix.

Refit

7. Reverse removal procedure.

HEATING AND VENTILATION

1

SPECIFICATIONS, TORQUE

TORQUE VALUES

NOTE: Torque wrenches should be regularly checked for accuracy to ensure that all fixings are
tightened to the correct torque.

Nm

METRIC

M5

6

......................................................................................................

M6

9

......................................................................................................

M8

25

.....................................................................................................

M10

45

...................................................................................................

M12

90

...................................................................................................

M14

105

..................................................................................................

M16

180

..................................................................................................

UNC / UNF

1/4

9

......................................................................................................

5/16

24

...................................................................................................

3/8

39

.....................................................................................................

7/16

78

...................................................................................................

1/2

90

.....................................................................................................

5/8

136

....................................................................................................

Torque values above apply to all screws and bolts used unless otherwise specified.
