Land Rover Discovery. Manual - part 182





76

CHASSIS AND BODY

60

REPAIR

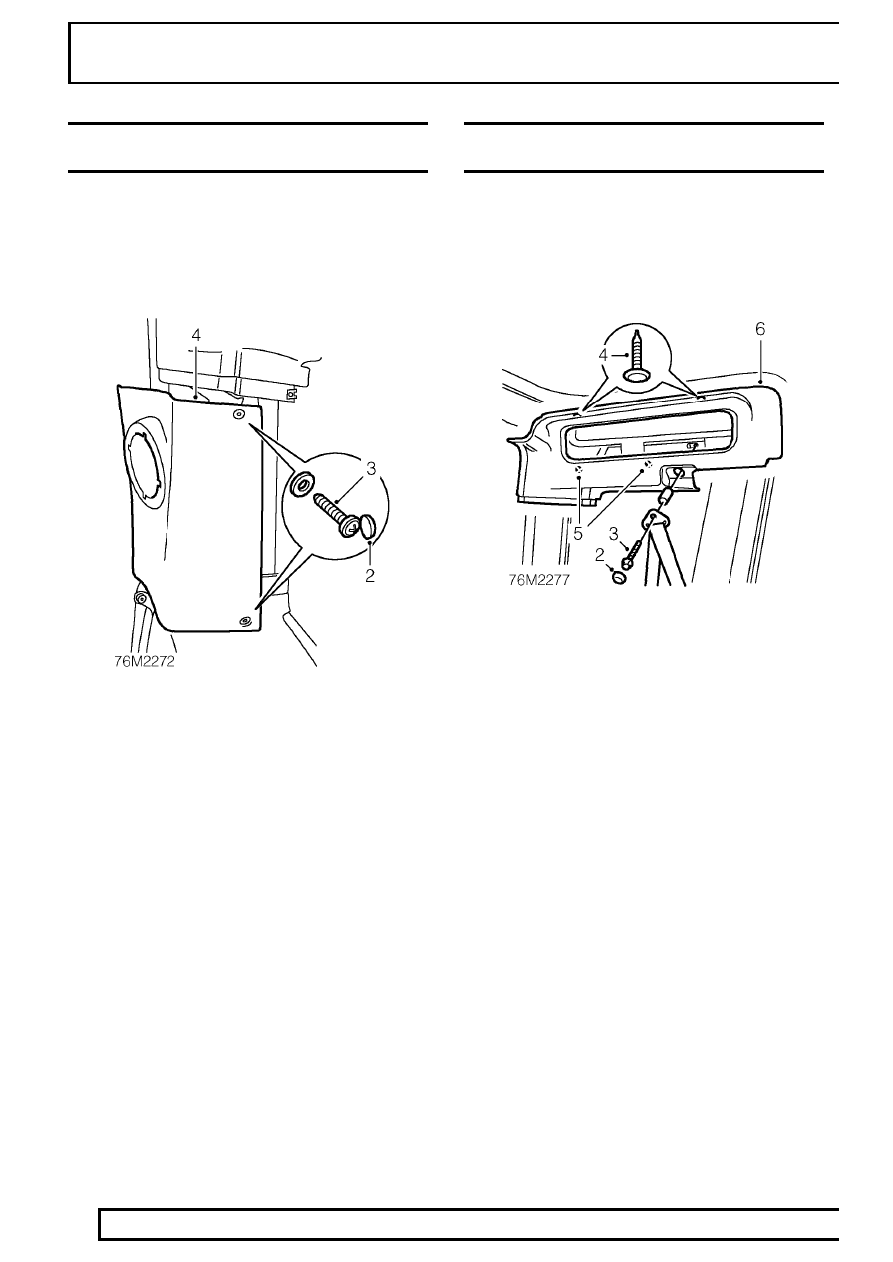

’E’ POST TRIM CASING - LH - WITH REAR AIR
CONDITIONING FITTED

Service repair no - 76.13.13/20

Remove

1. Remove rear speaker.

See ELECTRICAL,

Repair, rear speaker.

2. Release 2 trim casing retaining screw covers.
3. Remove 2 screws securing trim casing.
4. Remove trim casing.

Refit

5. Fit and align trim casing.
6. Fit and tighten screws securing trim casing and

fit covers.

7. Fit rear speaker.

See ELECTRICAL, Repair,

rear speaker.

ALPINE LIGHT TRIM CASING - LH - WITH REAR
AIR CONDITIONING FITTED

Service repair no - 76.13.20/20

Remove

1. Remove ’E’ post trim casing.

See ’E’ post trim

casing - lh - with rear air conditioning fitted.

2. Remove rear seat belt anchorage retaining bolt

cover.

3. Remove bolt securing rear seat belt anchorage.
4. Remove 2 trim studs securing trim casing.
5. Release trim casing from 2 retaining studs.
6. Remove trim casing.

Refit

7. Fit and align trim casing and secure with studs.
8. Fit 2 trim studs securing trim casing.
9. Position seat belt anchorage, fit bolt and tighten

to

20 Nm (15 lbf ft) .

10. Fit cover to seat belt anchorage bolt.
11. Fit ’E’ post trim casing.

See ’E’ post trim

casing - lh - with rear air conditioning fitted.

CHASSIS AND BODY

61

REPAIR

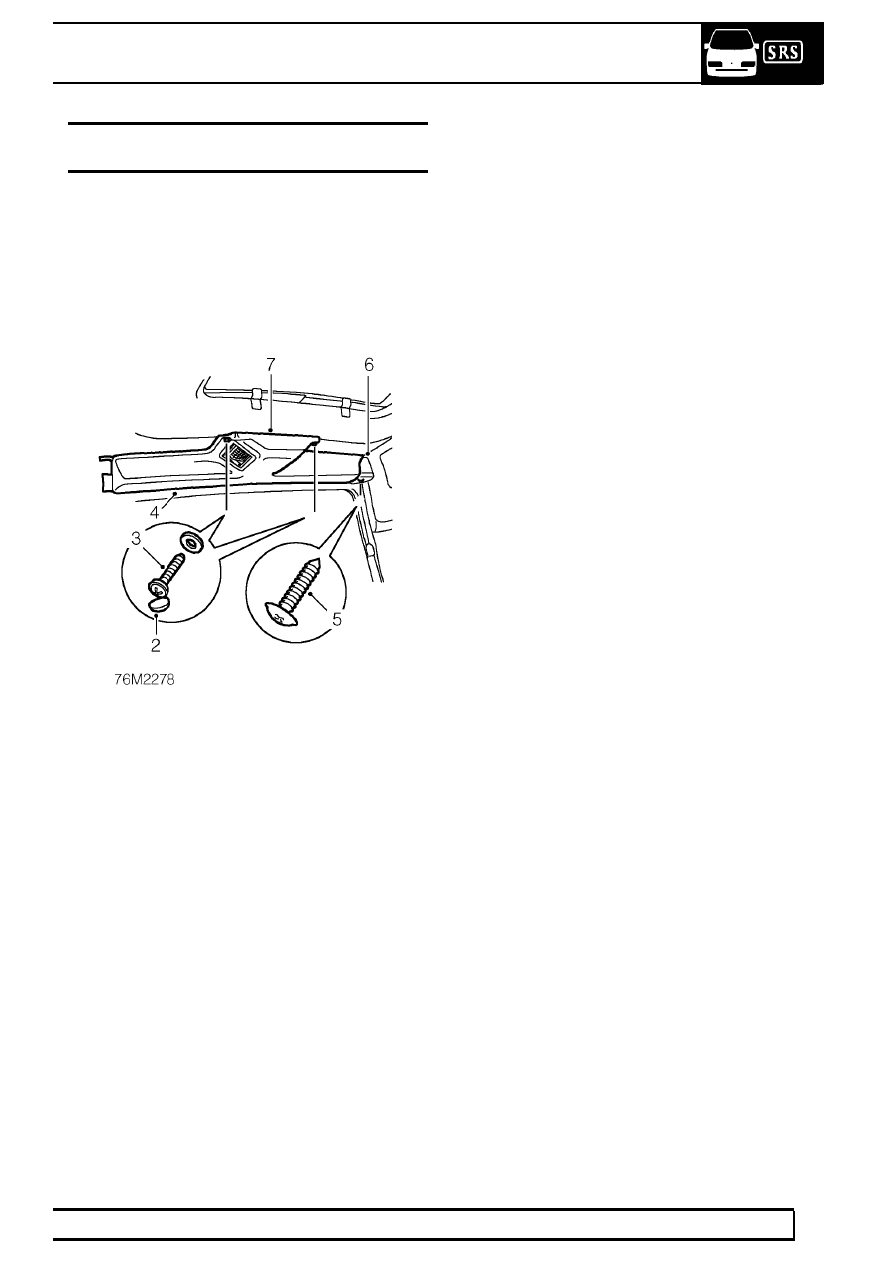

REAR DOOR UPPER TRIM PANEL - WITH REAR
AIR CONDITIONING FITTED

Service repair no - 76.13.72/20

Remove

1. Remove alpine light trim casing.

See alpine

light trim casing - lh - with rear air
conditioning fitted.

2. Release 2 trim panel retaining screw covers.
3. Remove 2 trim panel retaining screws.
4. Release rear edge of trim panel from body.
5. Remove screw securing rear header duct to

alpine light duct.

6. Release rear header duct from alpine light duct.
7. Remove trim panel assembly.

Dismantle

8. Remove 2 vents from trim panel.
9. Remove screw securing rear header duct to trim

panel.

10. Remove rear header duct.

Rebuild

11. Fit rear header duct to new trim panel and

secure with screw.

12. Fit vents to trim panel.

Refit

13. Position trim panel and connect rear header duct

to alpine light duct.

14. Fit and tighten screw securing rear header duct

to alpine light duct.

15. Secure rear edge of trim panel to body.
16. Fit and tighten screws securing trim panel.
17. Secure trim panel retaining screw covers.
18. Fit alpine light trim casing.

See alpine light

trim casing - lh - with rear air conditioning
fitted.

76

CHASSIS AND BODY

62

REPAIR

’D’ POST TRIM CASING - LH - WITH REAR AIR
CONDITIONING FITTED - 5 DOOR

Service repair no - 76.13.73/20

Remove

1. Remove rear compartment lower trim panel.

See rear compartment lower trim panel - lh -
with rear air conditioning fitted.

2. Remove the squab release button from control

rod.

3. Release rear seat belt from guide and remove

guide.

4. Remove the trim casing retaining stud.
5. Release trim casing from 2 retaining studs.
6. Remove trim casing.

Refit

7. Fit trim casing under alpine light trim, align and

secure retaining studs.

8. Fit trim casing retaining stud.
9. Position trim casing rear edge beneath sixth light

seal flange.

10. Fit seat belt to guide, align squab release control

rod and position guide to trim casing.

11. Fit squab release button to control rod.
12. Fit rear compartment lower trim panel.

See rear

compartment lower trim panel - lh - with rear
air conditioning fitted.

CHASSIS AND BODY

63

REPAIR

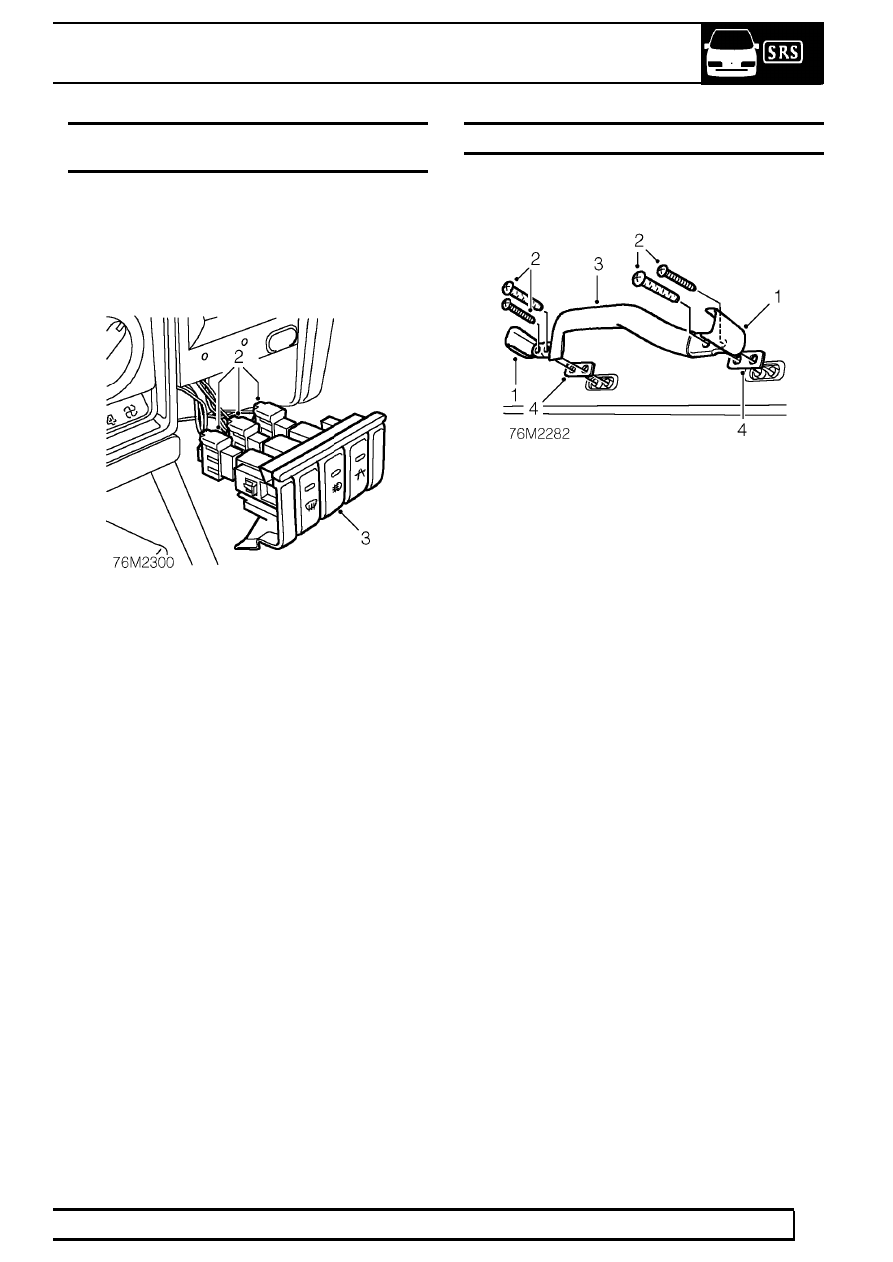

SWITCH PACK - DASH PANEL CENTRAL LOUVRE
PANEL

Service repair no - 76.46.38

Remove

1. Release switch pack from louvre panel.

2. Disconnect 3 multiplugs from switch pack.
3. Remove switch pack.

Refit

4. Position switch pack.
5. Connect multiplugs to switch pack.
6. Secure switch pack to louvre panel.

GRAB HANDLE

Service repair no - 76.58.30

Remove

1. Release 2 grab handle retaining screw covers.
2. Remove 4 screws securing grab handle to body.
3. Remove grab handle.
4. Collect 2 washers.

Refit

5. Position grab handle and washers.
6. Fit and tighten screws securing grab handle to

body.

7. Secure grab handle retaining screw covers.
