Land Rover Discovery. Manual - part 177





76

CHASSIS AND BODY

40

REPAIR

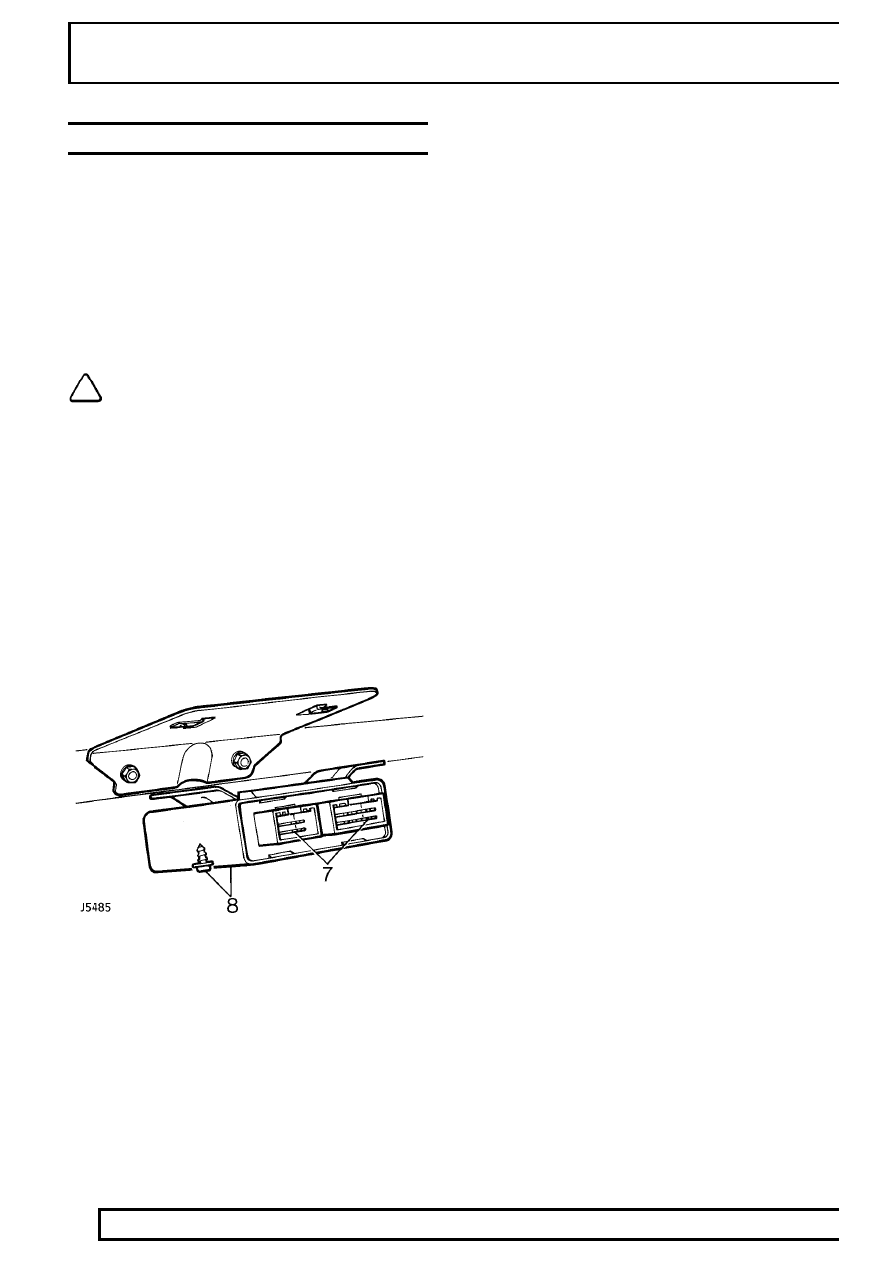

SUNROOF ELECTRIC CONTROL UNIT

Service repair no - 76.82.73

The control unit serves both front and rear sunroofs
and is sited above the front switches behind
headlining.

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position.

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle.

3. Remove switch panel from stowage pocket

panel

4. Remove interior lamp from stowage pocket

panel

5. Remove alarm ultrasonic unit.
6. Unscrew ten fixings and remove stowage pocket

from headlining.

7. Disconnect electric plugs from control unit.
8. Remove two retaining screws and control unit.

Refit

9. Reverse removal procedure.

CHASSIS AND BODY

41

REPAIR

SUNROOF ASSEMBLY - MANUAL, FRONT AND
REAR

Service repair no - 76.83.01

Remove

1. Close sunroof.
2. Remove headlining.

See headlining.

3. Remove screws and manual regulator from

clamping frame.

See sunroof regulator

manual.

4. Disconnect drain tubes from each side of

clamping frame.

5. Remove 13 screws and clamping frame from

upper frame.

6. Remove upper frame assembly from roof

aperture.

Refit

7. Position upper frame assembly into roof

aperture.

8. Locate clamping frame and reconnect drain

tubes.

9. Loosely fit screws, centralise upper frame and

clamping frame assemblies and then tighten
screws.

10. Reverse removal procedure.

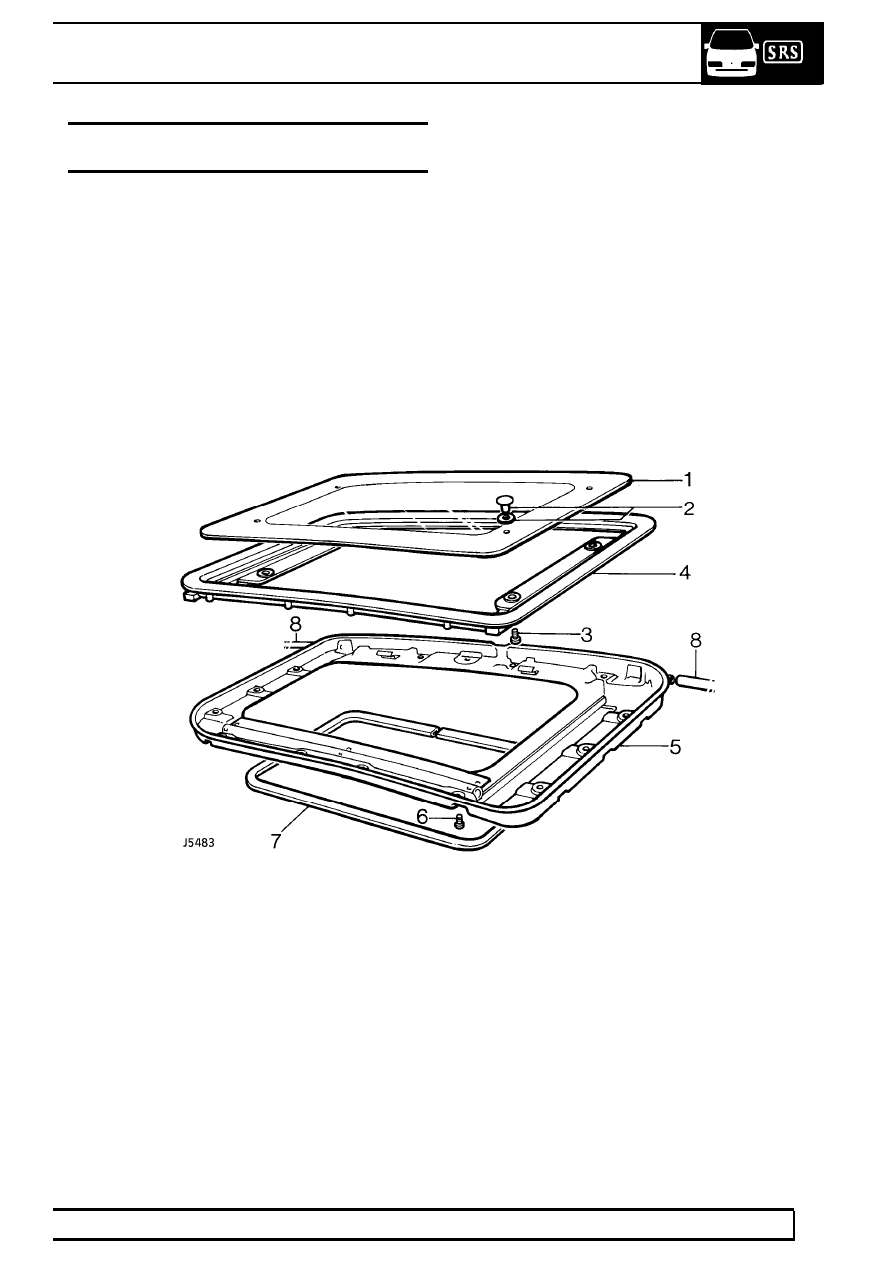

Sunroof components

1. Glass panel
2. Capnut and washer
3. Screw
4. Upper frame assembly

5. Clamping frame assembly
6. Screw
7. Edging trim
8. Drain tube

76

CHASSIS AND BODY

42

REPAIR

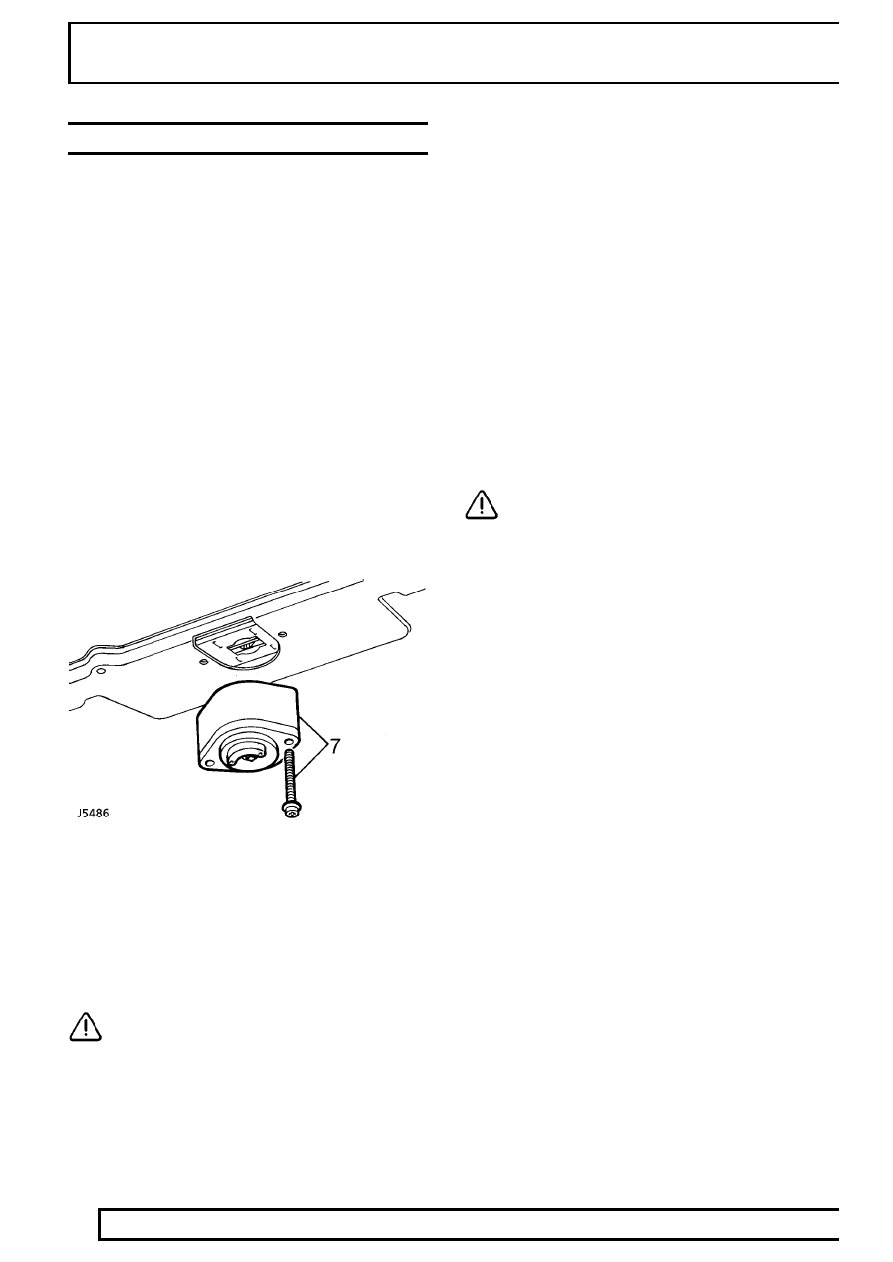

SUNROOF REGULATOR MANUAL

Service repair no - 76.83.03/04

FRONT

Remove

1. Ensure sunroof is in normally closed position.
2. Remove retaining screw and regulator handle.
3. Remove switch panel from stowage pocket

panel

4. Remove interior lamp from stowage pocket

panel

5. Remove alarm ultra sonic unit.
6. Unscrew ten fixings and remove stowage pocket

from headlining.

7. Remove two retaining screws and regulator from

clamping frame.

Refit

8. Reverse removal procedure.

CAUTION: Ensure the regulator is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the regulator spindle in the rack - this may result
in incorrect operation of the sunroof.

REAR

Remove

1. Ensure sunroof is in normally closed position.
2. Remove retaining screw and regulator handle.
3. Remove headlining.

See headlining.

4. Remove two retaining screws and regulator from

clamping frame.

Refit

5. Reverse removal procedure.

CAUTION: Ensure the regulator is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the regulator spindle in the rack - this may result
in incorrect operation of the sunroof.

CHASSIS AND BODY

43

REPAIR

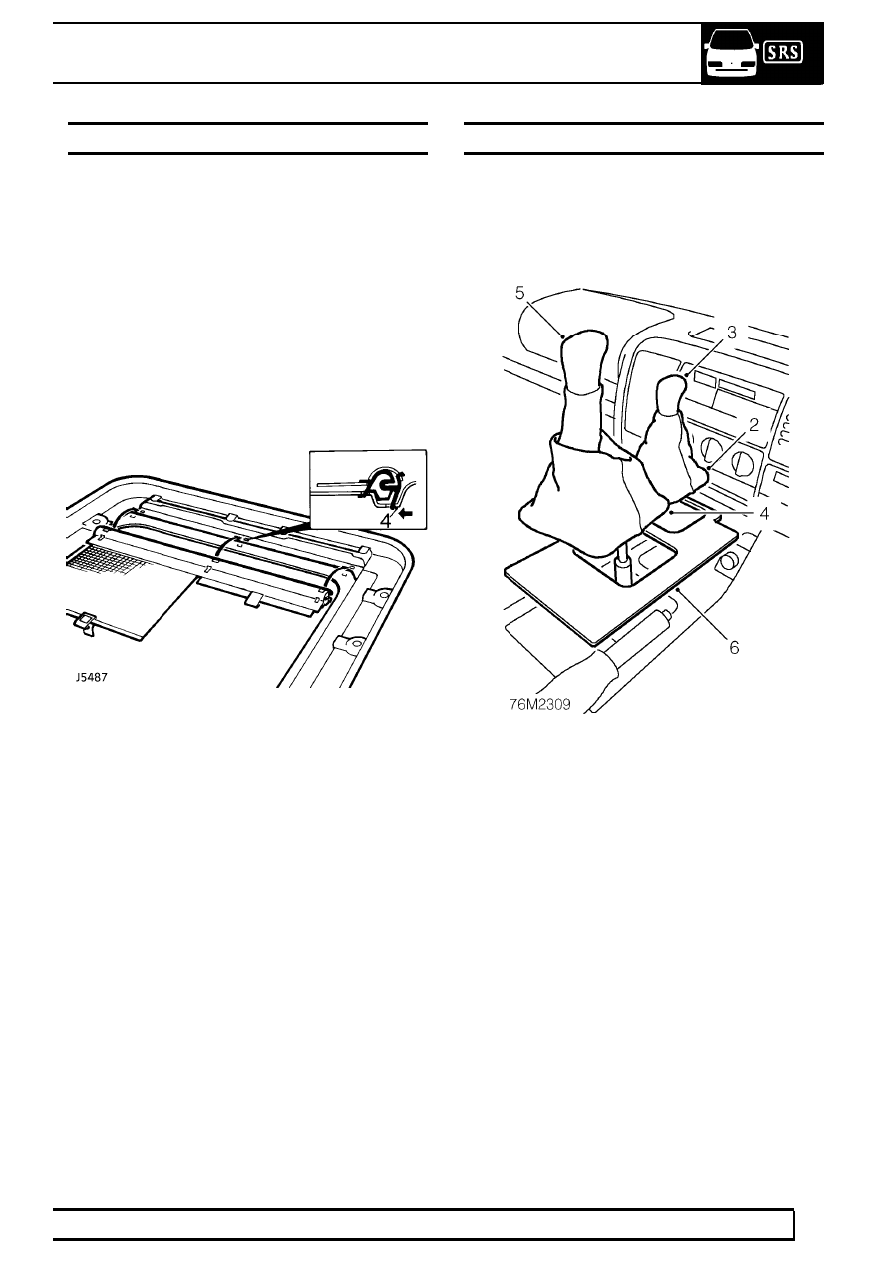

SUN BLIND ASSEMBLY

Service repair no - 76.82.78

Remove

1. Open sunroof to the tilt position.
2. Remove the trim finisher from the sunroof

surround.

3. Release the headlining locally to access under

clamping frame of the sunroof.

4. Lever forward and upward the rear leg of 3

retaining clips to release sun blind roll assembly.

Refit

5. Ensure front leg of retaining clips are located.
6. Push in rear leg of retaining clip.
7. Reverse removal procedure.

CENTRE CONSOLE

Service repair no - 76.52.02

Remove

1. Disconnect battery earth lead.

2. Release tranfer gear lever gaiter from console.
3. Remove transfer gear lever gaiter and knob

assembly.

4. Release gear selector lever gaiter from centre

console.

5. Remove gear selector lever gaiter and knob

assembly.

6. Remove centre console rubber mat.
