Land Rover Discovery. Manual - part 176





76

CHASSIS AND BODY

36

REPAIR

SUNROOF ELECTRIC/MANUAL

Introduction

Twin sunroofs are fitted to the vehicle, the open/close
sequence for both electric and manual versions
sharing the same operation:-

A Closed position,
B Tilt position,

C Fully open position. When fully open the sunroof

slides back in a tilt position over the vehicle roof.

The electric front and rear sunroofs, operated by roof
mounted switches are controlled by an electronic
control unit. A roof mounted isolation switch is also
fitted to cut off power to the rear sunroof.

On manual sunroofs a pull down handle is used,
incorporating a depress button that locks the handle
after each sequence.

Twin sun blinds are installed in the clamping frame of
the sunroof and can be drawn forwards
independently.

CHASSIS AND BODY

37

REPAIR

SUNROOF GLASS FRONT AND REAR

Service repair no - 76.82.64

Remove

1. Open sunroof to tilt position.
2. Using a right angled screwdriver remove four

retaining screws and detach sunroof glass from
upper frame. Retain capnuts and washers.

Refit

3. Locate sunroof glass in upper frame complete

with capnuts and loosely fit retaining screws.

4. Close sunroof and move glass centrally in upper

frame.

5. Open to tilt position and tighten retaining screws.

CAUTION: Ensure washers under capnuts
do not twist or spread out when tightening
retaining screws.

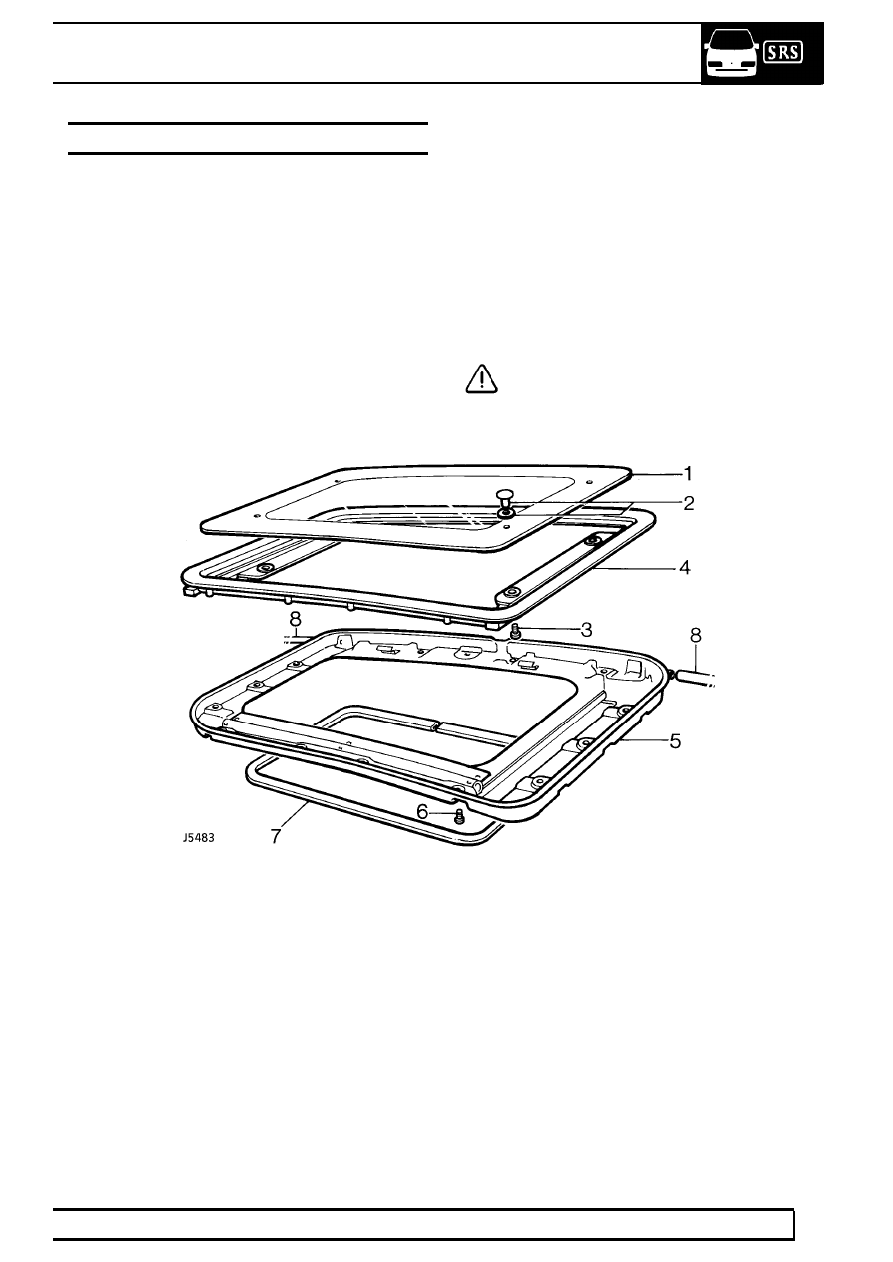

Sunroof components

1. Glass panel
2. Capnut and washer
3. Screw
4. Upper frame assembly

5. Clamping frame assembly
6. Screw
7. Edging trim
8. Drain tube

76

CHASSIS AND BODY

38

REPAIR

SUNROOF ASSEMBLY - ELECTRICAL, FRONT
AND REAR

Service repair no - 76.82.59

Remove

Refer to sunroof components illustration J5483

1. Ensure sunroof is in normally closed position.
2. Disconnect battery negative lead.
3. Remove headlining.

See headlining.

4. Disconnect electric motor wiring plug.

See

sunroof electric motors.

5. Remove screws and detach electric motor from

clamping frame.

6. Disconnect drain tubes from each side of

clamping frame.

7. Remove 13 fixings and remove clamping frame

from upper frame.

8. Remove upper frame assembly.

Refit

9. Position upper frame assembly into roof

aperture.

10. Locate clamping frame and reconnect drain

tubes.

11. Loosely fit screws, centralise upper frame and

clamping frame assemblies and then tighten
screws.

12. Reverse removal procedure.

CHASSIS AND BODY

39

REPAIR

SUNROOF ELECTRIC MOTORS

Service repair no - 76.82.84/85

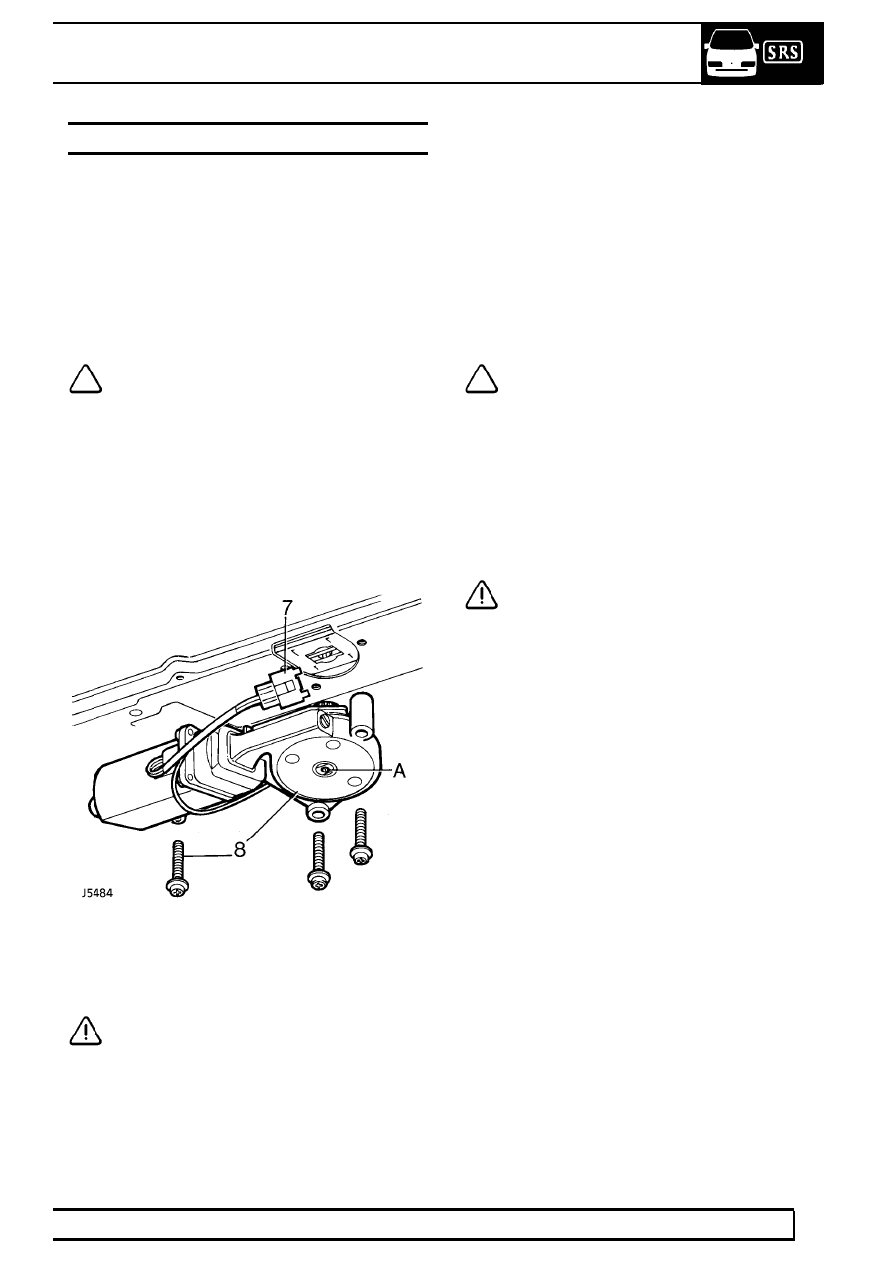

FRONT MOTOR

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle A.

3. Remove switch panel from stowage pocket

panel

4. Remove interior lamp from stowage pocket

panel

5. Remove alarm ultrasonic unit.
6. Unscrew ten fixings and remove stowage pocket

from headlining.

7. Disconnect motor wiring multiplug.
8. Remove three screws and motor.

Refit

9. Reverse removal procedure.

CAUTION: Ensure the motor is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the motor drive spindle in the rack - this may
result in incorrect operation of the sunroof.

REAR MOTOR

Remove

1. Disconnect battery negative lead.
2. Ensure sunroof is in normally closed position

NOTE: If the electric motor has failed the
sunroof can be closed manually using an
allen key to turn motor spindle.

3. Remove headlining.

See headlining.

4. Disconnect motor wiring multiplug.
5. Remove three screws and motor.

Refit

6. Reverse removal procedure.

CAUTION: Ensure the motor is aligned
with fixing holes and the sunroof is in the
normally closed position. DO NOT rotate

the motor drive spindle in the rack - this may
result in incorrect operation of the sunroof.
