60

FRONT SUSPENSION

2

REPAIR

8. Press out flexible bushes.

Refit

9. Press in replacement bushes.

CAUTION: When pressing in new bushes
press on outer edge of bush and not
rubber inner.

10. Reverse removal procedure. 1 to 8.

Tighten fixings to following torques:
Radius arm to chassiss

176Nm

Radius arm to axle

197Nm

FRONT SHOCK ABSORBER

Service repair no - 60.30.02.

Remove

1. Loosen road wheel retaining nuts.
2. Support chassis on stands and remove road

wheel.

3. Support axle weight with jack.

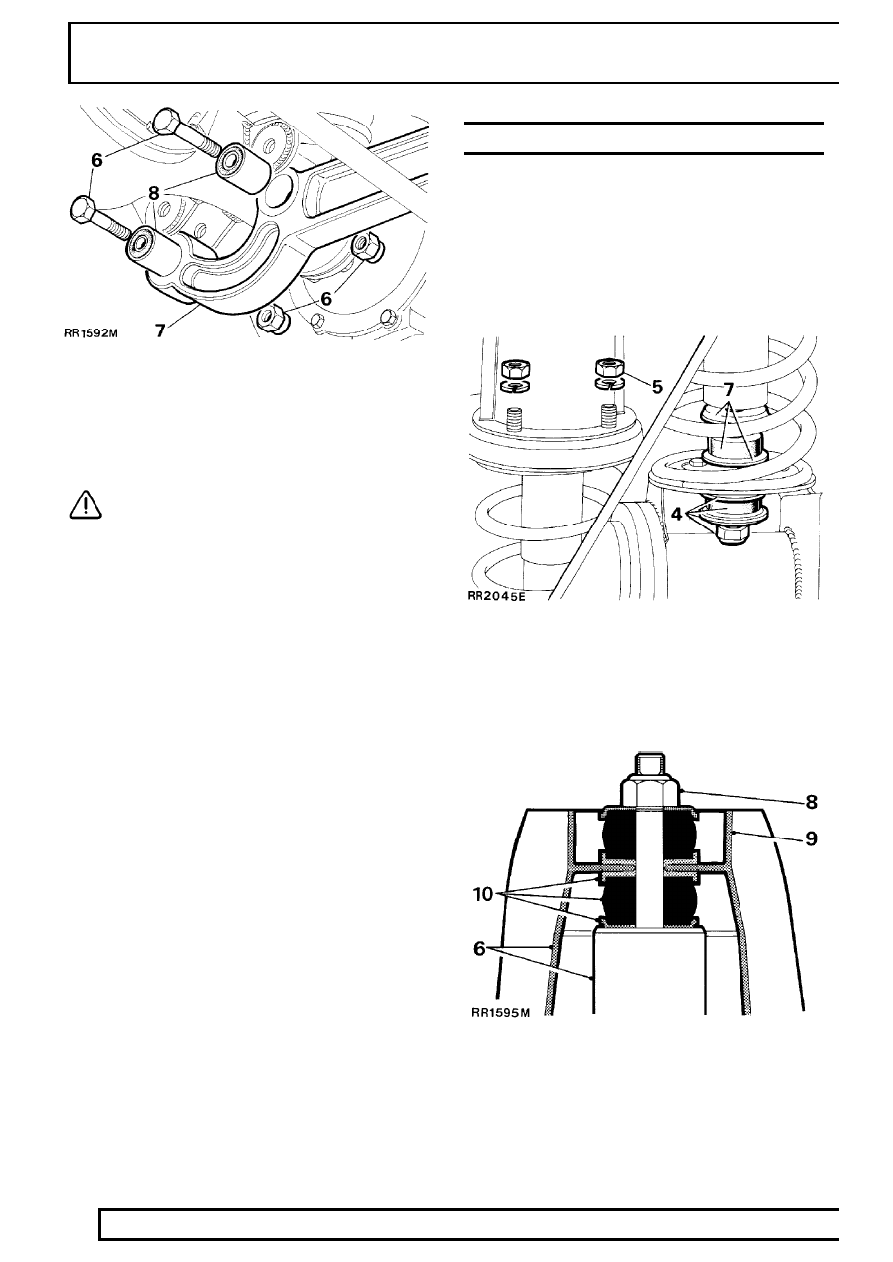

4. Remove shock absorber lower fixing and

withdraw cupwasher, rubber bush and seating
washer.

5. Remove four shock absorber bracket fixings.
6. Withdraw shock absorber and bracket complete.

FRONT SUSPENSION

3

REPAIR

7. Withdraw lower seating washer, rubber bush and

cupwasher.

8. Remove fixings, shock absorber to mounting

bracket.

9. Withdraw mounting bracket.

10. Lift off top seating washer, rubber bush and

cupwasher.

Refit

11. Reverse removal procedure. 1 to 10.

FRONT ROAD SPRING

Service repair no - 60.20.11.

Remove

1. Remove front shock absorber.

See Front

Shock Absorber

CAUTION: Avoid over stretching brake
hoses. If necessary loosen hose connector
locknuts to allow hoses to follow axle.

2. Lower axle sufficient to free road spring.
3. Withdraw road spring.

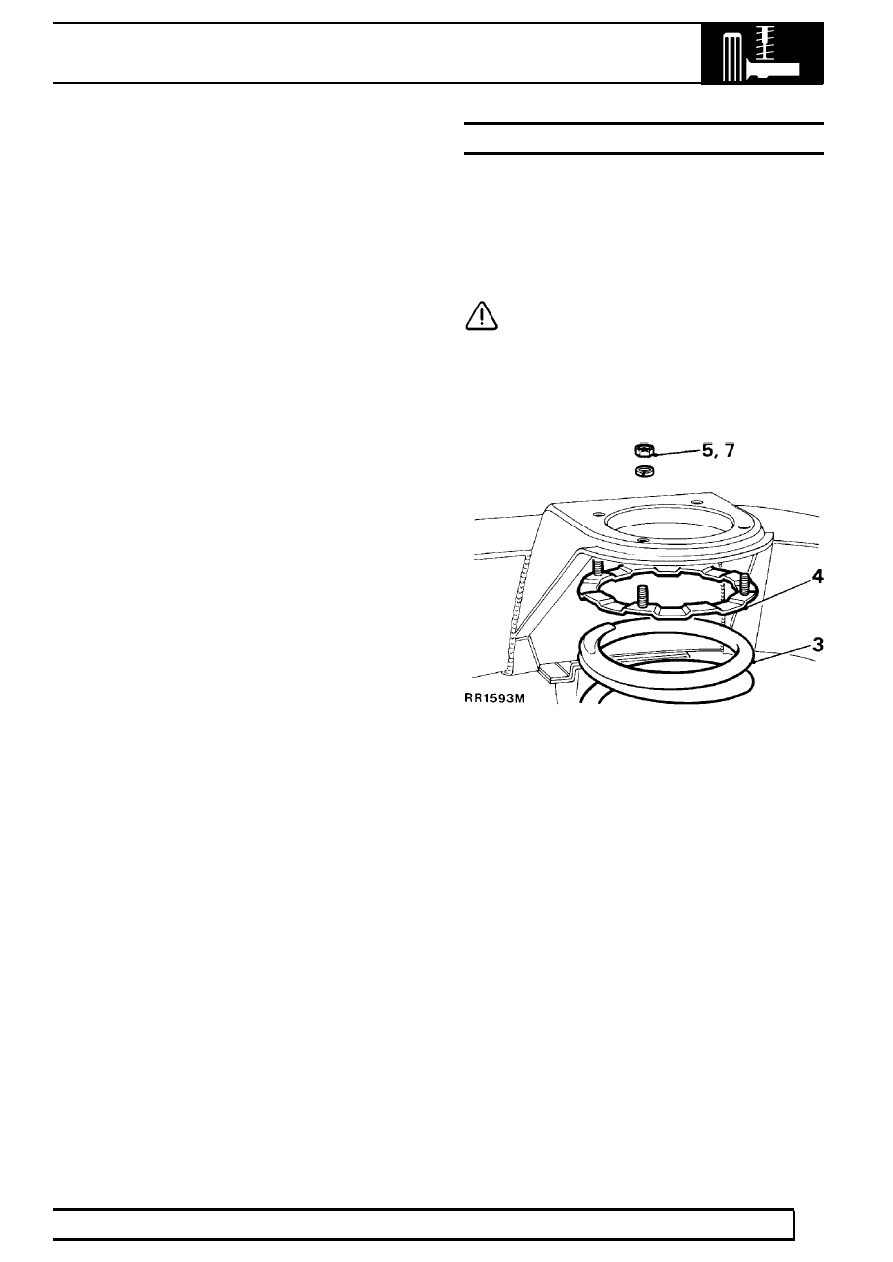

4. Withdraw shock absorber bracket securing ring.

Refit

5. Fit shock absorber bracket retaining ring. Retain

in position with a nut.

6. Reverse 2 and 3.
7. Remove nut retaining securing ring.
8. Fit front shock absorber.

60

FRONT SUSPENSION

4

REPAIR

BUMP STOP

Service repair no - 60.30.10.

Remove

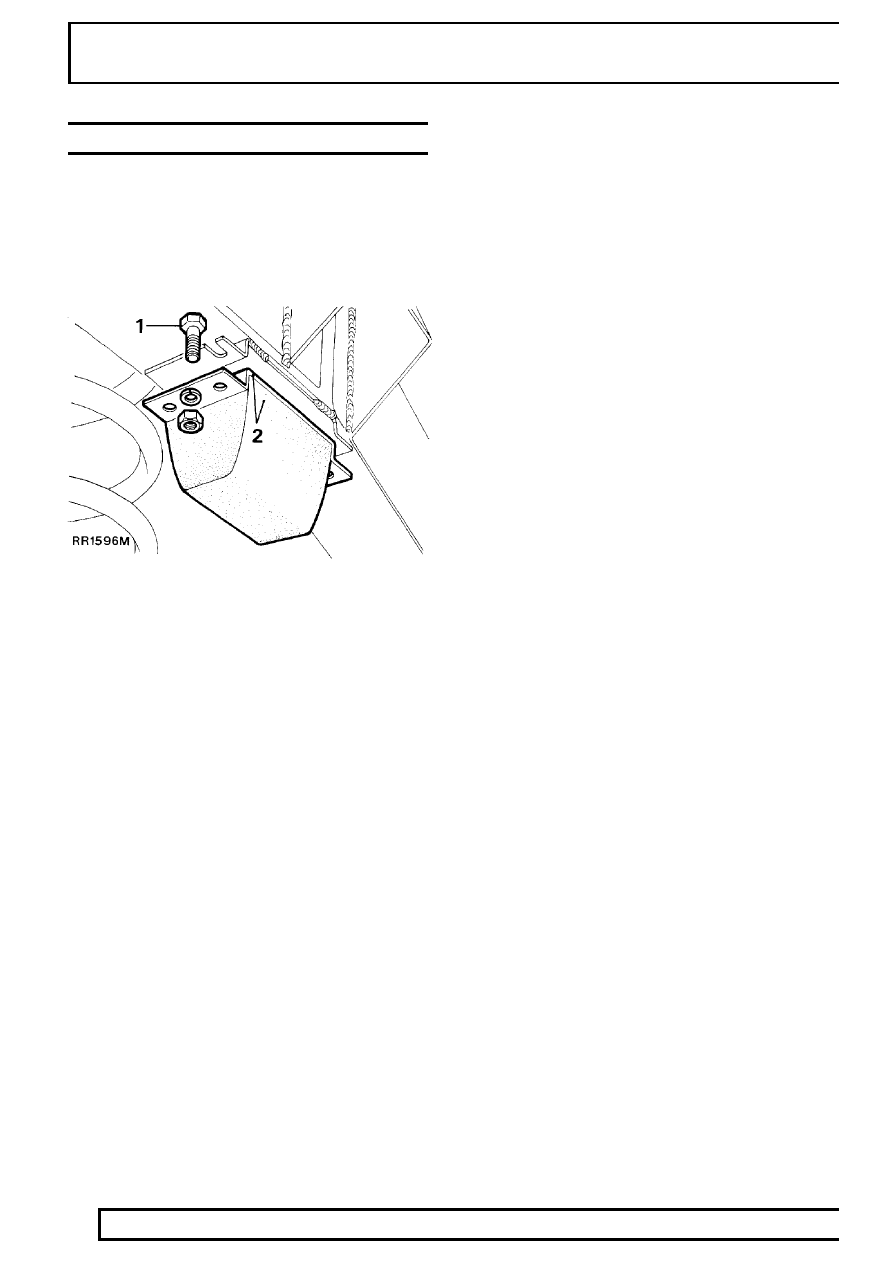

1. Remove fixings.
2. Remove bump stop.

Refit

3. Position bolts in slots in chassis brackets.
4. Fit bump stop, secure with washers and nuts.

FRONT SUSPENSION

5

REPAIR

ANTI-ROLL[SWAY] BAR ASSEMBLY FRONT

Service repair no - 60.10.01

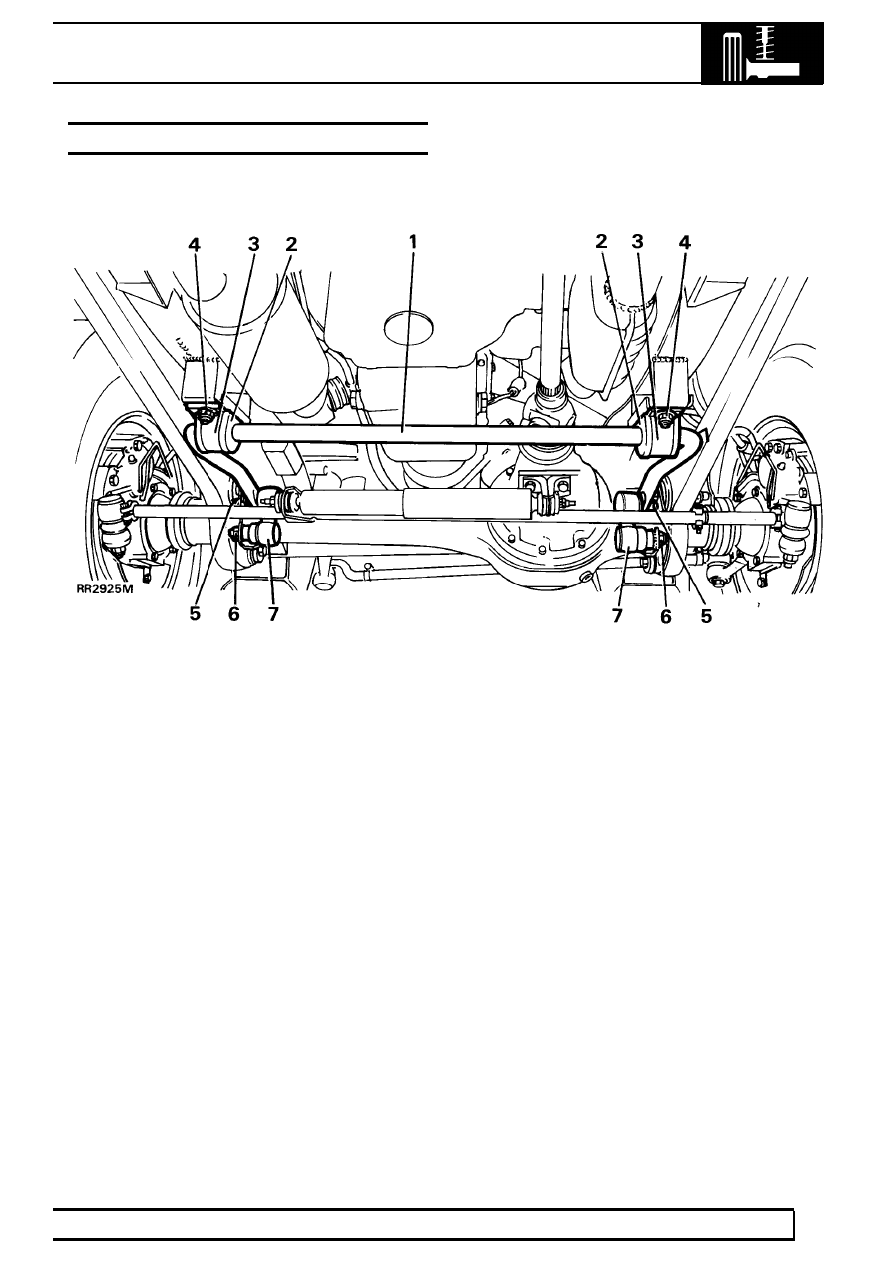

KEY

1. Anti-roll[sway] bar
2. Rubber bush
3. Strap
4. Nut, bolt, washer

5. Nut and washer
6. Castellated nut and cotter pin
7. Ball joint link arm

Remove

1. Mark for reassembly position of rubber bushes

on anti- roll[sway] bar.

2. Remove four nuts, bolts and washers securing

two bush straps.

3. Remove nuts, bolts, washers and rubber bushes

from ball joint links and remove anti-roll[sway]
bar.

Refit

4. Position bushes on anti-roll[sway] bar. Ensure

split points towards axle on RH bush and away
from axle on LH bush.

5. Fit anti-roll[sway] bar with two straps. To ensure

correct fit angled sides of bar should point down
as shown. Loosely fit the bolts, washers and
nyloc nuts.

6. Fit bolt, washers and rubber bushes. Using new

nuts fit anti-roll[sway] bar to ball joint links.
Tighten to

68Nm.

7. Tighten nuts securing straps to

30Nm
