Land Rover Discovery. Manual - part 141





57

STEERING

2

OVERHAUL

12. Remove piston, a bolt screwed into piston will

assist removal.

13. Remove input shaft dirt excluder.

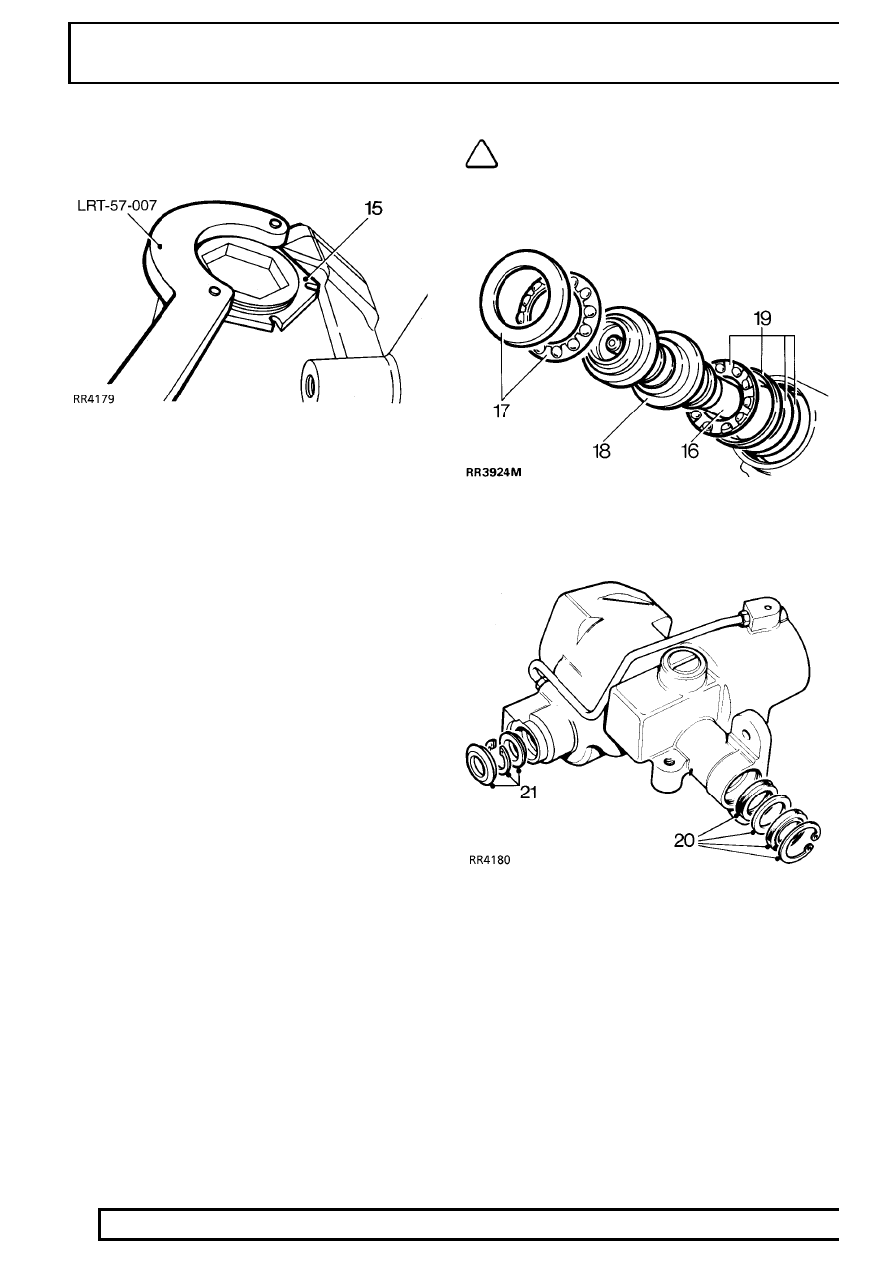

14. Remove worm adjuster locknut using ’C’ wrench

LRT-57-007.

15. Remove worm adjuster using wrench

LRT-57-006.

16. Tap splined end of shaft to free bearing.
17. Remove bearing cup and caged ball bearing

assembly.

18. Remove valve and worm assembly.
19. Remove inner bearing cage, cup and shim

washers. Retain shims for reassembly.

NOTE: Should difficulty be experienced
warm casing and bearing assembly. Cool
bearing cup using a mandrel and tap

steering box on a bench.

Steering box seals

20. Remove circlip and seal from sector shaft

housing bore.

STEERING

3

OVERHAUL

CAUTION: Do not remove sector shaft
bearings from casing. Replacement parts
are not available. If sector shaft bearings

are worn fit a new steering box.

21. Remove dirt excluder, circlip and seal from input

shaft housing bore.

CAUTION: The use of a seal puller is
recommended to prevent damage to
casing, and possible oil leaks.

INSPECTING

Piston

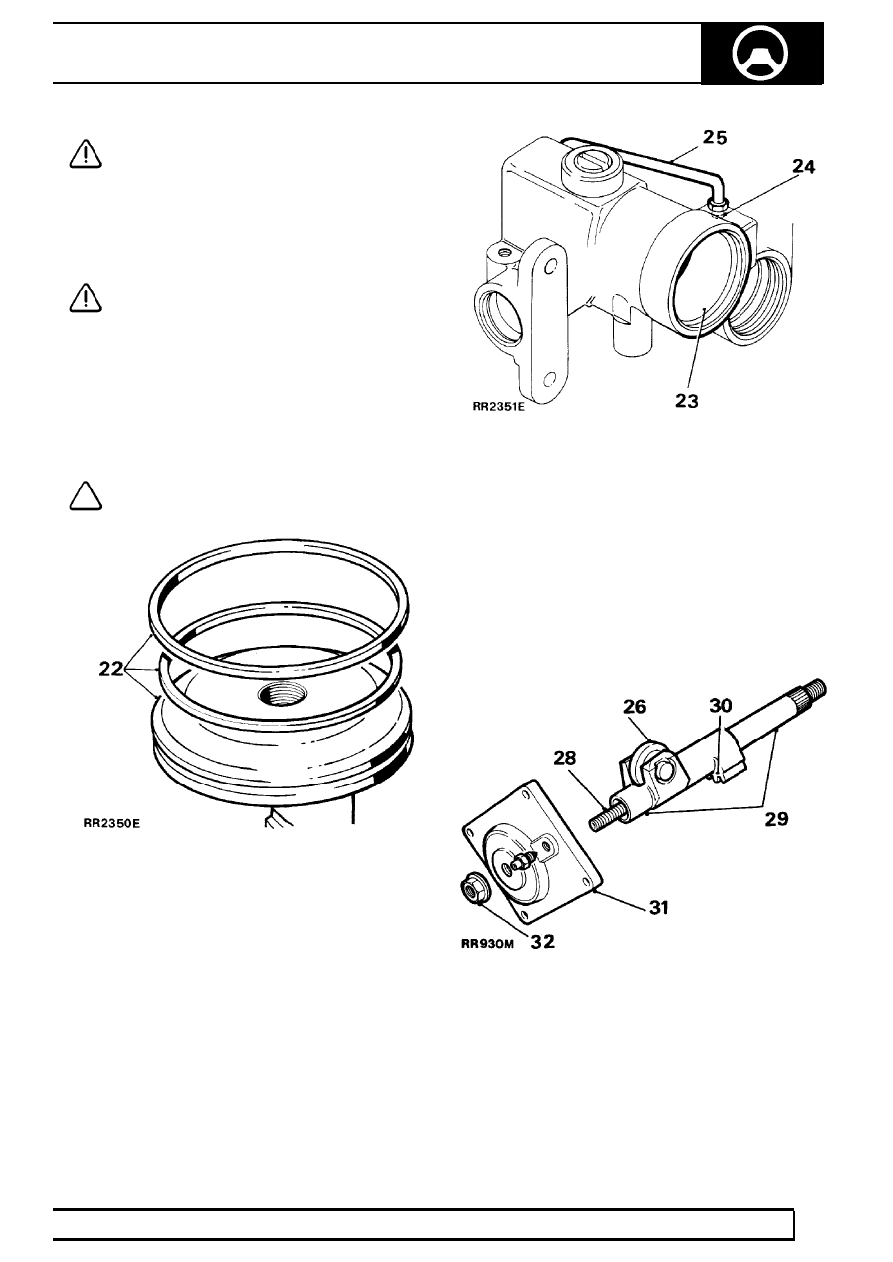

22. Discard all rubber seals and provide

replacements.

NOTE: A rubber seal is fitted behind
plastic ring on rack piston. Discard seal
and plastic ring.

Steering box casing

23. Examine piston bore for scoring and wear.
24. Examine feed tube.
25. Fit a new feed tube if damaged. Tighten to

22

Nm.

Sector shaft assembly

26. Check there is no side play on roller.
27. If side play on roller exists fit a new sector shaft.
28. Check condition of adjuster screw threads.

Check adjuster end float. Fit new adjuster if end
float exceeds 0.15 mm.

29. Examine bearing areas on shaft for excessive

wear.

30. Examine gear teeth for uneven or excessive

wear.

57

STEERING

4

OVERHAUL

Sector shaft cover assembly

31. Inspect cover and bearing. If worn or damaged,

replacement parts are not available, fit a new
steering box.

Sector shaft adjuster locknut

32. The locknut is also a fluid seal. Fit new nut at

overhaul.

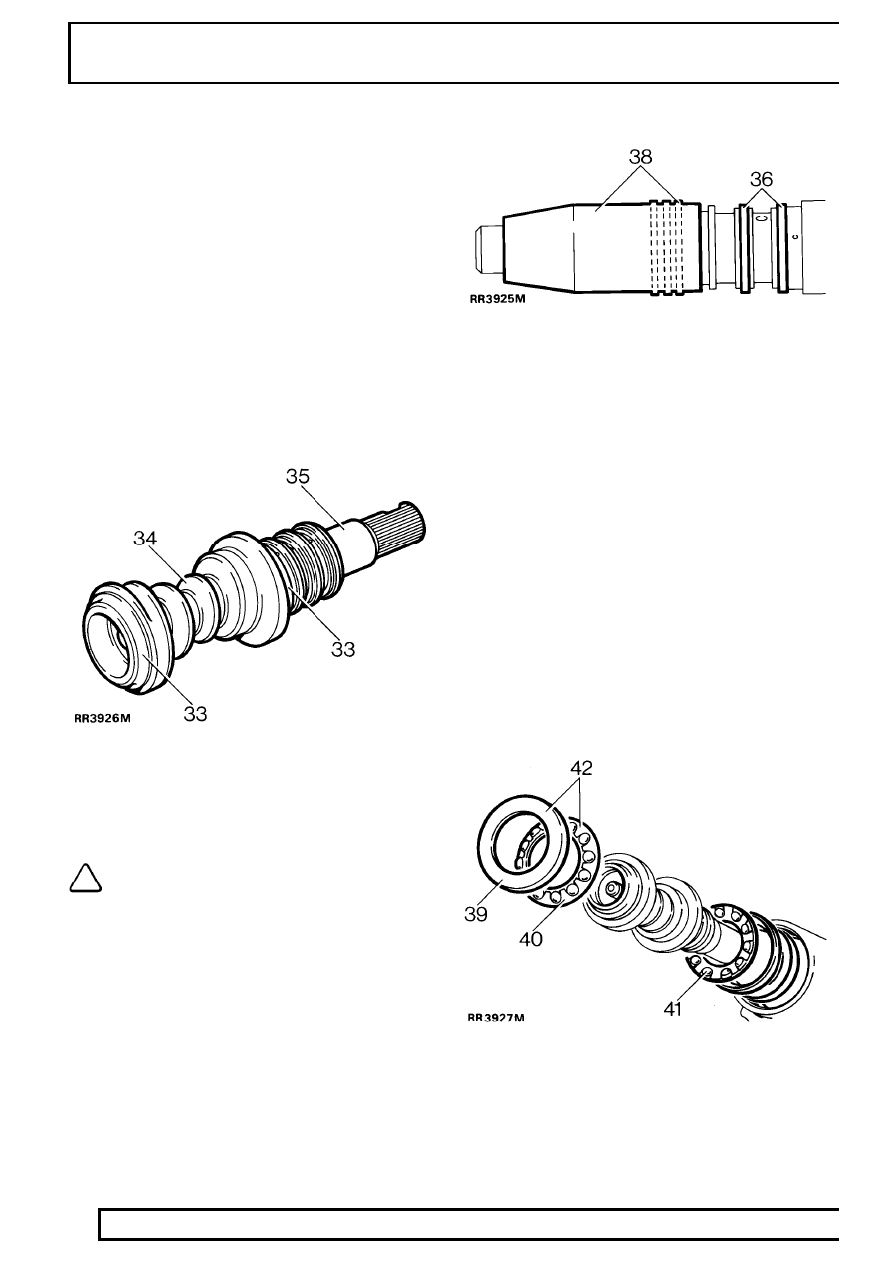

Valve and worm assembly

33. Examine bearing areas for wear. The areas must

be smooth and not indented.

34. Examine worm track which must be smooth and

not indented.

35. Check for wear on torsion bar assembly pin. No

free movement should exist between input shaft
and torsion bar or between torsion bar and
worm.

NOTE: Any sign of wear makes it essential
to fit new valve and worm assembly.

36. Examine valve rings for cuts, scratches and

grooves. The valve rings should be free to rotate
in grooves.

37. If required, replace all three rings, using ring

expander LRT-57-019. The expander will not
pass over rings already fitted. Remove rings to
allow access without damaging seal grooves.

38. Warm rings and expander tool to aid assembly.

Fit rings to expander, slide expander over valve
and worm assembly. In turn fit rings to their
grooves. Remove expander, slide valve and
worm assembly into ring compressor
LRT-57-020 and allow to cool.

Ball bearing and cage assemblies

39. Examine ball races and cups for wear and

general condition.

40. If ball cage has worn against bearing cup, fit

replacements.

41. Bearing balls must be retained by cage.
42. Bearing and cage repair is carried out by

complete replacement of assembly.

STEERING

5

OVERHAUL

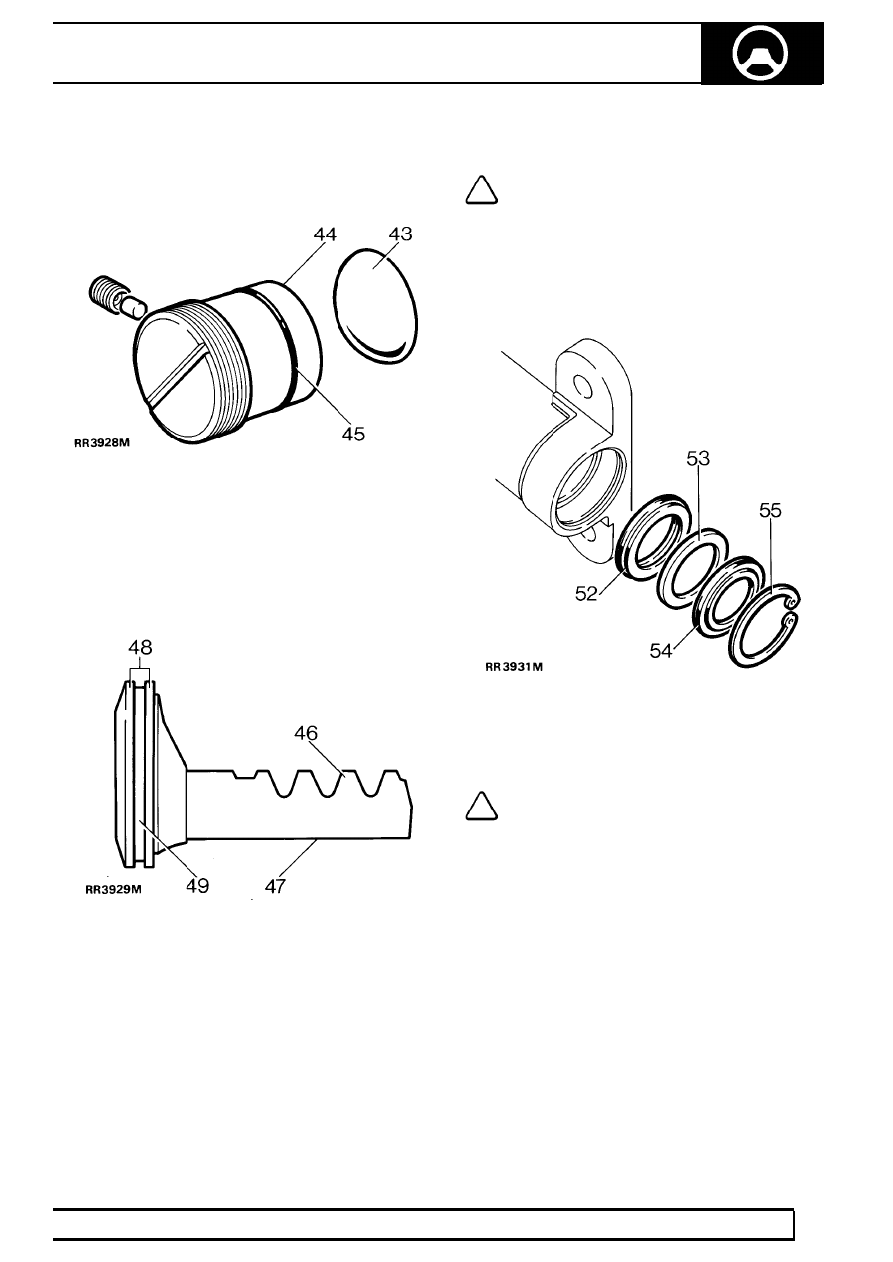

Rack thrust pad and adjuster

43. Examine thrust pad for scores.
44. Examine adjuster for wear in pad seat.
45. Fit new sealing ring to rack adjuster.

Rack and piston

46. Examine for excessive wear on rack teeth.
47. Ensure thrust pad bearing surface is free from

scores and wear.

48. Ensure piston outer diameters are free from

burrs and damage.

49. Examine seal and ring groove for scores and

damage.

50. Fit new ring to piston. Warm nylon seal and fit to

piston.

51. Slide piston assembly into cylinder with rack

tube outwards.

Reassemble

NOTE: When fitting replacement oil seals
lubricate with recommended fluid and
ensure absolute cleanliness.

Sector shaft oil seal

52. Fit oil seal, lip side first.
53. Fit extrusion washer.
54. Fit dust seal, lipped side last.
55. Fit circlip.

Fitting valve and worm assembly

56. Refit original shims and inner bearing cup. Use

Petroleum Jelly to aid assembly.

NOTE: If original shims are not used, fit
shims of 0.76 mm thickness.

57. Fit inner cage and bearings assembly.
58. Fit valve and worm assembly.
59. Fit outer cage and bearings assembly.
60. Fit outer bearing cup.
