FRONT AXLE AND FINAL DRIVE

9

OVERHAUL

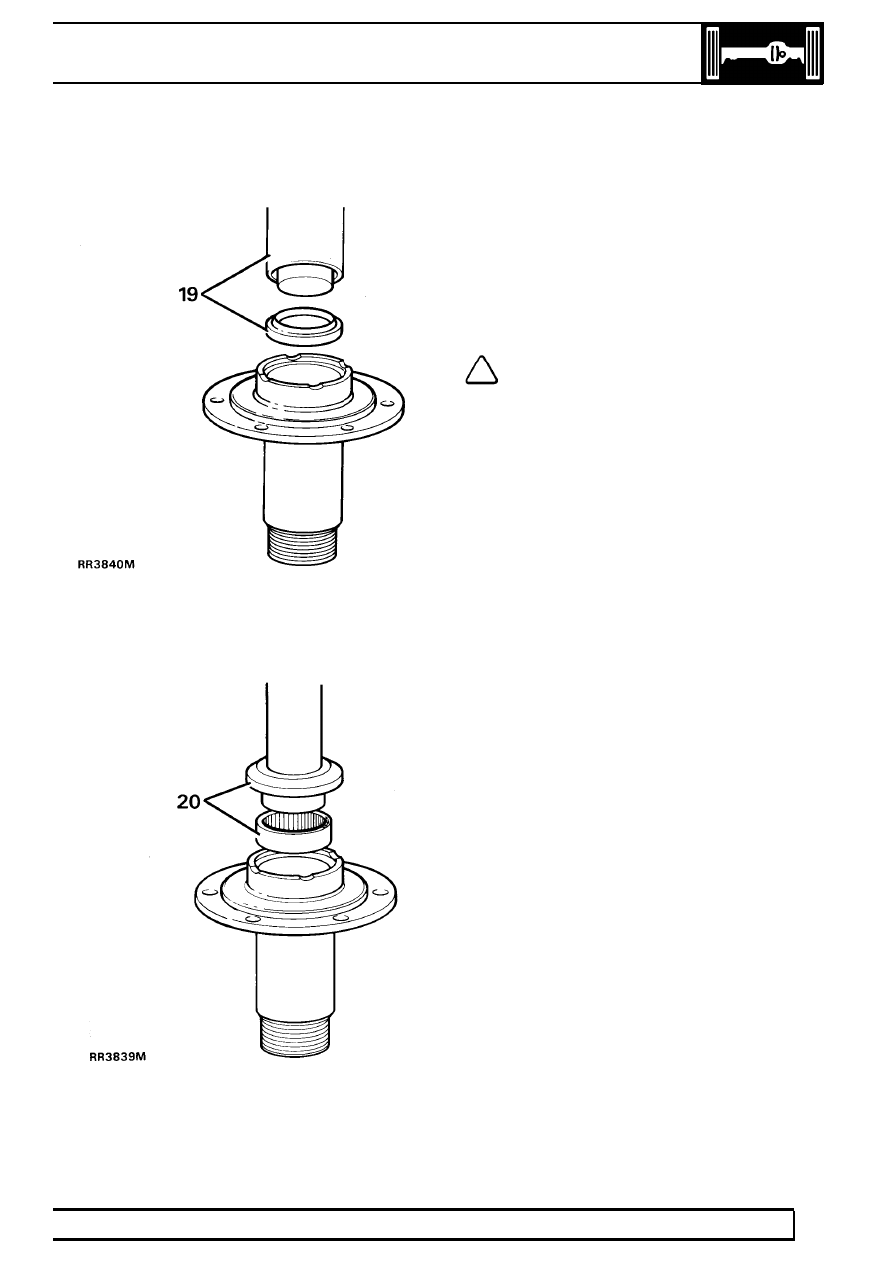

19. Lubricate seal and lip with EP90 oil and with

cavity side leading press in a new oil seal using
special tool LRT-54-004.

20. Using special tool LRT-54-005, fit bearing with

its part number visible when fitted, and flush with
end face of stub axle.

21. Press fit a new thrust ring onto stub axle.

Swivel pin housing assembly

22. Remove brake disc shield bracket.
23. Disconnect track-rod end ball joint from housing.
24. Disconnect drag-link ball joint.
25. Disconnect jump hoses from brake jump hose

bracket.

26. Remove ABS brake sensor.
27. Remove six bolts securing oil seal and retaining

plate to swivel pin housing. Prise seal from
swivel pin housing.

NOTE: Oil seal and retaining plate cannot
be removed until swivel pin bearing
housing is removed.

28. Remove two screws securing brake

damper/shield bracket and lower swivel pin to
housing.

29. Withdraw lower swivel pin and joint washer by

tapping protruding lug.

30. Remove top swivel pin retaining bolts complete

with brake jump hose bracket.

31. Remove top swivel pin and shims.
32. Remove swivel pin housing while retrieving

lower taper bearing.

Swivel pin bearing housing

33. Remove seven bolts securing swivel pin bearing

housing to axle case.

34. Remove and discard oil seal and joint washer.
35. Remove lower swivel pin bearing track.
36. Remove top swivel pin bush housing assembly.

Discard two thrust washers and bearing.

37. If worn, pitted or damaged, renew swivel pin

bearing housing.

38. Fit a new lower swivel pin bearing track.

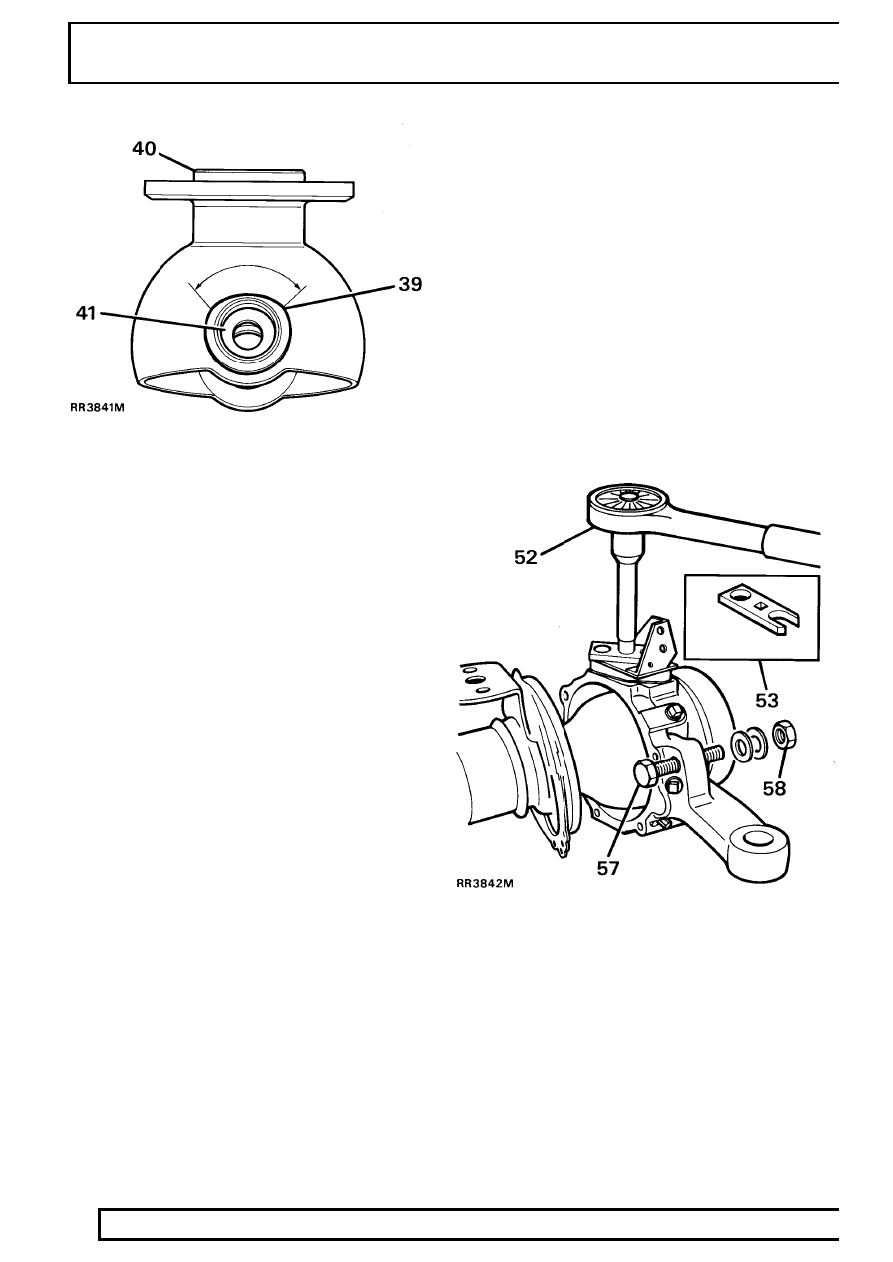

39. Fit a new bush and bush housing. Ensure

relieved lip of bush housing faces towards rear,
as shown.

54

FRONT AXLE AND FINAL DRIVE

10

OVERHAUL

40. With seal lips trailing press axle shaft oil seal

flush into rear of housing. Grease lips.

41. Fit new thrust washers and bearing into top

swivel pin bush.

42. Hang swivel pin bearing housing oil seal and

retainer plate over back of housing. Ensure they
are in correct assembly order.

43. Fit a new joint washer and secure swivel pin

bearing housing to axle. Starting with top fixing
dowel bolt. Tighten to

72Nm.

Fit swivel pin housing

44. Grease and fit lower swivel pin bearing to

bearing housing.

45. Place swivel pin housing in position over swivel

pin bearing housing.

46. Using a new joint washer, fit lower swivel pin

with lip outboard. Do not secure with screws at
this stage.

47. Fit a new sensor bush and new oil seal, lip side

leading to top swivel pin.

48. Lubricate with a recommended oil and fit top

swivel pin with existing shims.

49. Coat threads of top swivel pin bolts with Loctite

542. Fit bolts and jump hose bracket (do not
tighten).

50. Coat threads of lower swivel pin screws with

Loctite 270 and fit, together with damper and
shield bracket. Tighten to

25 Nm.

51. Tighten top swivel pin and brake jump hose

bracket securing bolts to

65 Nm.

Check and adjust preload on bearings

52. The preload on bearings to be 0,25 to 0,30 mm,

without swivel housing oil seal and axle fitted,
and reading from centre of swivel pin. The
torque required to turn swivel assembly from
lock to lock to be

2.0 to 2.8 Nm. Adjust by

removing or adding shims as necessary.

53. To take a reading use special tool LRT-57-024

torque test adaptor, with a torque wrench and
extension as shown.

54. Apply a recommended grease between lips of

swivel housing oil seal.

55. Secure oil seal with retaining plate and securing

bolts. Tighten to

11Nm.

56. Fit track-rod and drag link and secure with new

cotter pins.

57. Loosely fit lock stop bolt for later adjustment.
58. Fit brake disc shield.

FRONT AXLE AND FINAL DRIVE

11

OVERHAUL

Fit driveshaft and stub axle

59. Insert axle shaft, and when differential splines

are engaged, push assembly in fully.

CAUTION: Take care not to damage axle
shaft oil seals.

60. Place a new joint washer in position on swivelpin

housing to stub axle mating face. Coat threads
of stub axle bolts with Loctite 270.

61. Fit stub axle with flat at 12 o’clock position.

CAUTION: Ensure that constant velocity
joint bearing journal is butted against
thrust ring on stub axle. Before stub axle

is secured.

62. Place mud shield in position and secure stub

axle to swivel pin housing with six bolts and
tighten evenly to

65 Nm.

63. Fit brake jump hoses to brake jump hose

bracket.

64. Fit front hub complete assembly.

See Repair,

Front Hub Assembly

65. Check swivel pin housing oil drain plug is fitted.
66. Fill swivel assembly to correct level, with new oil.

See SECTION 10, Maintenance, Under
Vehicle Maintenance

67. Set steering lock stop bolts to provide a

clearance of 20mm.

See STEERING,

Adjustment, Steering Lock Stops

68. Fit ABS brake sensor.

See BRAKES, Repair,

Sensors - Front

54

FRONT AXLE AND FINAL DRIVE

12

OVERHAUL

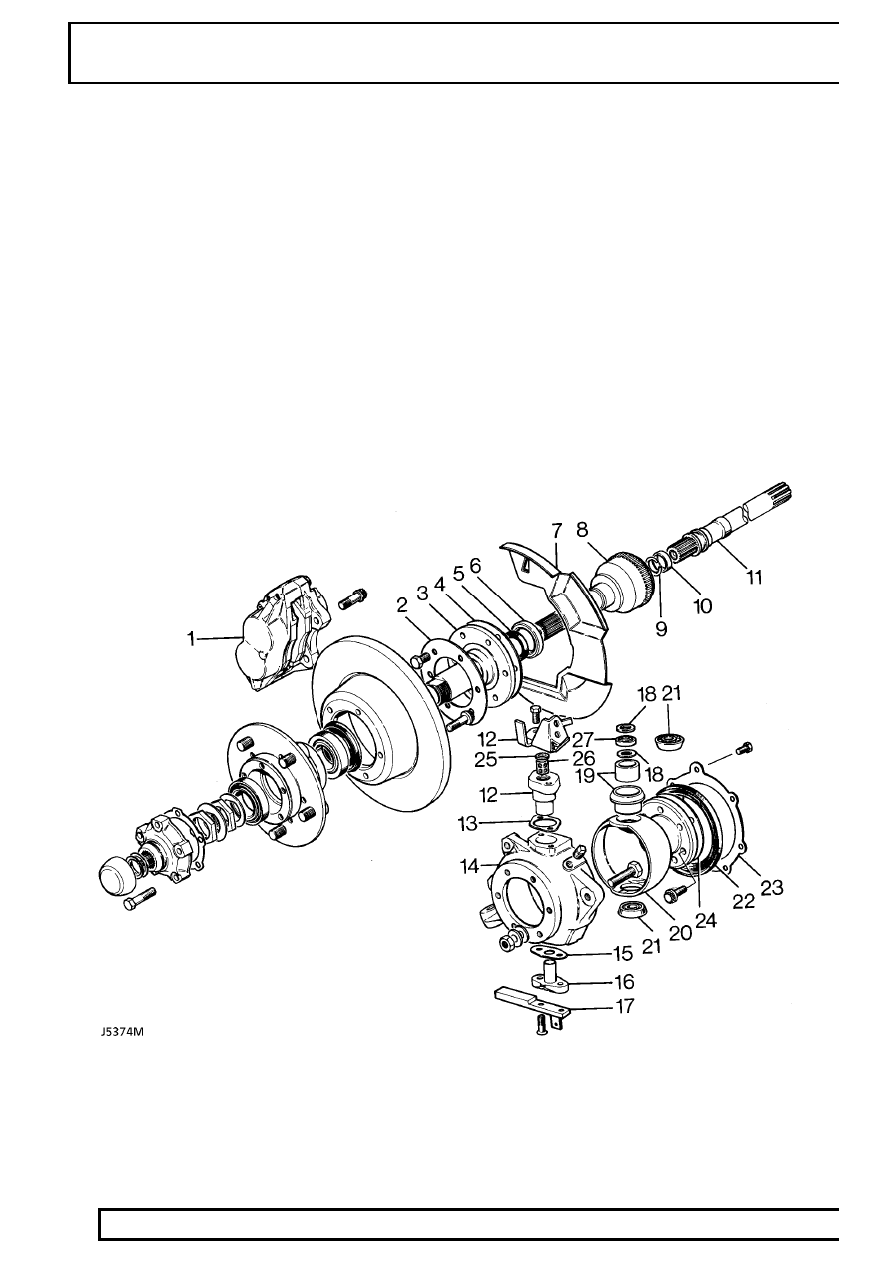

FRONT HUB AND SWIVEL COMPONENTS

1. Brake caliper.
2. Mud shield.
3. Stub axle.
4. Joint washer.
5. Oil seal.
6. Bearing.
7. Brake disc shield.
8. Constant velocity joint.
9. Circlip.

10. Bush.
11. Inner driveshaft.
12. Top swivel pin and jump hose bracket.
13. Shim.
14. Swivel pin housing.

15. Joint washer.
16. Lower swivel pin.
17. Damper and shield bracket.
18. Thrust washer, ABS.
19. Bush and housing, ABS.
20. Swivel pin bearing housing.
21. Lower swivel pin bearing (and upper bearing non

ABS).

22. Oil seal.
23. Oil seal retaining plate.
24. Joint washer.
25. Oil seal, ABS.
26. Sensor bush, ABS.
27. Thrust bearing, ABS.
