Land Rover Discovery. Manual - part 119





REAR AXLE AND FINAL DRIVE

1

REPAIR

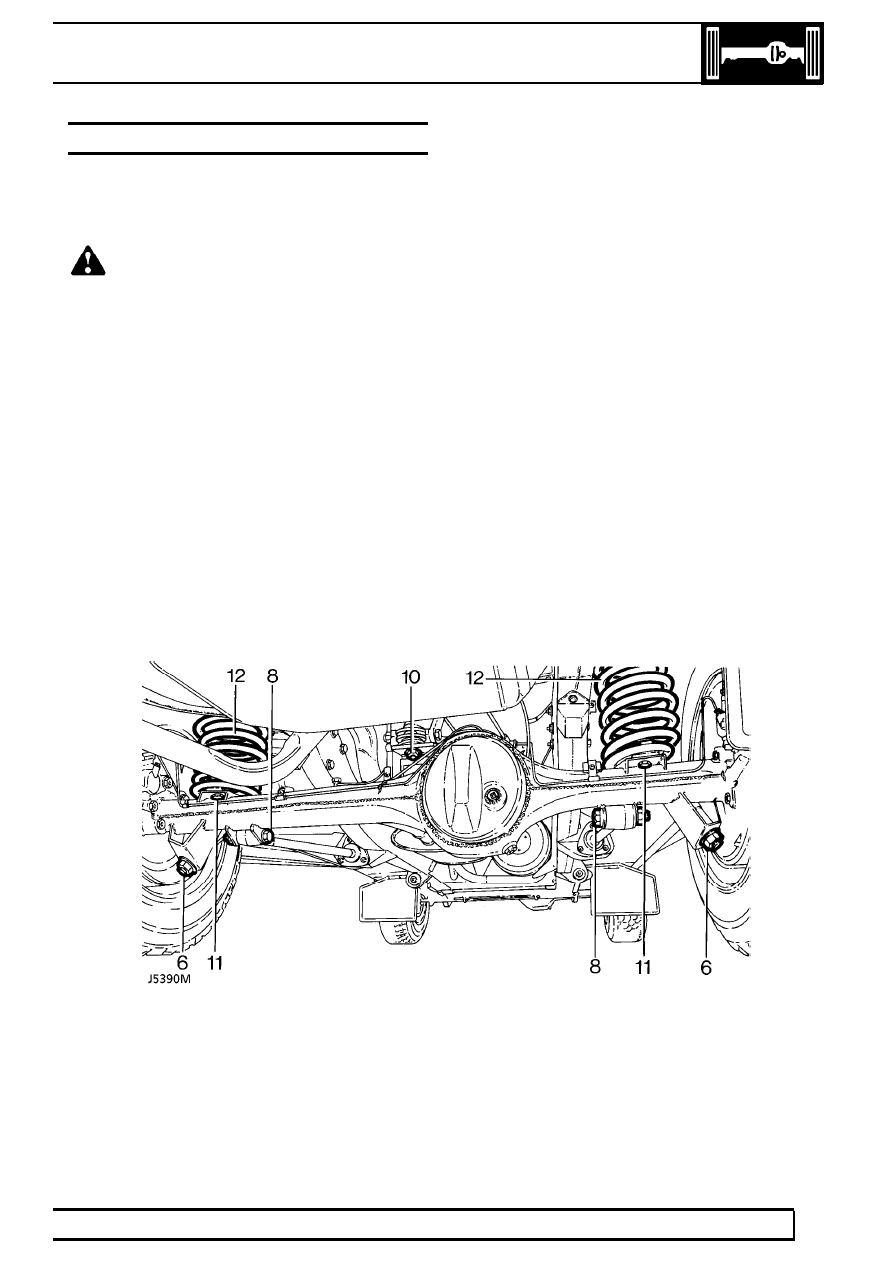

REAR AXLE

Service repair no - 51.25.01

Remove

WARNING: Remove and refit of axle
requires a further two persons to steady
the axle when lowering or repositioning

axle.

1. Drain brake system.
2. Support chassis rear.
3. Remove road wheels.
4. Support axle weight with hydraulic jack.
5. Disconnect ABS wiring harness multi-plug at

jump hose bracket, if applicable.

6. Disconnect shock absorbers.
7. Disconnect flexible brake hose at connection

under floor.

8. Disconnect lower links at axle.
9. Mark differential and propeller shaft flanges with

identification marks for assembly. Remove four
nuts and bolts. Lower propeller shaft and tie to
one side.

10. Disconnect pivot bracket ball joint at axle

bracket.

11. Release bolts and remove coil spring retaining

plates.

12. Lower axle and remove road springs.
13. Disconnect anti-roll[sway] bar links to axle.

See

REAR SUSPENSION, Repair, Anti-Roll[Sway]
Bar Ball Joint Links

14. Remove axle assembly.

Refit

15. Position axle and fit lower links. Tighten to

176

Nm

16. Reverse removal procedure.
17. Tighten pivot bracket ball joint to axle to

176 Nm.

18. Tighten propeller shaft to differential drive flange

to

47 Nm

19. Bleed brake system.

See BRAKES, Repair,

Brake System Bleed

51

REAR AXLE AND FINAL DRIVE

2

REPAIR

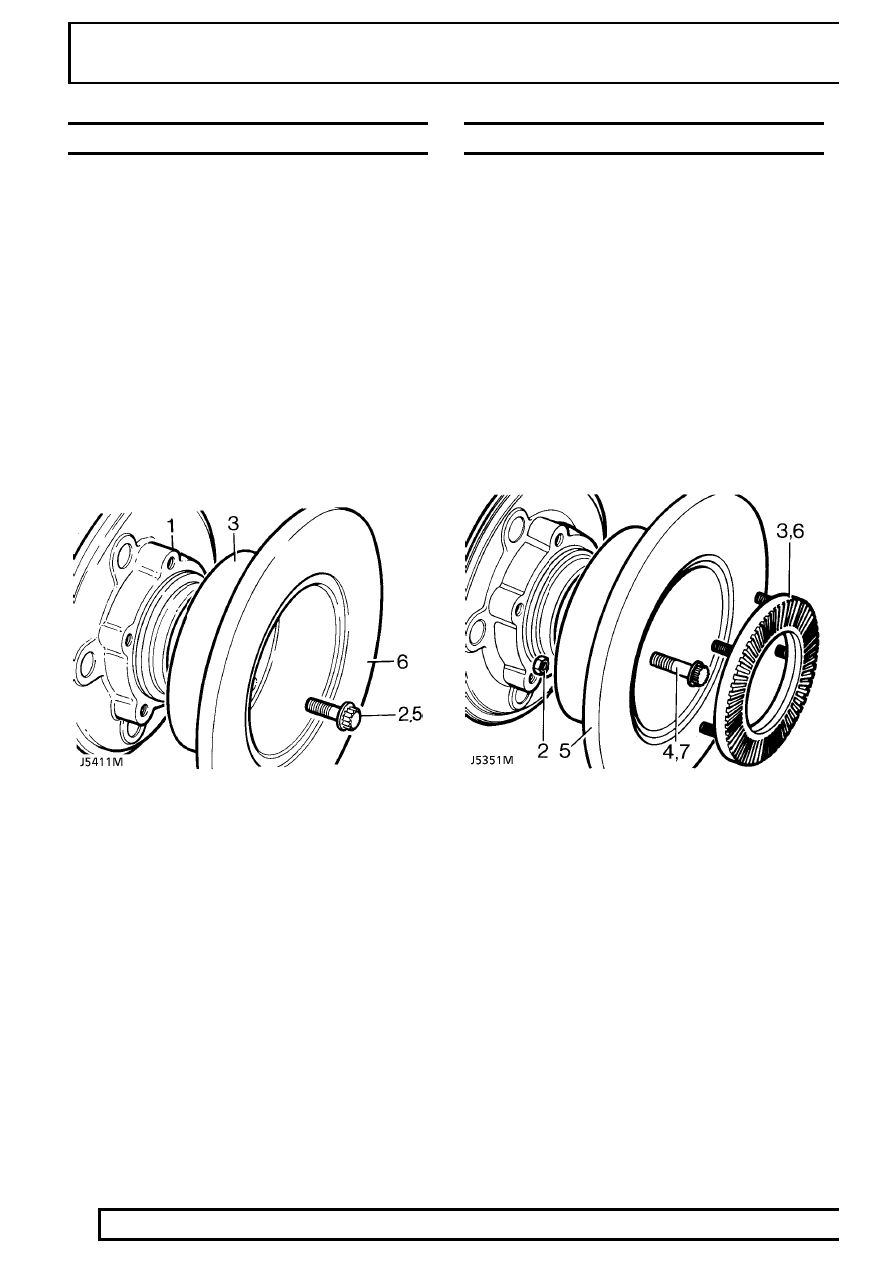

REAR BRAKE DISC NON ABS

Service repair no - 70.10.11.

Remove

1. Remove rear hub assembly.

See Rear Hub

Assembly

2. Remove disc bolts.
3. Remove disc from rear hub.

Refit

4. Fit disc to rear hub.
5. Fit disc bolts. Tighten to

73 Nm.

6. Check total disc run out, this must not exceed

0,15 mm. If necessary reposition disc.

7. Fit rear hub assembly.

See Rear Hub

Assembly

Disc reclamation

8. Check disc thickness. This dimension may be

reduced to minimum thickness of 12 mm.
Machine equal amounts off each face.

REAR BRAKE DISCS ABS

Service repair no - 70.11.11.

Remove

1. Remove rear hub assembly.

See Rear Hub

Assembly

2. Remove five nyloc nuts.
3. Remove sensor ring.
4. Remove five hub to disc retaining bolts.
5. Remove disc from hub.

Refit

6. Fit disc onto hub.
7. Apply loctite 270 and fit hub to disc retaining

bolts. Tighten to

73 Nm.

8. Using new nyloc nuts fit sensor ring.

9. Check total disc run out, this must not exceed

0,15 mm. If necessary reposition disc.

10. Fit hub assembly.

See Rear Hub Assembly

Disc reclamation

11. Check disc thickness. This dimension may be

reduced to a minimum thickness of 12 mm.
Machine equal amounts off each face.

REAR AXLE AND FINAL DRIVE

3

REPAIR

REAR HUB ASSEMBLY

Service repair no - 64.15.01

Remove

1. Place rear axle onto axle stands and remove

road wheel.

2. Release brake hose clips and remove brake

caliper bolts. Secure to one side.

WARNING: Take care not to kink brake
hose.

3. Remove five bolts and withdraw axle shaft.
4. Remove joint washer.
5. Bend back lock washer tabs.
6. Remove locknut and lock washer.
7. Remove hub adjusting nut.
8. Remove spacing washer.
9. Remove hub and brake disc assembly complete

with bearings.

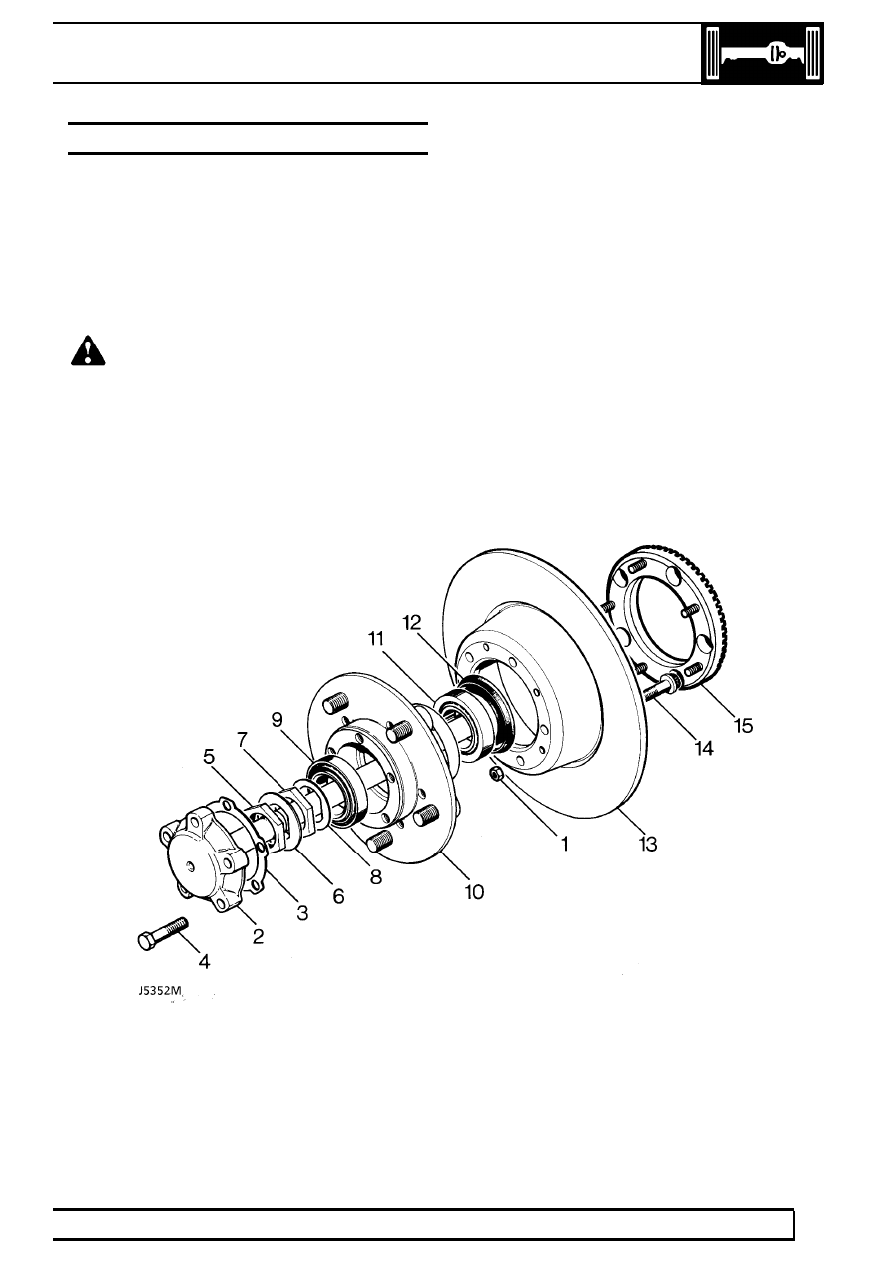

REAR HUB COMPONENTS

1. Sensor ring retaining nut ABS.
2. Axle shaft.
3. Axle shaft joint washer.
4. Axle shaft retaining bolt (five off).
5. Lock nut.
6. Lock washer.
7. Hub adjusting nut.
8. Spacing washer.
9. Outer bearing.

10. Hub.
11. Inner bearing.
12. Grease seal.
13. Brake disc.
14. Disc retaining bolt (five off).
15. Sensor ring ABS.

51

REAR AXLE AND FINAL DRIVE

4

REPAIR

Refit

10. Clean stub axle. Retract ABS sensor slightly

from sensor sleeve, if applicable

11. Fit hub assembly to stub axle.
12. Fit spacing washer.

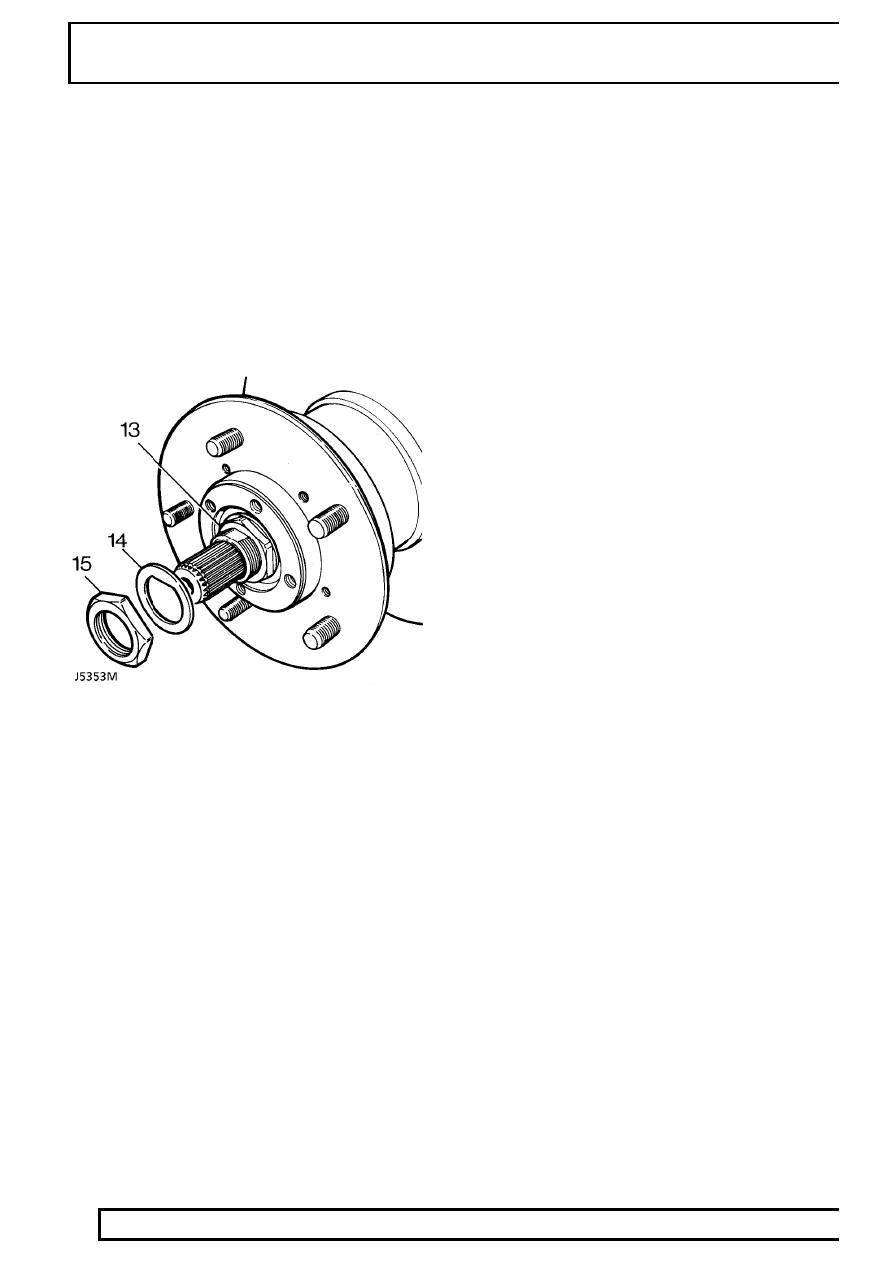

13. Fit hub adjusting nut. Tighten to

61 Nm.

Back off adjusting nut 90

°

. Tighten to

4 Nm.

This will give the required hub end float of
0,010mm

14. Fit a new lock washer.

15. Fit locknut. Tighten to

61 Nm.

16. Tab over lock washer to secure adjusting nut

and locknut.

17. Using a new joint washer fit axle shaft to hub,

secure with five bolts. Tighten to

65 Nm.

18. Fit brake caliper. Tighten to

82 Nm.

Secure brake pipes to axle casing.

19. If applicable, set ABS brakes sensor.

Push sensor in until it touches sensor ring then
rotate hub to set sensor.

20. Fit road wheel, remove axle stands and final

tighten road wheel nuts to

126 Nm.

21. Operate footbrake to locate brake pads before

driving vehicle.
