DESCRIPTION AND OPERATION

Tune select resistor -

To suit individual market requirements a tune select
resistor is connected across pins 5 and 27 of the
ECM.
It is located adjacent to the ECM, and strapped to the
MFI cable assembly. The value of the resistor is
dependent on the market application:
Red wire, 180 ohms, Australia, Rest of world.
Green wire, 470 Ohms, UK and Europe - non catalyst.
Yellow wire 910 Ohms, Saudi non catalyst.
White wire, 3K9 Ohms, European catalyst

Condenser fans

It should be noted that under high coolant
temperatures, when the engine is switched off, the
condenser fans will be activated and will run for
approximately ten minutes.

Vehicle speed sensor

The vehicle speed sensor is located on the side of the
Transfer box adjacent to the parking brake. The
sensor provides road speed data to the ECM. The
ECM in turn detects vehicle movement from the road
speed input and ensures that idle air control mode is
disengaged. Should the vehicle speed sensor fail in
service the ECM idle air control would become erratic.

The sensor also provides road speed data to the
electric speedometer and cruise control ECU.

Inertia fuel shutoff switch

The inertia fuel shutoff switch is a mechanically
operated switch, located on the bulkhead adjacent to
the washer reservoir under bonnet [hood].
The switch is normally closed and is in line with the
fuel pump. In the event of a sudden impact the switch
opens, and disconnects the electrical feed to the fuel
pump. The switch is reset by pressing down the
button.

WARNING: Check the integrity of the fuel
system before the inertia switch is reset.

Relay modules

The two multiport fuel injection relays are located in
the RH footwell area behind the ’A’ post panel. The
main relay module is energized via the ECM when the
ignition is switched on and supplies current to the
multiport fuel injection system. The fuel pump relay
module is energized by the ECM which in turn
operates the fuel pump to pressurize the fuel system.

19

FUEL SYSTEM

4

DESCRIPTION AND OPERATION

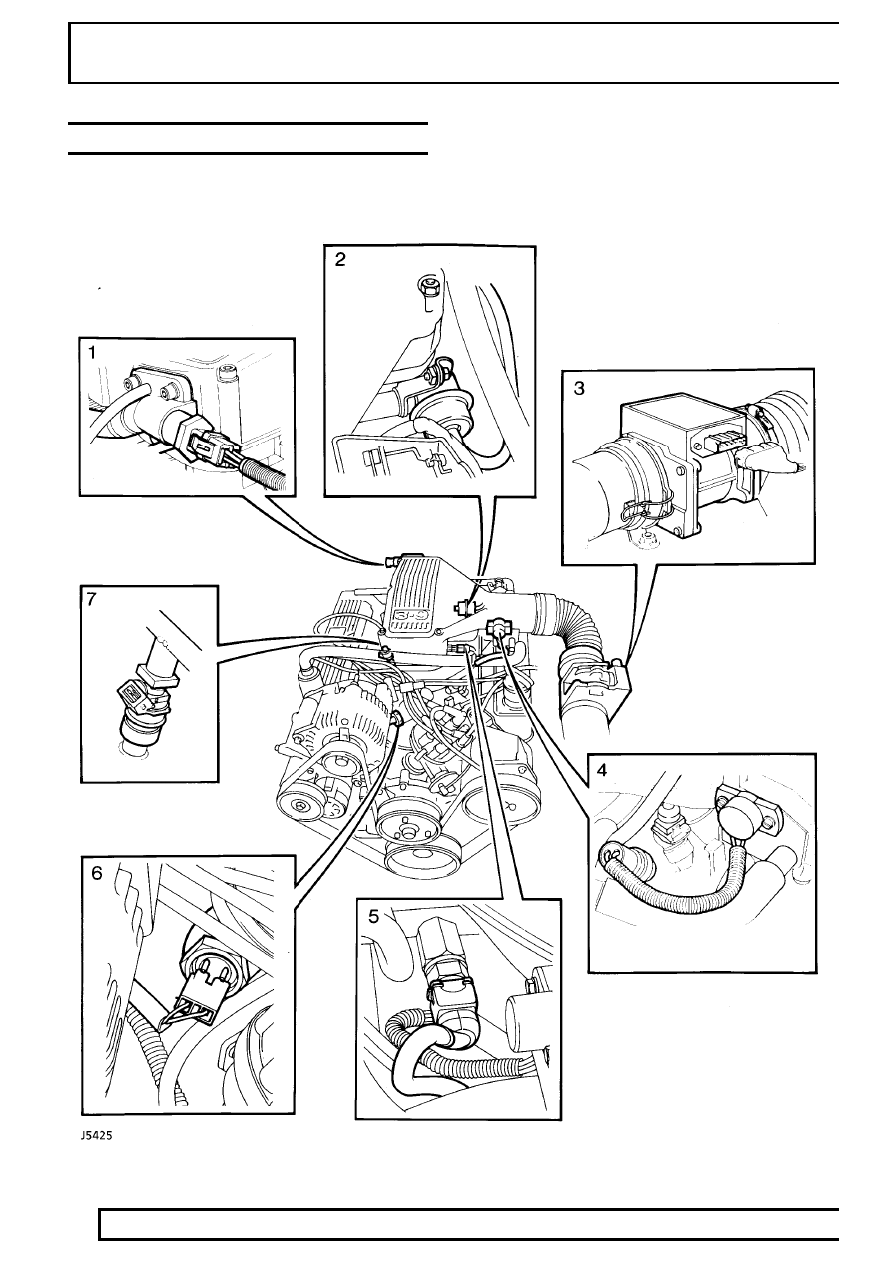

ENGINE MOUNTED COMPONENTS

1. By-pass air valve (stepper motor).
2. Fuel pressure regulator.
3. Air flow meter.
4. Throttle potentiometer.
5. Fuel temperature sensor.
6. Coolant temperature sensor.
7. Fuel injector.

MFI

5

DESCRIPTION AND OPERATION

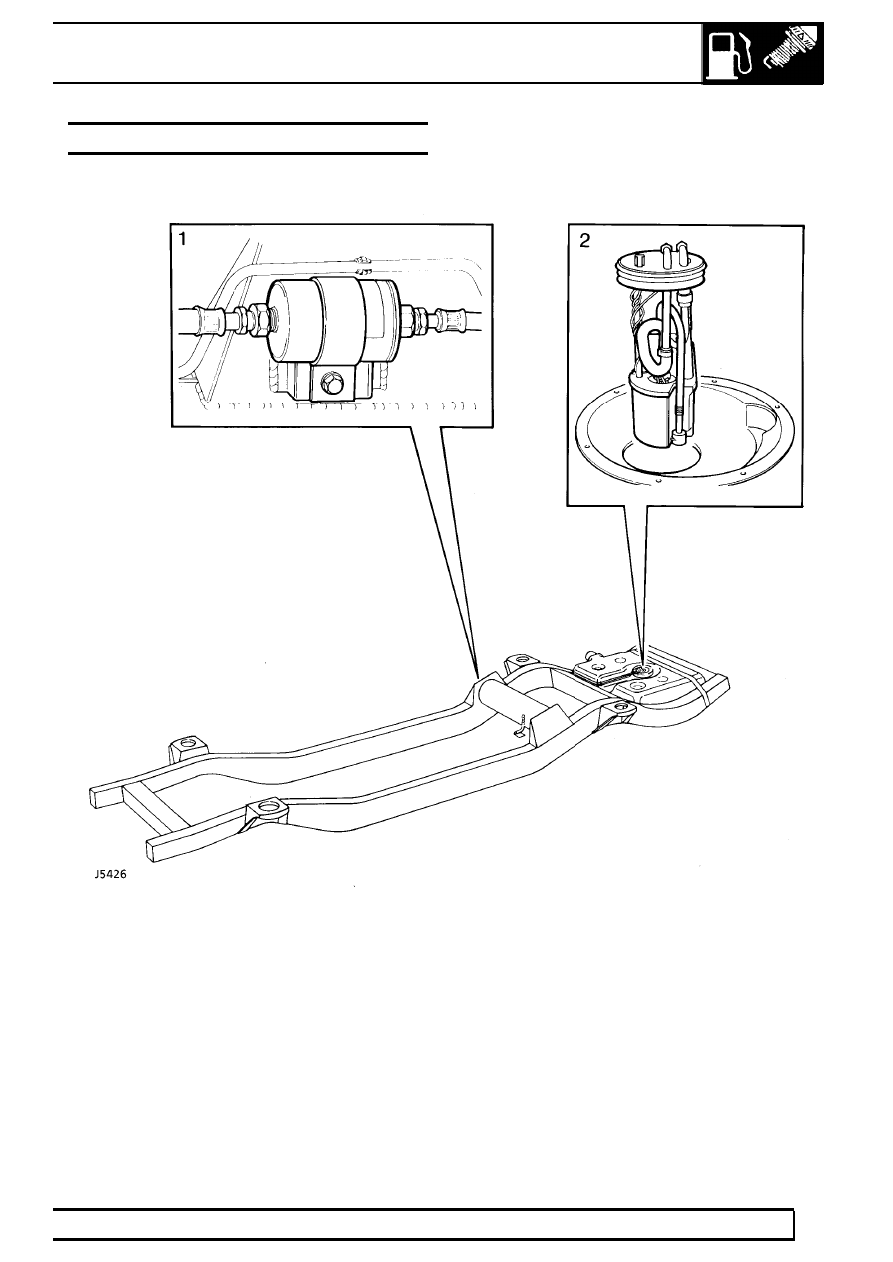

CHASSIS MOUNTED COMPONENTS

1. Fuel filter.
2. Fuel pump (in fuel tank).

19

FUEL SYSTEM

6

DESCRIPTION AND OPERATION

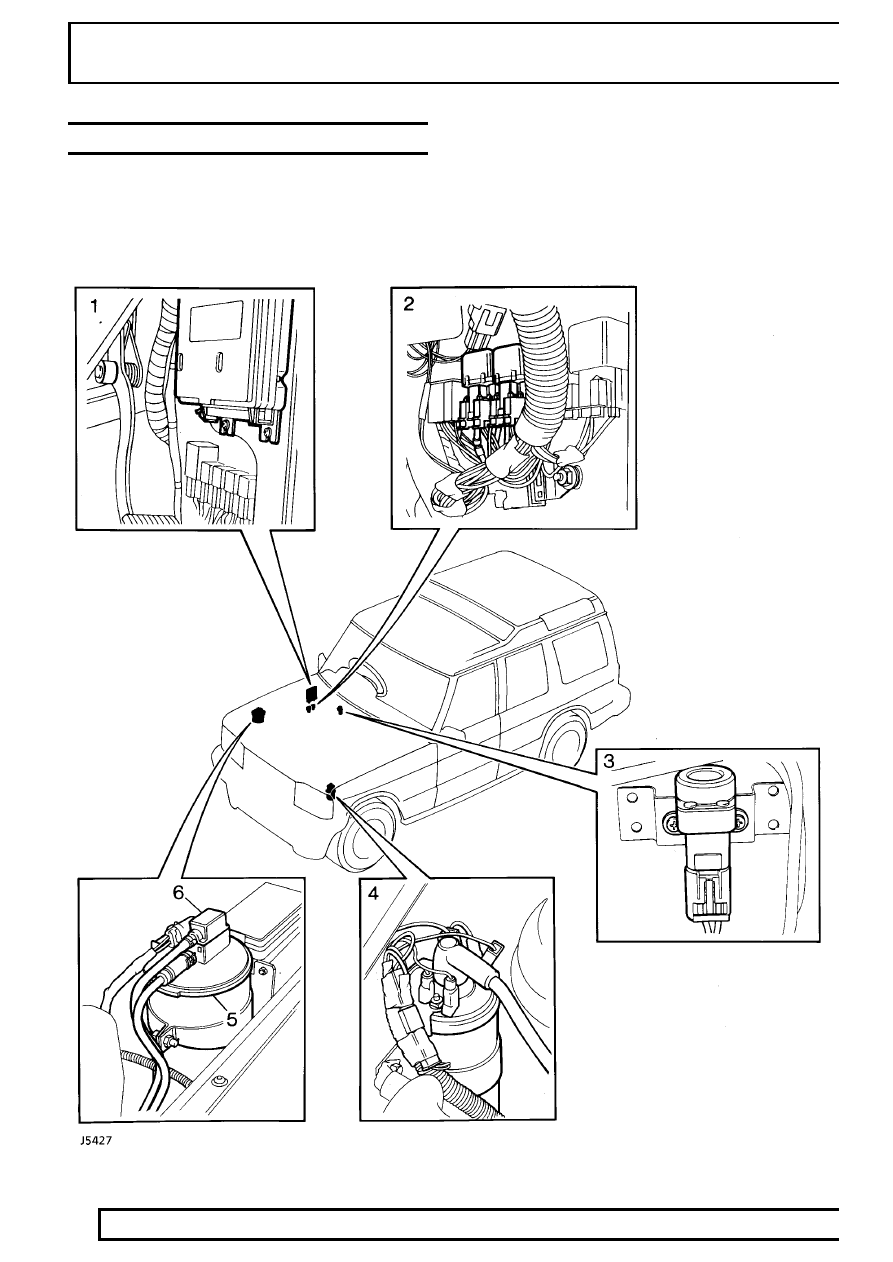

BODY MOUNTED COMPONENTS

1. Engine control module (ECM).
2. Main relay and fuel pump relay.
3. Inertia switch.
4. Ignition coil.
5. Charcoal canister.
6. Purge control valve.
