Land Rover Discovery. Manual - part 44





Mpi

17

REPAIR

22. Raise vehicle

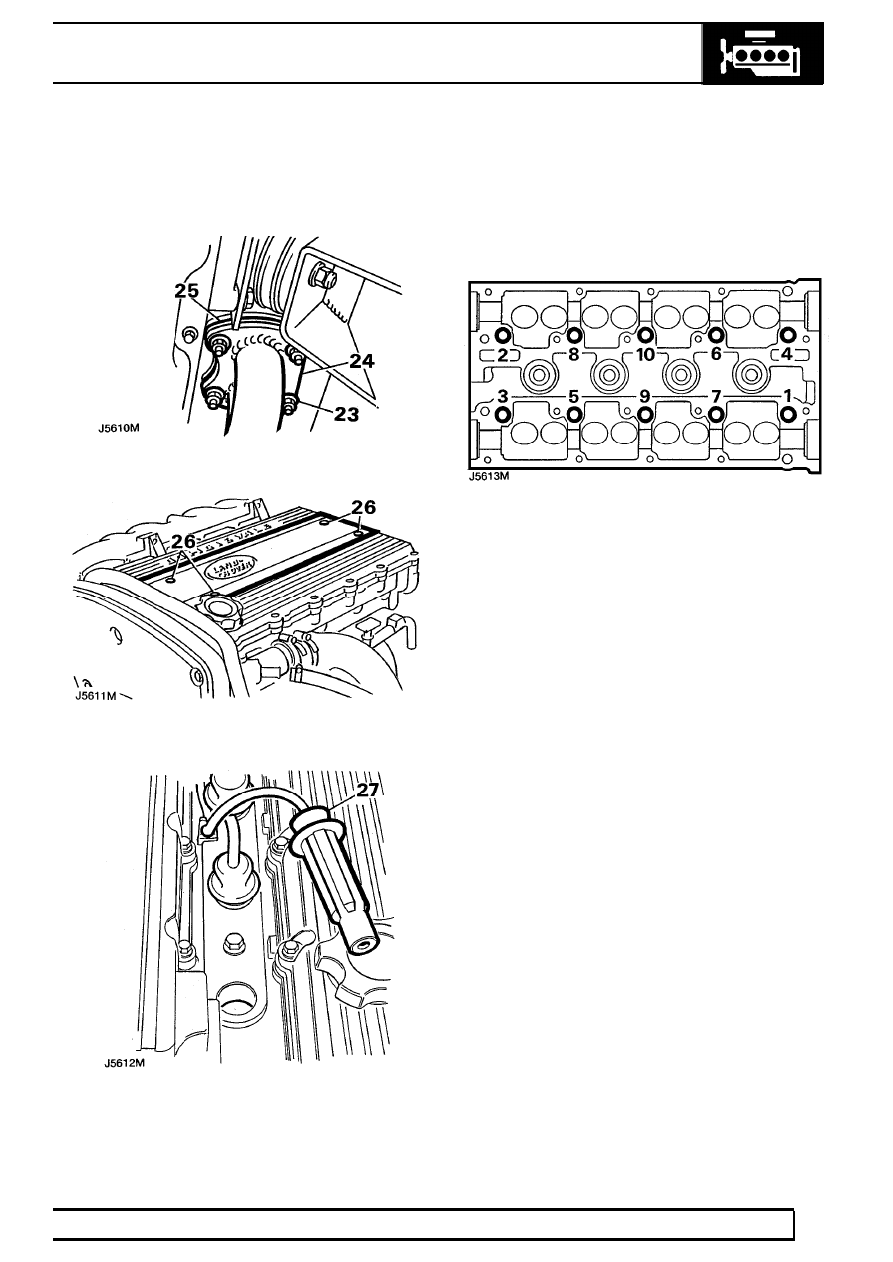

23. Remove 4 nuts securing downpipe to exhaust

manifold.

24. Release downpipe from exhaust manifold.
25. Collect gasket.

26. Release 4 screws and remove spark plug cover.

27. Release spark plug leads from spark plugs and

release from clips. Place aside.

28. Remove camshaft covers.
29. Remove timing belt.

See Camshaft Front Oil

Seal

30. Progressively loosen and remove 10 cylinder

head bolts in sequence shown.

31. Remove cylinder head complete with manifold,

place on blocks to prevent damage.

32. Remove and discard cylinder head gasket.

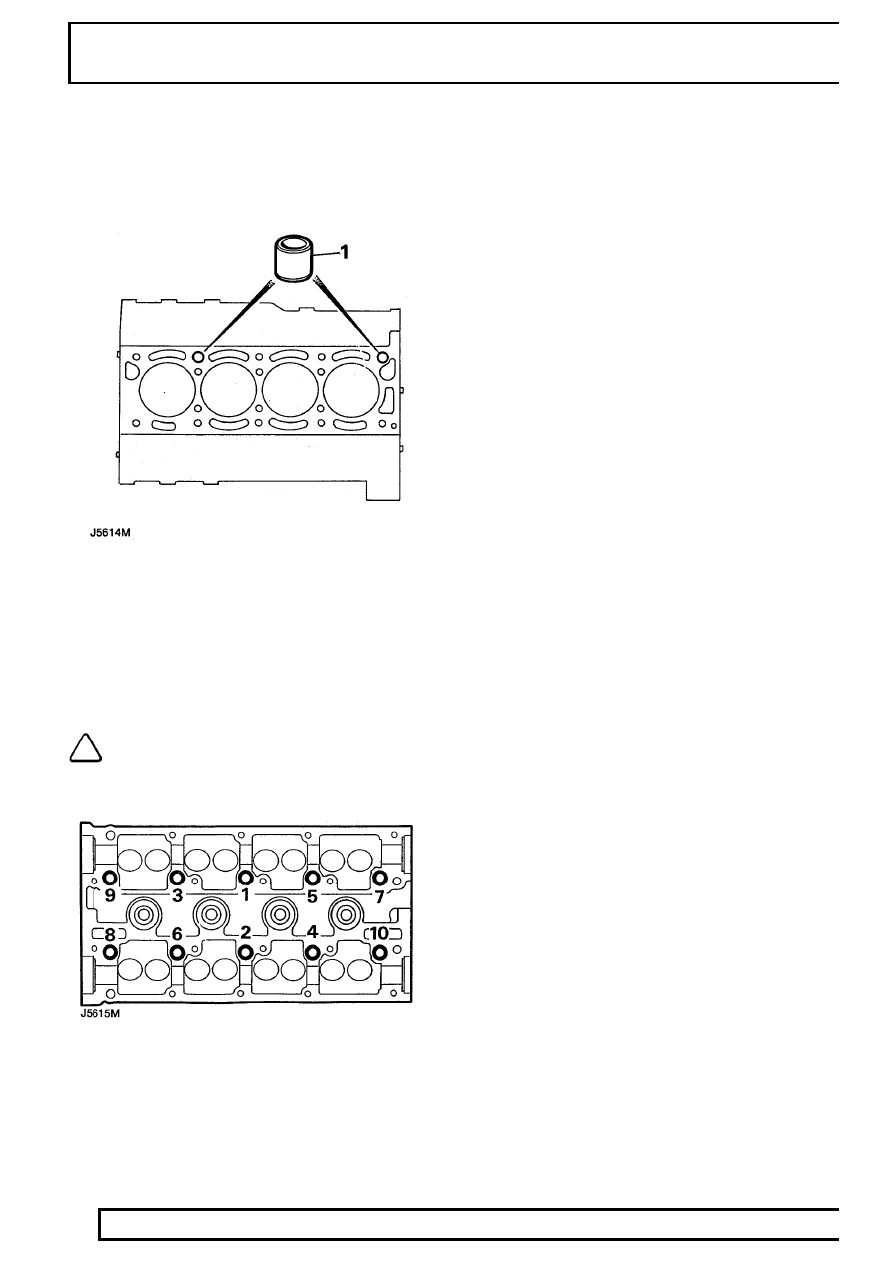

33. Remove location dowels from cylinder block.
34. Inspect cylinder head for damage, cracks and

burning.

35. Inspect cylinder block. Ensure that the oil

restrictor is clear and fitted below the block face.

36. Clean all traces of gasket material from head

and block mating faces, using release agent and
plastic scraper.

37. Check cylinder head and block faces for

warpage:
Longitudinal warp = 0.1 mm max.
Transverse warp = 0.1 mm max.
Diagonal warp = 0.1 mm max.

38. Decarbonize cylinder head and pistons if

necessary.

39. Clean cylinder head bolt threads with a wire

brush, check for damage, replace if necessary.

40. Check cylinder block threads by running bolts

into threads using fingers only. Clean any tight
threads using M11 x 1.5 mm tap. Remove all
traces of oil from bolt holes.

12

ENGINE

18

REPAIR

Refit

1. Fit location dowels to cylinder head.

2. Fit cylinder head gasket to cylinder block.
3. Using assistance fit cylinder head to cylinder

block.

4. Lubricate cylinder head bolts.
5. Fit and tighten cylinder head bolts to the correct

torque and in the correct sequence.

NOTE: For torque values.

See

Specifications, torque, Torque values

6. Fit timing belt.
7. Fit camshaft covers.
8. Fit spark plug leads to spark plugs and secure to

clips.

9. Fit spark plug cover and secure with screws.

10. Fit new gasket and secure downpipe to exhaust

manifold with nuts.

11. Fit bolt securing dipstick tube to coolant rail.
12. Connect 3 vacuum hoses to inlet manifold.
13. Connect fuel to pressure regulator, secure with

clip.

14. Connect fuel injection harness, inlet manifold air

temperature sensor and fuel temperature sensor
multiplugs.

15. Secure engine harness to manifold with bolts.
16. Connect brake servo hose to manifold, secure

with clip.

17. Connect air cleaner hose to throttle housing,

secure with clip.

18. Connect stepper motor and throttle

potentiometer multiplugs.

19. Fit and adjust throttle cable.
20. Connect oxygen sensor multiplug, secure with

cable tie.

21. Connect the bypass and top hose, secure with

clips.

22. Connect coolant temperature sensor multiplugs,

secure with cable tie.

23. Connect hose to heater rail and secure with clip.
24. Connect radiator bottom hose and secure with

clip.

25. Tighten fuel pipe to fuel rail union.
26. Reconnect battery negative lead.

Mpi

19

REPAIR

CAMSHAFT COVER GASKET

Service repair no - 12.29.40 - Exhaust
Service repair no - 12.29.41 - Inlet

Remove

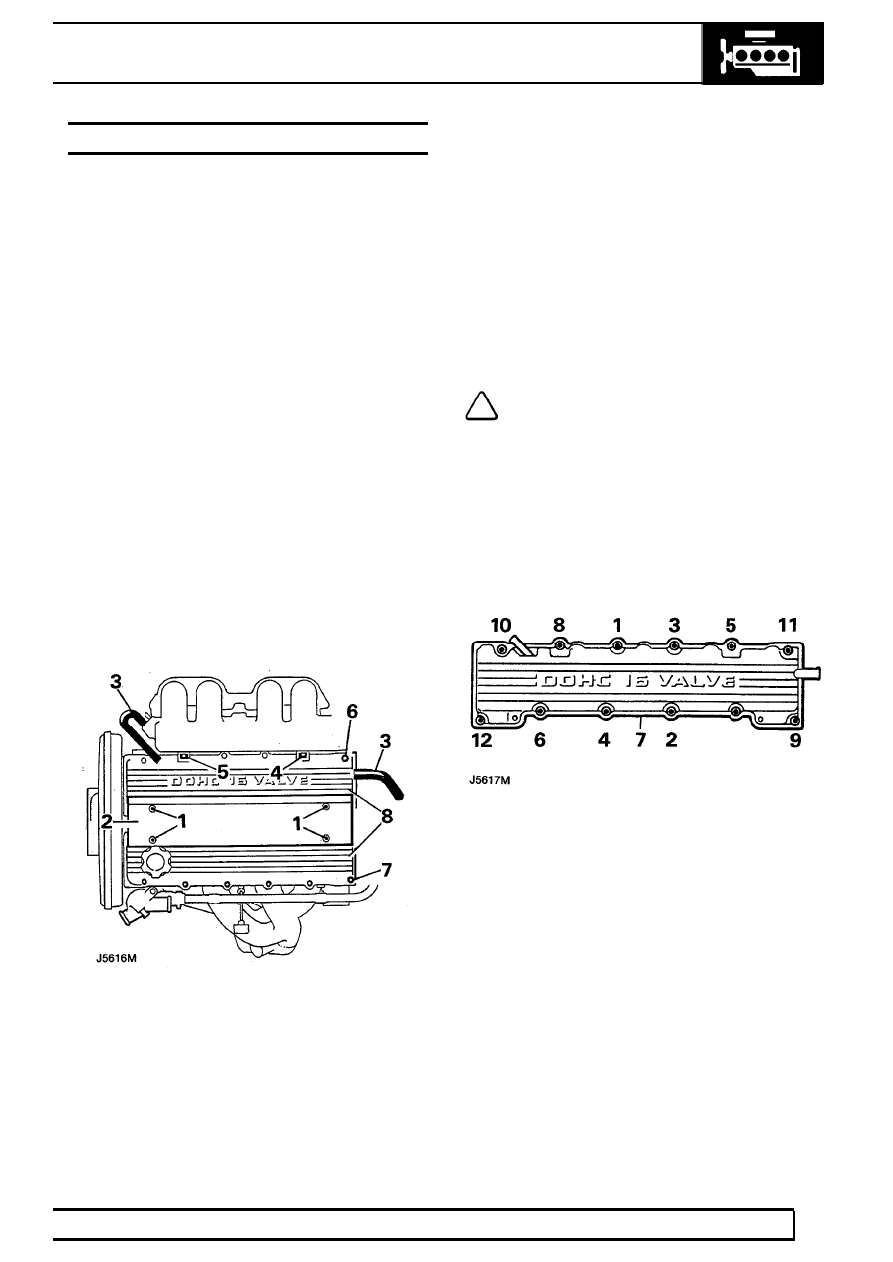

1. Release 4 screws from spark plug cover.
2. Remove spark plug cover.

Inlet only

3. Release clips and disconnect 2 breather hoses

from camshaft cover.

4. Remove 4 bolts securing support brackets to

manifold and cover.

5. Remove support brackets.
6. Remove 12 bolts from camshaft cover.

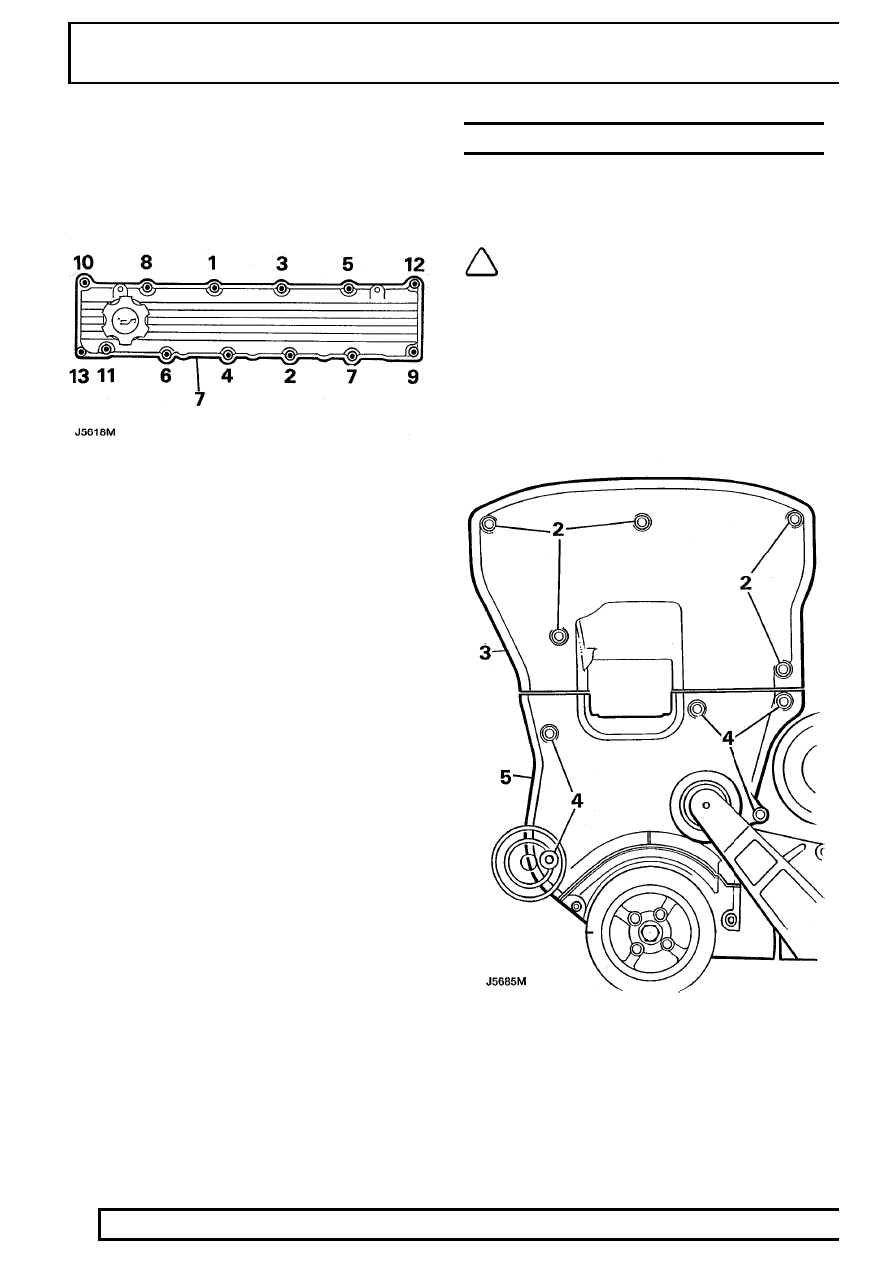

Exhaust only

7. Remove 13 bolts from camshaft cover.

Inlet and exhaust

8. Remove camshaft cover assemblies.
9. Remove and discard baffle/gasket plate(s).

Refit

1. Place protective cloth over tappets.
2. Using an M8 x 1,25 mm tap, remove all traces of

sealing compound from camshaft housing bolt
holes.

3. Blow out bolt holes using an airline.
4. Ensure all traces of oil are removed from bolt

holes, remove protective cloth.

5. Clean camshaft cover(s) and mating face of

camshaft housing(s).

6. Position new baffle/gasket plate to camshaft

housing(s).

NOTE: Fit baffle/gasket dry.

7. Fit camshaft cover(s).

Inlet only

8. Position spacers and manifold support brackets.
9. Fit bolts finger tight.

10. Working from the centre outwards, progressively

tighten bolts to torque.

10Nm

11. Tighten support bracket to inlet manifold bolts.
12. Connect breather hoses to camshaft cover.

12

ENGINE

20

REPAIR

Exhaust only

13. Fit bolts finger tight.
14. Working from the centre outwards, progressively

tighten bolts to the correct torque.

10Nm

Inlet and exhaust

15. Fit spark plug cover to camshaft cover, tighten

screws.

CAMSHAFT DRIVE BELT

Service repair no - 12.65.17

Remove

NOTE: If the timing belt is to be removed
from the camshaft gears only, it is not
necessary to remove the drive belt,

crankshaft pulley or timing belt lower cover.

1. Remove drive belt.
2. Remove 5 bolts securing timing belt top cover.
3. Remove top cover.
4. Remove 5 bolts securing timing belt centre

cover.

5. Remove timing belt centre cover.

6. Rotate crankshaft to align timing marks on

camshaft gears - 90

°

BTDC.
