Land Rover Discovery. Manual - part 40





Mpi

1

REPAIR

CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.07 - Exhaust
Service repair no - 12.13.09 - Inlet

Remove

1. Disconnect battery negative lead.
2. Remove drive belt.

See SECTION 10,

Maintenance, Under Bonnet [Hood]
Maintenance

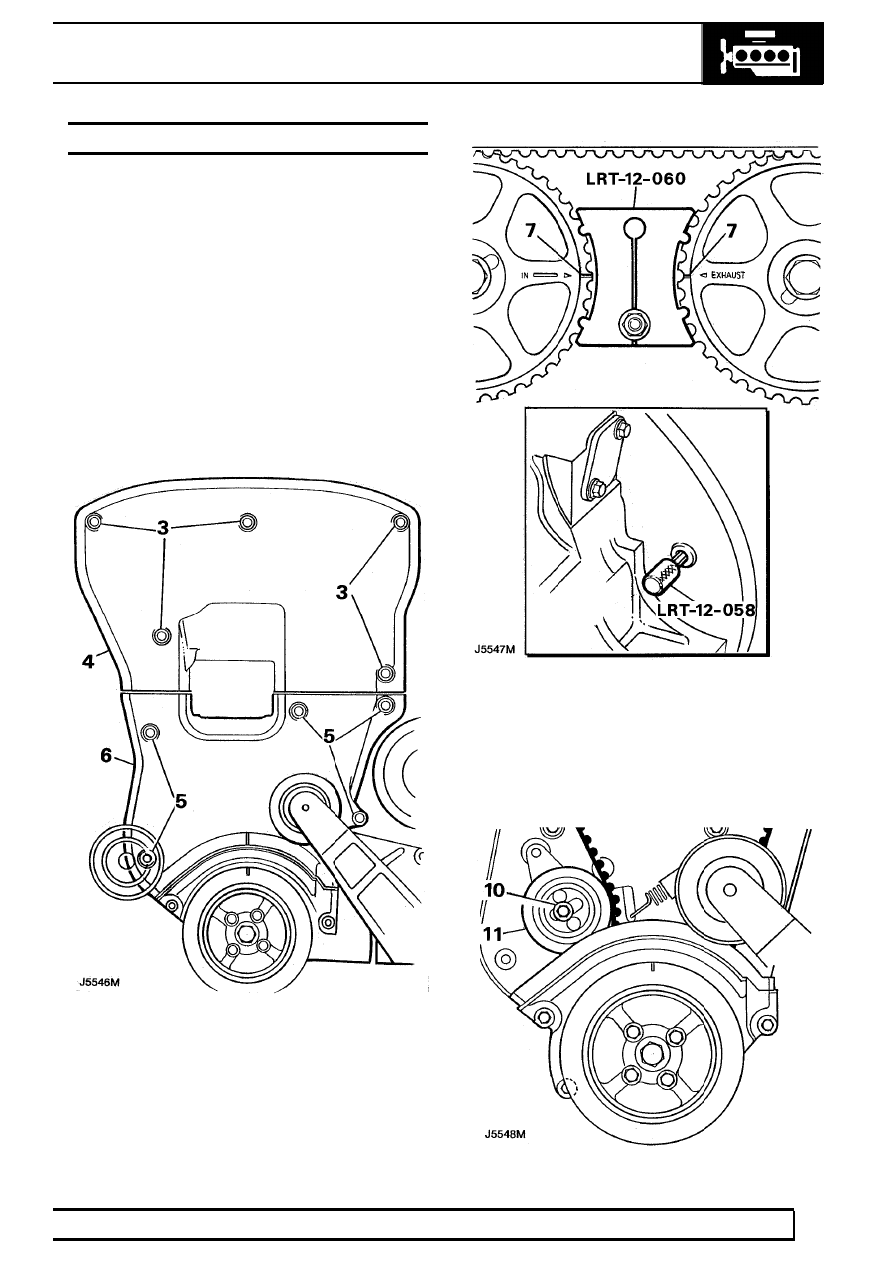

3. Remove 5 bolts, timing belt upper cover.
4. Remove timing belt upper cover.
5. Remove 5 bolts, timing belt centre cover.
6. Remove timing belt centre cover.

7. Rotate crankshaft to align camshaft gear timing

marks - 90

°

B.T.D.C.

8. Fit tool LRT-12-058 to lock flywheel.
9. Fit tool LRT-12-060 to lock camshaft gears.

10. Loosen camshaft belt tensioner bolt.
11. Move tensioner away from belt and tighten

tensioner bolt.

12. Remove belt from camshaft gears.

12

ENGINE

2

REPAIR

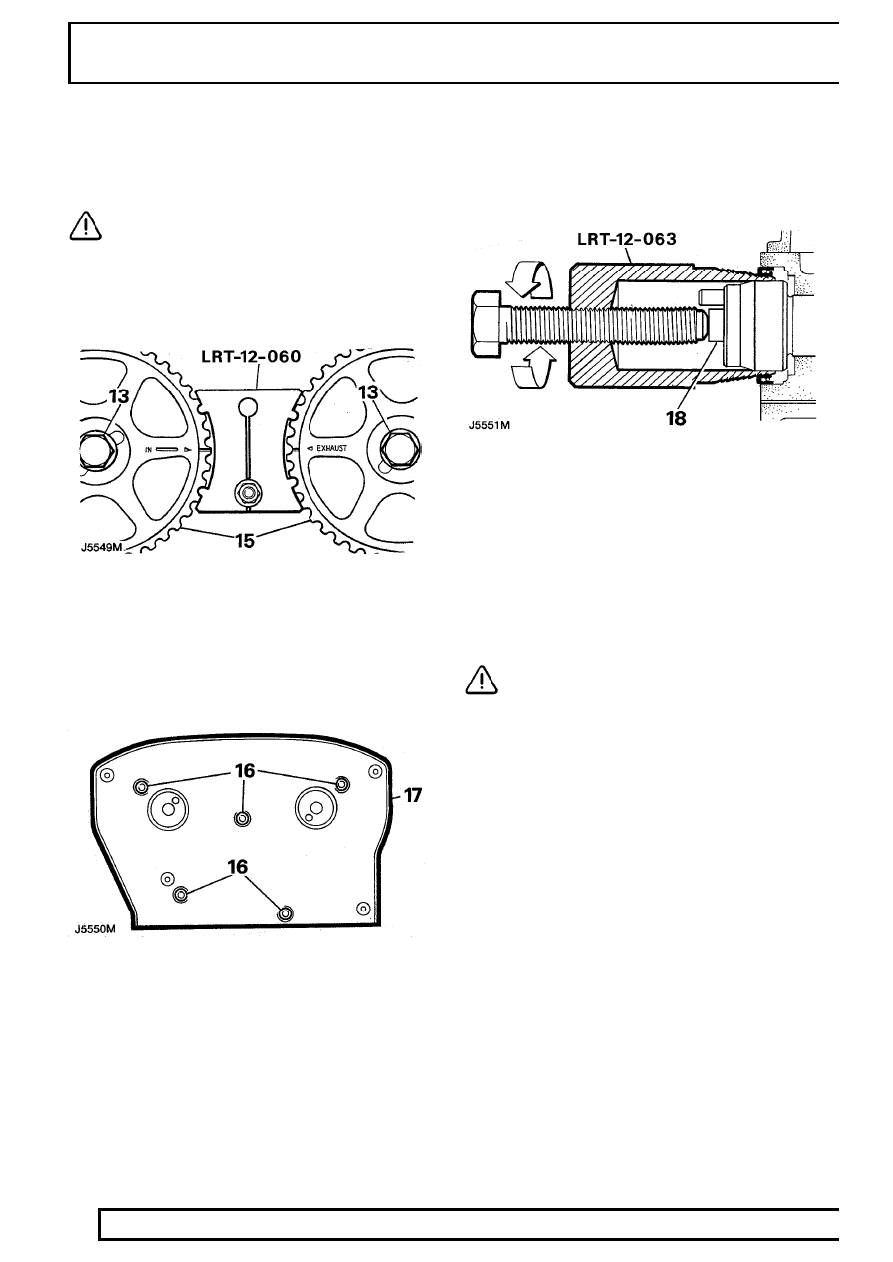

13. Remove 2 bolts securing camshaft gears to

camshafts.

14. Remove tool LRT-12-060.

CAUTION: Do not rotate camshafts.

15. Remove gears noting the ’IN’ and ’EXHAUST’

identifying marks.

16. Remove 5 bolts securing timing belt upper

backplate.

17. Remove belt upper backplate.

18. Remove seals using tool LRT-12-063 fit

thrustpad as shown.

Refit

1. Clean sealing area of cylinder head and

camshaft, ensure all traces of rubber are
removed - do not scrape.

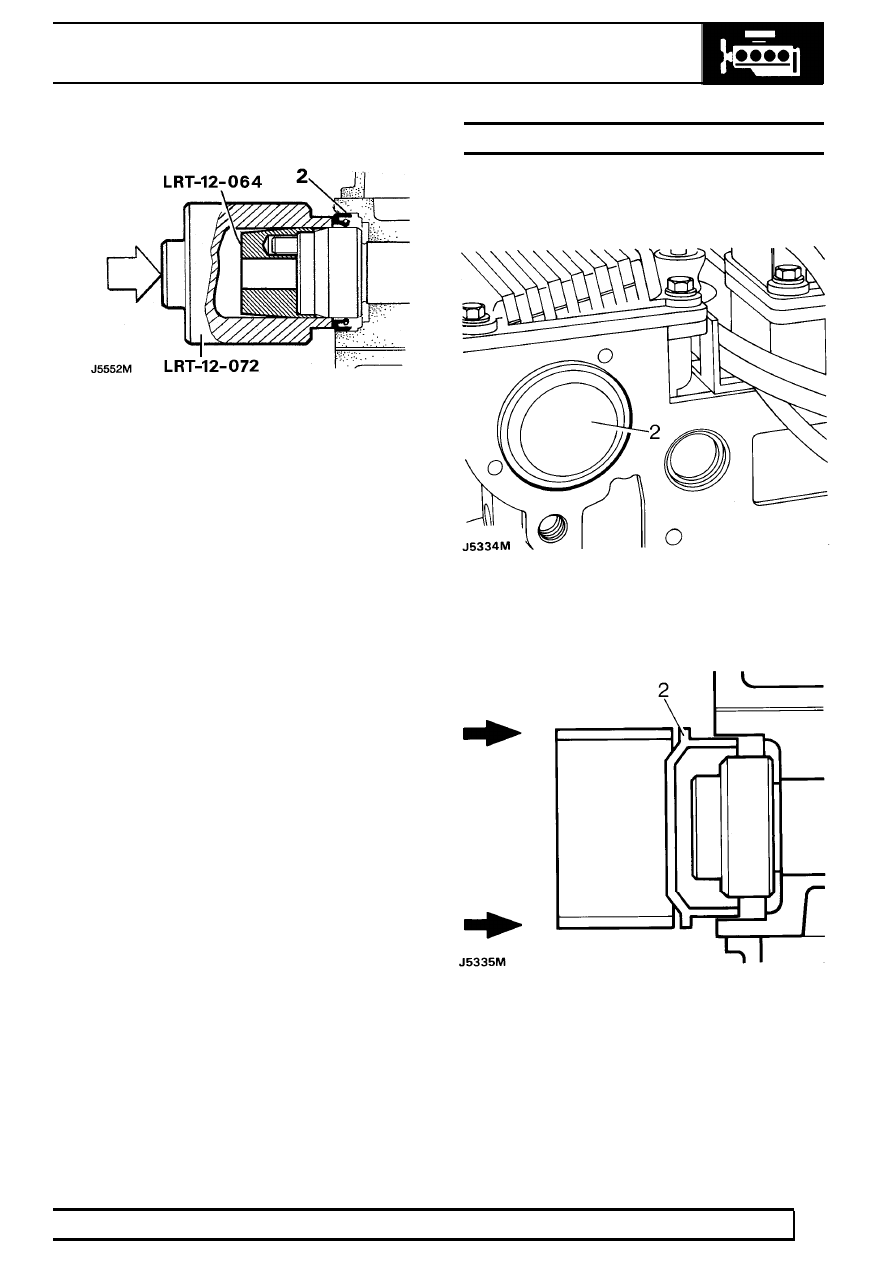

2. Using tool LRT-12-064 and LRT-12-072 fit new

camshaft oil seals.

CAUTION: Ensure sealing lip of seal is not
distorted.

Mpi

3

REPAIR

For torque values.

See Specifications, torque,

Torque Values

3. Fit timing belt upper backplate and tighten bolts

to the correct torque.

4. Fit camshaft gears noting the ’IN’ and

’EXHAUST’ identifying marks.

5. Fit, but do not tighten, camshaft gear centre

bolts.

6. Ensure timing marks are aligned.
7. Fit camshaft locking tool LRT-12-060.
8. Tighten camshaft gear bolts to the correct

torque.

9. Fit timing belt.

See Camshaft Drive Belt

10. Adjust timing belt tension.
11. Remove tool LRT-12-058 from flywheel.
12. Fit timing belt centre cover and tighten bolts to

correct torque.

13. Fit timing belt upper cover and tighten bolts to

correct torque.

14. Fit drive belt.

See SECTION 10, Maintenance,

Under Bonnet [Hood] Maintenance

15. Reconnect battery negative lead.

INLET - EXHAUST CAMSHAFT REAR OIL PLUG

Remove

1. Remove cylinder head.
2. Lever out, camshaft rear oil seal plug.

Refit

1. Clean plug housing.
2. Fit new plug applying force to outer edge only.

3. Refit cylinder head.

12

ENGINE

4

REPAIR

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

1. Remove timing belt.

See Camshaft Drive Belt

2. Slide timing gear off crankshaft and remove

drive key.

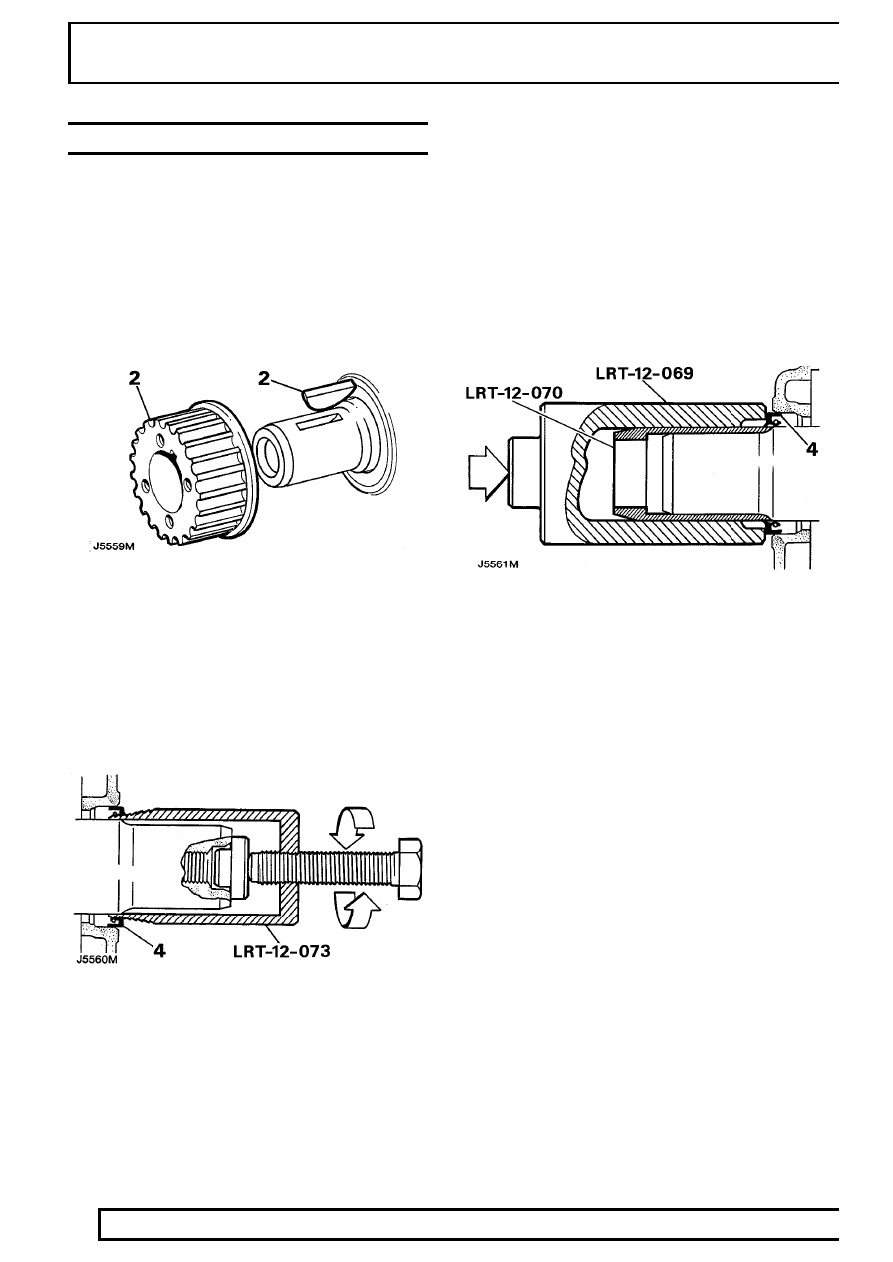

3. Ensure bore of tool is burr free, fit and tighten

tool LRT-12-073 into crankshaft front oil seal.

4. Using thrustpad, tighten centre screw of tool to

remove oil seal.

5. Remove thrust button from crankshaft.

Refit

1. Use lint free cloth and thoroughly clean seal

recess and running surface on crankshaft. Clean
crankshaft gear and pulley.

2. Lubricate oil seal sealing surfaces with engine

oil.

3. Fit tool LRT-12-070 onto crankshaft.
4. Position new oil seal on crankshaft, drift into

place using LRT-12-069 and remove protector.

5. Fit drive key to crankshaft and slide timing gear

onto crankshaft.

6. Fit and tension timing belt.

See Camshaft

Drive Belt
