Land Rover Discovery. Manual - part 20





MAINTENANCE

17

MAINTENANCE

CHECK/TIGHTEN FRONT AND REAR AXLE
SUSPENSION LINK FIXINGS, CHECK CONDITION
OF MOUNTING RUBBERS

DRAIN FUEL SEDIMENTER - Tdi

Fuel sedimenter

The sedimenter is attached to left-hand side of
chassis frame near fuel tank. It increases the working
life of the fuel filter by removing larger droplets of
water and larger particles of foreign matter from fuel.

Drain off water

1. Loosen drain plug, allow water to run out.

Tighten plug immediately pure diesel fuel starts
to flow.

RENEW FUEL FILTER

WARNING: Ensure that fuel handling
precautions given in Section 01 -
Introduction regarding fuel handling are

strictly adhered to when carrying out following
instructions.

See INTRODUCTION, Information,

Fuel Handling Precautions

WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to

prevent fire and explosion.

1. Depressurise fuel system.

See FUEL SYSTEM,

Repair, Depressurising Fuel System

2. The fuel line filter is located on right hand

chassis side member forward of fuel tank filler
neck. Access to filter is gained through right
hand rear wheel arch.

3. Thoroughly clean area around hose connections

to prevent ingress of foreign matter into fuel
system.

4. Loosen two fuel unions and remove hoses from

filter canister.

5. Release securing bolt and bracket, remove filter

from chassis side member.

6. Fit a new filter observing direction of flow arrow

on canister.

7. Fit inlet and outlet hoses. Tighten to

30 Nm.

8. Refit fuel pump relay.
9. Reconnect battery negative lead.

10. Recode radio.
11. Start engine and inspect hose connections for

fuel leaks.

10

MAINTENANCE

18

MAINTENANCE

ABS VEHICLES - CHECK ROAD WHEEL SPEED
SENSOR ELECTRICAL HARNESS FOR DAMAGE

RENEW OXYGEN SENSORS

See EMISSION CONTROL, Repair, Heated

Oxygen Sensor (HO2S)

RENEW CATALYTIC CONVERTERS

See MANIFOLD AND EXHAUST SYSTEM, Repair,

Exhaust System Complete

REPORT ANY UNUSUAL FEATURES OF VEHICLE
CONDITION AND ADDITIONAL WORK REQUIRED

CARRY OUT ROAD TEST

For details of dynamometer testing.

See

INTRODUCTION, Information, Dynamometer
Testing - Non Anti-lock brake vehicles See
INTRODUCTION, Information, Dynamometer
Testing - Vehicles with Anti-lock brakes (ABS)

Check following items:

1. Inhibitor switch only operates in P and N.
2. Engine for excessive noise.
3. Clutch for slip, judder or spin.
4. Automatic gear selection/shift speeds.
5. Gear selection/noise - high/low range.
6. Steering for abnormal noise/effort.
7. Steering for free play.
8. All instruments, gauges and warning indicators.
9. Heater and air conditioning systems.

10. Heated rear screen.
11. Shock absorbers - ride irregularities.
12. Foot brake, on emergency stop, pulling to one

side, binding, pedal effort.

13. Parkbrake efficiency.
14. Seat reclining and latching.
15. Fully extend seat belt, check operation of

retraction and latching. Inertia belts lock when
snatched or vehicle on slope.

16. Road wheel balance.
17. Transmission for vibrations.
18. Body noises, squeaks and rattles.
19. Excessive exhaust smoke.
20. Engine idle speed.
21. Endorse service record.
22. Report any unusual features of vehicle condition

and additional work required.

ENDORSE SERVICE RECORD

MAINTENANCE

19

MAINTENANCE

RESET EMISSION MAINTENANCE REMINDER -
USA

The emission maintenance reminder is designed to
activate at 52,500 and 105,000 miles respectively and
will illuminate a ’Service Engine’ red warning light in
instrument binnacle.

The emission maintenance reminder must be reset
after required maintenance has been carried out and
a new tamperproof label fitted by a Land Rover of
North America dealer. This emission maintenance
reminder is part of the Emission Control System

Reset

1. The control unit is located in the passenger

footwell.

2. Identify control unit and remove from plug.
3. Remove tamperproof label to reveal access hole

for resetting.

4. Place a thin metallic probe into access hole and

momentarily electrically short between reset pins
inside unit.

RECOMMENDED SERVICE ITEMS

Refer Service Schedule sheets for intervals.

Clean sunroof drain tubes, clean and lubricate guide
rails and slides.

Renew the hydraulic brake fluid.

See BRAKES,

Repair, Brake System Bleed

Renew all hydraulic brake fluid, seals, brake servo
filter and flexible hoses.

All working surfaces of the master cylinder and caliper
cylinders should be examined and renewed where
necessary.

ABS vehicles only - renew hydraulic brake fluid and
flexible hoses examine the working surfaces of the
caliper cylinders and renew the seals or cylinders
where necessary.

Air cleaner - When the vehicle is used in dusty or field
conditions or deep wading, frequent attention to the
air cleaner may be required.

ABS vehicles used extensively in arduous off-road
conditions - check the rear wheel road speed sensor
for abrasive wear.

Tdi

1

REPAIR

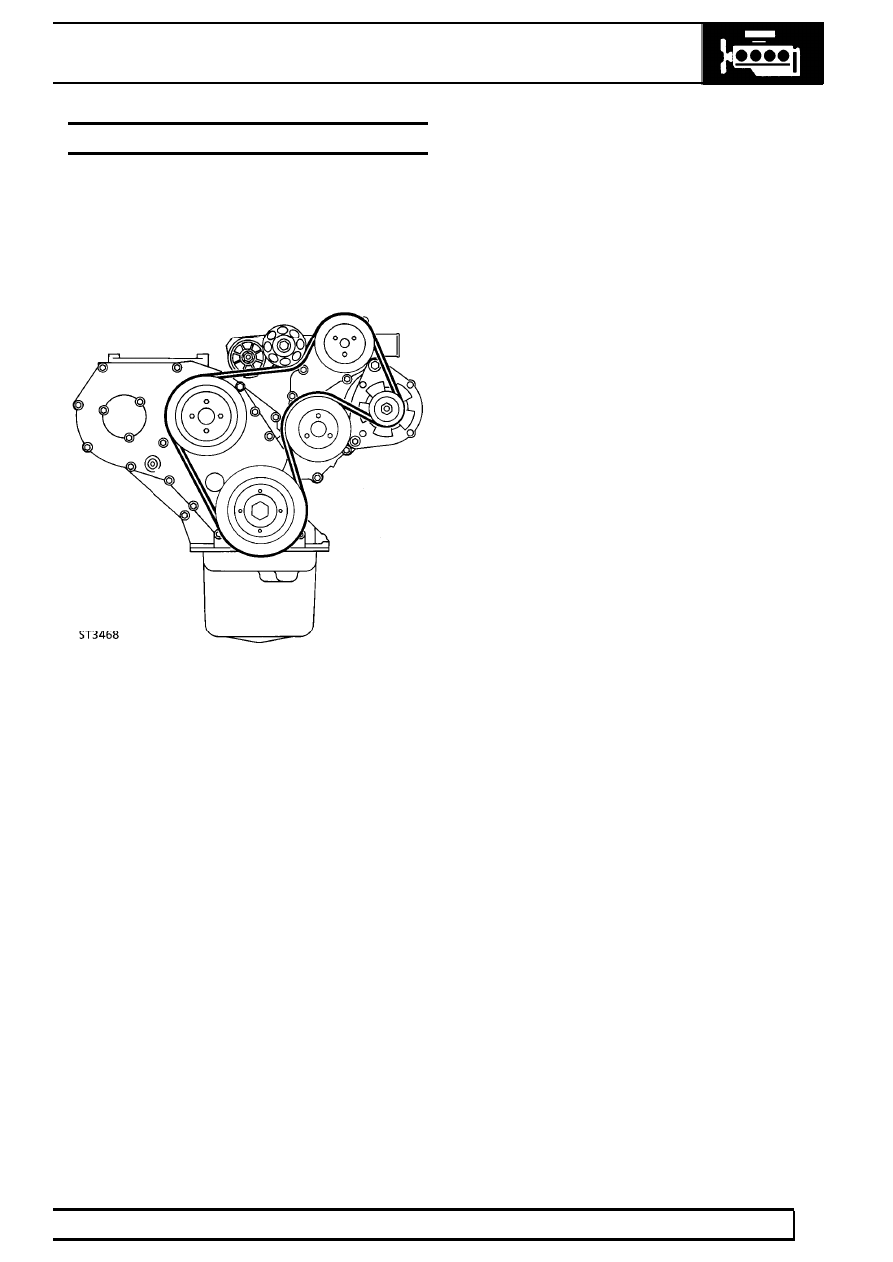

DRIVE BELT INFORMATION

A single ’serpentine drive belt’ drives all the
ancilliaries bar the air conditioning compressor, which
has a separate drive belt. It is essential that the belts
are fitted exactly as shown. It should also be noted
that the water pump/viscous fan is driven in a
clockwise direction.

A drive belt tensioner automatically tensions the drive
belt, eliminating the need for tensioning individual
drive belts. Turning the tensioner pulley in a clockwise
direction will release drive belt tension.

Under normal highway use the belt must be changed
at 160,000 kilometres, 96,000 miles or eight years
whichever occurs first.

The drive belt must be examined at every service and
replaced if necessary.

Off road driving

Regular examination of the drive belt is essential if the
vehicle is used off road. The vehicle driver should be
requested to identify the type of mileage the vehicle
has covered.

After every off road session the owner should inspect
the belt for cuts and possible damage caused by
stones. If belt has jumped, reposition belt correctly. A
new belt must be fitted at the next service or before,
dependant on the type of damage sustained.

Fan cowl

To ensure easy access to the drive belt the top portion
of the fan cowl is detachable.

Check condition

Check condition of drive belt. Renew a belt that shows
signs of wear, splitting or oil contamination.
