Land Rover Discovery. Manual - part 14





07

GENERAL FITTING REMINDERS

6

INFORMATION

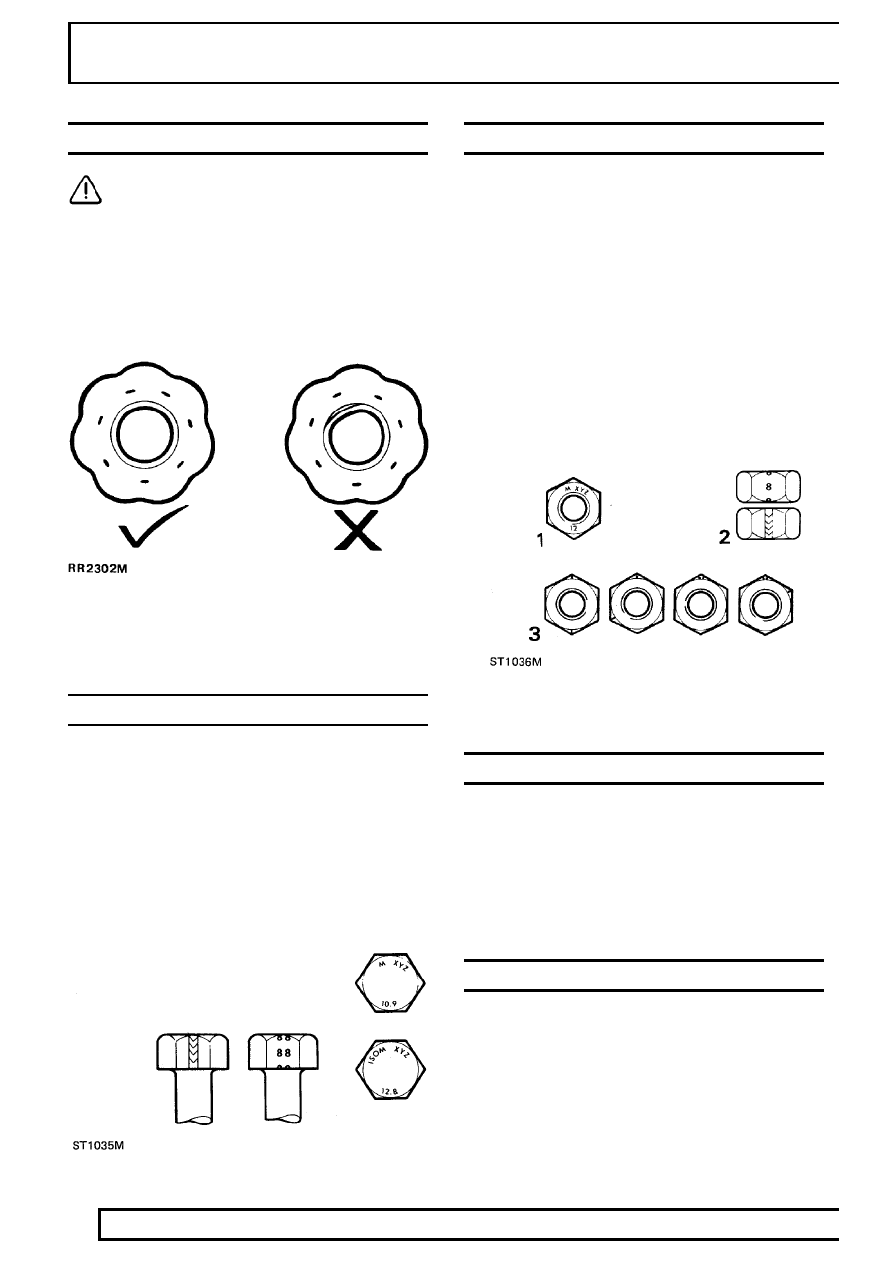

FUEL SYSTEM HOSES

CAUTION: All fuel hoses are made up of
two laminations, an armoured rubber outer
sleeve and an inner viton core. If any of

the fuel system hoses have been disconnected, it
is imperative that the internal bore is inspected to
ensure that the viton lining has not become
separated from the amoured outer sleeve. A new
hose must be fitted if separation is evident.

METRIC BOLT IDENTIFICATION

1. An ISO metric bolt or screw, made of steel and

larger than 6 mm in diameter can be identified by
either of the symbols ISO M or M embossed or
indented on top of the head.

2. In addition to marks to identify the manufacture,

the head is also marked with symbols to indicate
the strength grade, e.g. 8.8, 12.9 or 14.9, where
the first figure gives the minimum tensile
strength of the bolt material in tens of kgf/mm

2

.

3. Zinc plated ISO metric bolts and nuts are

chromate passivated, a gold-bronze colour.

METRIC NUT IDENTIFICATION

1. A nut with an ISO metric thread is marked on

one face or on one of the flats of the hexagon
with the strength grade symbol 8, 12 or 14.
Some nuts with a strength 4, 5 or 6 are also
marked and some have the metric symbol M on
the flat opposite the strength grade marking.

2. A clock face system is used as an alternative

method of indicating the strength grade. The
external chamfers or a face of the nut is marked
in a position relative to the appropriate hour
mark on a clock face to indicate the strength
grade.

3. A dot is used to locate the 12 o’clock position

and a dash to indicate the strength grade. If the
grade is above 12, two dots identify the 12
o’clock position.

KEYS AND KEYWAYS

1. Remove burrs from edges of keyways with a fine

file and clean thoroughly before attempting to
refit key.

2. Clean and inspect key closely; keys are suitable

for refitting only if indistinguishable from new, as
any indentation may indicate the onset of wear.

TAB WASHERS

1. Fit new washers in all places where they are

used. Always fit a new tab washer.

2. Ensure that the new tab washer is of the same

design as that replaced.

GENERAL FITTING REMINDERS

7

INFORMATION

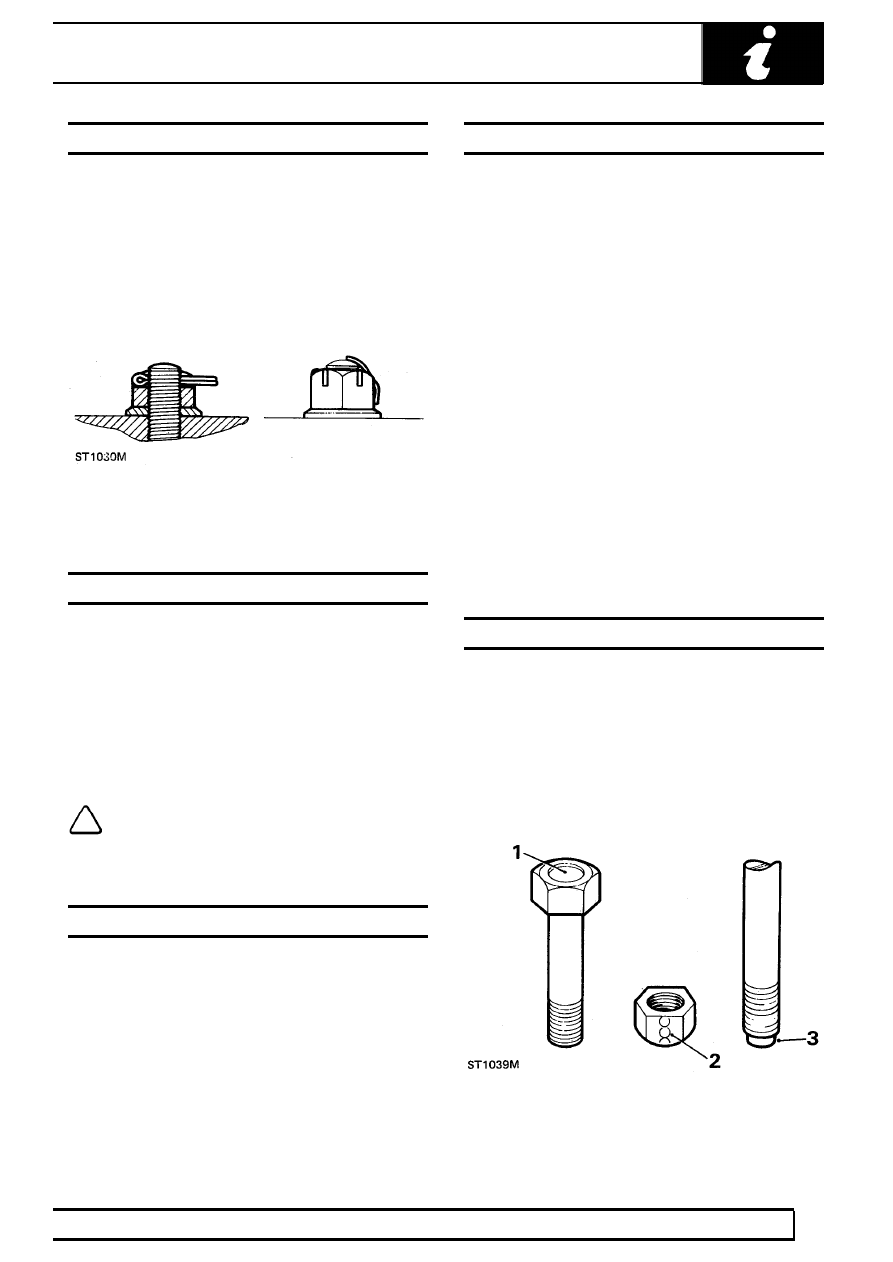

COTTER PINS

1. Fit new cotter pins throughout when replacing

any unit.

2. Always fit cotter pins where cotter pins were

originally used. Do not substitute spring
washers: there is always a good reason for the
use of a cotter pin.

3. All cotter pins should be fitted as shown unless

otherwise stated.

NUTS

1. When tightening a slotted or castellated nut

never loosen it back to insert cotter pin or locking
wire except in those recommended cases where
this forms part of an adjustment. If difficulty is
experienced, alternative washers or nuts should
be selected, or washer thickness reduced.

2. Where self-locking nuts have been removed it is

advisable to replace them with new ones of the
same type.

NOTE: Where bearing pre-load is involved
nuts should be tightened in accordance
with special instructions.

LOCKING WIRE

1. Fit new locking wire of the correct type for all

assemblies incorporating it.

2. Arrange wire so that its tension tends to tighten

the bolt heads, or nuts, to which it is fitted.

SCREW THREADS

1. Both UNF and Metric threads to ISO standards

are used. See below for thread identification.

2. Damaged threads must always be discarded.

Cleaning up threads with a die or tap impairs the
strength and closeness of fit of the threads and
is not recommended.

3. Always ensure that replacement bolts are at

least equal in strength to those replaced.

4. Do not allow oil, grease or jointing compound to

enter blind threaded holes. The hydraulic action
on screwing in the bolt or stud could split the
housing.

5. Always tighten a nut or bolt to the recommended

torque value. Damaged or corroded threads can
affect the torque reading.

6. To check or re-tighten a bolt or screw to a

specified torque value first loosen a quarter of a
turn, then re-tighten to the correct value.

7. Oil thread lightly before tightening to ensure a

free running thread, except in the case of
threads treated with sealant/lubricant, and
self-locking nuts.

UNIFIED THREAD IDENTIFICATION

1. Bolts

A circular recess is stamped in the upper surface
of the bolt head.

2. Nuts

A continuous line of circles is indented on one of
the flats of the hexagon, parallel to the axis of
the nut.

3. Studs, Brake Rods, etc.

The component is reduced to the core diameter
for a short length at its extremity.

LUBRICANTS, FLUIDS AND CAPACITIES

1

INFORMATION

RECOMMENDED LUBRICANTS AND FLUIDS -
USA VEHICLES

AMBIENT TEMPERATURE

°

C

COMPONENT

SPECIFICATION

VISCOSITY

-30

-20

-10

0

10

20

30

40

50

Engine

Use oils to API

5W/20 )

service level
SGSH

5W/30 )

or

5W/40 )

RES.22.OL.G4
or
CCMC G4

10W/30

10W/40 )
10W/50 )

15W/40 )
15W/50 )

20W/40 )
20W/50 )

Automatic gearbox

ATF Dexron IID

Final drive units

API or GL5

90 EP

Swivel pin housings

MIL - L - 2105 or
MIL - L - 2105B, C
or D

80W EP

Power steering

ATF Dexron IID

LT 230T

API GL4 or GL5

transfer gearbox

MIL - L - 2105 or
MIL - L - 2105B

Brake reservoir

Brake fluid must have a minimum
boiling point of 260

°

C (500˚F) and

comply with FMVSS/116/DOT 4

Lubrication nipples
(hubs, ball joints,
etc.)

NLGI-2 multipurpose lithium based
grease

See table on page 3 for remaining vehicle components

09

LUBRICANTS, FLUIDS AND CAPACITIES

2

INFORMATION

RECOMMENDED LUBRICANTS AND FLUIDS

All climates and conditions

AMBIENT TEMPERATURE

°

C

COMPONENT

SPECIFICATION

VISCOSITY

-30

-20

-10

0

10

20

30

40

50

Petrol models

Oils must meet:

5W/30

Engine sump

RES.22.OL.G-4

5W/40

or

5W/50

CCMC G-4 or

10W/30

API SG or SH

10W/40
10W/50

15W/40
15W/50

20W/40
20W/50

25W/40
25W/50

Diesel

RES.22.OL.PD-2

15W/40

Engine sump

or CCMC PD-2
or API CD

Main Gearbox
Automatic

ATF Dexron IID

Main Gearbox
manual

ATF Dexron IID

Final drive units

API or GL5

90 EP

Swivel pin housings

MIL - L - 2105 or
MIL - L - 2105B

80 EP

C or D

Power steering

ATF Dexron IID

Transfer box

API GL4 or GL5

90 EP

LT230T

MIL - L - 2105 or
MIL - L - 2105B

80 EP

C or D
