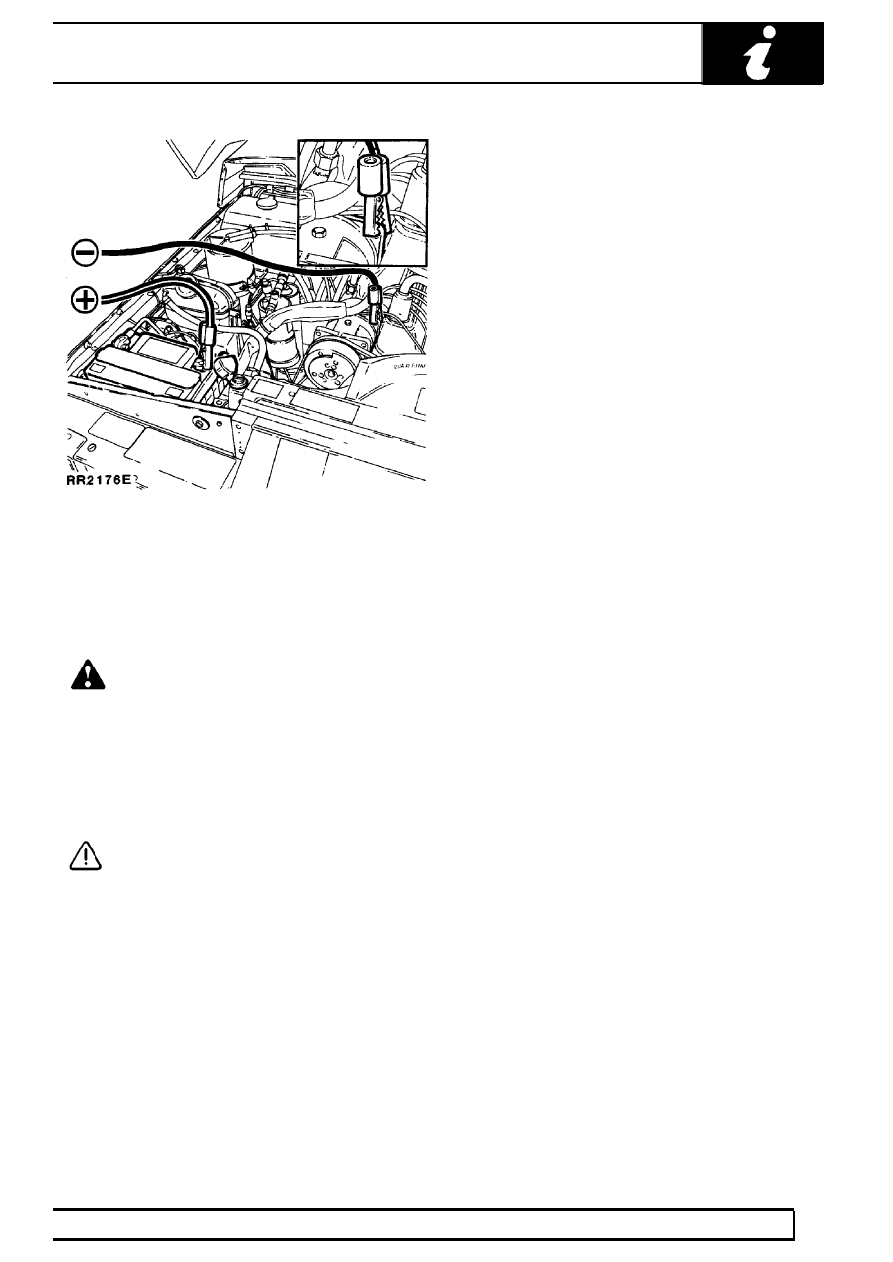

D. Connect other end of second jumper cable to a

good earth point on the engine, NOT TO
NEGATIVE TERMINAL OF DISCHARGED
BATTERY.
Keep jumper lead away from moving
parts, pulleys, drive belts and fan blade
assembly.

WARNING: Making final cable connection
could cause an electrical arc which if
made near battery could cause an

explosion.

3. If booster battery is installed in another vehicle,

start engine and allow to idle.

4. Start engine of vehicle with discharged battery,

following starting procedure in Owners’ Manual.

CAUTION: If vehicle fails to start within a
maximum time of 12 seconds, switch
ignition off and investigate cause. Failing

to follow this instruction could result in
irrepairable damage to catalysts.

5. Remove negative (-) jumper cable from the

engine and then terminal of booster battery.

6. Remove positive (+) jumper cable from positive

terminals of booster battery and discharged
battery.

01

INTRODUCTION

10

INFORMATION

ABBREVIATIONS AND SYMBOLS USED IN THIS
MANUAL

Across flats (bolt size)

AF

............................................

After bottom dead centre

ABDC

...................................

After top dead centre

ATDC

.........................................

Alternating current

a.c.

.................................................

Ampere

amp

................................................................

Ampere hour

amp hr

....................................................

Before bottom dead centre

BBDC

................................

Before top dead centre

BTDC

......................................

Bottom dead centre

BDC

.............................................

Brake horse power

bhp

................................................

British Standards

BS

....................................................

Carbon monoxide

CO

..................................................

Centimetre

cm

.............................................................

Centigrade (Celsius)

C

................................................

Cubic centimetre

cm

3

...................................................

Cubic inch

in

3

...............................................................

Degree (angle)

deg or

°

...............................................

Degree (temperature)

deg or

°

.....................................

Diameter

dia.

...............................................................

Direct current

d.c.

.........................................................

Electronic Control Unit

ECU

........................................

Electronic Fuel Injection

EFI

........................................

Fahrenheit

F

.................................................................

Feet

ft

...........................................................................

Feet per minute

ft/min

..................................................

Fifth

5th

........................................................................

First

1st

........................................................................

Fluid ounce

fl oz

..........................................................

Foot pounds (torque)

lbf ft

............................................

Fourth

4th

.....................................................................

Gramme (force)

gf

........................................................

Gramme (mass)

g

........................................................

Gallons

gal

...................................................................

Gallons (US)

US gal

.....................................................

High tension (electrical)

H.T.

........................................

Internal diameter

I.D.

...................................................

Inches of mercury

in. Hg

..............................................

Inches

in

......................................................................

Kilogramme (force)

kgf

.................................................

Kilogramme (mass.)

kg

................................................

Kilogramme centimetre (torque)

kgf.cm

.......................

Kilogramme per square millimetre

kgf/mm

2

.................

Kilogramme per square centimetre

kgf/cm

2

.................

Kilogramme metres (torque)

kgf.m

..............................

Kilometres

km

..............................................................

Kilometres per hour

km/h

.............................................

Kilovolts

kV

...................................................................

Left-hand

LH

................................................................

Left-hand steering

LHStg

.............................................

Left-hand thread

LHThd

...............................................

Litres

litre

.....................................................................

Low tension

l.t.

.............................................................

Maximum

max.

............................................................

Metre

m

........................................................................

Millilitre

ml

....................................................................

Millimetre

mm

...............................................................

Miles per gallon

mpg

....................................................

Miles per hour

mph

......................................................

Minute (angle)

............................................................

Minus (of tolerance)

-

...................................................

Negative (electrical)

-

...................................................

Newton metres (torque)

Nm

........................................

Number

No.

.................................................................

Ohms

ohm

...................................................................

Ounces (force)

ozf

.......................................................

Ounces (mass)

oz

........................................................

Ounce inch (torque)

ozf.in.

..........................................

Outside diameter

O.D.

.................................................

Part number

Part No.

...................................................

Percentage

%

...............................................................

Pints

pt

.........................................................................

Pints (US)

US pt

...........................................................

Plus (tolerance)

+

.........................................................

Positive (electrical)

+

....................................................

Pound (force)

lbf

..........................................................

Pounds inch (torque)

in.lbf.

..........................................

Pound (mass)

lb

...........................................................

Pounds per square inch

P.S.I.

.....................................

Ratio

:

...........................................................................

Reference

ref.

..............................................................

Revolution per minute

rev/min

.....................................

Right-hand

RH

.............................................................

Second (angle)

"

...........................................................

Second (numerical order)

2nd

......................................

Specific gravity

sp.gr.

...................................................

Square centimetres

cm

2

...............................................

Square inches

in

2

.........................................................

Standard wire gauge

s.w.g.

.........................................

Synchroniser/Synchromesh

synchro.

..........................

Third

3rd

.......................................................................

Top dead centre

TDC

..................................................

United Kingdom

UK

......................................................

Vehicle Identification Number

VIN

...............................

Volts

V

.........................................................................

Watts

W

.......................................................................

SCREW THREADS
American Standard Taper Pipe

NPTF

.........................

British Standard Pipe

BSP

...........................................

Unified Coarse

UNC

....................................................

Unified Fine

UNF

.........................................................

INTRODUCTION

11

INFORMATION

CROSS REFERENCE OF EMISSION SYSTEM
TERMINOLOGY

NEW TERM

(ACRONYM)

Accelerator pedal

(AP)

.................................................

Air cleaner

(ACL)

..........................................................

Air conditioning

(AC)

....................................................

Battery positive voltage

(B+)

........................................

Closed loop

(CL)

..........................................................

Closed throttle position

(CTP)

......................................

Canister purge valve

(CANPV)

....................................

Data link connector

(DLC)

...........................................

Diagnostic trouble code

(DTC)

.....................................

Distributor ignition

(DI)

.................................................

Engine control module

(ECM)

......................................

Engine coolant level

(ECL)

...........................................

Engine coolant temperature

(ECT)

..............................

Engine coolant temperature sensor

(ECTS)

................

Engine speed

(RPM)

....................................................

Evaporative emission system

(EVAP)

..........................

Engine fuel temperature sensor

(EFTS)

......................

4th gear, 3rd gear etc.

(4GR, 3GR)

..............................

Fuel pump

(FP)

............................................................

Fan control module

(FCM)

...........................................

Generator

(GEN)

..........................................................

Ground

(GND)

..............................................................

Heated oxygen sensor

(H02S)

....................................

Idle air control

(IAC)

......................................................

Idle air control valve

(IACV)

.........................................

Ignition control module

(ICM)

.......................................

Inertia fuel shutoff

(IFS)

................................................

Inertia fuel shutoff switch

(IFSS)

..................................

Intake air temperature

(IAT)

.........................................

Malfunction indicator lamp

(MIL)

..................................

Manifold vacuum zone

(MVZ)

......................................

Mass air flow sensor

(MAFS)

.......................................

Multiport fuel injection

(MFI)

........................................

On board diagnostic

(OBD)

..........................................

Open loop

(OL)

............................................................

Park/neutral position

(PNP)

.........................................

Park/neutral position switch

(PNPS)

............................

Programmable read only memory

(PROM)

..................

Relay module

(RM)

......................................................

Service reminder indicator

(SRI)

..................................

Solid state relay module

(SSRM)

.................................

Three way catalytic converter

(TWC)

..........................

Throttle body

(TB)

........................................................

Throttle position sensor

(TPS)

......................................

Torque converter clutch

(TCC)

....................................

Transmission range

(TR)

..............................................

Transmission range selector

(TRS)

.............................

Vehicle speed sensor

(VSS)

........................................

Wide open throttle

(WOT)

............................................

OLD TERM

(ACRONYM)

Throttle pedal

(-)

..........................................................

Air cleaner

(-)

...............................................................

Air conditioning

(AC)

....................................................

Battery plus, bat +, bat feed

(B+)

.................................

Closed loop

(-)

.............................................................

Closed throttle, idle position

(-)

....................................

Charcoal canister purge valve

(-)

.................................

Serial link

(-)

................................................................

Fault code

(-)

...............................................................

Electronic ignition

(-)

....................................................

Electronic control unit

(ECU)

........................................

Coolant level

(-)

...........................................................

Coolant temperature

(temp)

.........................................

Coolant temperature thermistor

(-)

..............................

Engine speed

(rev/min)

................................................

Evaporative loss system

(ELC)

...................................

Fuel temperature thermistor

(-)

....................................

Fourth gear, 3rd gear

(-)

..............................................

Fuel pump

(-)

...............................................................

Condenser fan timer

(-)

................................................

Alternator

(-)

................................................................

Ground, earth

(B-)

........................................................

Lambda (02) sensor

(-)

................................................

Idle speed control

(ISC)

................................................

Stepper motor

(-)

.........................................................

Ignition module

(-)

........................................................

Inertia switch

(-)

...........................................................

Inertia switch

(-)

...........................................................

Intake temperature/ambient temperature

(-)

................

EFI warning lamp

(-)

....................................................

Manifold depression, vacuum

(-)

.................................

Air flow meter

(-)

..........................................................

Electronic fuel injection

(EFI)

.......................................

Fault code display unit

(-)

............................................

Open loop

(-)

...............................................................

Park or neutral

(-)

.........................................................

Start inhibit switch

(-)

...................................................

Chip, PROM

(PROM)

...................................................

Relay

(-)

.......................................................................

Check engine light

(-)

...................................................

Control unit

(-)

..............................................................

Catalyst, catalytic converter

(CAT)

..............................

Throttle housing

(-)

......................................................

Throttle potentiometer

(-)

.............................................

Direct drive clutch

(DDC)

..............................................

Transmission gear

(-)

...................................................

Shift lever, shifter

(-)

....................................................

Road speed transducer

(-)

...........................................

Full throttle, wide open throttle

(WOT)

.........................

01

INTRODUCTION

12

INFORMATION

VEHICLE IDENTIFICATION NUMBER (VIN)

The Vehicle Identification Number and the
recommended maximum vehicle weights are stamped
on a plate located under the bonnet [hood] riveted to
the front of the engine compartment.

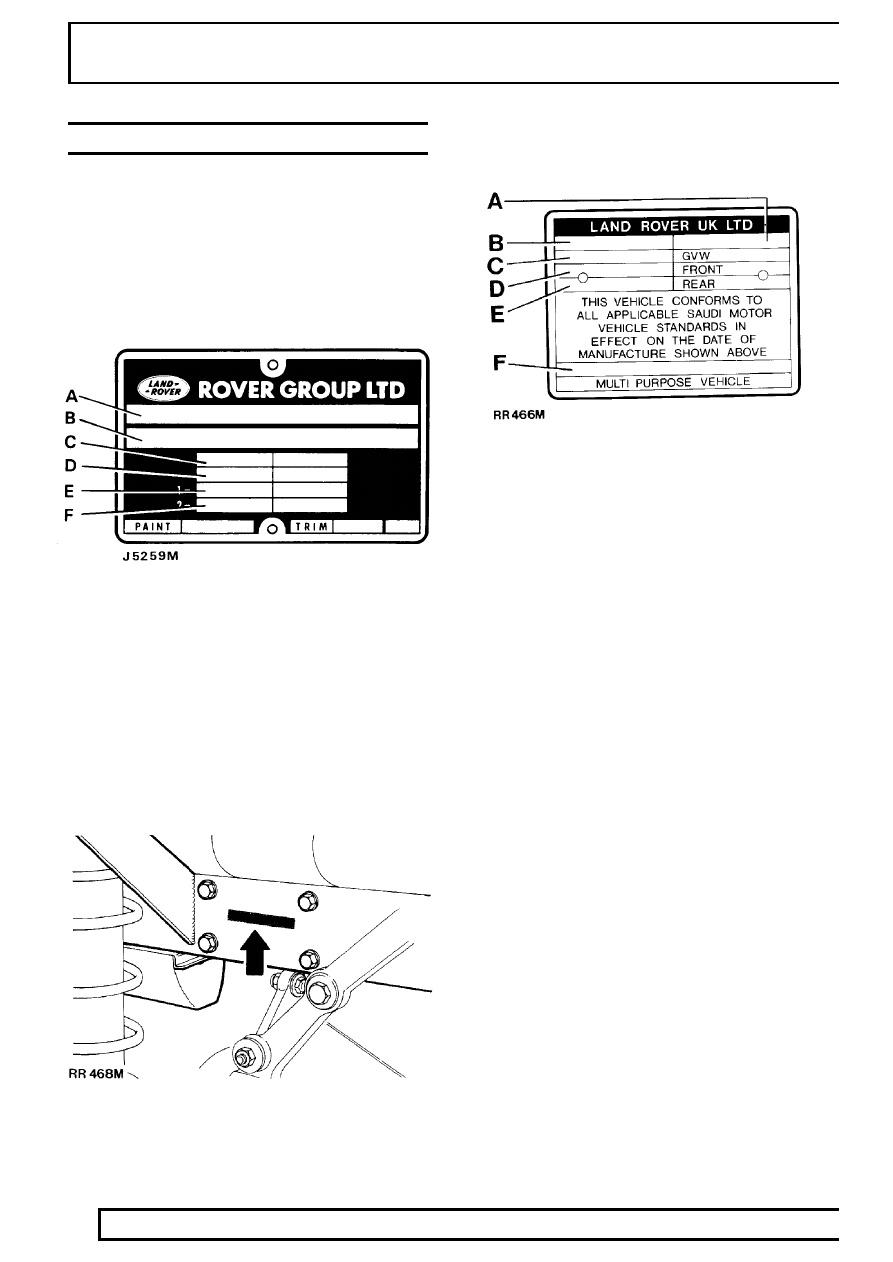

Vehicle Identification Number Plate (UK, Australia,
R.O.W., Europe)

A.

Build date (Australia). Type approval

B.

VIN (17 digits)

C.

Maximum permitted laden weight for vehicle

D.

Maximum vehicle and trailer weight

E.

Maximum road weight-front axle

F.

Maximum road weight-rear axle

The number is also stamped on the right side of the
chassis forward of the spring mounting turret.

Vehicle Identification Number Plate (Saudi Arabia)

A.

Year of manufacture

B.

Month of manufacture

C.

Maximum vehicle weight

D.

Maximum road weight-front axle

E.

Maximum road weight-rear axle

F.

VIN (17 digits)

The vehicle identification number identifies the
manufacturer, model range, wheel base, body type,
engine, steering, transmission, model year and place
of manufacture. The following example shows the
coding process.

SAL World manufacturer identifier
LH

Range Rover or

LJ

Discovery

G

Class 100 inch

B

2 door

F

300 Tdi or

V

V8i Petrol

8

5 speed LHD or

7

5 speed RHD

M

1995 MY

A

Solihull site
