86

ELECTRICAL

12

REPAIR

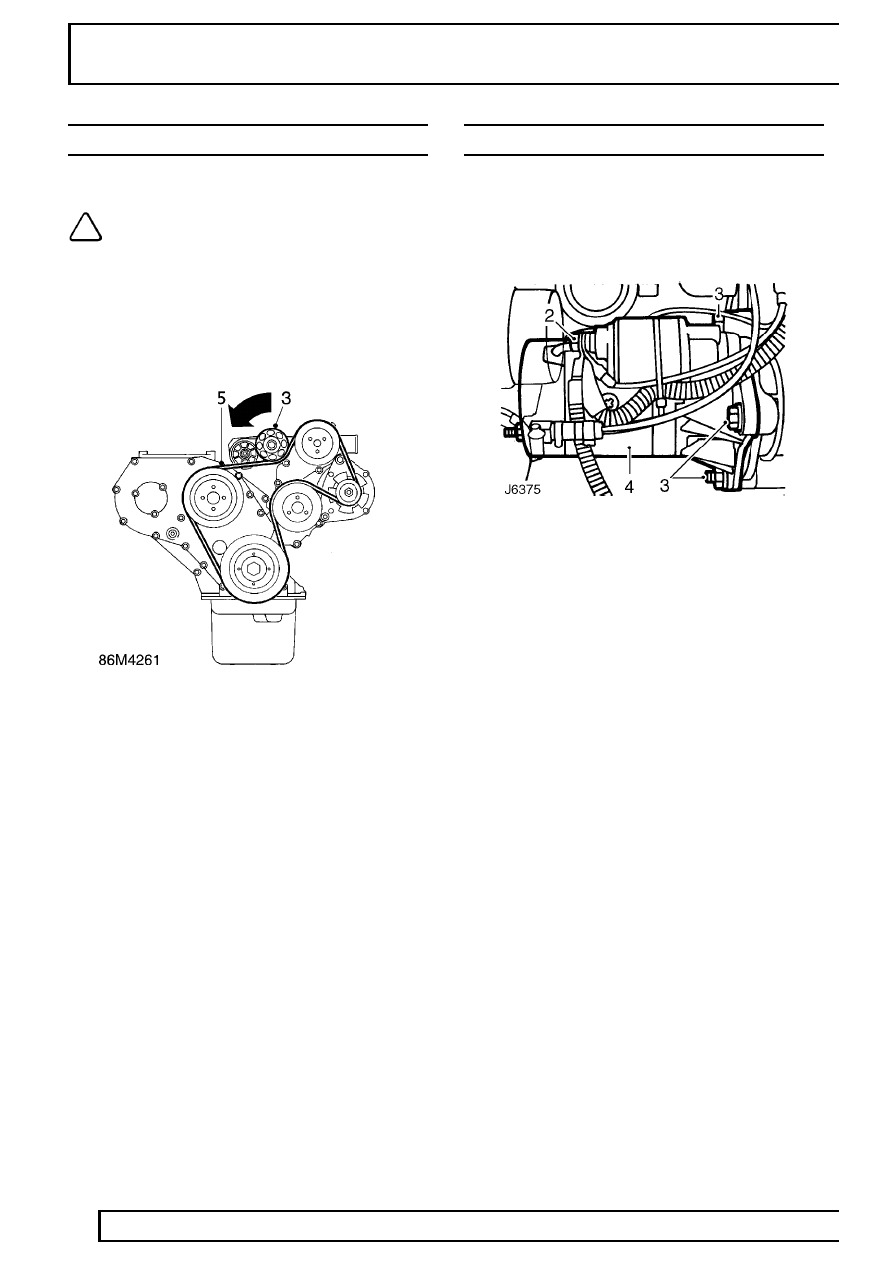

AUXILIARY DRIVE BELT

Service repair no - 86.10.03

NOTE: If cast lines on tensioner arm and
tensioner spring case are aligned, a new
drive belt must be fitted.

Remove

1. Disconnect battery.
2. Remove fan cowl

See COOLING SYSTEM,

Repair, Fan cowl.

3. Apply ring spanner to tensioner pulley retaining

bolt.

4. Turn spanner to release pulley tension from belt.
5. Detach belt from pulley.
6. Release tensioner.
7. Complete removal of belt. Mark direction on belt

if refitting.

Refit

8. Using ring spanner, release pulley tensioner and

fit new drive belt.

9. Remove ring spanner, drive belt will

automatically tension.

10. Fit fan cowl

See COOLING SYSTEM, Repair,

Fan cowl.

STARTER MOTOR

Service repair no - 86.60.01

Remove

1. Disconnect battery.

2. Disconnect electrical leads from starter solenoid.
3. Remove 3 fixings securing starter motor to

flywheel housing.

4. Withdraw starter motor.

Refit

5. Locate starter motor and secure to flywheel

housing.

6. Reconnect electrical leads to starter solenoid.
7. Reconnect battery.

ELECTRICAL

13

REPAIR

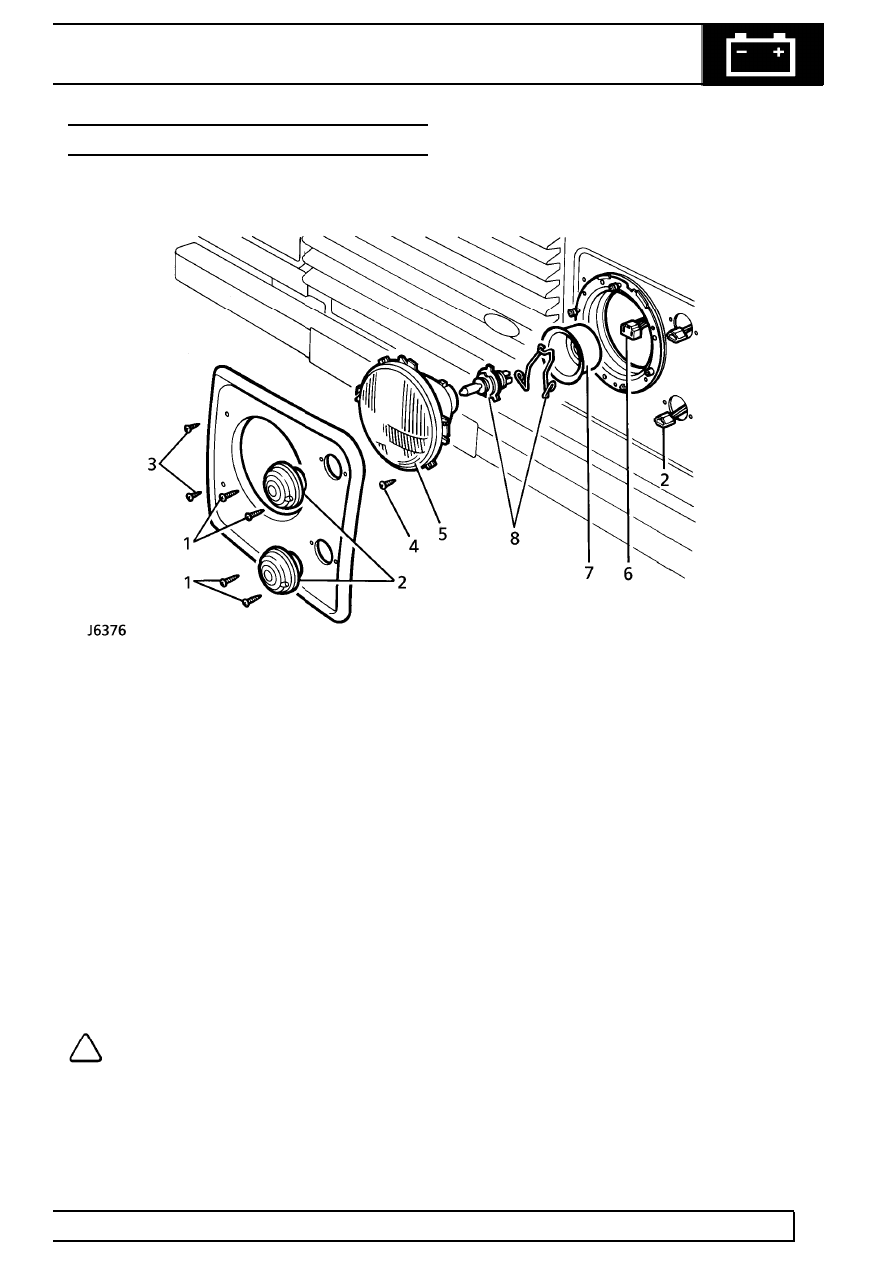

HEADLAMP

Service repair no - 86.40.02

Remove

1. Remove screws retaining side and direction

indicator lamps.

2. Withdraw lamp units and disconnect plugs.
3. Remove 2 screws and withdraw headlamp

finisher.

4. Remove 2 headlamp retaining screws.
5. Rotate headlamp clockwise, disengage from

body, and lift out headlamp.

6. Disconnect multi-plug to release headlamp. On

vehicles fitted with headlamp levelling unit, also
release unit harness plug

See Headlamp

levelling unit.

7. Remove rubber cover.
8. Release spring clip and withdraw headlamp

bulb.

NOTE: Do not touch bulb glass with
fingers. If necessary, clean bulb with
methylated spirits.

Refit

9. Fit bulb to headlamp and retain with spring clip.

10. Fit rubber cover and reconnect multi-plug. If

applicable, fit headlamp levelling unit plug

See

Headlamp levelling unit.

11. Locate headlamp in body and rotate

anti-clockwise to engage.

12. Fit headlamp retaining screws.
13. Fit headlamp finisher, side and direction

indicator lamps.

14. Check main beam alignment

See Headlamp

beam alignment.

86

ELECTRICAL

14

REPAIR

SIDE, TAIL AND DIRECTION INDICATOR LAMPS

Service repair no - 86.40.34 - Front side lamp
Service repair no - 86.40.45 - Tail lamp
Service repair no - 86.40.42 - Front direction
indicator lamp
Service repair no - 86.40.43 - Rear direction
indicator lamp

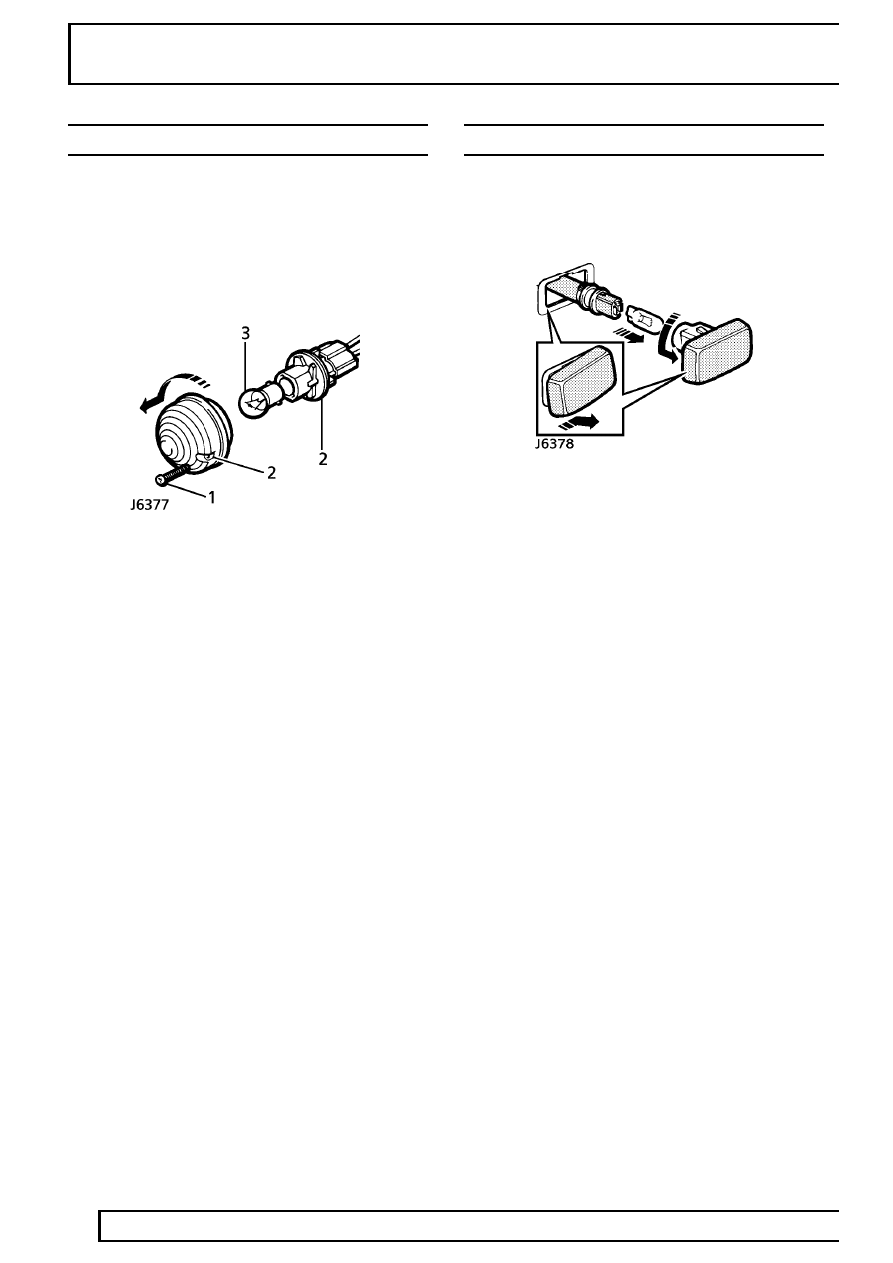

Remove

1. Remove 2 screws and withdraw lamp unit.
2. Hold bulb holder and twist lens to release.
3. Push and twist bulb to remove from holder.

Refit

4. Fit new bulb, if necessary.
5. Fit bulb holder to lamp lens.
6. Secure lamp to vehicle.

SIDE REPEATER LAMP

Service repair no - 86.40.53.

Remove

1. Push lens firmly to the right.
2. Lift left edge and withdraw lamp unit from wing.
3. Twist bulb holder and release from lens.
4. Pull bulb from holder.

Refit

5. Fit new bulb, if necessary.
6. Fit bulb holder to lens.
7. Locate lamp unit in wing and push firmly to the

left to secure.

ELECTRICAL

15

REPAIR

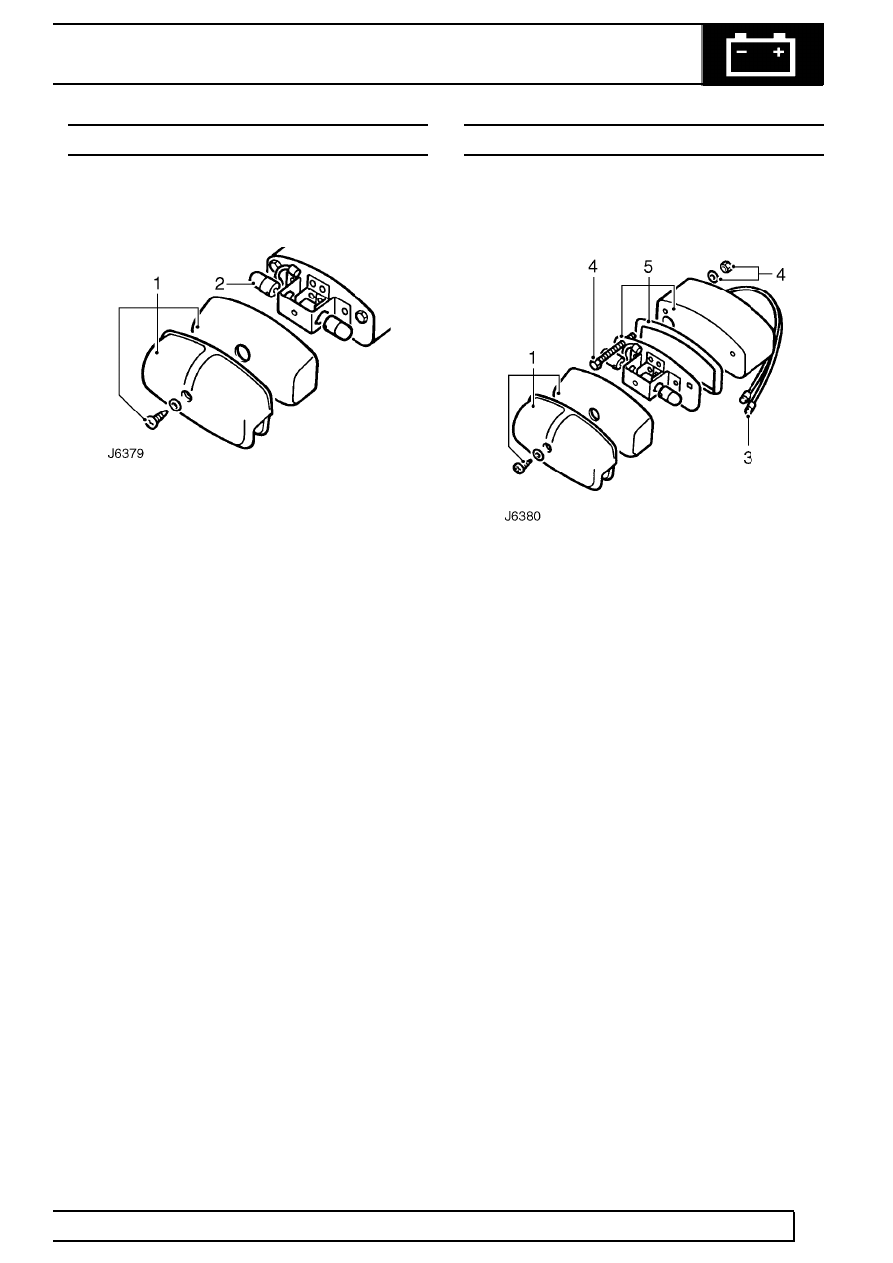

REAR NUMBER PLATE LAMP - BULB RENEWAL

Service repair no - 86.40.85

Remove

1. Remove single screw securing lamp cover and

lens to bulb holder.

2. Remove bulb/s from holder.

Refit

3. Fit new bulb/s.
4. Fit lamp lens and cover.

REAR NUMBER PLATE LAMP

Service repair no - 86.40.86

Remove

1. Remove single screw and remove lamp cover

and lens.

2. Uncsrew 2 fixings and remove metal cover to

gain access to lamp fixings and harness leads
inside vehicle.

3. Disconnect lamp leads from harness.
4. Remove 2 bolts, nuts and washers securing

lamp to vehicle body.

5. Remove bulb holder, complete with rubber seal

and mounting plinth.

Refit

6. Feed lamp unit leads through vehicle body and

secure bulb holder, seal and plinth.

7. Fit lamp leads to harness connectors.
8. Fit cover to conceal lamp fixings.
9. Fit lens and lamp cover.
