Defender 300Tdi (1996+). Manual - part 107





86

ELECTRICAL

8

REPAIR

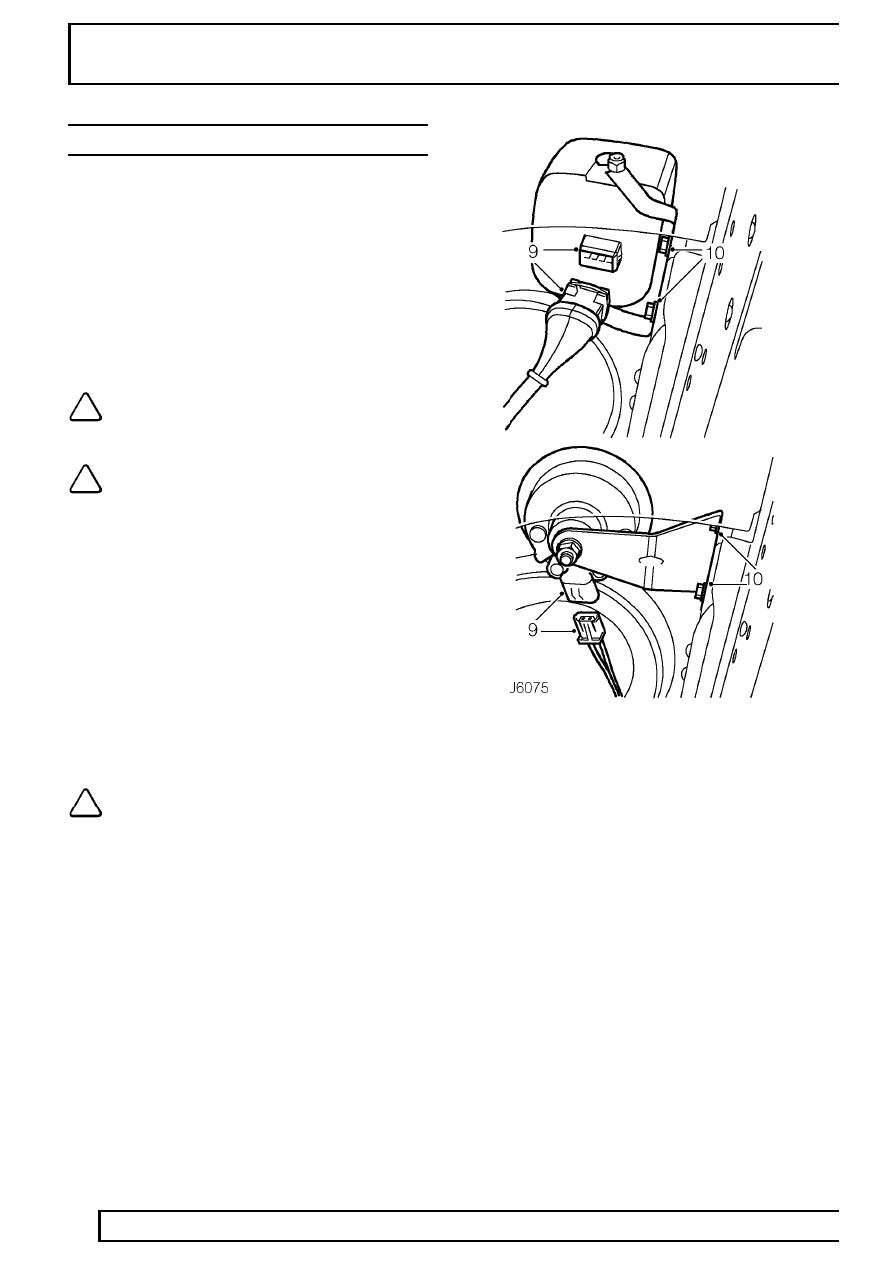

ALARM SOUNDER

Service repair no - 86.55.87

Remove

1. Remove LH front seat cushion.
2. Release retaining clip and remove battery

access cover.

3. Slacken battery negative lead clamp bolt.
4. Turn starter switch ’on’.
5. Turn starter switch ’off’ and remove key.
6. Disconnect battery negative lead.

NOTE: Operation 6 needs to be carried out
within 15 seconds to avoid activating
battery backed-up alarm sounder, if fitted.

NOTE: If an alarm sounder without battery
back-up is fitted, it is not necessary to
disconnect battery.

7. Remove 2 nuts securing power steering pump

reservoir mounting bracket to front, LH inside
wing.

8. Move steering pump reservoir aside to gain

access to alarm sounder.

9. Disconnect harness multi-plug from rear of alarm

sounder.

10. Unscrew 2 bolts and remove alarm sounder from

inside wing.
Top illustration - alarm sounder with battery
back-up.
Lower illustration - alarm sounder without
battery back-up.

NOTE: A new battery backed-up alarm
sounder will not operate until charged by
vehicle generator for approximately three

hours.

Refit

11. Secure alarm sounder to inside wing, tightening

bolts to

10 Nm (7 lbf/ft).

12. Reconnect multi-plug to alarm sounder.
13. Secure power steering pump reservoir to inside

wing, tightening nuts to

10 Nm (7 lbf/ft).

14. Reconnect battery negative lead.
15. Fit battery access cover.
16. Fit LH seat cushion.

ELECTRICAL

9

REPAIR

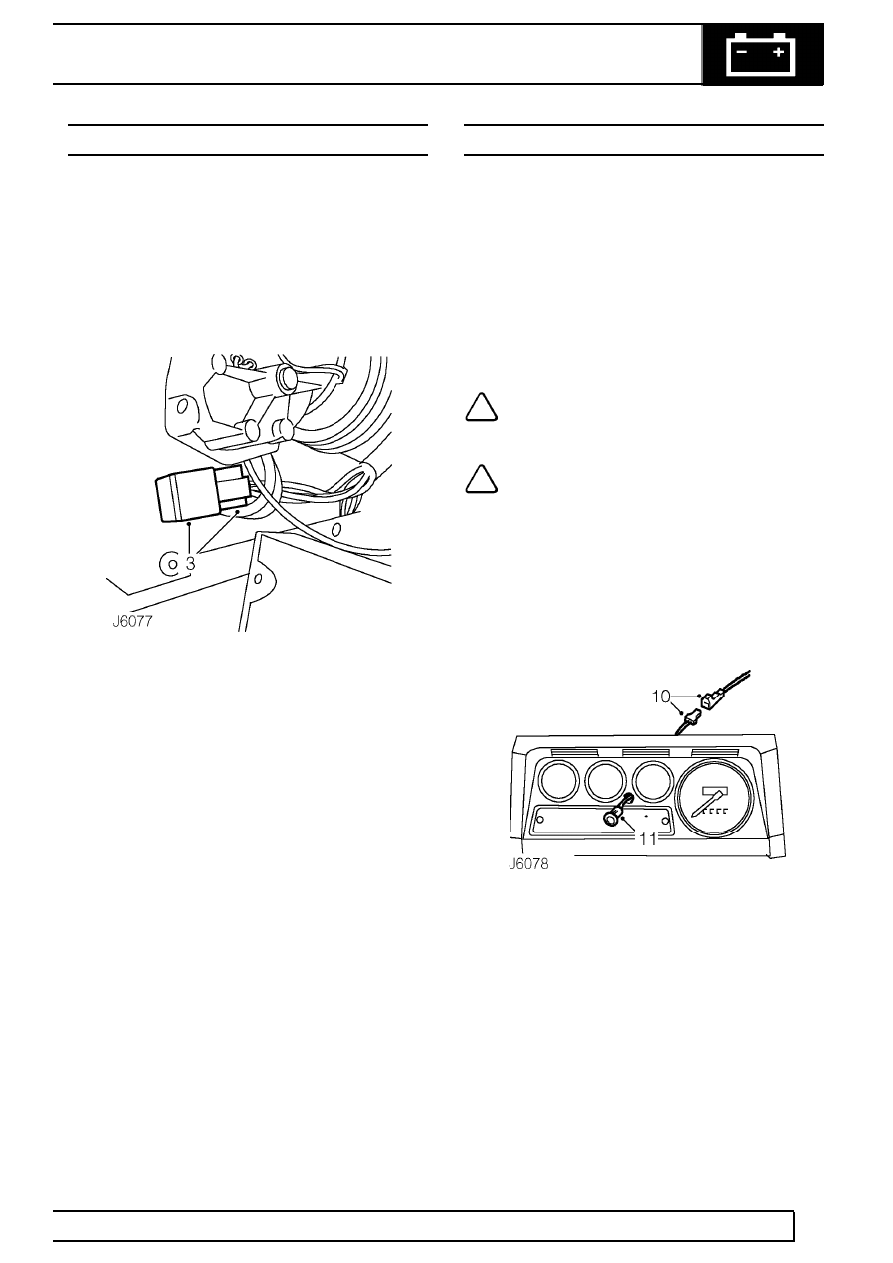

ALARM SOUNDER RELAY

Service repair no - 86.77.09

Remove

1. Remove screw and lift off LH door check strap

cover.

2. Remove 3 screws and lower wiper motor cover

from fascia bulkhead, (on RH drive models first
remove grab handle).

3. Slide relay multi-plug from retaining bracket and

remove relay.

Refit

4. Secure multi-plug to mounting bracket and fit

new relay.

5. Position wiper motor cover and secure with 3

screws.

6. On RH drive models fit grab handle.
7. Fit door check strap and secure with screw.

ANTI-THEFT ALARM INDICATOR LIGHT

Service repair no - 86.45.61

Remove

1. Remove LH front seat cushion.
2. Release retaing clip and remove battery access

cover.

3. Slacken battery negative lead clamp bolt.
4. Turn starter switch ’on’.
5. Turn starter switch ’off’ and remove key.
6. Disconnect battery negative lead.

NOTE: Operation 6 needs to be carried out
within 15 seconds to avoid activating
battery backed-up alarm sounder, if fitted.

NOTE: If an alarm sounder without battery
back-up is fitted, it is not necessary to
disconnect battery.

7. Remove steering wheel

See STEERING,

Repair, Steering wheel.

8. Remove 4 screws securing instrument panel to

fascia cowl.

9. Pull instrument panel away from fascia and

disconnect speedometer cable, if necessary.

10. Disconnect alarm indicator light plug lead.
11. Press in retaining lugs and withdraw indicator

light from fascia panel.

86

ELECTRICAL

10

REPAIR

Refit

12. Fit alarm indicator light into fascia panel and

reconnect plug lead.

13. Reconnect speedometer cable and fit instrument

panel to fascia cowl.

14. Fit steering wheel

See STEERING, Repair,

Steering wheel.

15. Reconnect battery negative lead.
16. Fit battery access cover.
17. Fit LH seat cushion.

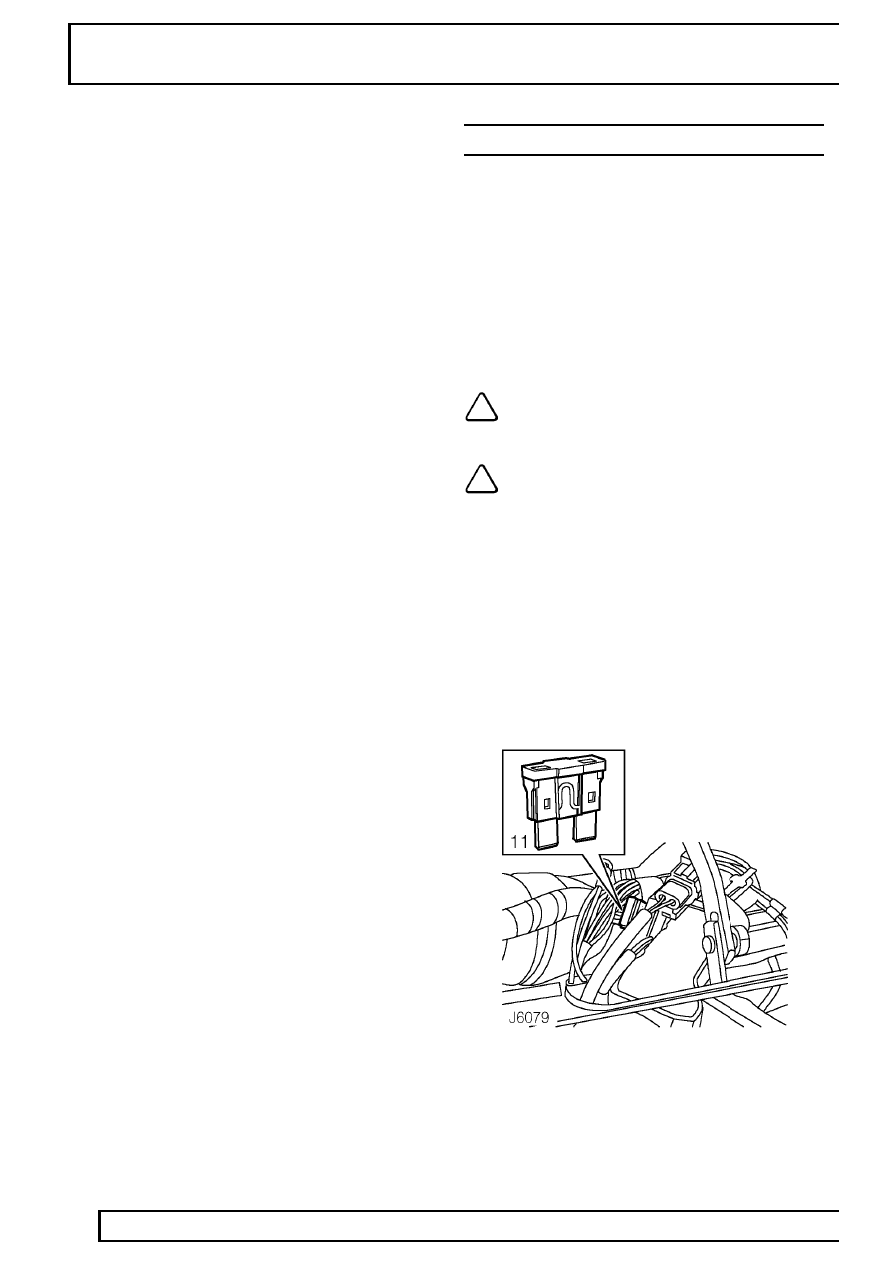

ALARM SYSTEM FUSE

Service repair no - 86.77.04

Remove

1. Remove LH front seat cushion.
2. Release retaining clip and remove battery

access cover.

3. Slacken battery negative lead clamp bolt.
4. Turn starter switch ’on’.
5. Turn starter switch ’off’ and remove key.
6. Disconnect battery negative lead.

NOTE: Operation 6 needs to be carried out
within 15 seconds to avoid activating
battery backed-up alarm sounder, if fitted.

NOTE: If an alarm sounder without battery
back-up is fitted, it is not necessary to
disconnect battery.

7. Remove steering wheel

See STEERING,

Repair, Steering wheel.

8. Remove 4 screws securing instrument panel to

fascia cowl

See INSTRUMENTS, Repair,

Instrument panel.

9. Pull instrument panel away from fascia and

disconnect speedometer cable, main harness
multi-plugs, alarm LED plug lead, heated rear
screen leads, gearbox oil temperature lead and
immobiliser warning light lead.

10. Remove instrument panel.

11. Remove alarm system 15 amp (blue) fuse from

holder located behind starter switch.

ELECTRICAL

11

REPAIR

Refit

12. Fit new fuse.
13. Position instrument panel to fascia cowl area

and reconnect immobiliser warning light leads,
gearbox oil temperature lead, heated rear screen
leads, alarm LED plug lead, main harness
multi-plugs and speedometer cable,

14. Secure instrument panel to fascia cowl with 4

screws

See INSTRUMENTS, Repair,

Instrument panel.

15. Fit steering wheel

See STEERING, Repair,

Steering wheel.

16. Reconnect battery negative lead.
17. Fit battery access cover.
18. Fit LH front seat cushion.

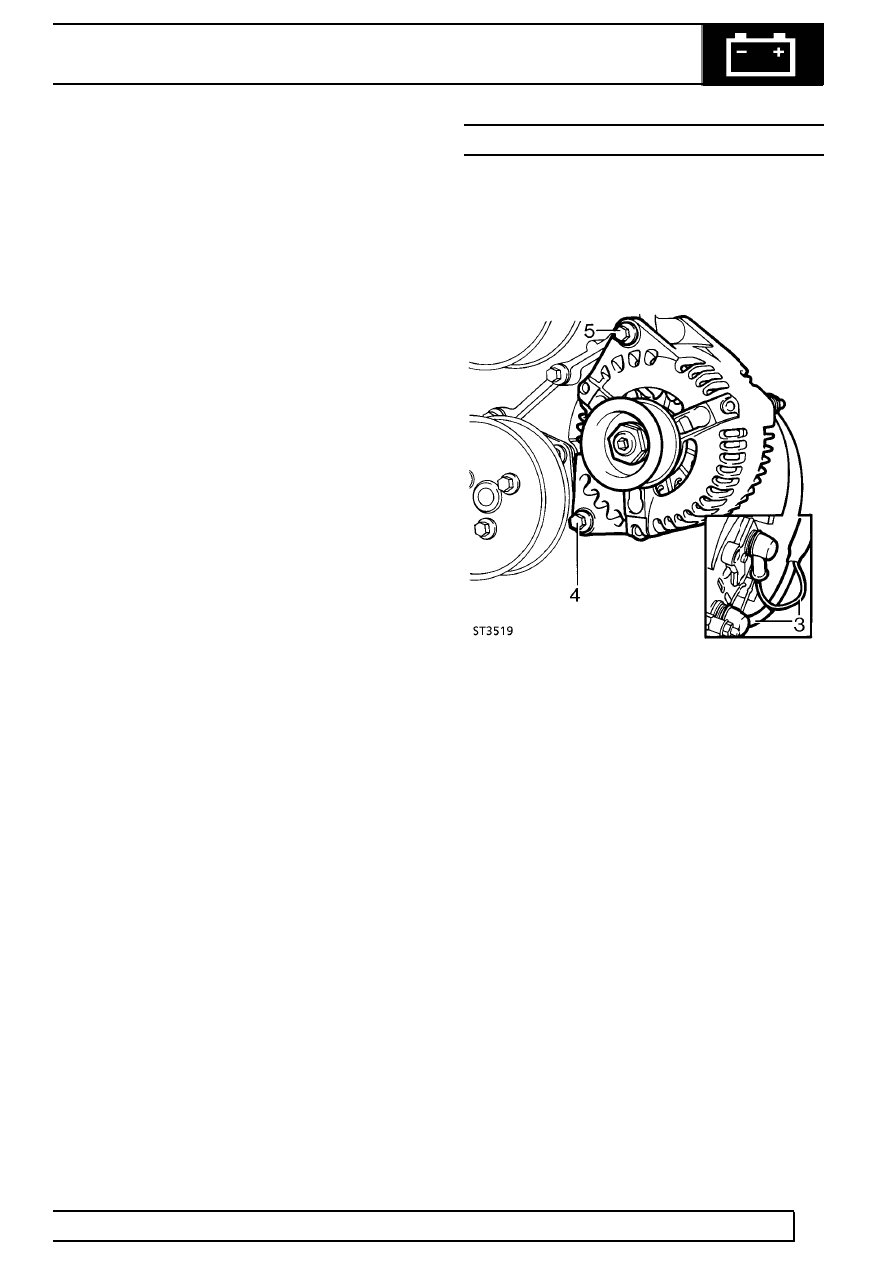

GENERATOR

Service repair no - 86.10.02

Remove

1. Disconnect battery.
2. Remove drive belt

See Auxiliary drive belt .

3. Unscrew 3 fixings, remove heat shield from rear

of generator, and disconnect electrical leads
from generator.

4. Remove generator bottom fixing bolt.
5. Remove long through bolt from top fixing and lift

generator from engine.

Refit

6. Fit generator to engine mounting bracket and

secure with top and bottom fixing bolts.

7. Connect electrical leads.
8. Fit heat shield.
9. Fit drive belt

See Auxiliary drive belt; Refit .

10. Reconnect battery.
