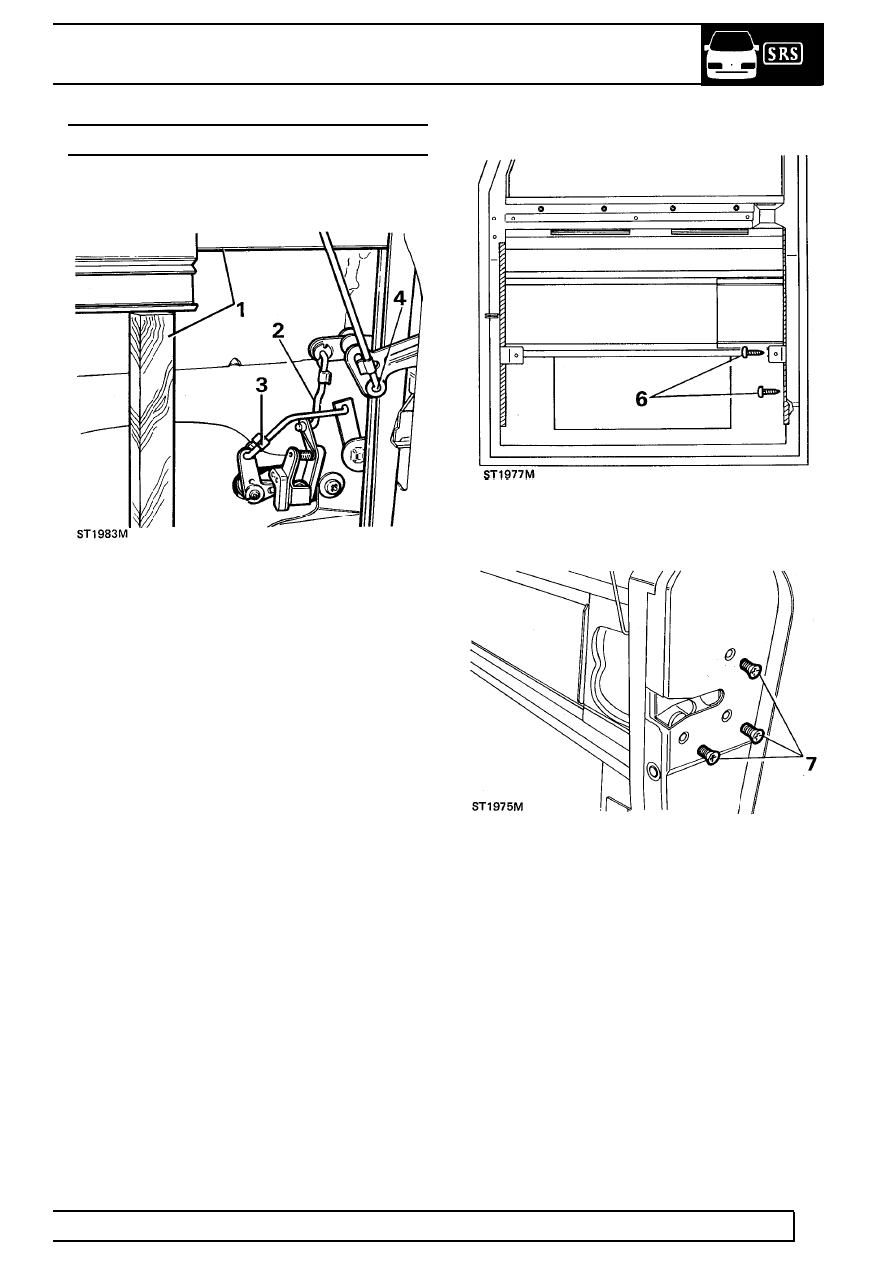

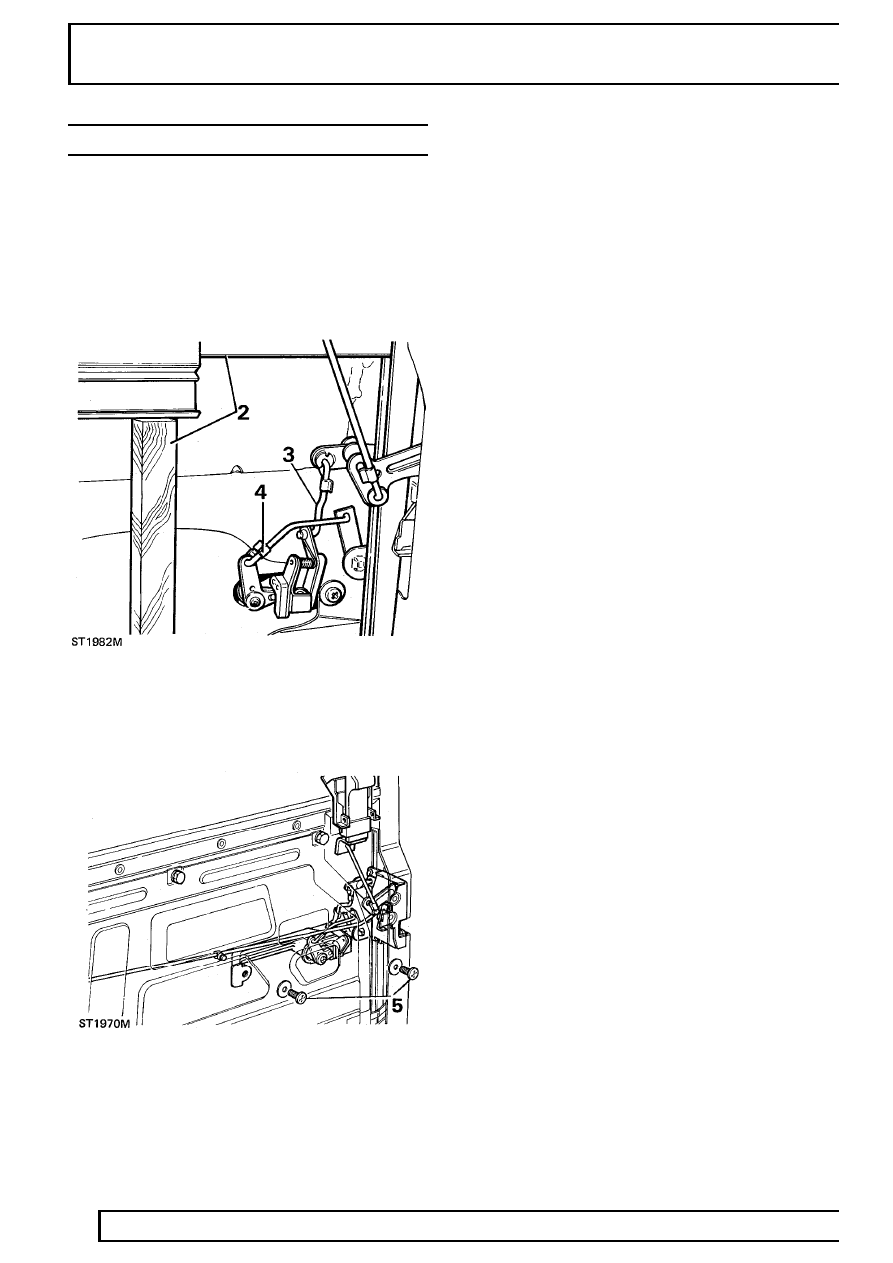

76 CHASSIS AND BODY 12 REPAIR EXTERIOR HANDLE - FRONT DOOR Service repair no - 76.58.01 Remove 1. Remove door trim casing See Door trim casing . 2. Remove mounting panel See Mounting panel - front door and support glass with timber. 3. Disconnect operating rod from handle mechanism. 4. Disconnect rod from locking barrel lever. 5. Remove 2 screws and withdraw handle assembly. Refit 6. Fit handle to door ensuring that two bezels are in position - flat faces towards door, and secure 7. Connect rod to handle operating lever and secure with spring clip. 8. Connect rod to locking barrel lever and retain with spring clip. 9. Fit mounting panel See Mounting panel - front door . |
