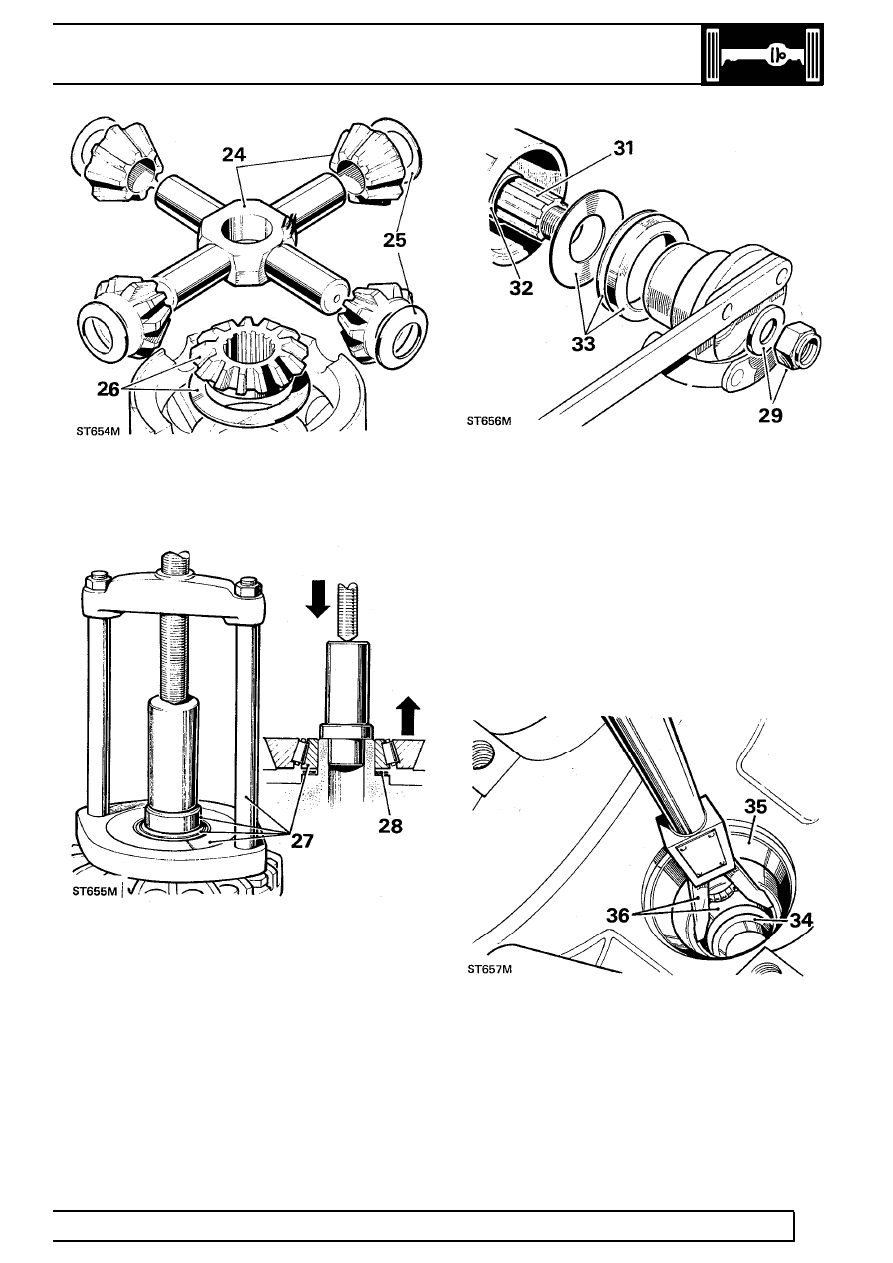

REAR AXLE AND FINAL DRIVE 3 OVERHAUL 25. Withdraw four dished thrust washers. washer. 27. Remove differential bearing cones using LRT-51-500, adaptors 1 and 2 and press 28. Withdraw shim washers fitted between bearing cones and differential casings. Remove final drive pinion 29. Using LTR-51-003 to prevent coupling flange from rotating, remove flange locknut and plain 30. Support drive pinion and remove coupling flange by tapping with a hide hammer. 31. Withdraw drive pinion toger with inner bearing cone. 32. Withdraw and discard collapsable bearing spacer. 33. Withdraw oil seal, gasket and oil thrower. 34. Withdraw outer bearing cone. cup and shim washers from casing. Note shim 36. Extract pinion outer bearing cup from casing using LRT-51-502. |
