51

REAR AXLE AND FINAL DRIVE

2

REPAIR

REV: 09/97

Refit

15. Position axle and fit lower links. Tighten fixings

to

176 Nm (130 lbf/ft).

16. If applicable, fit anti-roll bar links to axle

See

REAR SUSPENSION, Repair, Anti-roll bar
links
.

17. Raise axle and locate road springs.
18. Fit coil spring retaining plates and secure with

fixing bolts.

19. Secure pivot bracket ball joint to axle bracket.

Tighten fixing to

176 Nm (130 lbf/ft).

20. Align propeller shaft to differential drive flange

and tighten fixings to

47 Nm (35 lbf/ft).

21. Reconnect flexible brake hose and axle breather

hose.

22. Refit shock absorbers.
23. Fit road wheels and tighten to correct torque:

Alloy wheels -

130 Nm (96 lbf/ft)

Steel wheels -

100 Nm (80 lbf/ft)

Heavy Duty wheels -

170 Nm (125 lbf/ft)

24. Remove rear chassis support.
25. Bleed brake system

See BRAKES, Repair,

brake system bleed .

REAR AXLE AND FINAL DRIVE

3

REPAIR

REAR HUB ASSEMBLY - 90

Service repair no - 64.15.01

Remove

1. Place rear axle onto axle stands and remove

road wheel.

2. Release brake hose clips and remove brake

caliper bolts. Secure to one side.

WARNING: Take care not to kink brake
hose.

3. Remove 5 bolts and withdraw axle shaft.
4. Remove joint washer.
5. Bend back lock washer tabs.
6. Remove locknut and lock washer.
7. Remove hub adjusting nut.
8. Remove spacing washer.
9. Remove hub and brake disc assembly complete

with bearings.

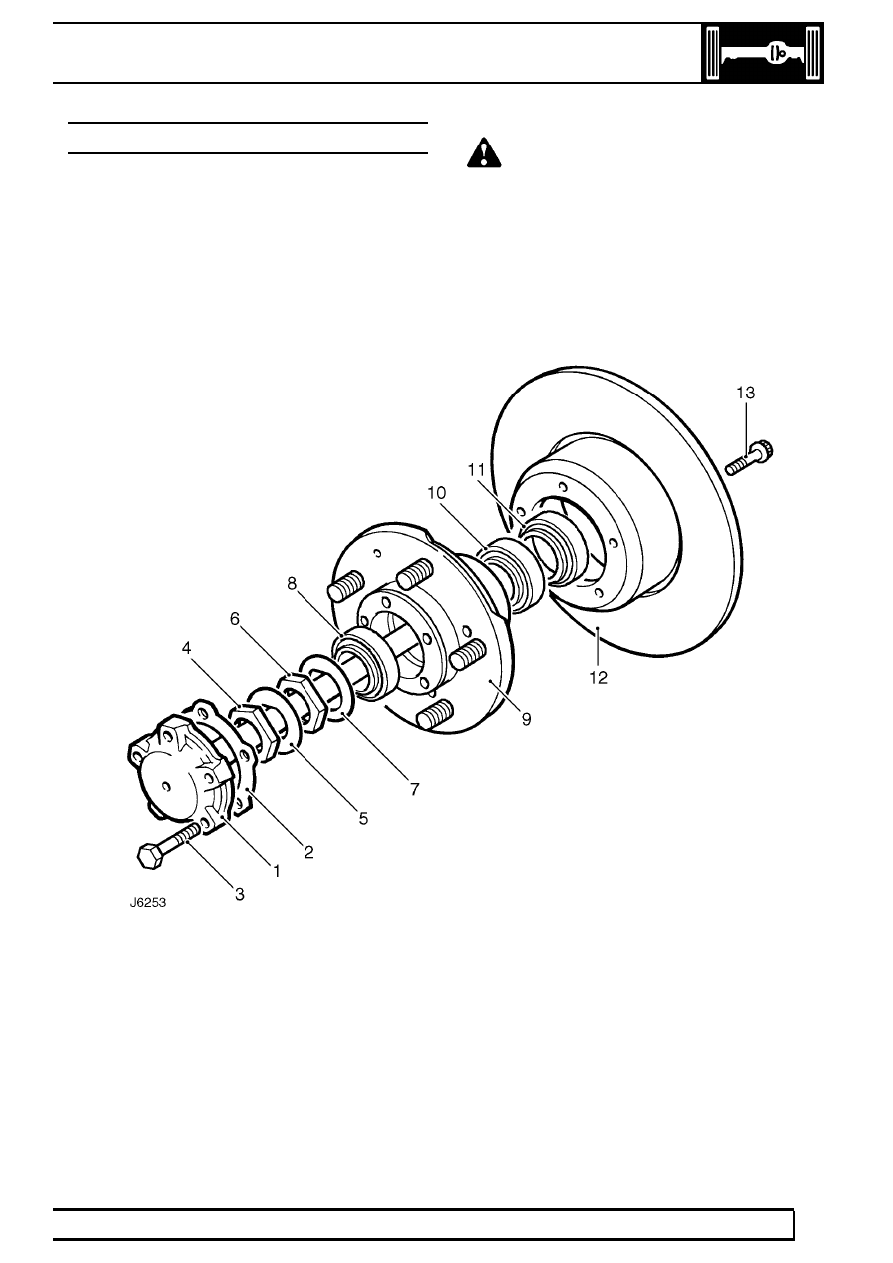

Rear hub components - 90

1. Axle shaft.
2. Axle shaft joint washer.
3. Axle shaft retaining bolt.
4. Lock nut.
5. Lock washer.
6. Hub adjusting nut.
7. Spacing washer.

8. Outer bearing.
9. Hub.

10. Inner bearing.
11. Grease seal.
12. Brake disc.
13. Disc retaining bolt.

51

REAR AXLE AND FINAL DRIVE

4

REPAIR

REV: 09/97

Refit

10. Clean stub axle.
11. Fit hub assembly to stub axle.

12. Fit spacing washer.
13. Fit hub adjusting nut. Tighten to

50 Nm (37

lbf/ft). Ensure hub is free to rotate with no
bearing play. Back off adjusting nut 90

°

and

tighten to

10 Nm (7 lbf/ft).

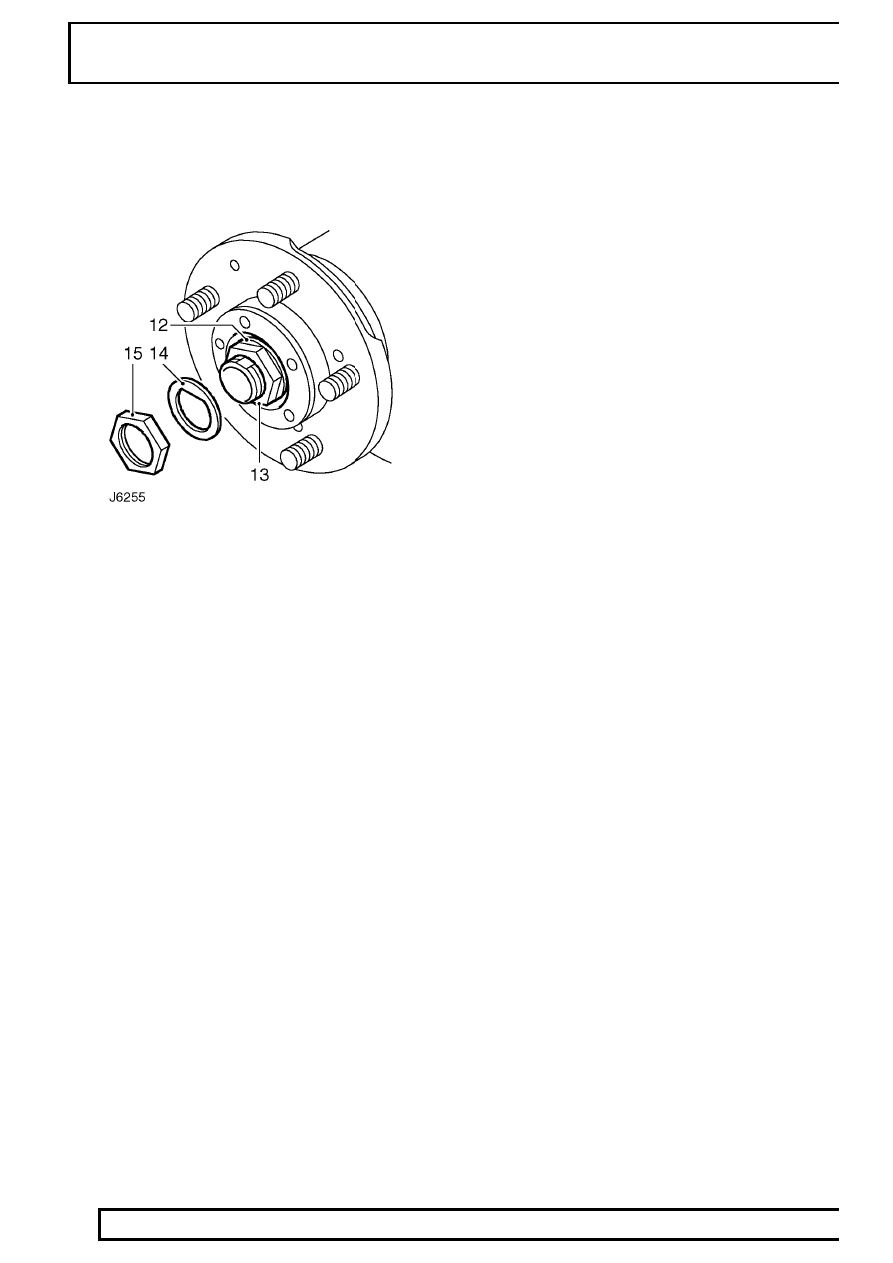

14. Fit a new lock washer.
15. Fit locknut. Tighten to

50 Nm (37 lbf/ft).

16. Tab over lock washer to secure adjusting nut

and locknut.

17. Using a new joint washer fit axle shaft to hub.

Tighten bolts to

65 Nm (48 lbf/ft).

18. Fit brake caliper. Tighten bolts to

82 Nm (61

lbf/ft). Secure brake pipes to axle casing.

19. Fit road wheel, remove axle stands and tighten

road wheel nuts to correct torque:
Alloy wheels -

130 Nm (96 lbf/ft)

Steel wheels -

100 Nm (80 lbf/ft)

Heavy duty wheels -

170 Nm (125 lbf/ft)

20. Operate footbrake to locate brake pads before

driving vehicle.

REAR AXLE AND FINAL DRIVE

5

REPAIR

REAR HUB ASSEMBLY - 110/130

Service repair no - 64.15.01

Remove

1. Loosen rear wheel nuts, jack up vehicle and

lower onto axle stands. Remove road wheel.

2. Release brake pipe clips, remove brake caliper

and brake disc shield bolts. Secure to one side.

WARNING: Take care not to kink brake
hose.

3. Lever off dust cap.
4. Remove circlip from driveshaft.
5. Remove 5 bolts and withdraw driving member

and joint washer.

6. Bend back lock washer tabs.
7. Remove locknut and lock washer.
8. Remove hub adjusting nut.
9. Remove spacing washer.

10. Remove hub and brake disc assembly complete

with bearings.

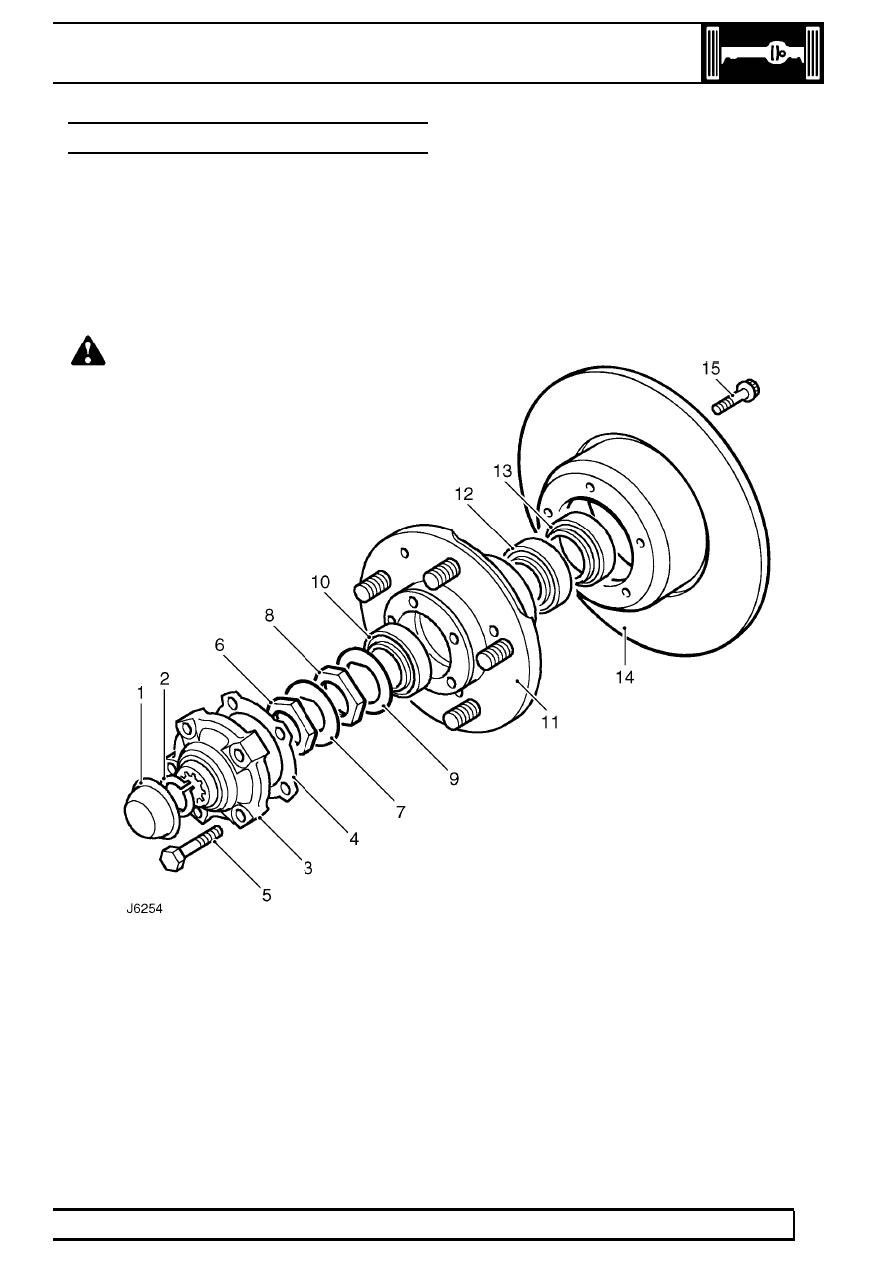

Hub components

1. Dust cap.
2. Drive shaft circlip.
3. Drive member.
4. Drive member joint washer.
5. Drive member retaining bolt.
6. Lock nut.
7. Lock washer.
8. Hub adjusting nut.

9. Spacing washer.

10. Outer bearing.
11. Hub.
12. Inner bearing.
13. Grease seal.
14. Brake disc
15. Disc retaining bolt.
