Defender 300Tdi (1996+). Manual - part 36





33

CLUTCH

2

REPAIR

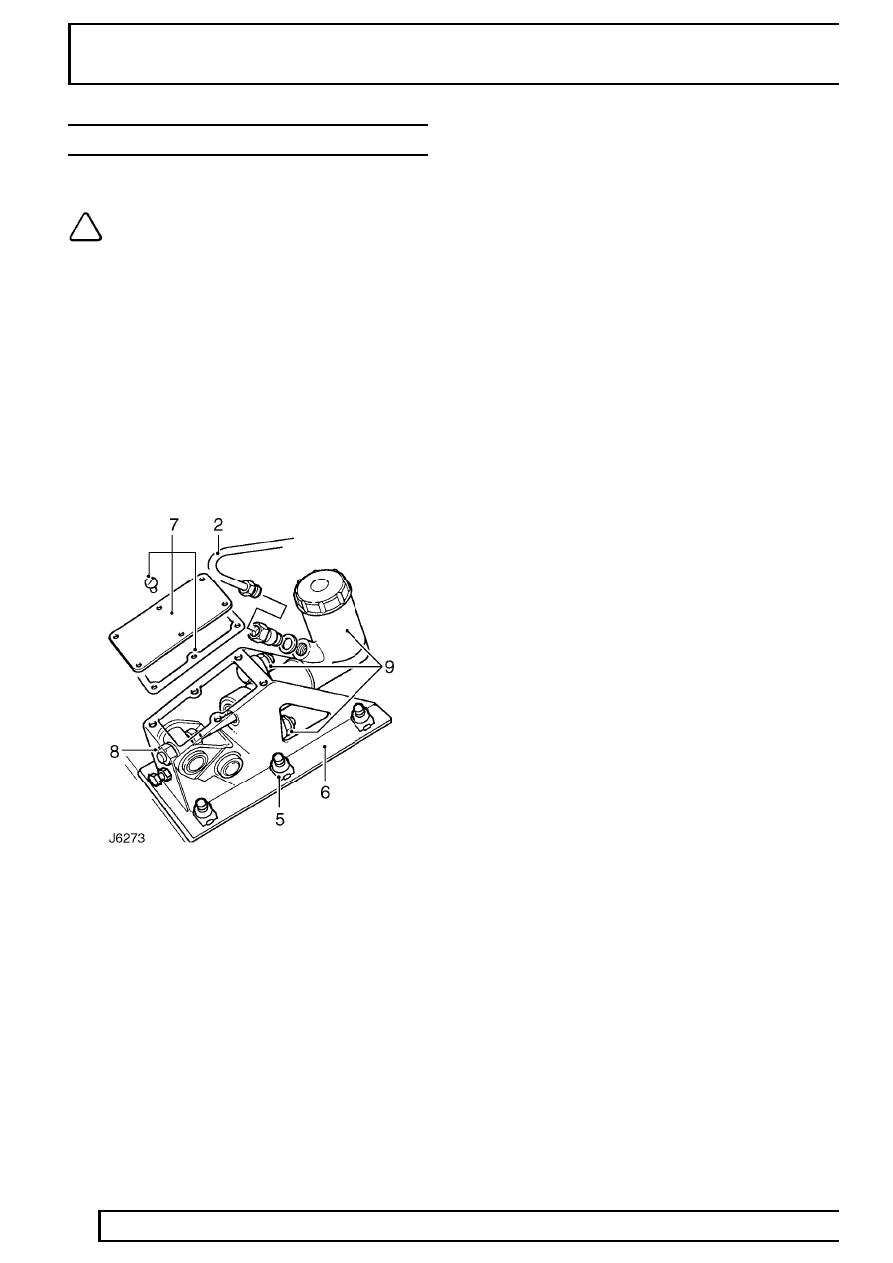

MASTER CYLINDER

Service repair no - 33.20.01/03

NOTE: All hose and pipe connections and
joints should be tightened to

15 Nm (11

lbf/ft).

Remove

1. Drain hydraulic fluid from system.
2. Disconnect fluid pipe at master cylinder. Plug

master cylinder fluid port and seal end of
hydraulic pipe to prevent ingress of dirt.

3. On RH drive vehicles, unclip air cleaner retaining

straps, disconnect bottom hose, and move
assembly aside.

4. From inside vehicle, remove fibre board closing

panel above pedals.

5. Remove 6 bolts securing pedal bracket to

bulkhead.

6. Remove screw securing speedometer cable

retaining bracket to top of pedal bracket.

7. Move pipework and cables aside and lift out

pedal bracket, complete with master cylinder,
turn through 90

°

to ensure pedal clears aperture

in bulkhead.

8. Remove 6 screws and detach pedal box top

cover and gasket.

9. Remove nut and washer securing master

cylinder push rod to clutch pedal trunnion.

10. Remove 2 nuts and bolts and withdraw master

cylinder from pedal bracket.

Refit

11. Fit master cylinder to pedal bracket, engaging

cylinder push rod through pedal trunnion.

12. Secure push rod to pedal trunnion.
13. Apply sealant to mating surfaces and fit pedal

bracket to engine bulkhead.

14. Connect fluid pipe to master cylinder.
15. Bleed clutch hydraulic system

See Bleed

hydraulic system .

16. Check and adjust clutch pedal and master

cylinder setting

See Adjustment, Clutch pedal

and master cylinder setting .

17. Fit top cover and gasket to pedal bracket.
18. On RH drive vehicles, refit air cleaner.

CLUTCH

3

REPAIR

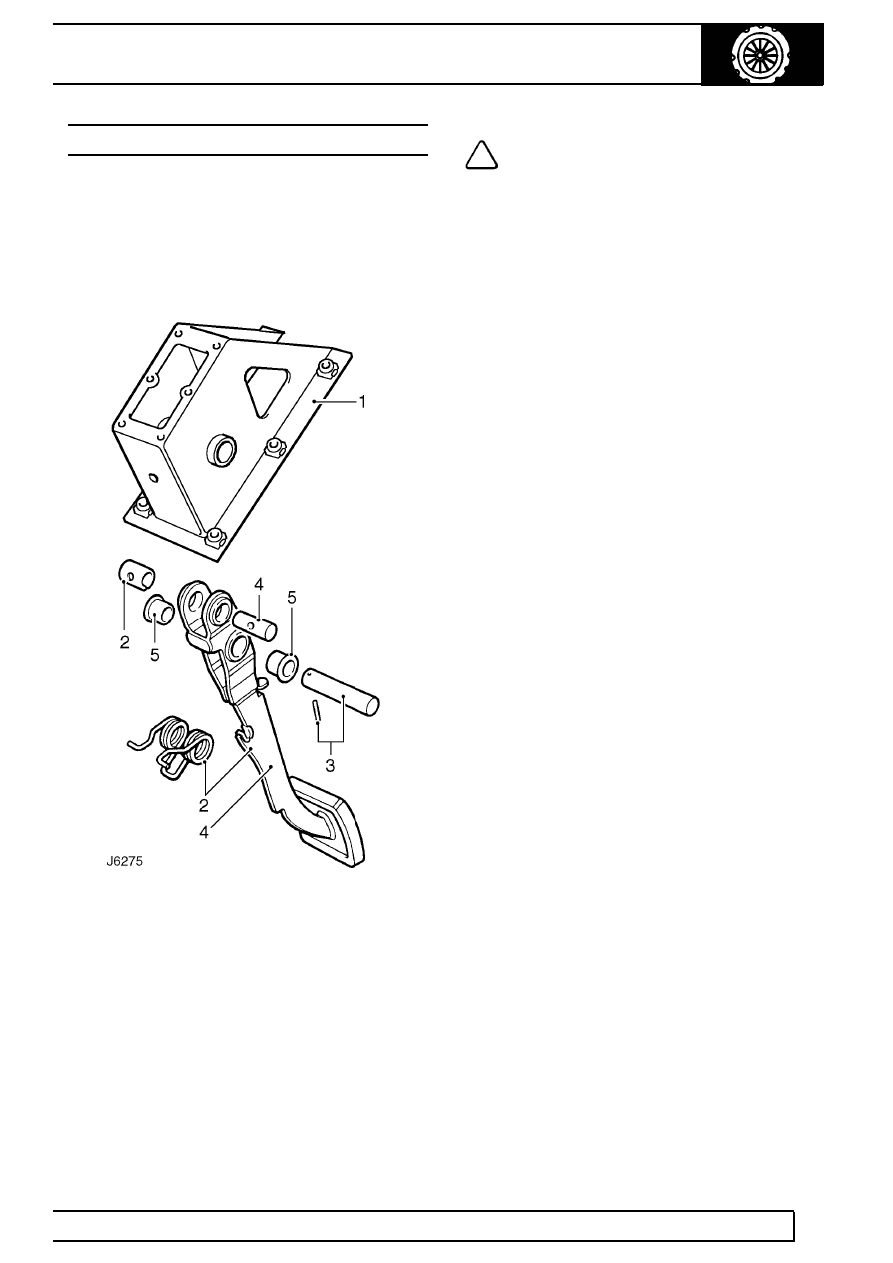

CLUTCH PEDAL

Service repair no - 33.33.02

Remove

1. Remove pedal bracket assembly and master

cylinder

See Master cylinder .

2. Release return spring from clutch pedal.

3. Using a suitable punch, drift out securing pin and

withdraw pedal pivot shaft.

4. Withdraw clutch pedal, complete with trunnion

and bush.

5. If necessary remove pivot bushes.
6. Examine components for wear and damage,

renew as necessary.

NOTE: If new pedal pivot bushes are
required they must be reamed to 16 mm
(0.625 in).

Refit

7. If removed, fit trunnion bush and trunnion to

clutch pedal. Lubricate components with general
purpose grease on assembly.

8. Fit pedal to bracket, insert pivot shaft and secure

with new pin.

9. Fit pedal return spring.

10. Fit master cylinder and pedal bracket assembly

See Master cylinder .

11. Adjust clutch pedal and master cylinder setting

See Adjustment, Clutch pedal and master
cylinder setting
.

33

CLUTCH

4

REPAIR

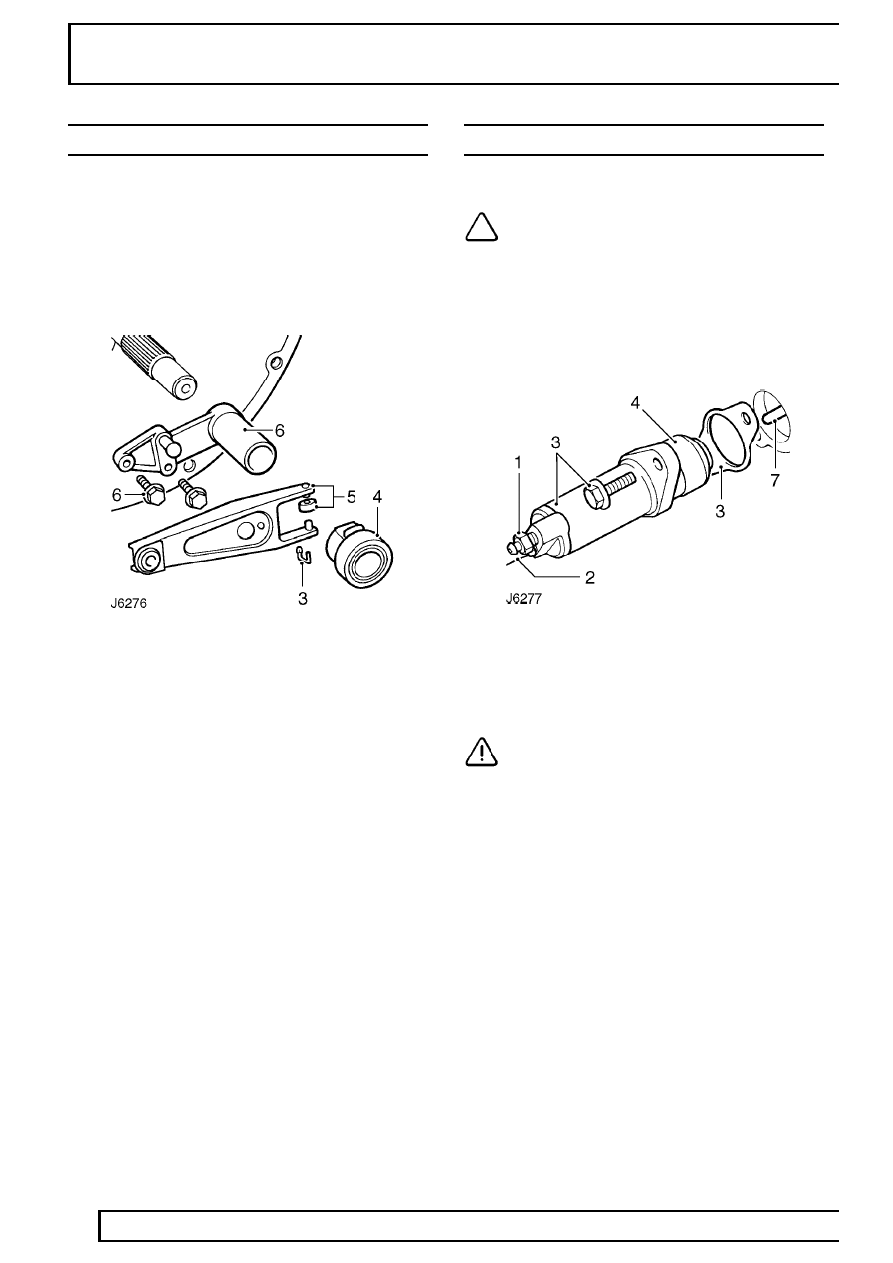

RELEASE BEARING ASSEMBLY

Service repair no - 33.10.07

Remove

1. Remove gearbox

See MANUAL GEARBOX,

Repair, R380 Gearbox .

2. Remove clutch slave cylinder

See Slave

cylinder .

3. Remove release bearing sleeve retainer staple.
4. Withdraw bearing and sleeve.
5. Remove clutch release lever from bearing guide,

complete with sliper pads.

6. If necessary, unscrew 2 bolts and remove

bearing guide from bell housing.

Refit

7. If removed, fit bearing guide to bell housing.

Tighten bolts to

25 Nm (18 lbf/ft).

8. Prior to reassembly, grease pivot post, socket,

slipper pads, pins, and ball end of slave cylinder
push-rod.

9. Fit slipper pads onto release lever pins and

locate lever on pivot post.

10. Smear release bearing sleeve inner diameter

with molybdenum disulphide grease and fit to
bearing guide, locating slipper pads to sleeve
flats.

11. Fit new bearing sleeve retainer staple.
12. Fit clutch slave cylinder

See Slave cylinder .

13. Fit gearbox

See MANUAL GEARBOX, Repair,

R380 Gearbox .

SLAVE CYLINDER

Service repair no - 33.35.01

NOTE: All hose and pipe connections and
joints should be tightened to

15 Nm (11

lbf/ft).

Remove

1. Drain hydraulic fluid from system at slave

cylinder bleed valve.

2. Disconnect fluid pipe.

3. Remove 2 bolts and withdraw slave cylinder and

backing plate.

4. If dust cover is not withdrawn with slave cylinder,

withdraw it from bell housing.

CAUTION: If removing slave cylinder with
gearbox in situ, DO NOT detach push-rod
and clip from clutch release lever in bell

housing.

Refit

5. Coat both sides of backing plate with Hylomar

P232M waterproof jointing compound.

6. Locate backing plate and dust cover in position

on slave cylinder.

7. Fit slave cylinder, engaging push-rod through

centre of dust cover and with bleed screw
uppermost.

8. Reconnect fluid pipe.
9. Replenish and bleed clutch hydraulic system

See Bleed hydraulic system .

10. Check for fluid leaks with pedal depressed and

also with system at rest.

CLUTCH

1

OVERHAUL

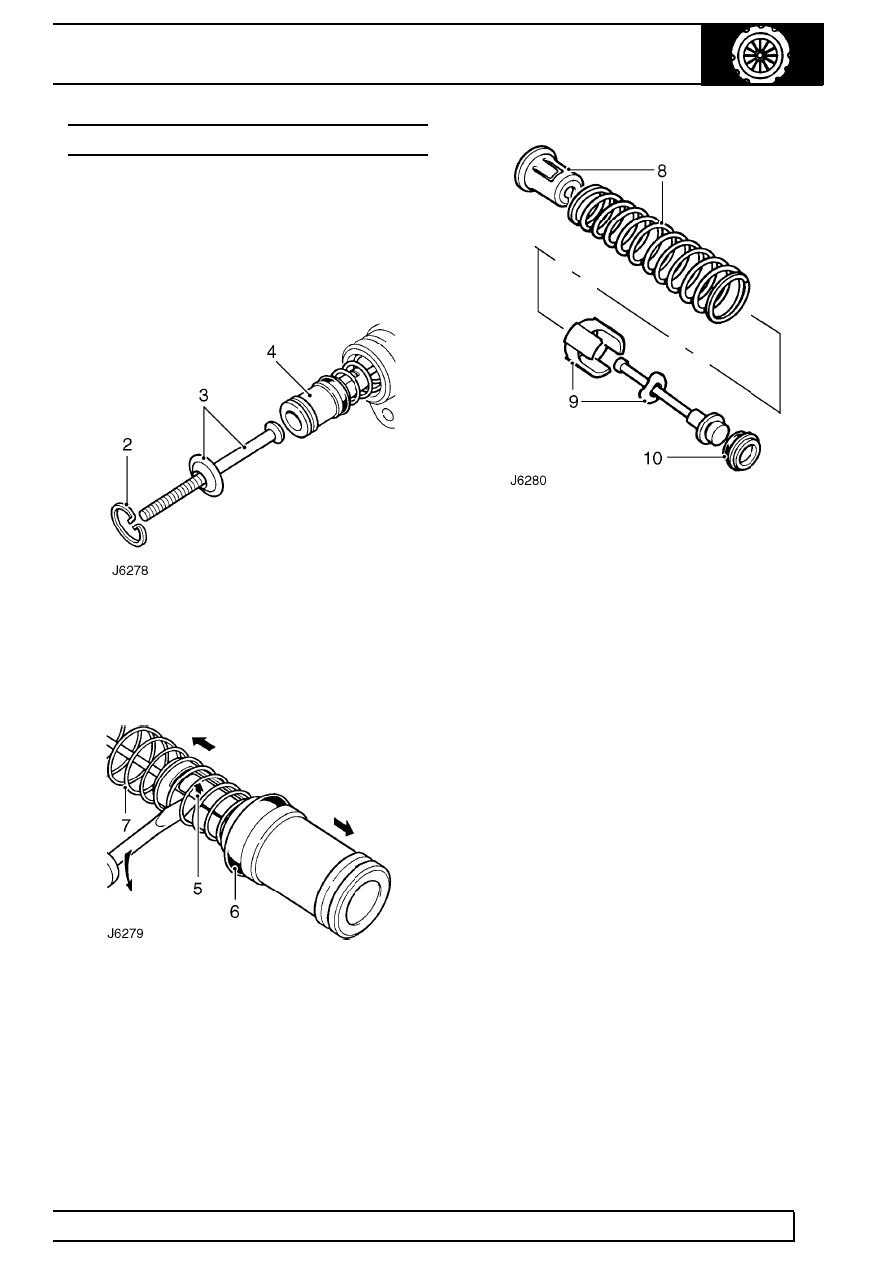

MASTER CYLINDER - OVERHAUL

Service repair no - 33.20.07

Dismantle

1. Remove master cylinder from vehicle

See

Repair, Master cylinder .

2. Remove circlip.
3. Withdraw push-rod and retaining washer.
4. Withdraw the piston assembly. If necessary,

apply a low air pressure to outlet port to expel
piston.

5. Prise locking prong of spring retainer clear of

piston shoulder and withdraw piston.

6. Withdraw piston seal.
7. Compress spring and position valve stem to

align with larger hole in spring retainer.

8. Withdraw spring and retainer.
9. Withdraw valve spacer and spring washer from

valve stem.

10. Remove valve seal.

Inspection

11. Clean all components in new hydraulic fluid and

allow to dry.

12. Examine cylinder bore and piston, ensure that

they are smooth to touch with no corrosion,
score marks or ridges. If there is any doubt, fit
new components.

13. The seals should be renewed with seals from

master cylinder overhaul kit.

Assemble

14. Smear seals with suitable rubber grease and

remaining internal items with new hydraulic fluid.

15. Fit valve seal, flat side first, on end of valve

stem.

16. Place bowed washer, domed side first, over

small end of valve stem, see J6281.

17. Fit spacer to valve, legs first.
