86

ELECTRICAL

8

REPAIR

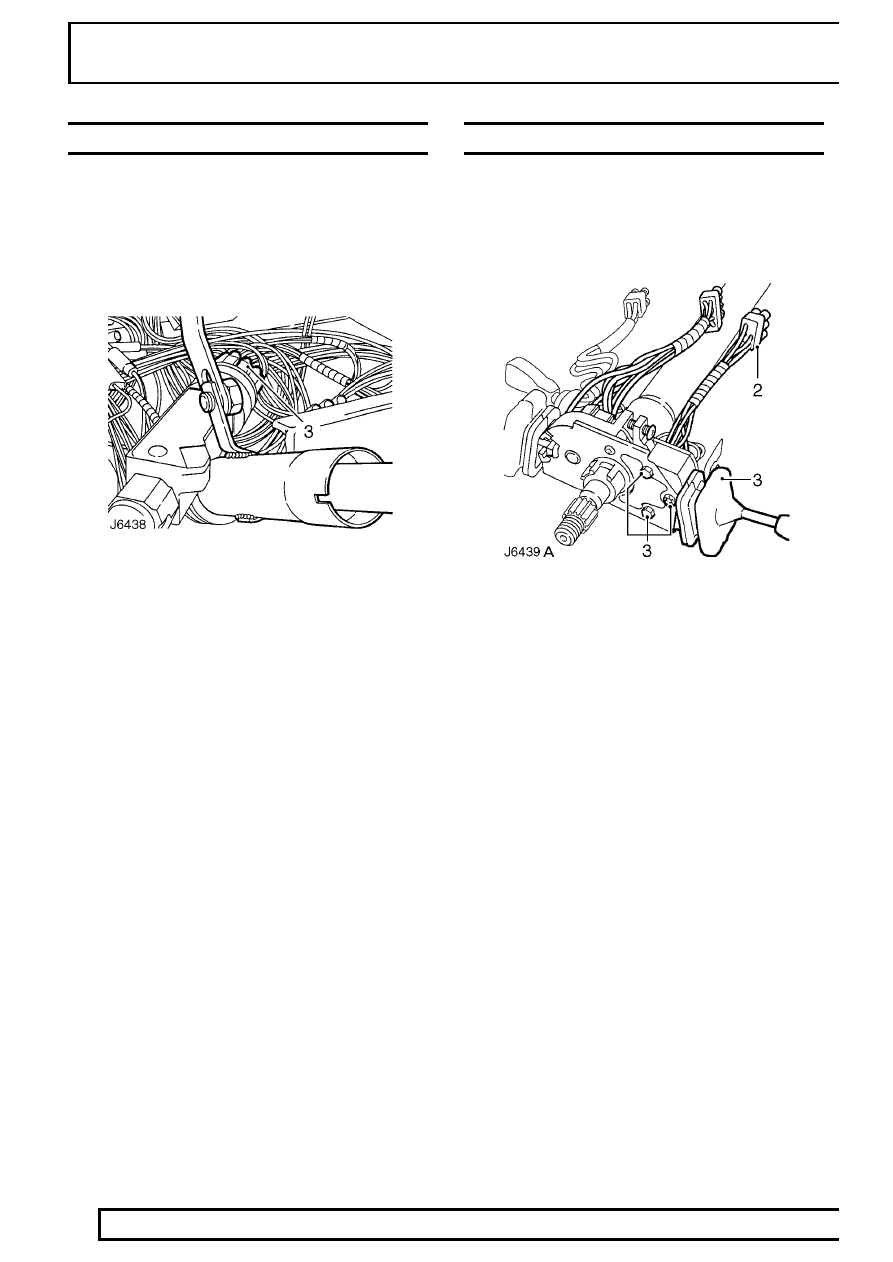

STARTER SWITCH

Service repair no - 86.65.03

Remove

1. Remove instrument panel.

See

INSTRUMENTS, Repair, Instrument panel

2. Remove steering column nacelle.

3. Note position of harness leads on back of starter

switch and disconnect lukars.

4. Remove single screw and withdraw starter

switch from steering column lock.

Refit

5. Fit new switch in steering column lock.
6. Connect harness leads to starter switch.
7. Fit steering column nacelle.
8. Fit instrument panel.

See INSTRUMENTS,

Repair, Instrument panel; Refit

WINDSCREEN WIPER/WASHER SWITCH

Service repair no - 84.15.34

Remove

1. Remove steering column nacelle.

2. Disconnect switch multi-plug from main harness.
3. Remove 2 screws and star washer securing

switch to mounting bracket.

4. Remove switch complete with harness.

Refit

5. Fit new switch to mounting bracket.
6. Reconnect switch multi-plug.
7. Fit steering column nacelle.

ELECTRICAL

9

REPAIR

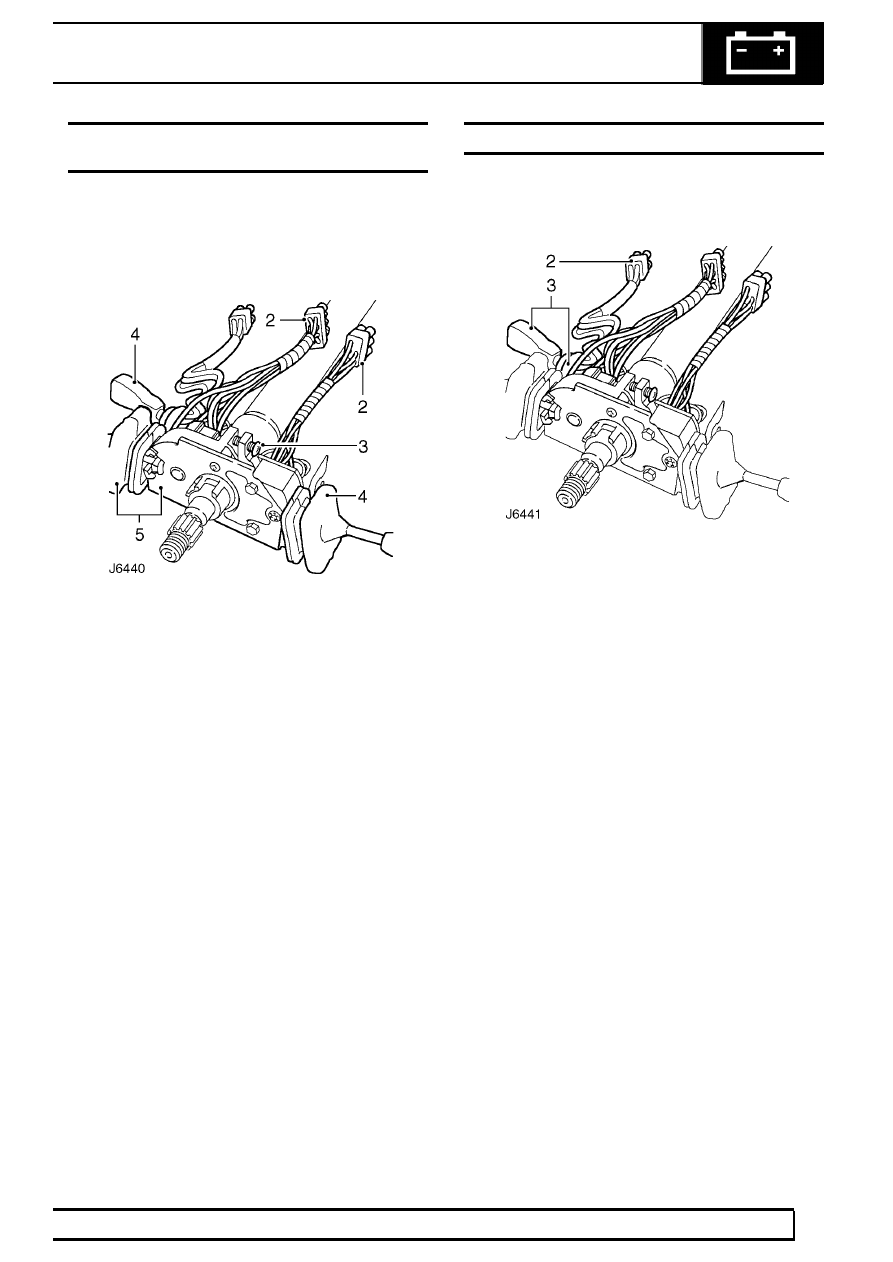

DIRECTION INDICATOR/HEADLAMP/HORN
SWITCH

Service repair no - 86.65.55

Remove

1. Remove steering column nacelle.

2. Disconnect 3 steering column switch multi-plugs

from main harness.

3. Slacken clamp screw and withdraw switch

assembly from steering column.

4. Remove fixings and detach windscreen

wiper/washer and main lighting switches from
mounting bracket.

5. Renew complete direction

indicator/headlamp/horn switch and switch
bracket assembly.

Refit

6. Fit main lighting and windscreen wiper/washer

switches to mounting bracket.

7. Position switch assembly on steering column

and fully tighten clamp.

8. Reconnect switch multi-plugs.
9. Fit steering column nacelle.

MAIN LIGHT SWITCH

Service repair no - 86.65.10

1. Remove steering column nacelle.

2. Disconnect main light switch multi-plug from

main harness.

3. Slacken locknut and release light switch from

slot in mounting bracket.

Refit

4. Fit light switch in mounting bracket.
5. Reconnect switch multi-plug.
6. Fit steering column nacelle .

86

ELECTRICAL

10

REPAIR

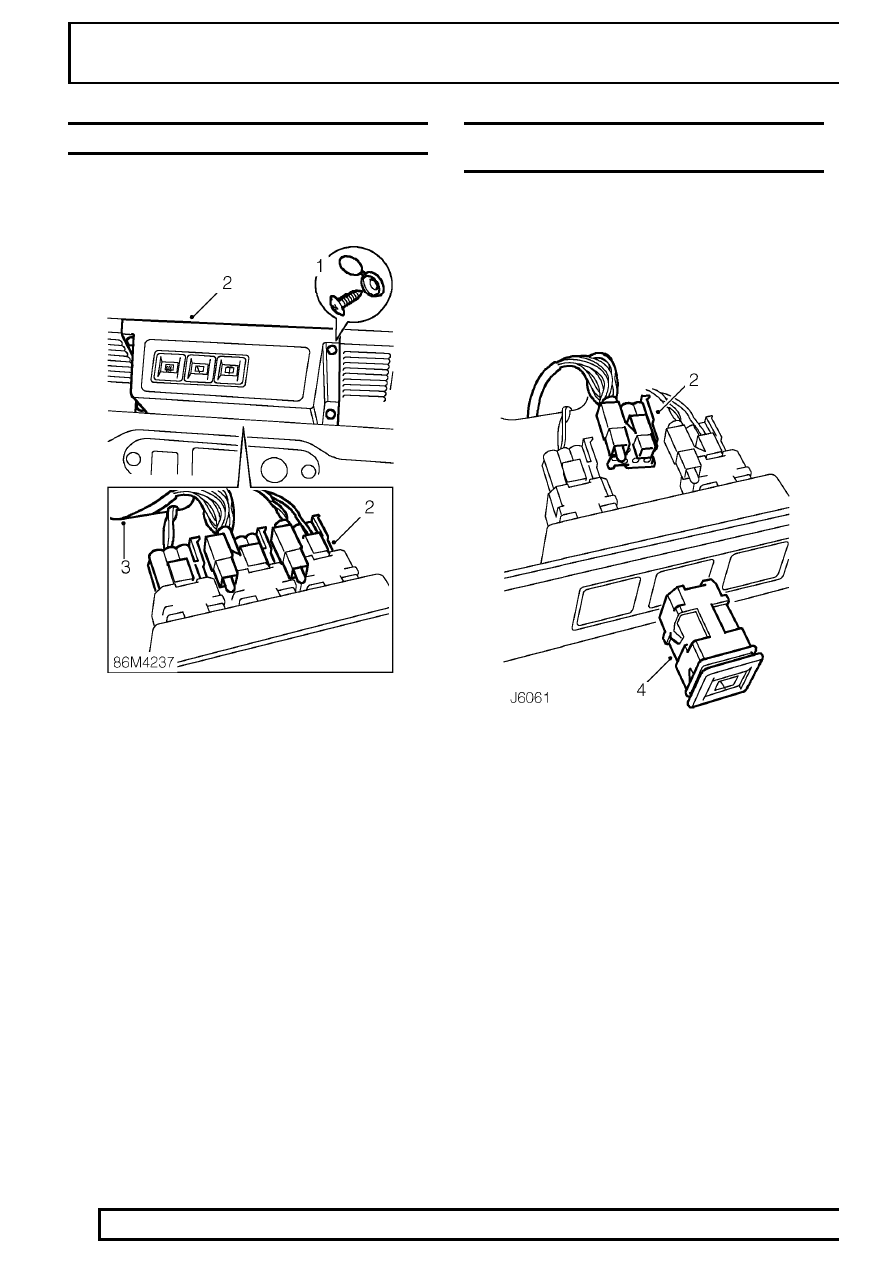

SWITCH PANEL - REAR DOOR SERVICES

Service repair no - 86.65.78

Remove

1. Release screw caps from top fixings and remove

screws. Prise out 2 trim studs securing bottom of
switch panel to fascia.

2. Withdraw switch panel and disconnect

multi-plugs from switches and module.

3. Pull harness multi-plugs through aperture in

base of panel.

Refit

4. Feed harness into switch panel and reconnect

multi-plugs.

5. Position switch panel on fascia and secure with

screws and trim studs.

HEATED REAR SCREEN, REAR WIPER AND
WASHER SWITCHES

Service repair no - 86.65.36 - Heated rear screen
Service repair no - 84.35.33 - Rear wiper
Service repair no - 84.30.27 - Rear washer

Remove

1. Remove rear door switch panel.

See Switch

panel - rear door services

2. Disconnect multi-plug from rear of switch.
3. Press in retaining lugs and push switch through

panel aperture.

4. Remove switch.

Refit

5. Fit new switch into switch panel.
6. Reconnect switch multi-plug .
7. Fit switch panel to fascia. see86rep>Switch

panel - rear door services

ELECTRICAL

11

REPAIR

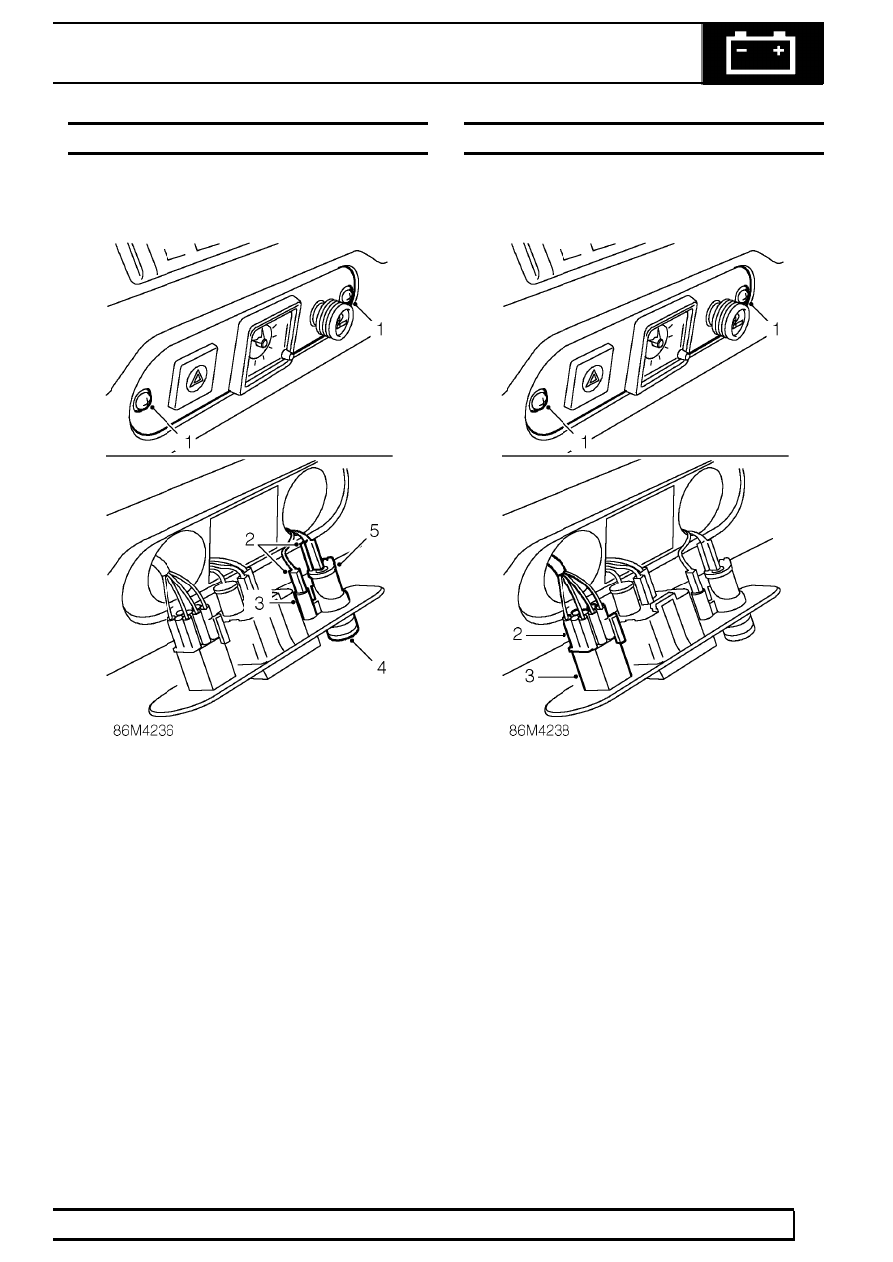

CIGAR LIGHTER

Service repair no - 86.65.60

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect electrical leads from switch housing,

including illumination bulb.

3. Release 2 retaining tags and remove bulb holder

from switch housing.

4. Remove cigar lighter from switch housing.
5. Press in retaining tags and withdraw housing

from switch panel.

Refit

6. Fit housing to switch panel.
7. Fit bulb holder to switch housing.
8. Connect electrical leads and illumination bulb.
9. Insert cigar lighter into switch housing.

10. Fit switch panel to lower fascia.

HAZARD WARNING SWITCH

Service repair no - 86.65.50

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect multiplug from hazard warning

switch.

3. Depress retainers and withdraw switch from

panel.

Refit

4. Fit new switch to switch panel.
5. Connect multiplug to switch.
6. Fit switch panel.
