HEATING AND VENTILATION

2

DESCRIPTION AND OPERATION

HEATER OPERATION

The heater matrix, located in the distribution unit, is
connected to the engine cooling system. As coolant is
circulated continuously through the matrix, a selection
of heated or ambient air is controlled by two flaps
within the distribution unit.The temperature flap
controls the amount of ambient air to the heater
matrix, air being supplied

through a ducted vent on top of the vehicle front wing
to the blower motor (volute) housing. The blower
motor can be used to boost the air flow into the
distribution unit. The air flap controls the supply of
heated or ambient air from the heater unit into a
plenum chamber integeral with the vehicle fascia. Two
flaps in the plenum chamber (heater duct) distribute
the air flow to either the footwell vents or windscreen
demister vents.

Non air conditioning fascia shown

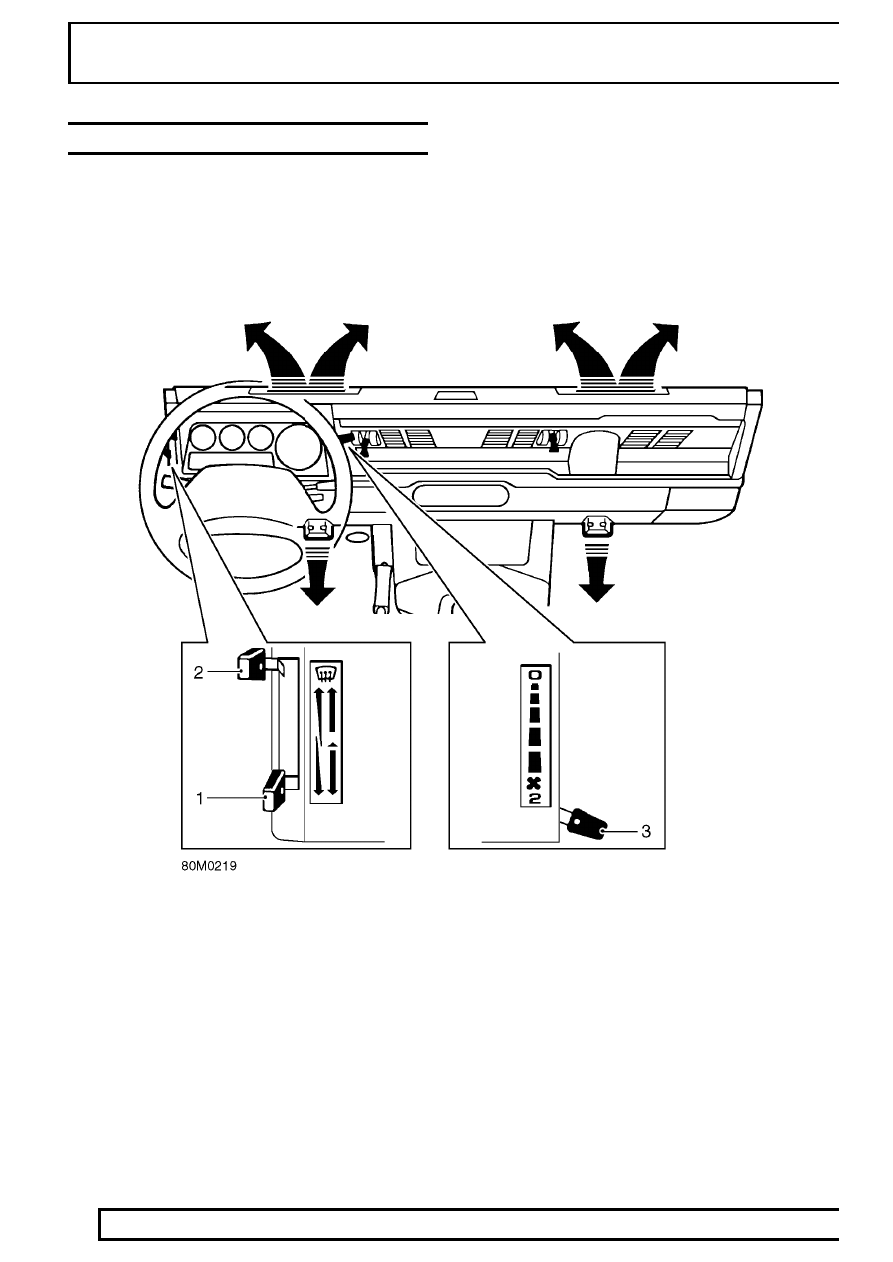

Heater controls

1. Temperature control

Move the lever downwards to increase air
temperature or up to decrease air temperature.

2. Air distribution control

Lever fully up - windscreen vents only.
Lever midway - footwell and windscreen vents.
Lever fully down - footwell vents.

3. Blower motor fan speed control

Move the lever progressively downwards to increase
fan speed. With the control at ’O’ the fan is switched
off and the volume of air entering the passenger
compartment is solely dependent on ram effect when
the vehicle is moving forward.

HEATING AND VENTILATION

3

DESCRIPTION AND OPERATION

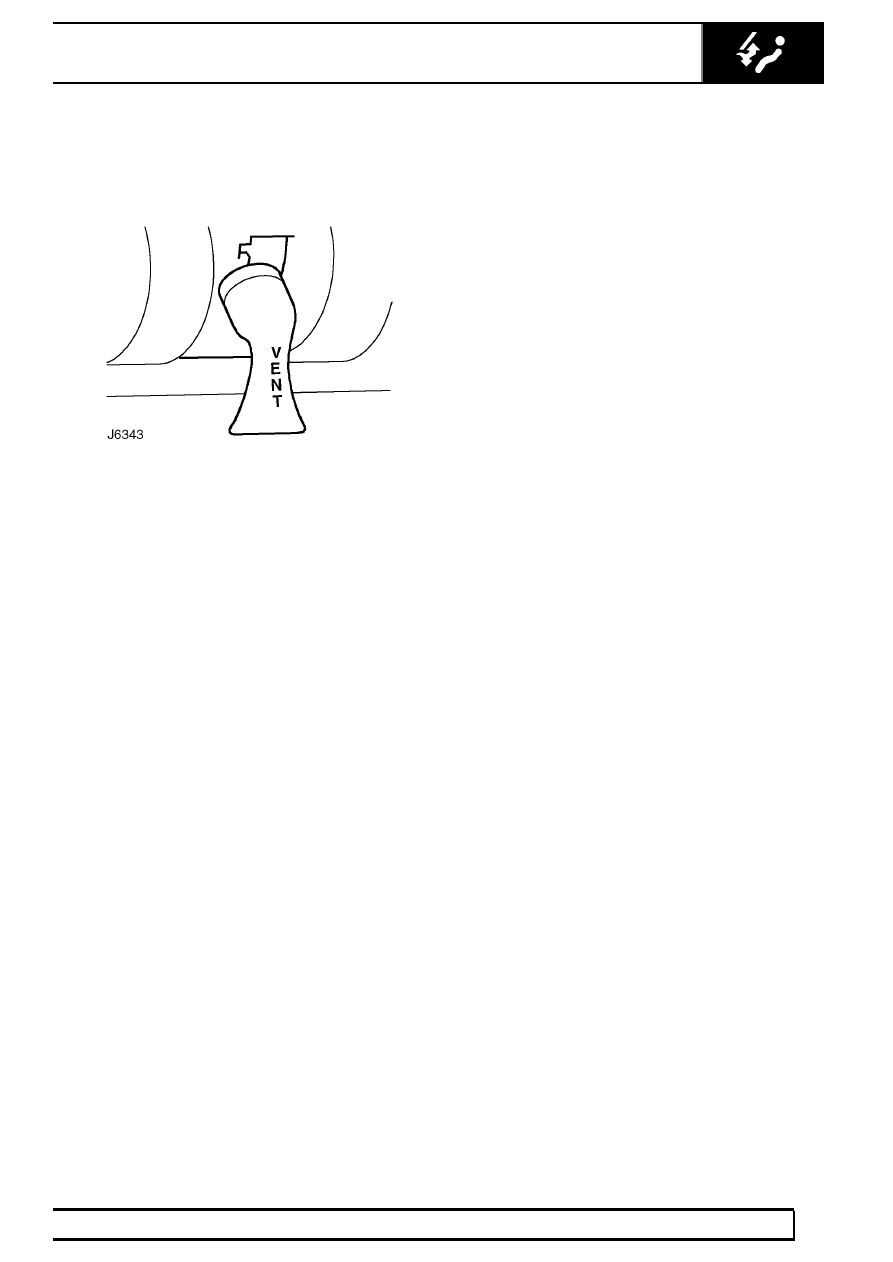

Fresh air vents

Two fresh air vents are fitted in the windscreen frame
and are controlled independently of the vehicle
heating system. Each vent is operated separately.

To open a vent, push the lever to the right and then to
the required position.

HEATING AND VENTILATION

1

REPAIR

HEATER UNIT

Service repair no - 80.20.01

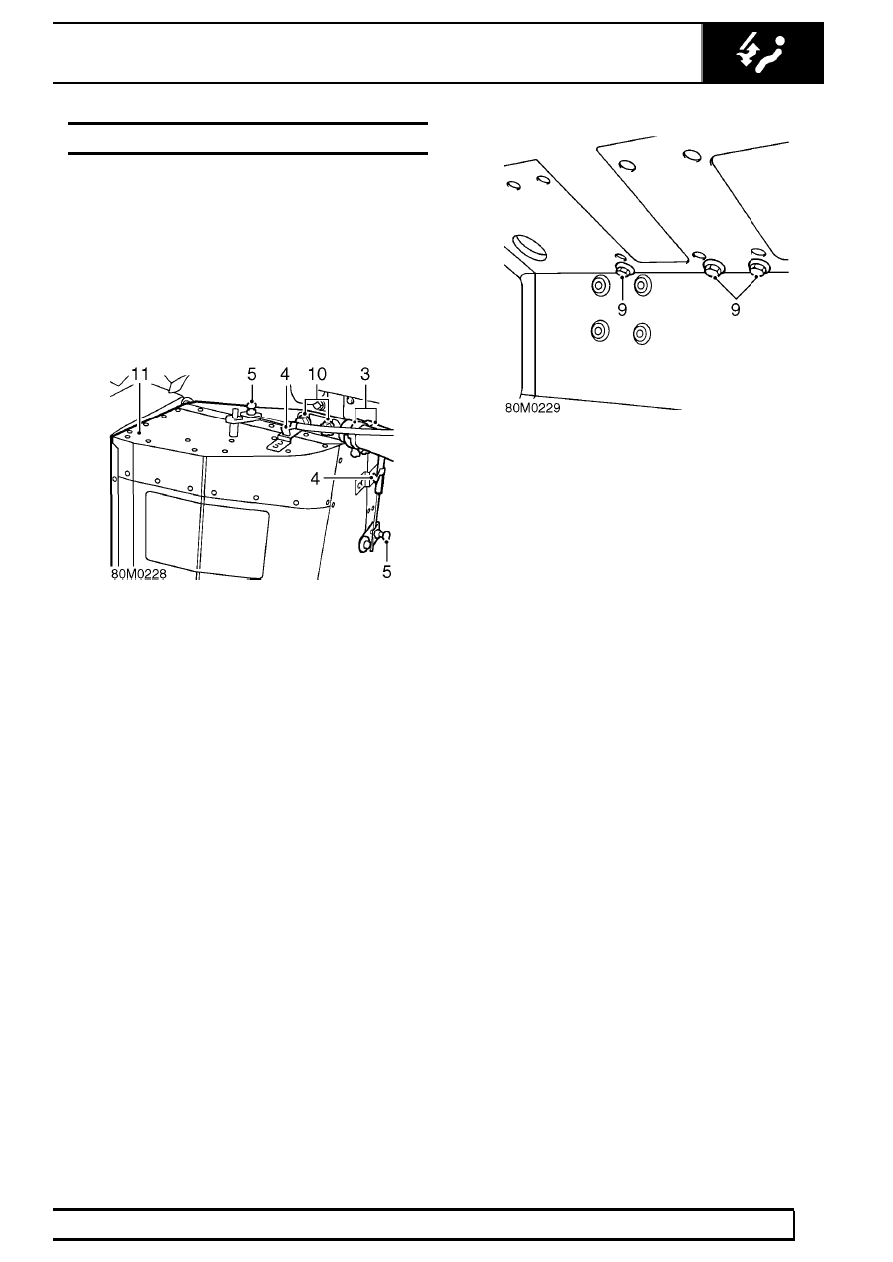

Remove

1. Remove bonnet and disconnect battery.
2. Remove radiator bottom hose at radiator union

and drain cooling system.

See COOLING

SYSTEM, Adjustment, Drain and refill

3. Slacken clips and disconnect heater hoses at

heater box unions.

4. Remove outer cable securing clips.
5. Slacken trunnions and disconnect control cables

from heater vent flap levers.

6. Remove heater wiring harness securing loop.
7. Disconnect harness multi-plug.
8. Remove interior bulkhead trim.
9. Remove lower nuts and bolts securing the

heater unit to the bulkhead. If air conditioning is
fitted, remove evaporator.

See AIR

CONDITIONING, Repair, Evaporator

10. Slacken heater unit upper retaining bolts.
11. Manoeuvre heater unit, complete with blower

motor, clear of air inlet duct and remove from
engine compartment.

12. Remove sealing rubber.

For heater matrix removal.

See Heater matrix

For blower motor removal.

See Blower motor

Refit

13. Smear a NEW sealing rubber with a suitable

impact adhesive and fit to heater unit.

14. Manoeuvre heater unit into position in engine

compartment, fit blower motor to air inlet duct
and locate upper fixing bolts.

15. Loosely fit lower fixing bolts to heater unit .
16. Fully tighten upper fixing bolts followed by the

lower fixings.

17. Refit interior bulkhead trim.
18. Secure wiring harness and reconnect multi-plug.
19. Fit control cables to vent flap trunnions and

secure with outer cable clips.

20. Connect heater hoses.
21. Fit radiator bottom hose and refill cooling

system.

See COOLING SYSTEM, Adjustment,

Drain and refill

22. If air conditioning is installed, fit evaporator.

See

AIR CONDITIONING, Repair, Evaporator

23. Fit bonnet and reconnect battery.

80

HEATING AND VENTILATION

2

REPAIR

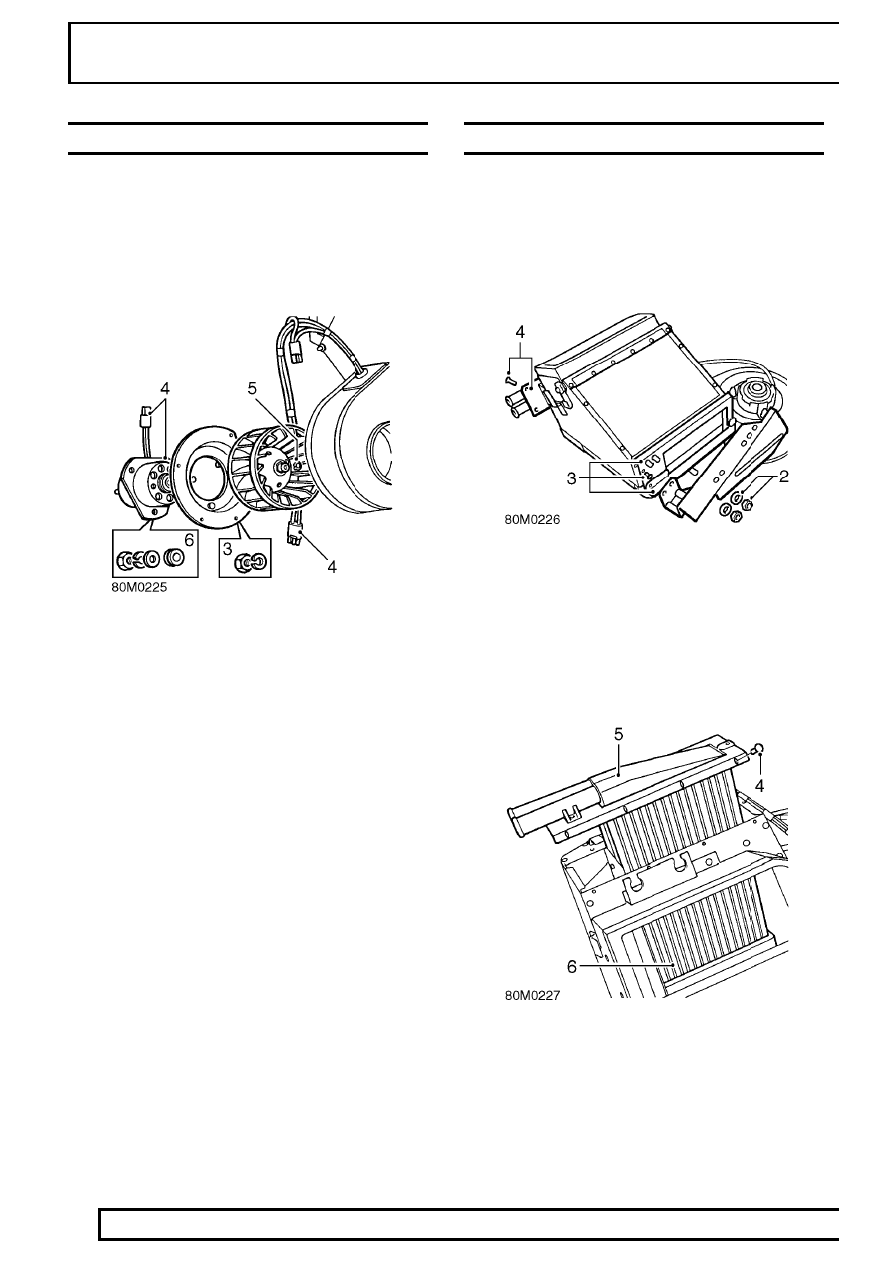

BLOWER MOTOR

Service repair no - 80.20.15

Remove

1. Remove heater unit.

See Heater unit

2. Remove 3 nuts securing angled bracket to

heater unit. Pivot bracket to remove from studs.

3. Remove 5 nuts securing blower motor assembly

to volute housing.

4. Disconnect harness connector and remove

blower motor from volute housing.

5. Release circlip and withdraw impeller from motor

drive shaft.

6. Remove 3 nuts securing blower motor to

mounting plate.

7. Remove blower motor.
8. Examine components for signs of wear and

renew as necessary.

Refit

9. Apply Bostik 1261 adhesive to mating faces of

mounting plate and blower motor.

10. Fit blower motor to mounting plate and secure

with nuts. Ensure rubber mountings are correctly
fitted.

11. Fit impeller to motor drive shaft and secure with

circlip.

12. Position blower motor assembly in volute

housing and secure with nuts. Fit angled bracket
to lower fixing.

13. Reconnect harness plug to resistor harness and

fit angled bracket to heater unit.

14. Fit heater unit.

See Heater unit

HEATER MATRIX

Service repair no - 80.20.29

Remove

1. Remove heater unit.

See Heater unit

2. Remove 3 nuts securing angled bracket to

heater unit. Pivot bracket to remove from studs.

3. Remove 14 screws and detach 2 matrix retaining

plates from heater unit base.

4. Remove 9 screws securing matrix top retaining

plate.

5. Withdraw heater matrix through top of heater

unit casing.
