Defender 90 NAS. Manual - part 85





76

CHASSIS AND BODY

38

REPAIR

CANOPY ASSEMBLY

Service repair no - 76.61.11

Remove

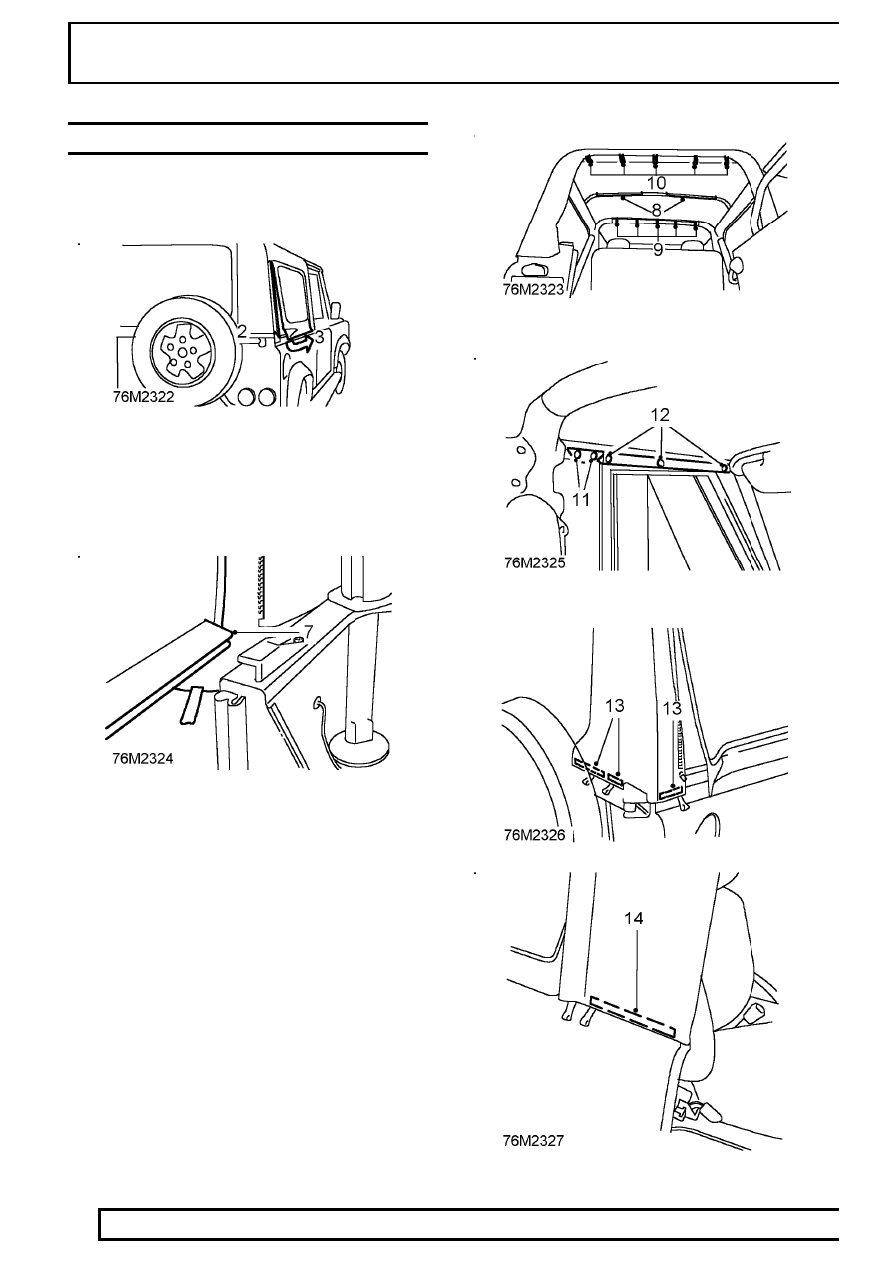

1. Release side window velcro strips, each side

and top.

2. Unzip side window panels, at side only.
3. Release retaining batten from bottom channel.

4. Open rear door.
5. Release velcro strips each side of rear window.
6. Unzip rear window panel, down each side.
7. Release retaining bar, each end of rear window.
8. Release velro strips securing 2 flaps to roof bow.
9. Release 5 press studs securing flap around

centre roll-over bar.

10. Release 5 press studs securing straps around

rear roll-over bar.

11. Open front doors. Release 2 press studs

securing flaps, forward of centre roll-over bar.

12. Release 3 press studs securing flaps to frame

above front doors.

13. Release 3 canopy battens from channels at

each rear corner panel.

14. Release canopy batten from channel on each

side panel.

CHASSIS AND BODY

39

REPAIR

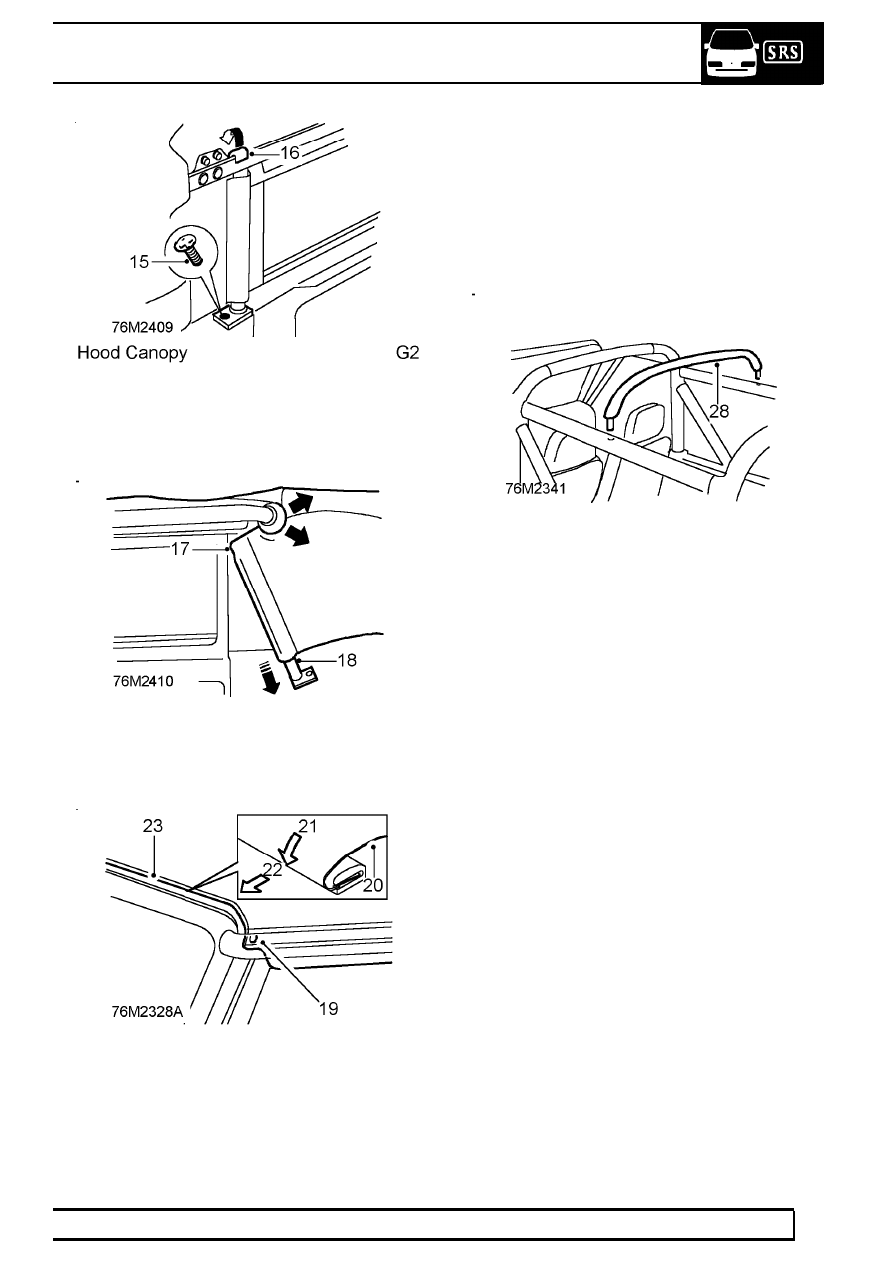

15. Remove screw securing side panel support rod

to vehicle body on each side.

16. Unhook top end of rods from support bars.

17. Remove top of side panels from groove in side

bar mouldings.

18. Withdraw suppotr rods from pockets in side

panels.

19. Release 2 press studs securing canopy to each

end of windscreen frame.

20. Pull canopy forward to release tension.

21. Release batten from channel above windscreen

and ease dowwards to clear.

22. Ease front of canopy up between frame and

roll-over bar brackets.

23. Fold front of canopy onto roof.
24. Fold rear panel onto roof of canopy.
25. Fold each side panel onto roof.
26. Fold side and rear corner panels onto roof.
27. Remove canopy from vehicle.

28. Remove intermediate roof bow, retained by

spring loaded ball each side.

Refit

29. Lubricate spigots and fit intermediate bow to

cant rails.

30. Position canopy across centre roll-over bar and

roof bow.

31. Unfold canopy, position loosely over roll-over

bars and centralise.

32. Pull forward and position retaining batten

between windscreen frame and roll-over bar.

33. Ease batten upwards, rotate and engage

channel, press ends down and fully into channel.

34. Fasten front of canopy with press studs.
35. Pull canopy to tension over rear roll-over bar.
36. Fasten press studs securing canopy to rear

roll-over bar.

37. Feed cut-out in top of side panel into grove

around roll-over bar moulding.

38. Fasten press studs securing front sides to

support bars.

39. Fasten press studs securing canopy to centre

roll-over bar.

40. Secure flaps to roof bow.
41. Fully tension straps securing canopy to rear

roll-over bar.

42. If side windows have been removed: Zip side

windows along top only.

43. Engage side window zips at each side, do up 50

mm, 2 in only.

76

CHASSIS AND BODY

40

REPAIR

44. Pull down on rear panels and engage battens by

pressing firmly into place.

NOTE: Use a ’T’ handled hook to pull down
on the loops to ease batten engagement.

45. Fasten side window zips and secure velcro

strips.

46. Fit rear window retaining bar, fasten rear window

zips and secure velcro strips.

HEATING AND VENTILATION

1

DESCRIPTION AND OPERATION

HEATING AND VENTILATION SYSTEM

Description

The heating and ventilation system is standard on all
models. Air conditioning is an optional system which
provides fully integrated climate control for the vehicle
interior.

The heater assembly, comprising a matrix housed in a
distribution unit and a variable speed blower motor, is
located on one side of the engine compartment and
attached directly to the fascia bulkhead.

The heating controls are positioned on the outside of
the instrument binnacle and cable linked to
mechanical flaps in the distribution unit.

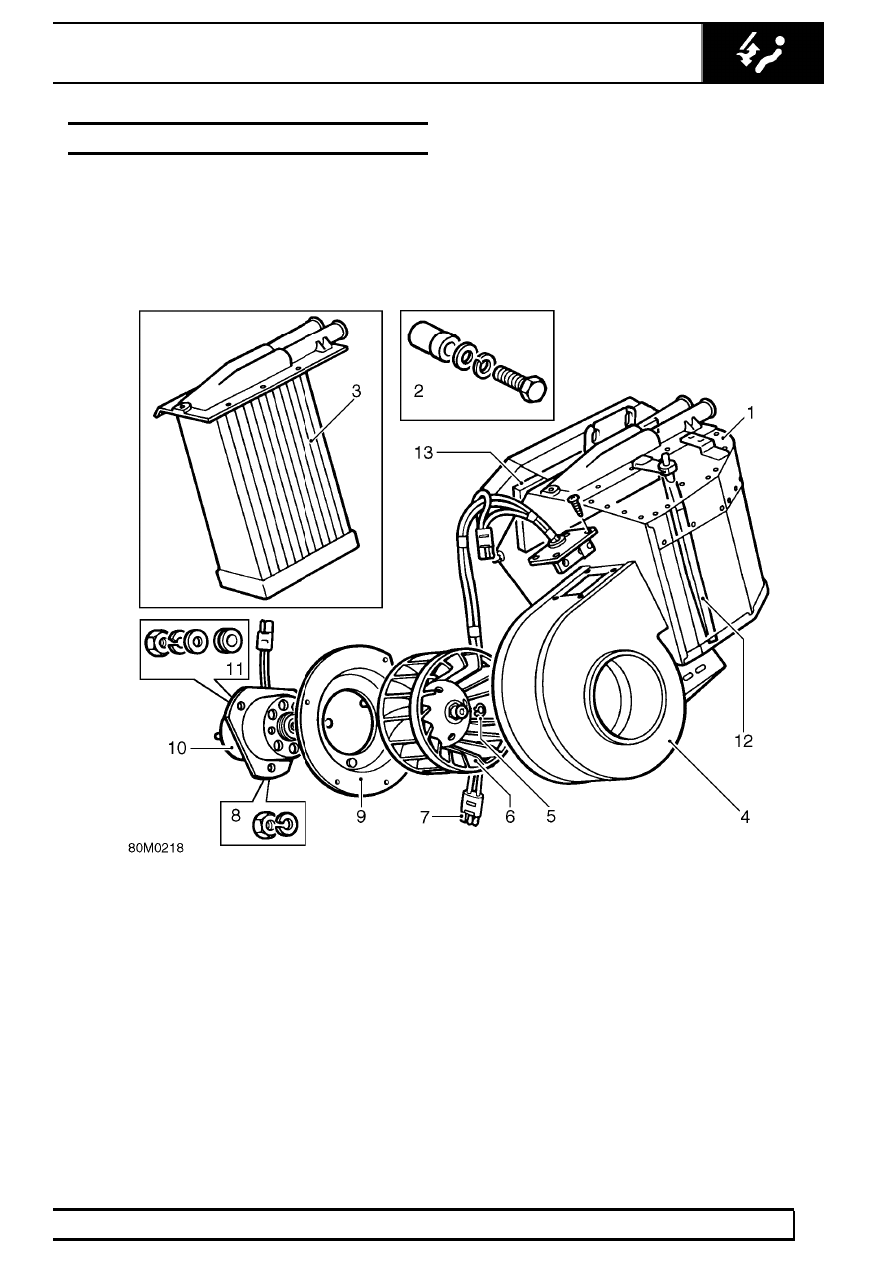

Heater assembly

1. Heater distribution unit
2. Fixings, heater to fascia bulkhead
3. Heater matrix
4. Blower motor housing
5. Circlip, impeller to blower motor
6. Impeller
7. Resistor unit and harness connector

8. Fixings, blower motor mounting plate
9. Mounting plate, blower motor

10. Blower motor
11. Fixings, blower motor to mounting bracket
12. Temperature flap, air flow to heater matrix
13. Air flap, air supply to plenum chamber (heater

duct)
