CHASSIS AND BODY

2

REPAIR

TRIM CASING - FRONT DOOR

Service repair no - 76.34.01

Remove

1. Prise open finisher caps, remove 2 screws, and

detach door pull.

2. Remove single screw behind remote control

lever.

3. Prise off remote control lever bezel.

4. Prise off door locking button bezel.

5. Prise out window regulator handle centre

finisher, remove retaining screw, and withdraw
handle and bezel.

6. Using a screwdriver to release trim fasteners,

carefully ease trim casing from door.

CHASSIS AND BODY

3

REPAIR

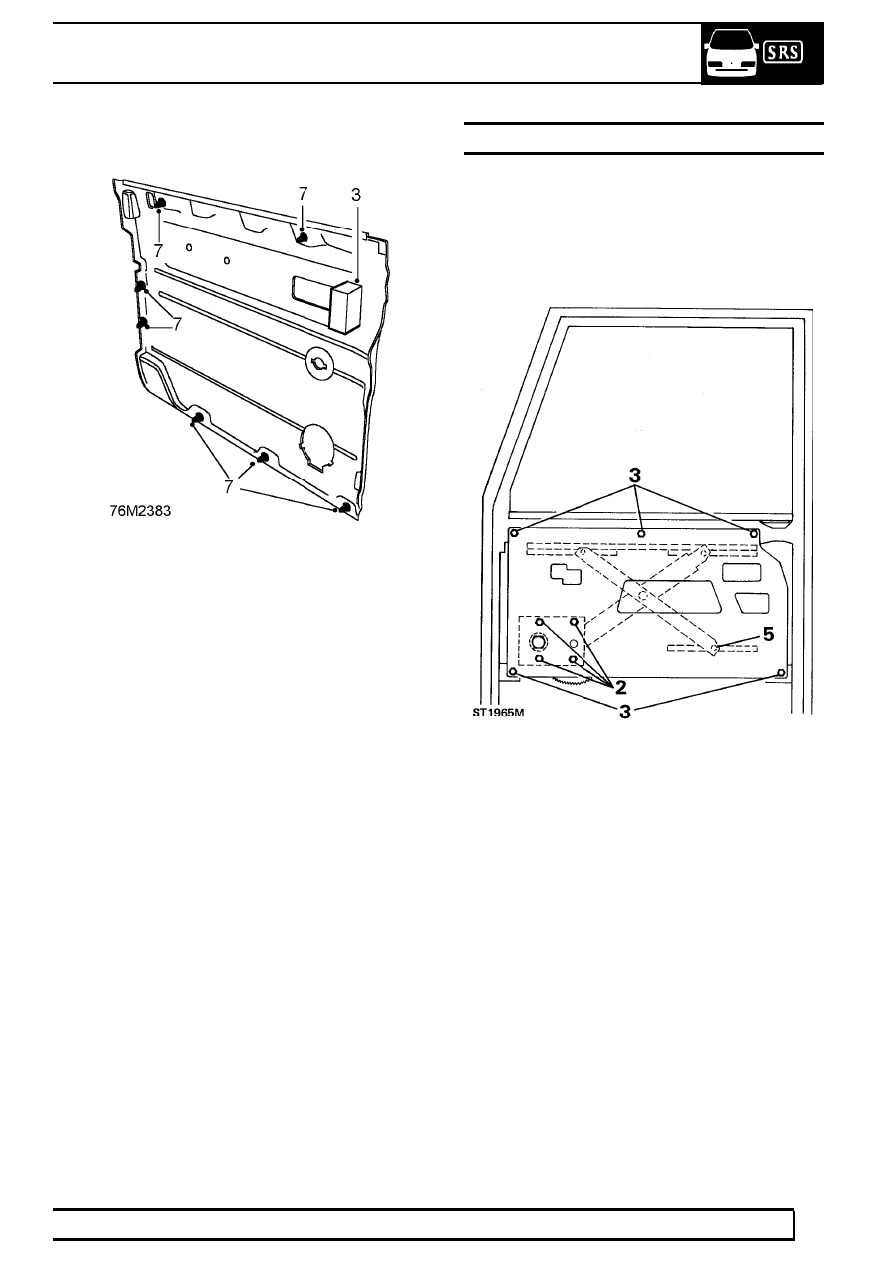

Refit

7. Remove any trim fasteners held in door panel.

Refit or insert new clips to trim casing.

8. Ensure that anti-vibration pads are in position

and offer-up trim casing to door. Line-up
fasteners with holes in door and firmly push trim
into position.

9. Fit bezels to locking button and remote control

lever.

10. Fit single screw behind remote control lever.
11. Fit door pull and secure with 2 screws and

finisher caps.

12. Fit window regulator handle and retain with

single screw and finisher.

MOUNTING PANEL - FRONT DOOR

Service repair no - 76.11.28

Remove

1. Remove door trim casing

See Trim casing -

front door and plastic sheet.

2. Remove 4 screws securing window regulator to

mounting panel.

3. Remove 5 screws securing mounting panel to

door frame.

76

CHASSIS AND BODY

4

REPAIR

4. Release remote control lever rod from latch

mechanism and from plastic clip in mounting
panel.

5. Slide window regulator arm from mounting panel

channel and remove panel with remote control
lever and rod.

Refit

6. Engage window regulator arm in mounting panel

channel.

7. Connect remote control rod to latch mechanism

and secure with clip.

8. Fit mounting panel and retain with 5 screws.
9. Secure window regulator to mounting panel with

4 screws.

10. Raise and lower window to check for free

movement.

11. Fit plastic sheet and door trim casing.

See Trim

casing - front door

SILL LOCKING BUTTON - FRONT DOOR

Service repair no - 76.37.29

Remove

1. Remove door trim casing.

See Trim casing -

front door

2. Peel back plastic sheet to expose mechanism.

3. Release spring clip and disconnect operating rod

from latch mechanism.

4. Remove 2 screws and withdraw locking button

assembly.

Refit

5. Secure locking button assembly to door with 2

screws.

6. Connect operating rod to latch mechanism and

secure with spring clip.

7. Re-seal plastic sheet and fit door trim casing.

See Trim casing - front door

CHASSIS AND BODY

5

REPAIR

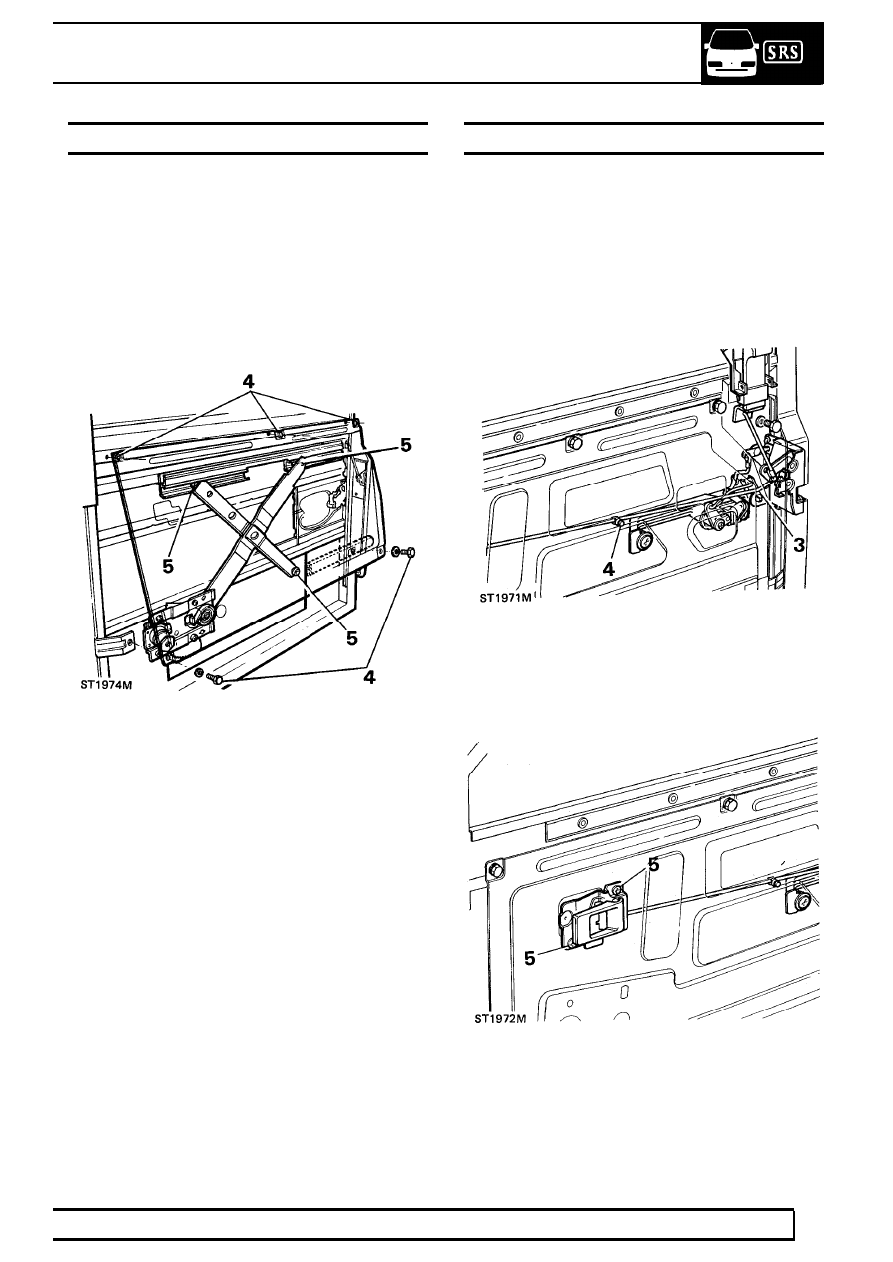

WINDOW REGULATOR - FRONT DOOR

Service repair no - 76.31.45

Remove

1. Remove door trim casing.

See Trim casing -

front door

2. Remove plastic sheet.
3. Temporarily fit handle, position window half open

and support with a length of timber.

4. Remove 2 lower screws securing mounting

panel to door and slacken 3 upper screws.

5. Remove 4 screws retaining window regulator to

mounting panel and slide operating arms from
channels attached to glass and mounting panel
and remove regulator.

Refit

6. Insert regulator operating arms into channels.
7. Fit and tighten mounting panel lower screws and

tighten upper screws.

8. Align holes in regulator with holes in mounting

panel and secure with 4 screws.

9. Temporarily fit regulator handle and check that

glass can be raised and lowered without tight
spots.

10. Secure plastic sheet.
11. Fit door trim casing.

See Trim casing - front

door

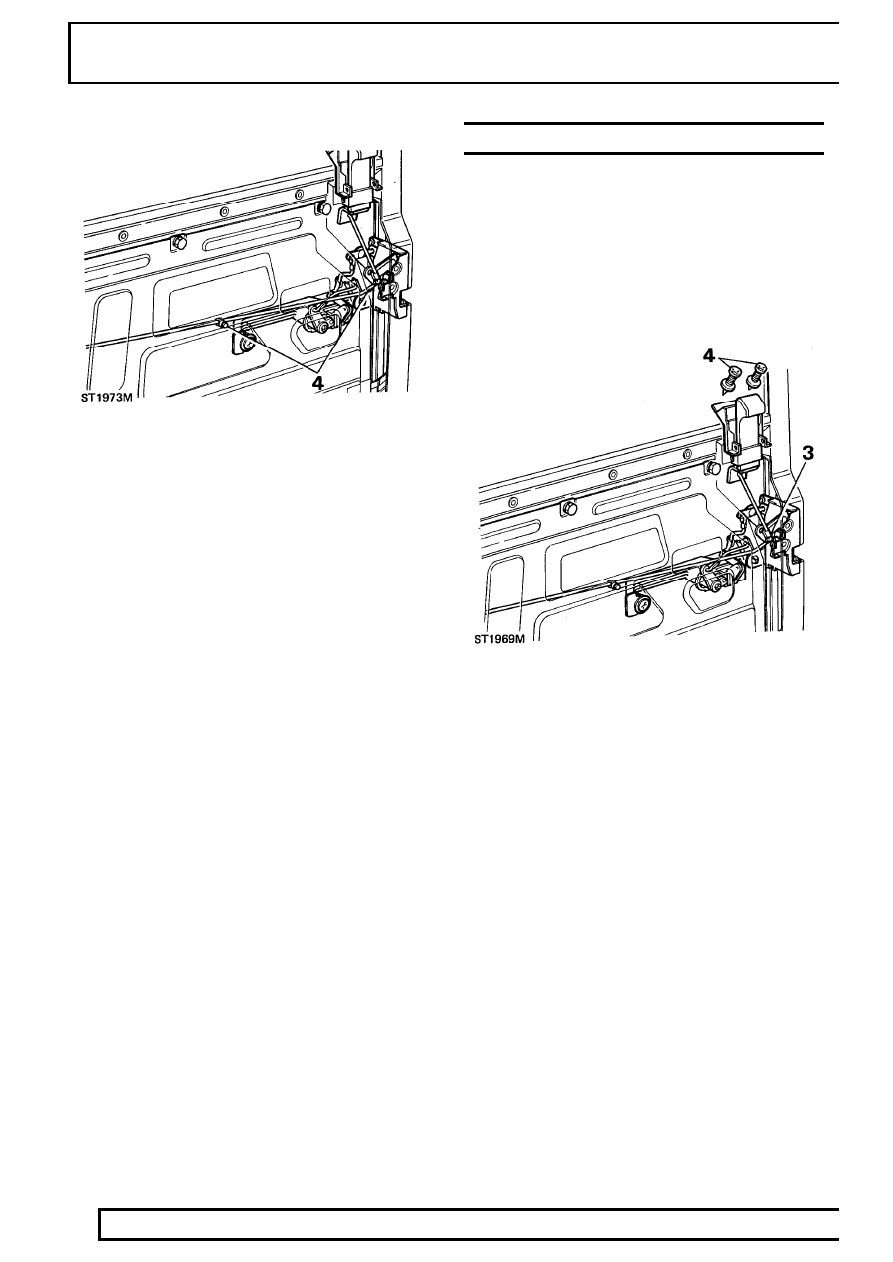

REMOTE CONTROL LEVER - FRONT DOOR

Service repair no - 76.37.31

Remove

1. Remove door trim.

See Trim casing - front

door

2. Peel back sufficient of plastic sheet to gain

access to remote lever.

3. Release spring clip and disconnect control rod

from latch mechanism.

4. Release control rod from plastic clip in mounting

panel.

5. Remove 2 screws securing remote control lever

to mounting panel and withdraw lever and
control rod.
