BRAKES
1
OVERHAUL

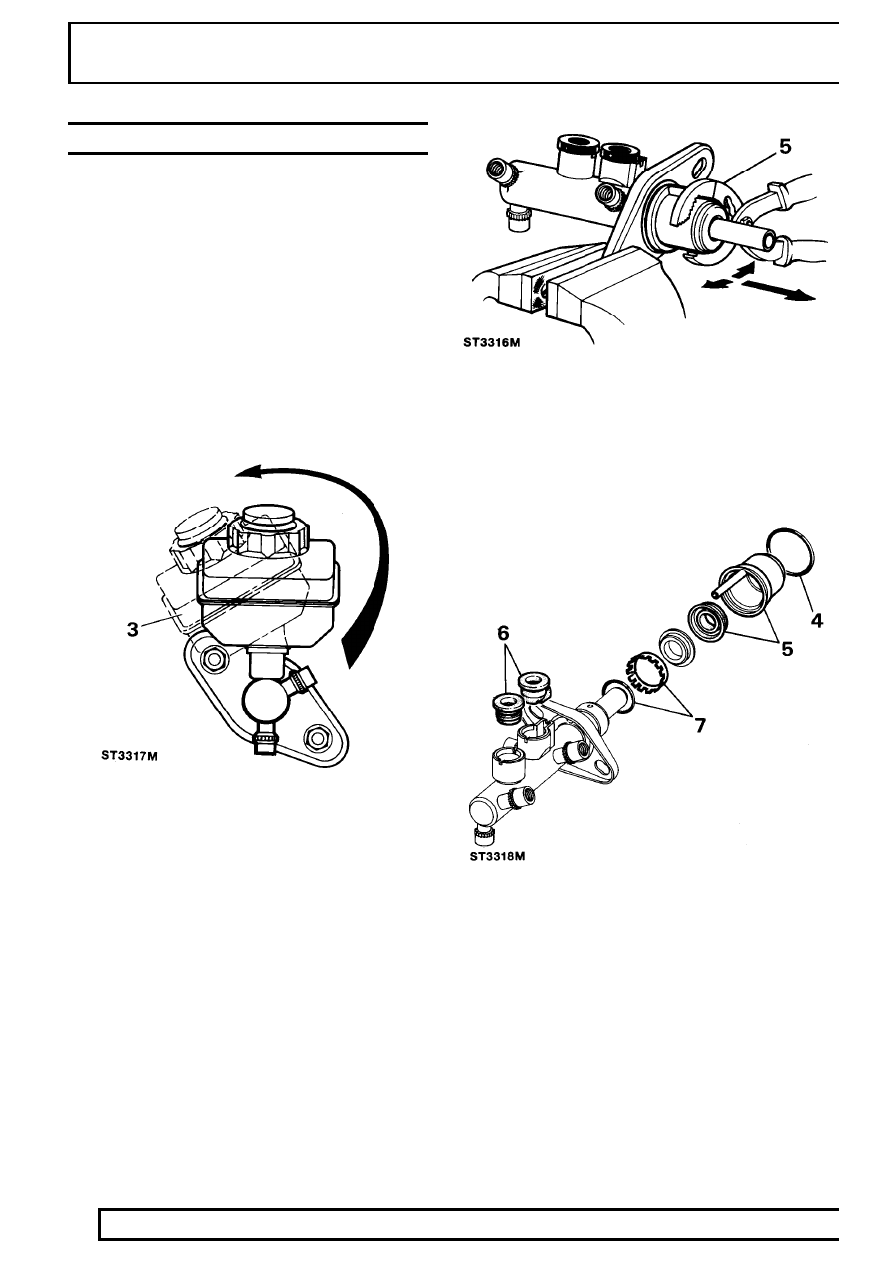

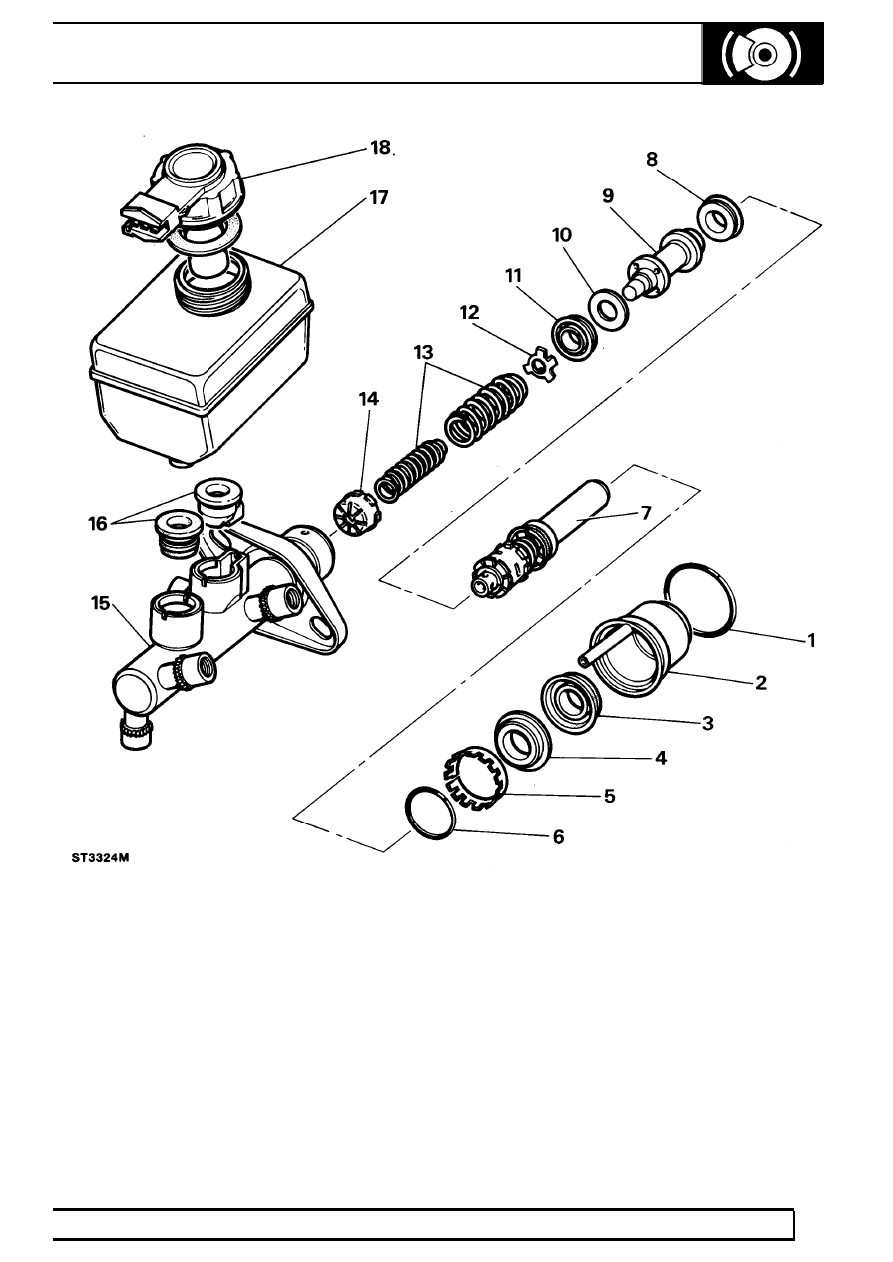

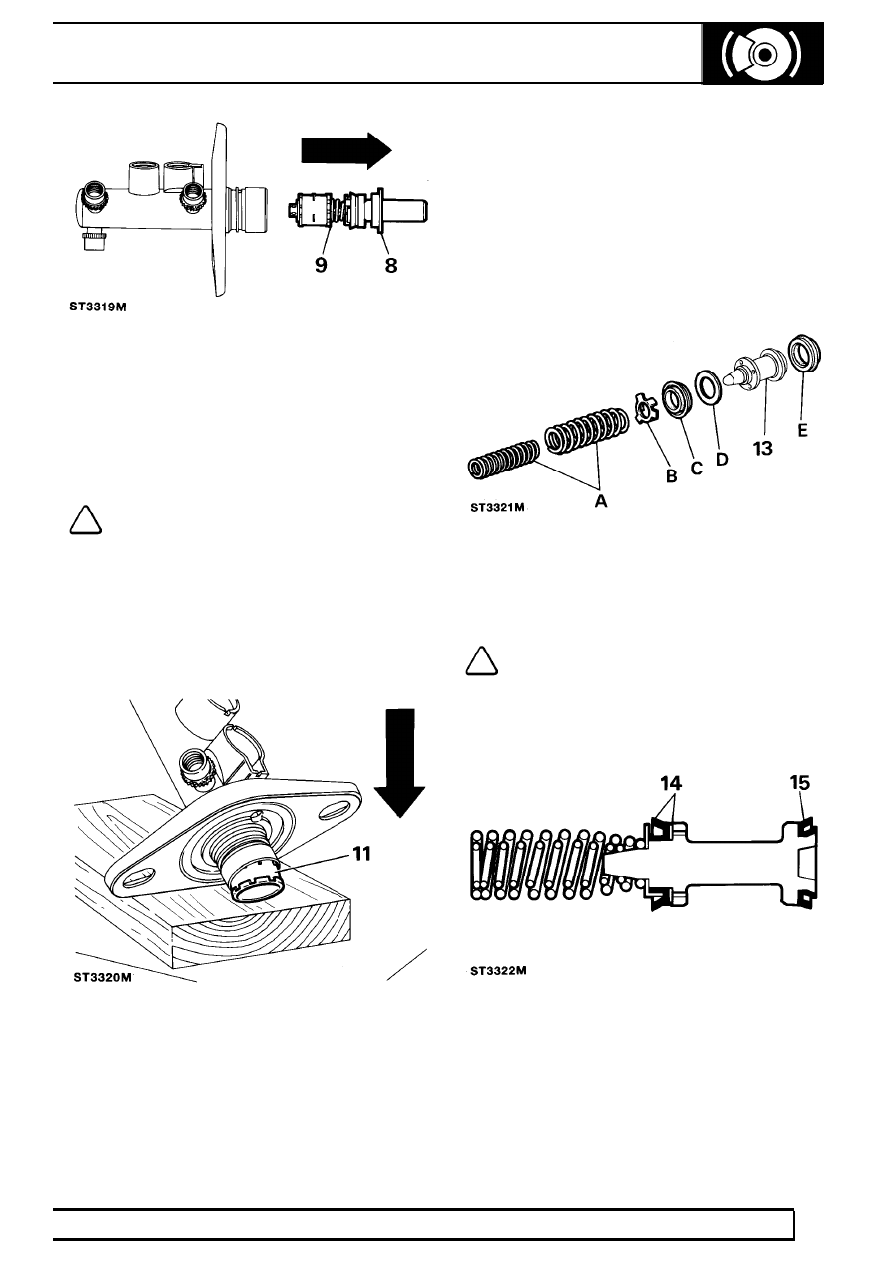

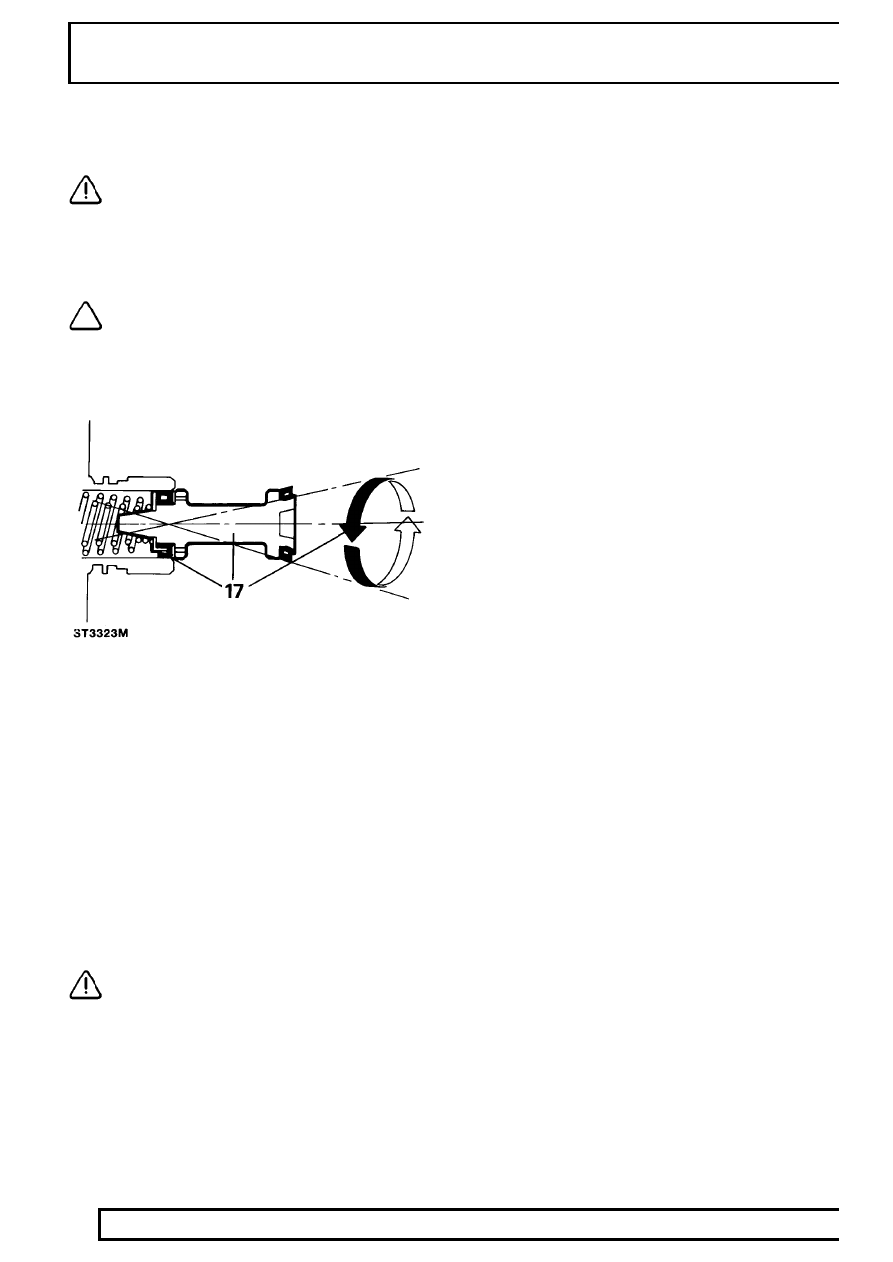

Key to master cylinder
1. Water ingress seal
2. Transfer housing
3. Vacuum seal
4. Guide ring
5. Retaining ring
6. ’O’ ring seal
7. Primary plunger assembly
8. ’L’ seal
9. Secondary plunger
10. Washer
11. Recuperating seal - primary cup
12. Seal retainer
13. Springs - 2 off
14. Swirl tube
15. Master cylinder body
16. Reservoir seals
17. Reservoir
18. Low fluid level switch and cap
