Defender 90 NAS. Manual - part 43





44

AUTOMATIC GEARBOX

10

REPAIR

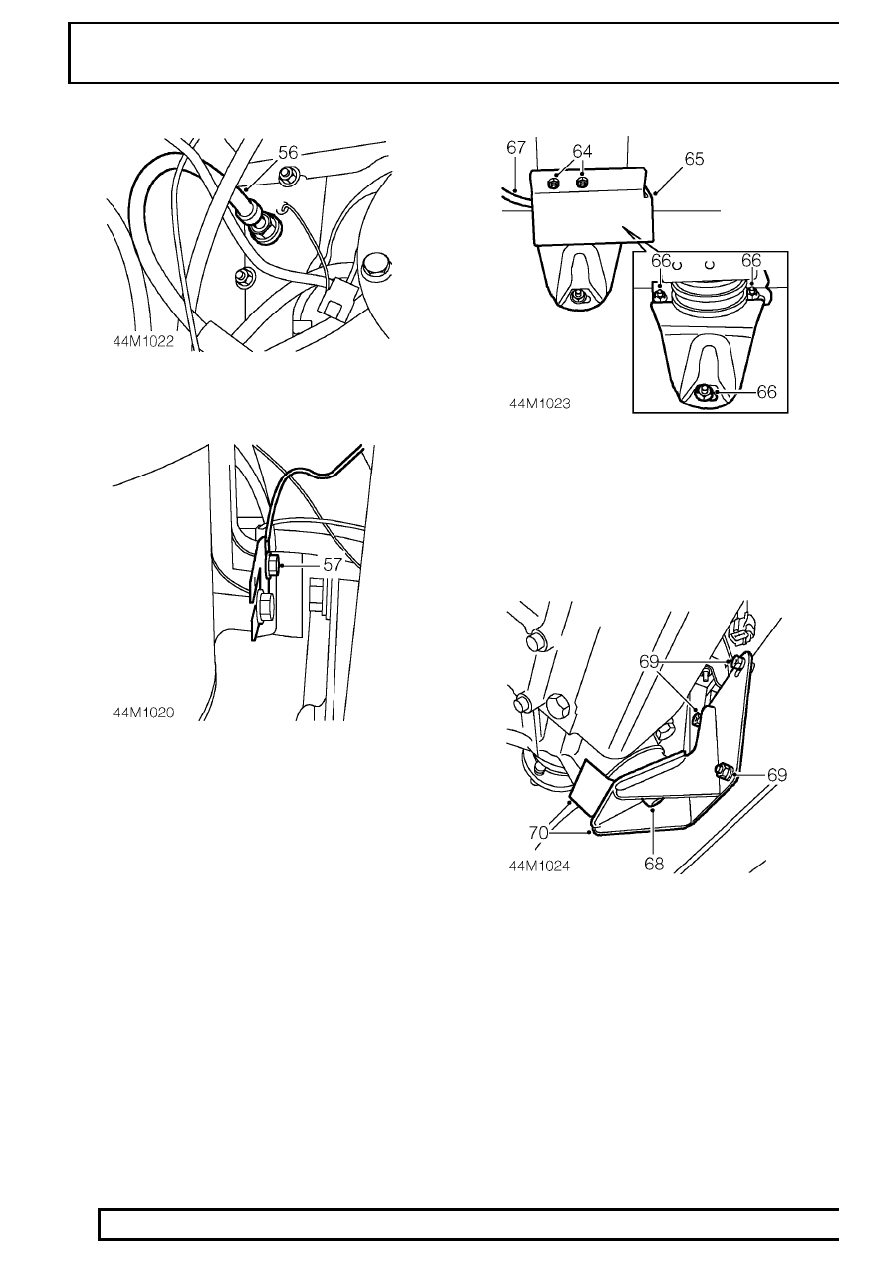

56. Release hand brake outer cable from body.

57. Remove bolt securing earth lead to RH side of

transfer box.

58. Fit transmission cradle LRT-99-008A to

transmission jack.

59. Fit and tighten bolts securing cradle to jack.
60. Remove 2 lower bolts securing transfer box rear

cover.

61. Collect hand brake cable heat shield.
62. Raise jack and align cradle to transmission.
63. Refit previously removed transfer box rear cover

bolts to secure cradle.

64. Remove 2 nuts and bolts securing heat shield to

transfer box LH mounting bracket.

65. Remove heat shield.
66. Remove 3 nuts and bolts securing transfer box

LH mounting bracket to chassis.

67. Release earth lead from fixing.

68. Remove nut securing transfer box RH mounting.
69. Remove 3 nuts and bolts securing transfer box

RH mounting bracket to chassis.

70. Remove transfer box RH mounting bracket and

collect flexible mount heat shield.

71. Lower transmission on jack to access harness

connectors.

AUTOMATIC GEARBOX

11

REPAIR

72. Disconnect the following multiplugs/connectors

from transfer box:
Speed transducer
Parking solenoid
Neutral detection switch
Differential lock
Temperature sensor switch

73. Remove 2 cable ties securing harness to

transfer box.

74. Position jack to support engine sump.

CAUTION: Use a block of wood or hard
rubber pad to protect sump.

75. Remove 2 remaining bell housing to engine

bolts.

76. With assistance, lower transmission and engine

jacks until hi-low selector lever is clear of
transmission tunnel aperture.

77. Separate transmission from engine and lower on

jack.

78. Remove transmission assembly from beneath

ramp.

79. Position lifting eyes to transmission and secure

with bolts.

80. Fit lifting chains to eyes and connect.
81. Position lifting hoist and connect lifting chains.
82. Raise hoist until chains are taught.
83. Remove bolts securing cradle to transfer box.
84. Raise transmission from cradle.
85. Refit transfer box rear cover plate bolts.
86. Lower transmission assembly onto work bench.
87. Disconnect lifting chains from eyes.
88. Remove bolts securing eyes to transmission and

remove eyes.

Refit

89. Position lifting eyes to transmission and secure

with bolts.

90. Connect lifting chains to eyes.
91. Raise transmission assembly from bench and

position above transmission cradle.

92. Remove 2 transfer box rear cover plate bolts.
93. Lower transmission onto cradle, align to transfer

box rear cover plate and secure with previously
removed bolts.

94. Lower hoist and disconnect lifting chains from

eyes.

95. Remove chains from hoist.
96. Remove bolts securing lifting eyes to

transmission and remove eyes.

97. Position transmission assembly beneath vehicle.
98. Clean engine to gearbox mating faces.
99. Clean engine to gearbox dowels and dowel

holes.

100. With assistance, raise transmission on jack and

position to engine dowels.

101. Fit 2 lower bell housing to engine bolts and

tighten to

45 Nm, 33 lbf ft.

102. With assistance, raise engine and transmission

jacks to position transmission assembly.

NOTE: Do not fully raise transmission at
this stage as access is required for
connection of connectors to transfer box.

103. Remove engine jack from beneath vehicle.
104. Secure harness to transfer box with cable ties.
105. Connect multiplugs/connectors to transfer box.
106. Raise transmission and align to mounting

locations.

107. Fit transfer box RH flexible mounting heat shield

and mounting bracket.

108. Align RH mounting to chassis and secure with

nuts and bolts.

109. Fit and tighten nut securing RH mounting.
110. Align LH mounting to chassis and secure with

nuts and bolts.

NOTE: Position earth lead to mounting
fixing.

111. Position heat shield to LH mounting bracket and

secure with fixings.

112. Remove bolts securing transmission cradle to

transfer box.

113. Lower transmission jack and remove from

beneath ramp.

114. Fit and tighten transfer box rear cover bolts.

NOTE: Position heat shield to cover plate
fixing.

115. Position earth lead to RH side of transfer box

and secure with bolt.

116. Feed hand brake outer cable through body.

NOTE: Apply a soap solution to aid fitment
of cable to body.

117. Position earth strap to transfer box stud and

secure with nut.

118. Fit oxygen sensor multiplug bracket to transfer

box earth bolt and secure with nut.

44

AUTOMATIC GEARBOX

12

REPAIR

119. Position selector outer cable clamp to transfer

box LH mounting and secure with bolt.

120. Position selector cable yoke to lever, fit washer

and secure with split pin.

121. Remove plug from transmission filler tube union.
122. Lubricate new ’O’ ring with gearbox oil and fit to

filler tube.

123. Fit filler tube to gearbox and tighten union.
124. Release cooler pipes and remove plugs from

connections.

125. Lubricate new ’O’ rings with gearbox oil and fit to

pipes.

126. Position cooler pipes to gearbox and tighten

unions.

127. Position cooler pipes to engine sump bracket, fit

clamp and secure with bolt.

128. Remove piece of wood from bell housing access

hole.

129. Align converter to drive plate.
130. Fit bolts securing converter to drive plate and

tighten to

45 Nm, 33 lbf ft.

NOTE: Rotate crankshaft during the above
procedure.

131. Fit bell housing access plate and secure with

bolts tightened to

9 Nm, 7 lbf ft. .

132. Clean bell housing cover plate and mating face.
133. Fit plate and secure with bolts tightened to

9

Nm, 7 lbf ft.

134. Clean rear propeller shaft to brake drum mating

faces.

135. Release rear propeller shaft, align flange

markings and connect to studs.

136. Fit nuts securing rear propeller shaft to brake

drum and tighten to

47 Nm, 35 lbf ft.

NOTE: Rotate propeller shaft to gain
access to all fixings.

137. Clean front propeller shaft to transfer box mating

faces.

138. Release front propeller shaft, align flange

markings and connect to studs.

139. Fit nuts securing front propeller shaft to transfer

box and tighten to

47 Nm, 35 lbf ft.

NOTE: Rotate propeller shaft to gain
access to all fixings.

140. With assistance and using a body jack between

chassis longitudinals, jack chassis sufficiently to
enable fitment of crossmember.

141. Fit crossmember and align fixings.
142. Remove body jack.
143. Fit nuts and bolts securing chassis

crossmember, but do not tighten.

144. Fit LH and RH catalyst heat shields to chassis, fit

bolts but do not tighten.

145. Align LH and RH catalyst heat shields to chassis

crossmember fixings and tighten all fixings.

146. Clean intermediate to tail pipe flange.
147. Fit intermediate pipe to mounting rubber,

connect to tail pipe and secure with nuts.

148. Fit exhaust front pipe.

See EMISSION

CONTROL, Repair, front pipe/catalytic
converter; Refit

149. Lower vehicle.
150. Fit bolts securing bell housing to engine and

tighten to

46 Nm .

NOTE: Align harness brackets to 2
uppermost bell housing retaining bolts.

151. Align breather pipe ’P’ clips to rear of RH

cylinder head and secure with bolt.

152. Secure kick-down outer cable to clip on rear of

LH cylinder head.

153. Secure kick-down outer cable to abutment

bracket.

154. Secure kick-down outer cable lock nut.
155. Align kick-down cable to linkage and secure

clevis pin.

156. Adjust kick-down cable.

See Adjustment,

kickdown cable adjustment

157. Fit upper fan cowl and secure with clips.
158. Align fan cowl to upper retaining brackets and

secure with screws.

159. Align hand brake cable to lever, fit clevis pin and

secure with split pin.

160. Position hand brake gaiter and secure with trim

studs.

161. Secure gearbox and transfer box breather pipes

to harness with cable ties.

162. Connect inhibitor/reverse light switch multiplug.
163. Fit hi-low selector housing cover to tunnel.
164. Fit carpet to transmission tunnel.
165. Fit centre console.

See CHASSIS AND BODY,

Repair, centre console

166. Refill transfer gearbox oil.

See SECTION 10,

Maintenance, under vehicle maintenance

167. Refill gearbox oil.

See SECTION 10,

Maintenance, under vehicle maintenance

168. Reconnect battery negative lead.
169. Select Hi range gear and park.
170. Remove vehicle from ramp.

AUTOMATIC GEARBOX

1

SPECIFICATIONS, TORQUE

TORQUE VALUES

Nm

lbf ft

Coupling shaft to mainshaft

42*

..............................................

30*

Filler tube to sump

68

............................................................

50

Gear change lever to gearbox

25

..........................................

18

Cooler pipe adaptor to gearbox

42

........................................

30

Securing screws - clutch F

10

...............................................

7

Securing screw - parking pawl

10

.........................................

7

Securing screws - pump

10

...................................................

7

Intermediate plate plugs (M20)

50

........................................

35

Intermediate plate plugs (M14)

40

........................................

30

Bell housing mounting bolts

46

.............................................

34

Governor mounting screws

10

..............................................

7

Extension housing bolts

23

...................................................

17

Control unit mounting bolts

8

..............................................

6

Draib plug - fluid pan

10

........................................................

7

Mounting screws for sump

8

...............................................

6

Drive plate to converter

39*

....................................................

29*

Gearbox to engine

42

............................................................

31

Strut (threaded end)

42

.........................................................

31

Bottom cover to converter housing

9

..................................

7

Cover - converter housing

9

................................................

7

Drive plates to crankshaft adaptor

40*

...................................

30*

Adaptor to crankshaft

84

.......................................................

62

NOTE: * These bolts MUST have threads coated with Loctite 270 prior to assembly.

Torque values below are for all screws and bolts used except for those that are specified otherwise.

METRIC

Nm

lbf ft

M5

6

...........................................................................

5

M6

9

...........................................................................

7

M8

25

...........................................................................

18

M10

45

.........................................................................

33

M12

90

.........................................................................

65

M14

105

.........................................................................

75

M16

180

.........................................................................

130

UNC / UNF

Nm

lbf ft

1/4

9

...........................................................................

7

5/16

24

.........................................................................

18

3/8

39

...........................................................................

28

7/16

78

.........................................................................

58

1/2

90

...........................................................................

65

5/8

136

...........................................................................

100
