Defender 90 NAS. Manual - part 28





19

FUEL SYSTEM

24

REPAIR

19. Position brake hose to mounting bracket and

secure with nut.

20. Connect brake pipe to hose and, using 2

spanners, tighten union.

21. Remove clamp from brake hose.

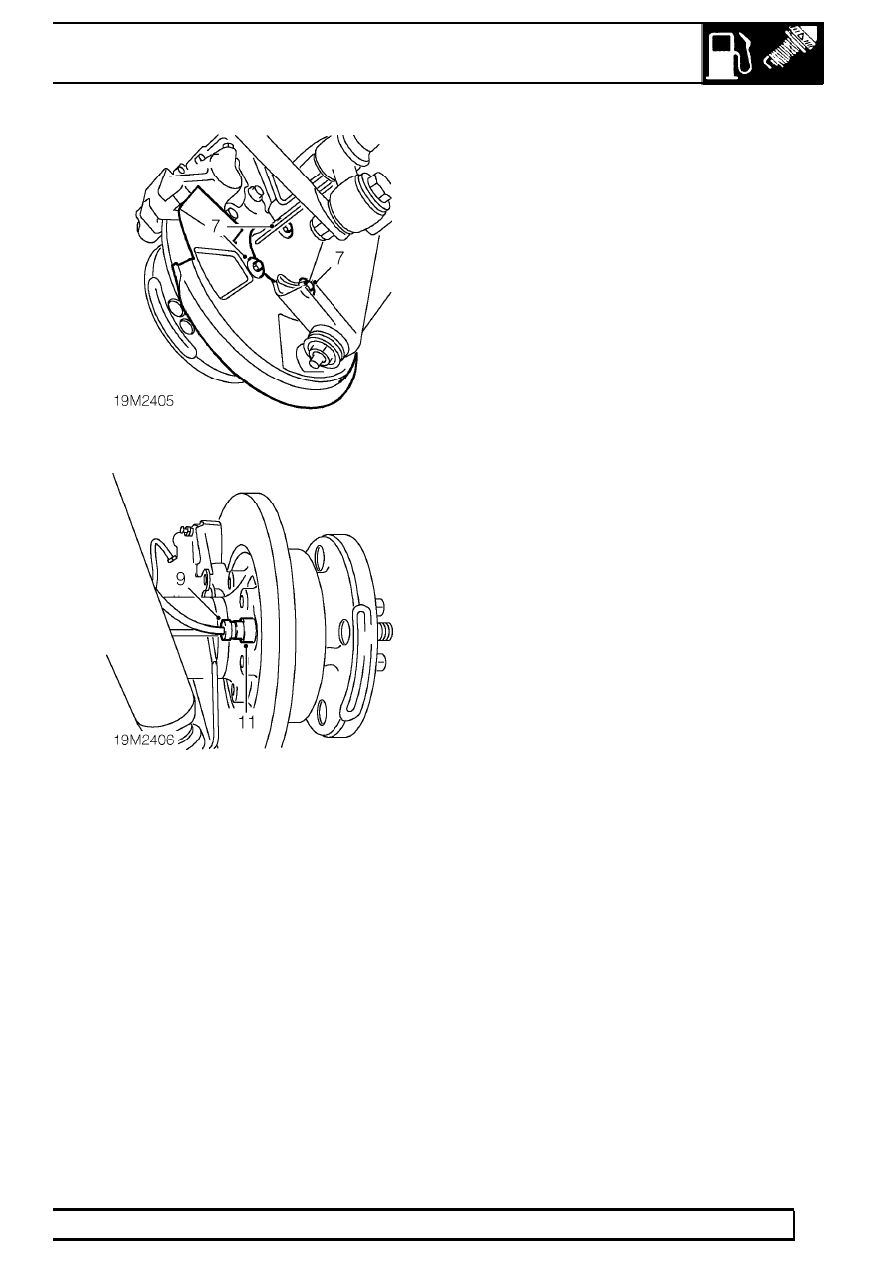

22. Ensure sensor body is clean and coat with EP

90 oil.

23. Fit sensor through bush until it contacts the

reluctor ring. The sensor will be ’knocked-back’
to the correct position when the vehicle is driven.

24. Route sensor lead up through engine

compartment and secure cable ties.

25. Lower vehicle.
26. Connect sensor multiplug and secure to clip.
27. Reconnect battery negative lead.
28. Bleed brake system.

See BRAKES, Repair,

brake system bleed

WHEEL SPEED SENSOR - REAR

Service repair no - 19.80.02

Remove

CAUTION: If a sensor is removed for any
reason, a NEW sensor bush and seal must
be fitted.

1. Disconnect battery negative lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

3. Remove both rear road wheels.

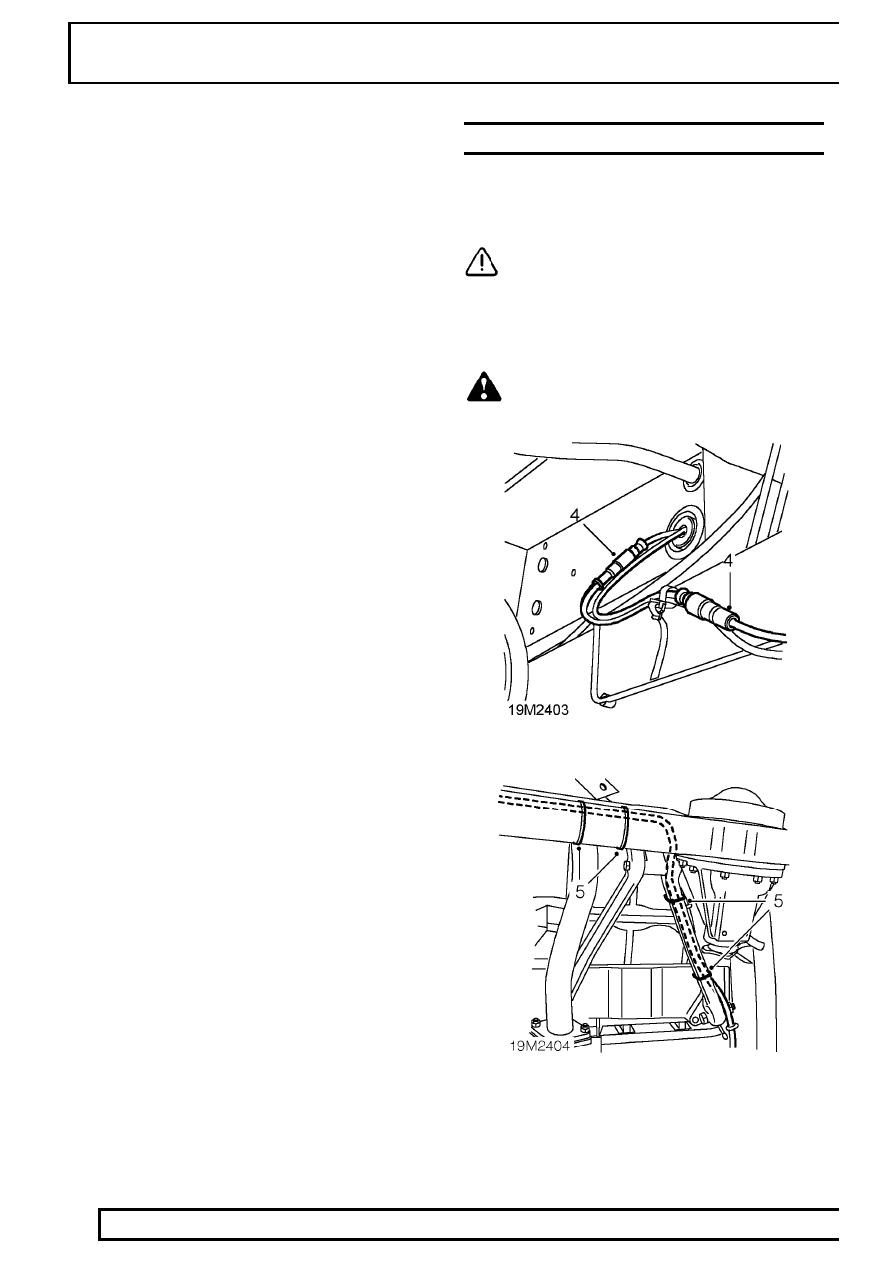

4. Disconnect sensor multiplugs at RH side of

chassis.

5. Release cable ties securing sensor harness to

rear suspension and axles.

SFI

25

REPAIR

6. Release sensor harness from clips on rear axle.
7. Remove 6 bolts, 3 each side, securing rear

wheel brake caliper mud shields.

8. Remove mud shields and clear area around

sensor to prevent possible ingress of dirt.

9. Using a suitable lever, release sensors from

mounting bushes.

10. Remove sensors.
11. Remove and discard sensor bushes.

Refit

12. Ensure NEW sensor bushes and housings are

clean, then fit bushes.

13. Ensure sensor bodies are clean and lightly coat

with EP 90 lubricant.

14. Fit sensors through bushes until they contact the

reluctor ring. The sensors will be ’knocked-back’
to the correct position when the vehicle is driven.

15. Secure sensor harness to rear axle clips.
16. Secure sensor harness to rear suspension and

axle with cable ties.

17. Connect sensor harness multiplugs.
18. Position rear brake caliper mud shields and

secure with bolts.

19. Fit rear road wheels.
20. Remove stand(s) and lower vehicle.
21. Reconnect battery negative lead.

19

FUEL SYSTEM

26

REPAIR

ECU - ROUGH ROAD DETECTION

Service repair no - 19.80.03

Remove

1. Disconnect battery negative lead.

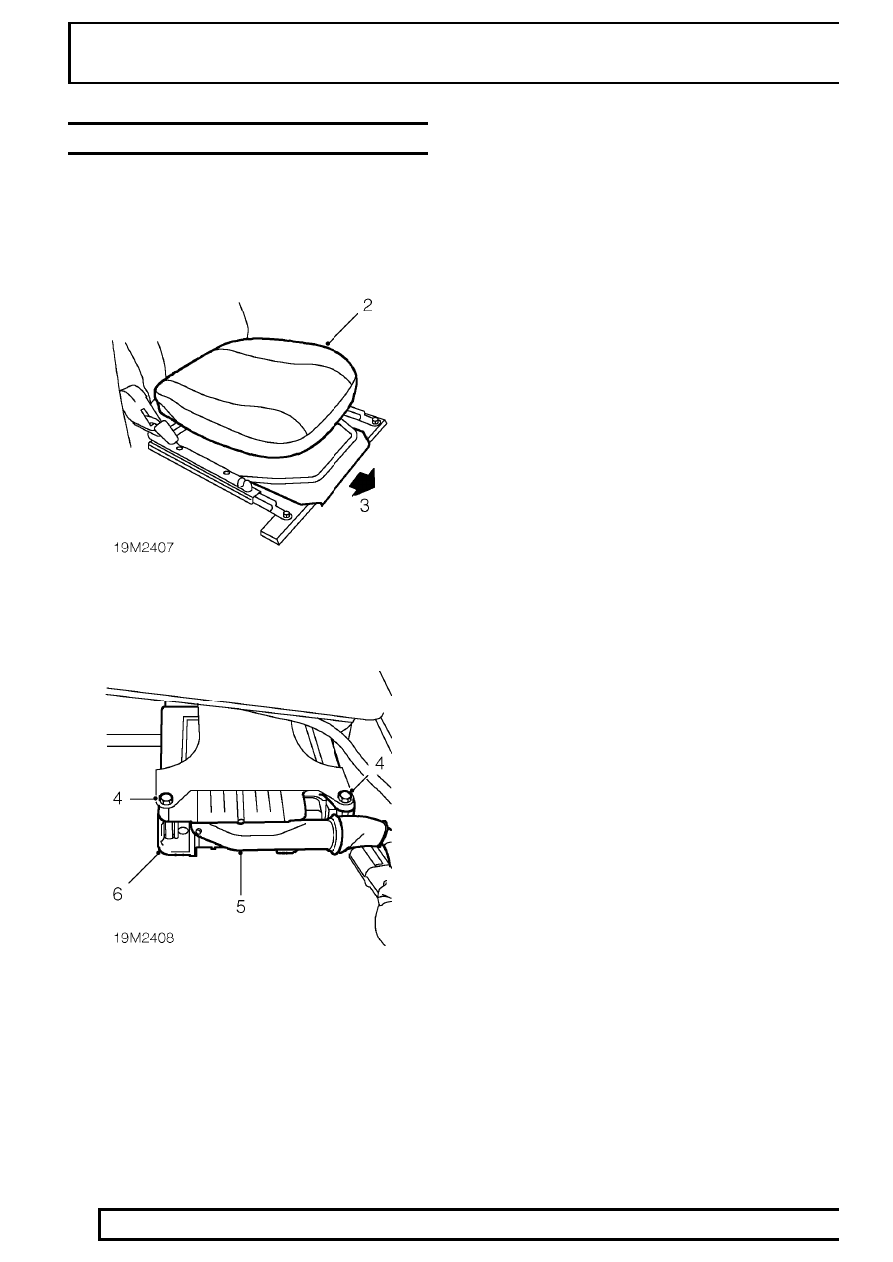

2. Release front edge of passenger seat cushion

and remove cushion.

3. Release clip and remove ECU cover plate.

4. Remove 2 bolts securing ECU to mounting

bracket and collect nuts.

5. Remove ECU from mounting bracket and

disconnect multiplug.

6. Remove ECU.

Refit

7. Fit ECU, connect multiplug and position to

mounting bracket.

8. Secure ECU mounting bracket with nuts and

bolts.

9. Fit ECU cover plate and secure with clip.

10. Position rear edge of passenger seat cushion to

seat frame and secure front edge to clips.

11. Reconnect battery negative lead.

SFI

1

SPECIFICATIONS, TORQUE

TORQUE SETTNGS

Nm

lbf ft

Intake air temperature (IAT) sensor

8

.................................

6

Crank position sensor

8

......................................................

6

Coolant temperature sensor

20

.............................................

15

Fuel filter

30

..........................................................................

20

Fuel pressure regulator

10

....................................................

7

Coil bracket

8

......................................................................

6

Fuel feed pipe

16

..................................................................

12

Ram housing to manifold

24

.................................................

18

Fuel temperature sensor

17

..................................................

13

Throttle position sensor

2

....................................................

1.5

Knock sensor

16

...................................................................

12

Idle air control valve

2

.........................................................

1.5

Water jacket

13

.....................................................................

10

Throttle bracket

8

................................................................

6

Plenum chamber

24

..............................................................

18

Inlet manifold

38

....................................................................

28

Camshaft position sensor

8

.................................................

6

Heated oxygen sensors

20

...................................................

15

Fuel pump locking ring

48

.....................................................

35
