Defender 90 NAS. Manual - part 20





17

EMISSION CONTROL

2

REPAIR

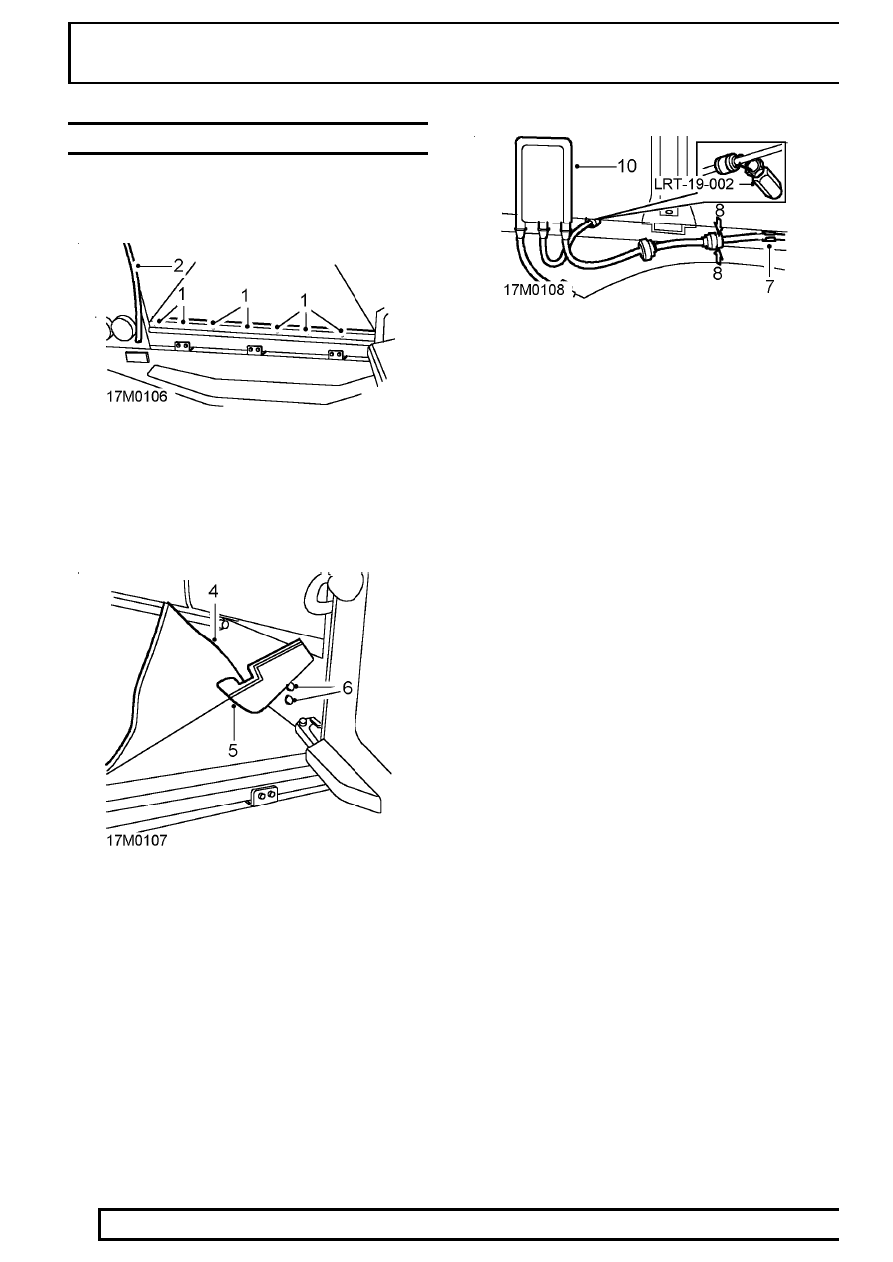

VAPOUR SEPARATOR

Service repair no - 17.15.19

Remove

1. Remove 7 screws securing floor carpet rear

retainer.

2. Release lower section of door sealing rubber on

one side.

3. Remove carpet retainer.

4. Fold floor carpet back on RH side.
5. Release RH side carpet and move aside to

reveal 2 screws securing vapour separator.

6. Remove 2 screws securing vapour separator.

7. Release vapour separator pipe from clip on fuel

pipe.

8. Depress 2 lugs on vapour separator connector

and disconnect pipe.

9. Using tool LRT-19-002 depress collar at green

end of ’speedfit’ connector and disconnect pipe.

10. Remove vapour separator.

Refit

11. Position vapour separator and connect pipes.
12. Using assistance, align vapour separator and fit

and tighten screws.

13. Apply adhesive to side carpet and body.
14. Fold down side and floor carpets.
15. Fit carpet retainer and fit and tighten screws.
16. Secure door sealing rubber.

EMISSION CONTROL

3

REPAIR

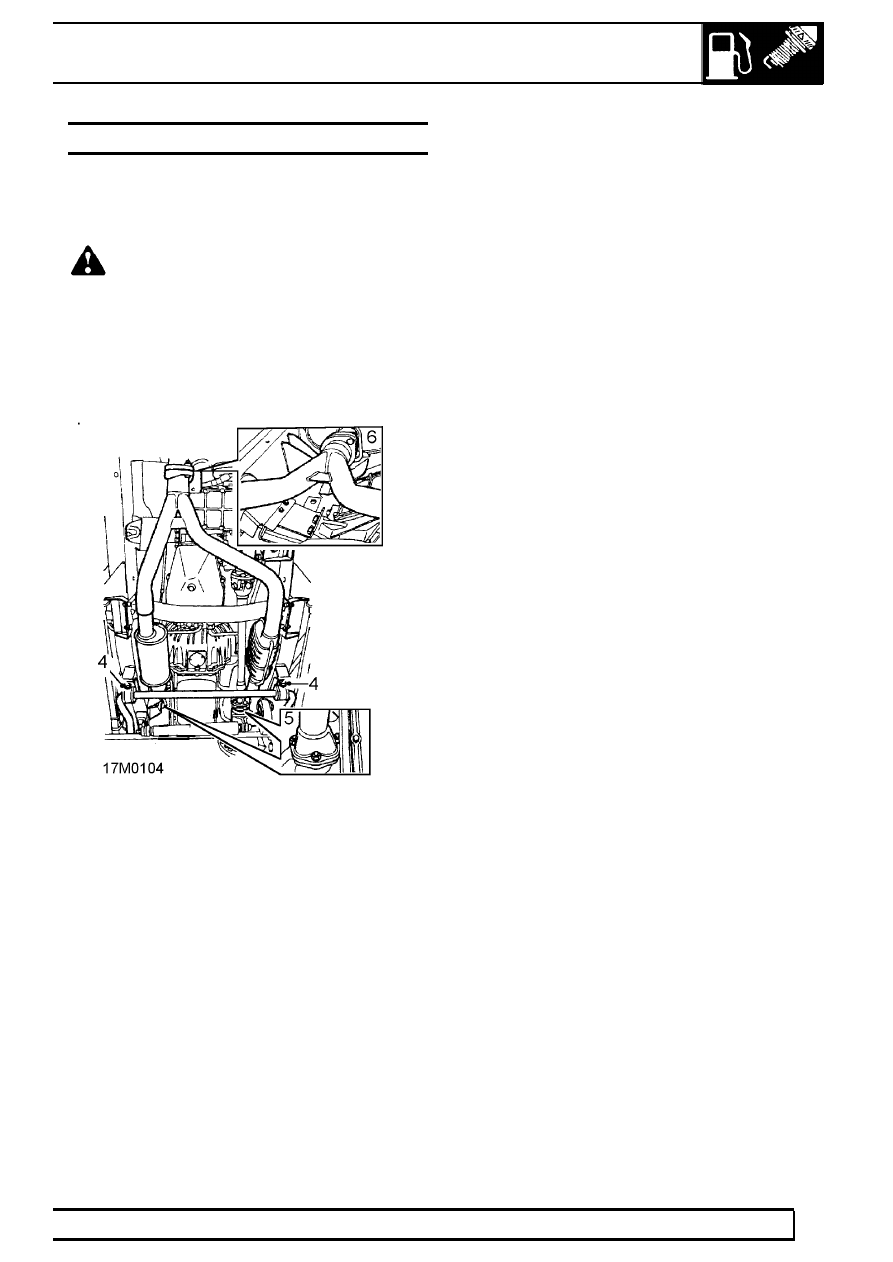

FRONT PIPE / CATALYTIC CONVERTER

Service repair no - 17.50.09

Remove

WARNING: The removal of the exhaust
system must only be carried out when the
engine is cold.

1. Raise vehicle on ramp.
2. Remove oxygen sensors.

See FUEL SYSTEM,

Repair, Heated oxygen sensor (ho2s) - front
and

See FUEL SYSTEM, Repair, Heated

oxygen sensor (ho2s) - rear

3. Remove 4 bolts securing front anti-roll [sway] bar

mounting brackets.

4. Remove 6 nuts securing front pipe assembly to

exhaust manifolds.

5. Remove 2 nuts securing front pipe assembly to

intermediate pipe.

6. With assistance, release front pipe assembly

from exhaust manifolds.

7. With assistance, release front pipe assembly

from intermediate pipe.

8. With assistance, lower anti-roll [sway] bar and

remove front pipe assembly.

9. Remove and discard flange gaskets.

Refit

10. Clean exhaust flange mating faces.
11. Fit new flange gaskets.
12. With assistance, position front pipe to vehicle.
13. With assistance, locate front pipe on exhaust

manifolds and intermediate pipe.

14. Fit and tighten flange nuts.
15. Reposition front anti-roll [sway] bar and secure

with bolts.

16. Fit heated oxygen sensors.

See FUEL

SYSTEM, Repair, Heated oxygen sensor
(ho2s) - front
and See FUEL SYSTEM, Repair,

Heated oxygen sensor (ho2s) - rear

17. Lower vehicle.

SFI

1

DESCRIPTION AND OPERATION

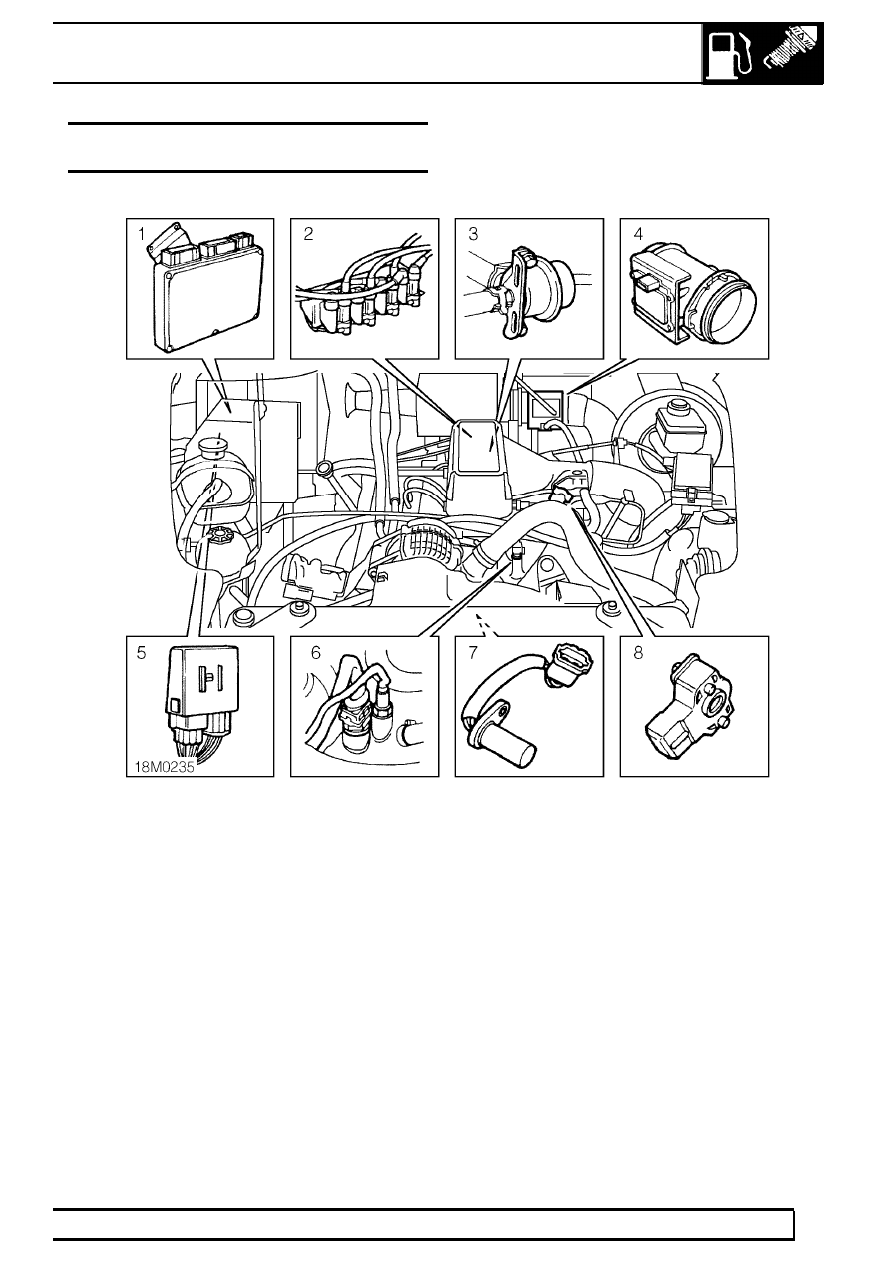

ENGINE MANAGEMENT SYSTEM COMPONENT
LOCATION

1. Engine Control Module (ECM)
2. Ignition coils
3. Fuel pressure regulator
4. Mass air flow (MAF) sensor
5. Relay module

- Main relay
- Fuel pump relay

6. Engine coolant temperature (ECT) sensor
7. Camshaft position (CMP) sensor
8. Throttle position (TP) sensor

19

FUEL SYSTEM

2

DESCRIPTION AND OPERATION

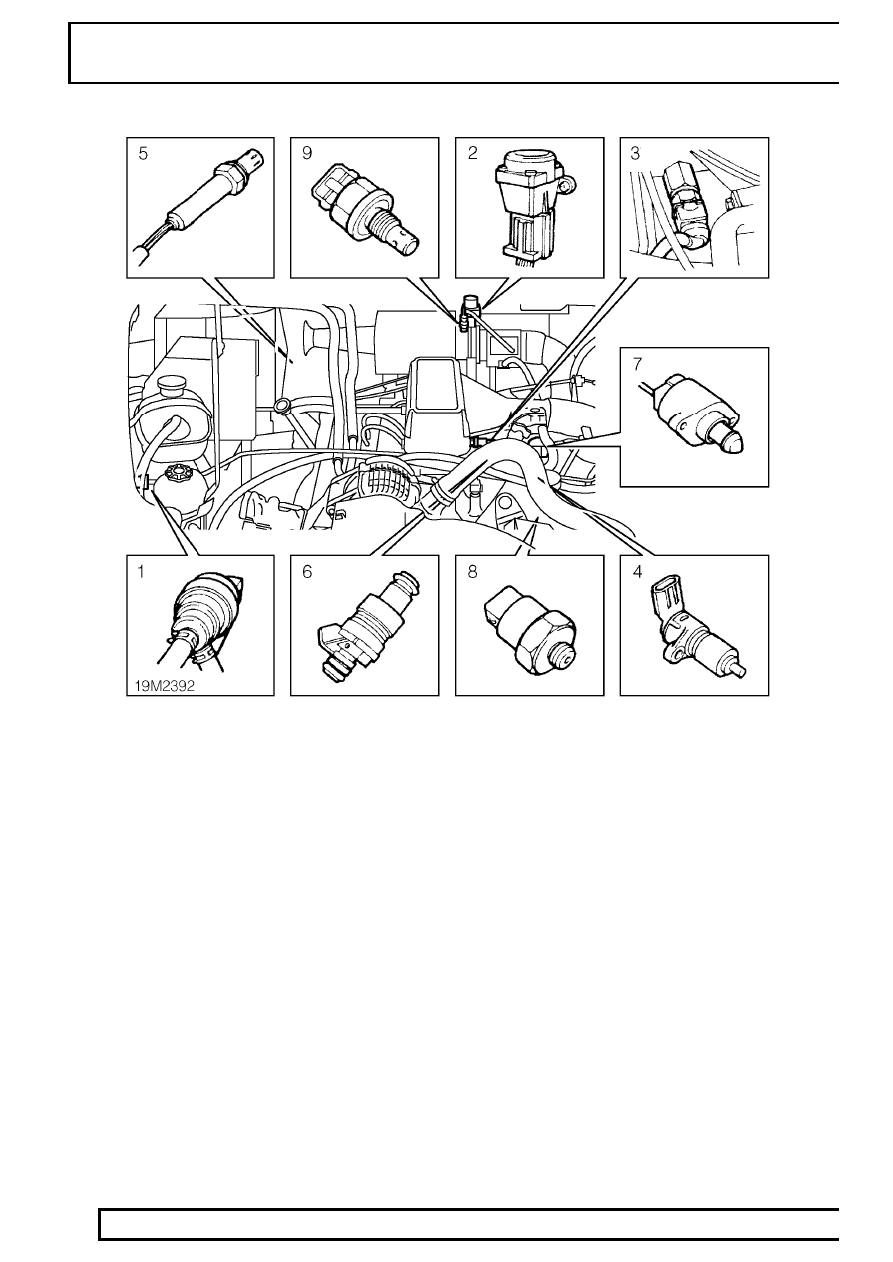

1. EVAP purge valve
2. Inertia switch
3. Engine fuel temperature (EFT) sensor
4. Crankshaft position (CKP) sensor
5. Heated oxygen sensor (HO2S) - 4 off
6. Injectors - 8 off
7. Idle air control valve (IACV)
8. Knock sensors - 2 off
9. Intake air temperature (IAT) sensor
