Defender 90 NAS. Manual - part 14





MAINTENANCE

15

MAINTENANCE

CARRY OUT ROAD OR ROLLER TEST

WARNING: Two wheel roller tests must be
restricted to 8 mph, 5km/hour. Do not
engage the differential lock or the vehicle

will drive off the test rig because the vehicle is in
permanent four wheel drive.

For details of dynamometer testing.

See

INTRODUCTION, Information, Dynamometer
Testing

Check following items:

1. Inhibitor switch only operates in ’P’ and ’N’.
2. Engine for excessive noise.
3. Automatic gear selection/shift speeds.
4. Gear selection/noise - high/low range.
5. Steering for abnormal noise/effort.
6. Steering for free play.
7. All instruments, gauges and warning indicators.
8. Heater and air conditioning systems.
9. Heated rear screen.

10. Shock absorbers - ride irregularities.
11. Foot brake, on emergency stop, pulling to one

side, binding, pedal effort.

12. Park brake operation.
13. Seat reclining and latching.
14. Fully extend seat belt, check operation of

retraction and latching. Inertia belts lock when
snatched or vehicle on slope.

15. Road wheel balance.
16. Transmission for vibrations.
17. Body noises, squeaks and rattles.
18. Excessive exhaust smoke.
19. Engine idle speed.
20. Endorse service record.
21. Report any unusual features of vehicle condition

and additional work required.

ENDORSE SERVICE RECORD

RESET EMISSION MAINTENANCE REMINDER -
USA

The emission maintenance reminder is designed to
activate at 82,500 and 165,000 miles respectively and
will illuminate a ’Service Engine’ RED warning light in
instrument binnacle.

The emission maintenance reminder must be reset
after required maintenance has been carried out and
a new tamperproof label fitted by a Land Rover of
North America dealer. This emission maintenance
reminder is part of the Emission Control System

Reset

1. The control unit is located in the passenger

footwell.

2. Identify control unit and remove from plug.
3. Remove tamperproof label to reveal access hole

for resetting.

4. Place a thin metallic probe into access hole and

momentarily electrically short between reset pins
inside unit.

RECOMMENDED SERVICE ITEMS

Refer Service Schedule sheets for intervals.

Clean sunroof drain tubes, clean and lubricate guide
rails and slides.

Renew the hydraulic brake fluid.

See BRAKES,

Repair, Brake System Bleed

Renew all hydraulic brake fluid, seals, brake servo
filter and flexible hoses.

All working surfaces of the master cylinder and caliper
cylinders should be examined and renewed where
necessary.

Air cleaner - When the vehicle is used in dusty or field
conditions or deep wading, frequent attention to the
air cleaner may be required.

MAINTENANCE

1

SPECIFICATIONS, TORQUE

TORQUE SETTINGS

Nm

lbf ft

Road wheel nuts

130

..............................................................

95

Spark plugs

20

......................................................................

15

Automatic gearbox drain plug

10

..........................................

8

Transfer box drain/filler plugs

30

...........................................

22

Fuel filter hose/pipe unions

30

..............................................

22

Steering box drop arm nut

175

................................................

130

Steering box to chassis

80

....................................................

60

Steering box tie-rod

80

..........................................................

60

Front radius arm to chassis

200

..............................................

150

Rear radius arm to axle

175

....................................................

130

Bottom link to axle/chassis

175

...............................................

130

4.0 V8

1

REPAIR

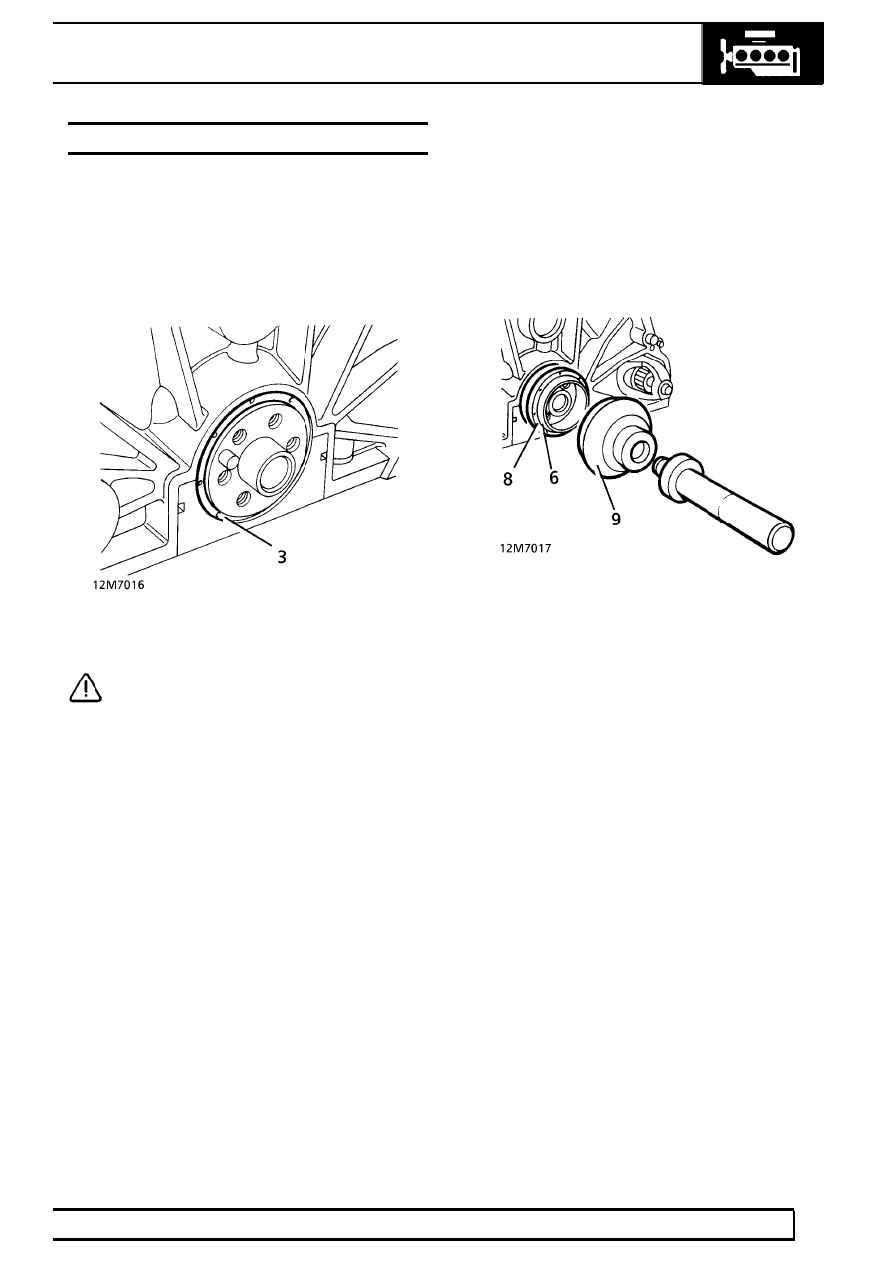

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

1. Disconnect battery negative lead.
2. Remove drive plate.

See ENGINE 4.0 V8,

Repair, Drive Plate

3. Remove oil seal from location.

CAUTION: Do not damage seal location or
running surface on crankshaft.

Refit

4. Ensure both seal location and running surface

on crankshaft are clean.

5. Ensure mating faces of flywheel and crankshaft

are clean.

6. Lubricate seal guide LRT-12-095 with clean

engine oil. Position over crankshaft boss.

7. Lubricate oil seal lip.
8. Position seal squarely. Remove guide.
9. Drift seal into location using LRT-12-091.

10. Fit drive plate.

See ENGINE 4.0 V8, Repair,

Drive Plate

11. Reconnect battery negative lead.

12

ENGINE

2

REPAIR

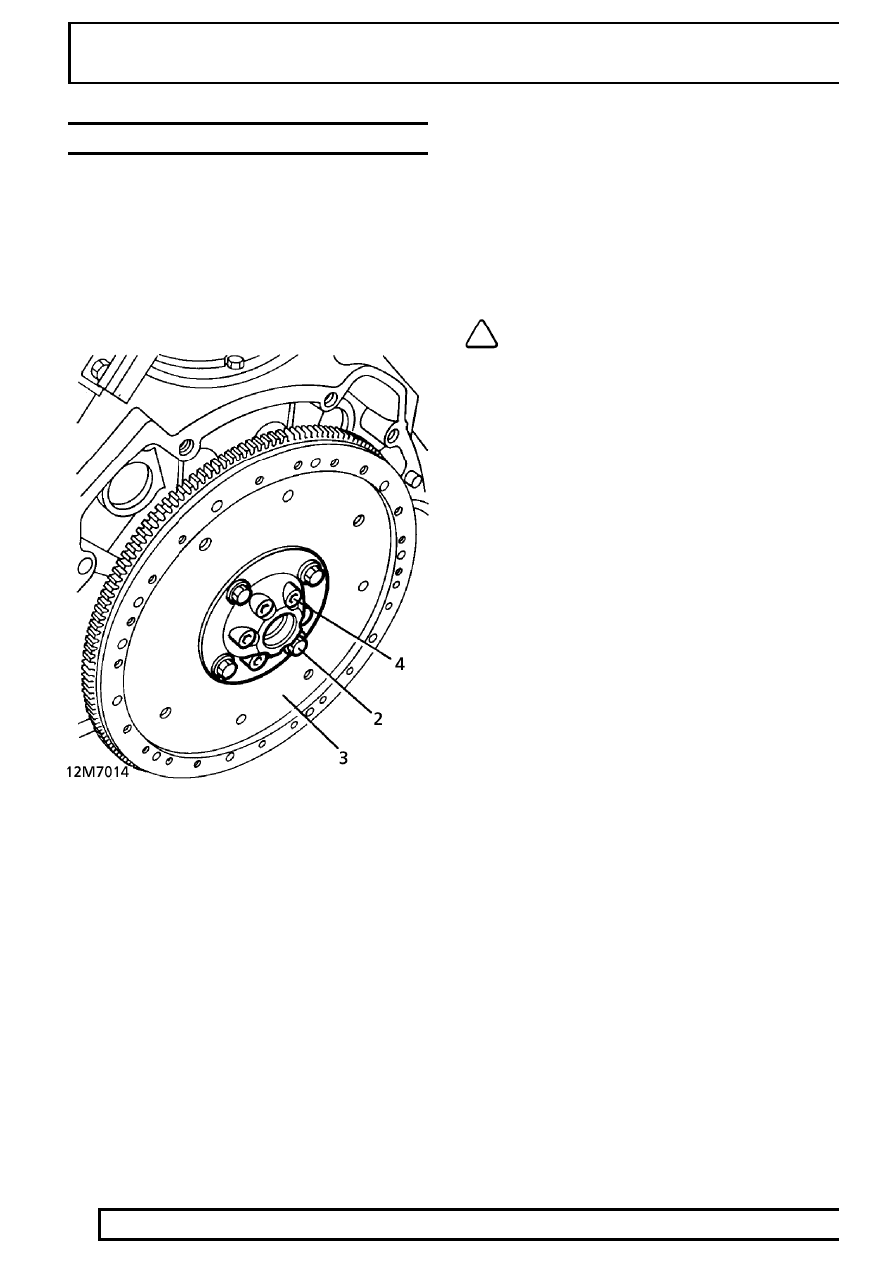

DRIVE PLATE

Service repair no - 12.53.13

Remove

1. Remove gearbox and transfer box assembly.

See AUTOMATIC GEARBOX, Repair,
gearbox and transfer box assembly

2. Remove 4 clamp ring bolts. Collect clamp ring.
3. Remove flexible drive plate/starter ring gear

assembly from hub aligner.

4. Remove 6 screws from hub aligner. Remove hub

aligner from crankshaft. Collect shim.

5. Check drive plate for distortion or cracks. Check

starter ring gear for chipped or broken teeth. If
either component shows signs of damage, fit a
new assembly.

Refit

6. Ensure all mating surfaces are clean.
7. Fit shim and hub aligner to crankshaft.
8. Fit hub aligner screws and tighten to

85 Nm, 63

lbf ft.

9. Fit drive plate and clamp ring.

10. Fit clamp ring bolts and tighten to

45 Nm, 33 lbf

ft.

NOTE: It is only necessary to reshim the
drive plate when a new crankshaft or hub
aligner is fitted.

11. Fit gearbox and transfer box assembly.

See

AUTOMATIC GEARBOX, Repair, gearbox
and transfer box assembly
