MANUAL GEARBOX

OVERHAUL

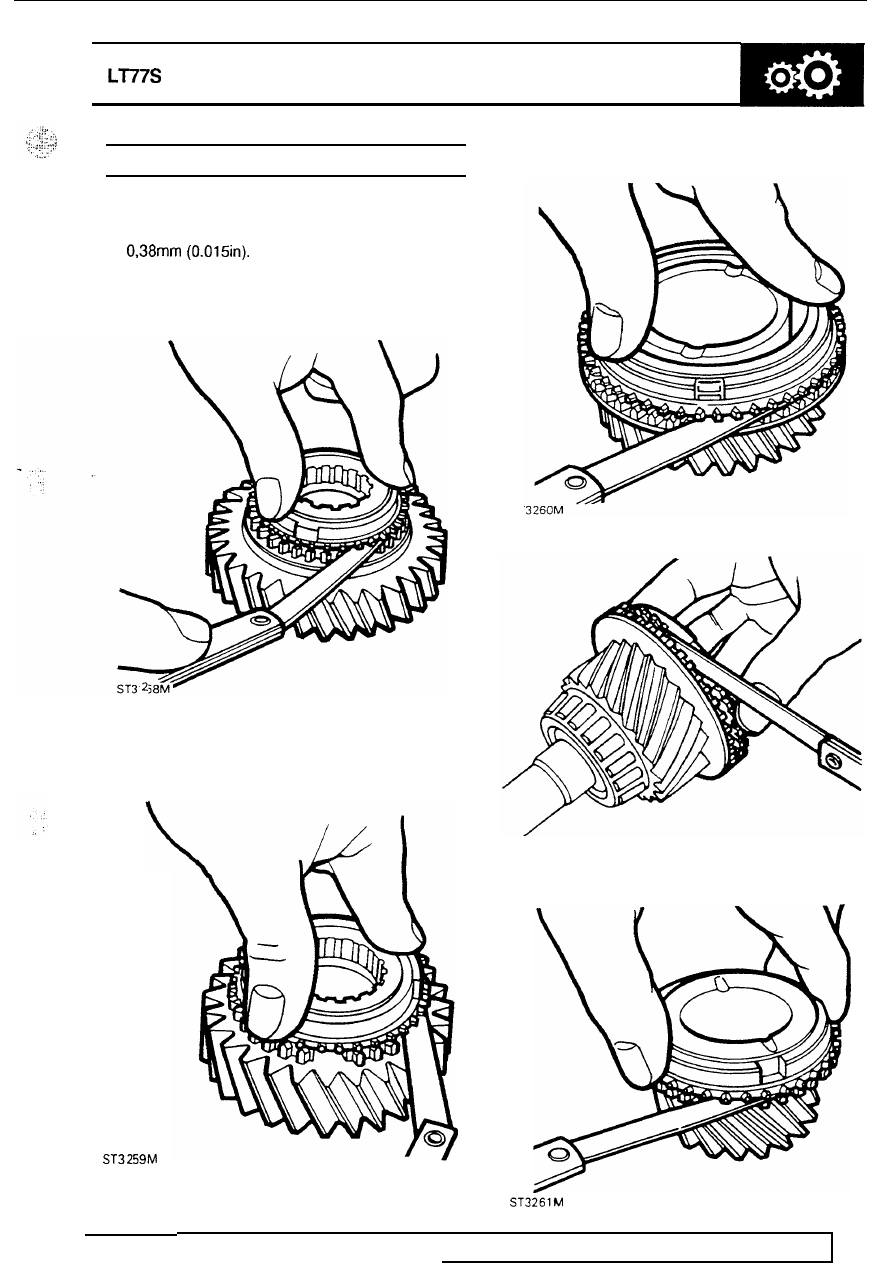

CHECKING BAULK  RING CLEARANCES

17

Check  clearance

of

all  baulk rings and gears by

pressing the baulk ring against the  gear  and
measuring the

gap.

The minimum clearance should

be

First gear

Third gear

ST

Fourth gear

second gear

ST32 26M

Fifth gear

MANUALGEARBOX

DEFENDER

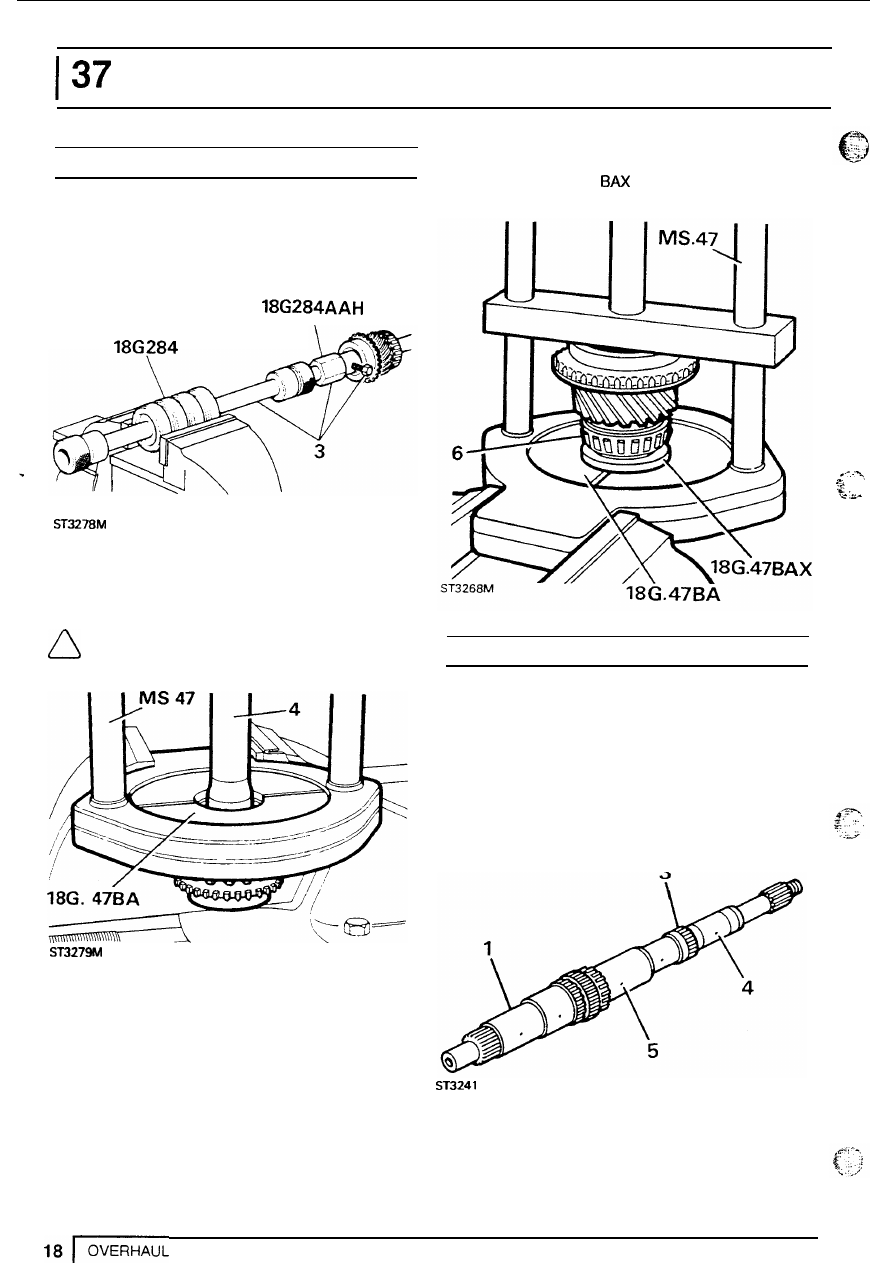

INPUT SHAFT

1.

Examine the gear and dog teeth for  wear  and

2.

Polish oil seal track  if  necessary.

3.  Using

18G

284

AAH  and

18G

284

remove pilot

damage.

bearing track.

4.

Using

18G 47BA

and

MS 47

remove taper

bearing.

6.  Using Press

M S

47,

Collets

18G

478

and

adaptor

18G

47

fit a new taper  bearing.

NOTE: ensure that the bearing

is

supported by the

lip inside 18G

47

BA.

MAINSHAFT

1.

Examine bearing journals for wear  and scores.

2.

Check condition

of

circlip grooves.

3.  Examine splines for wear  and damage.

4.

Use an air  line to check  that the  main oil feed

from the  pump is clear and feed to spigot
bearing.

5.

Check oil feed holes to roller  bearings are clear.

..

5.

Support the shaft under

MS 47

and press

in

new track.

MANUAL

GEARBOX

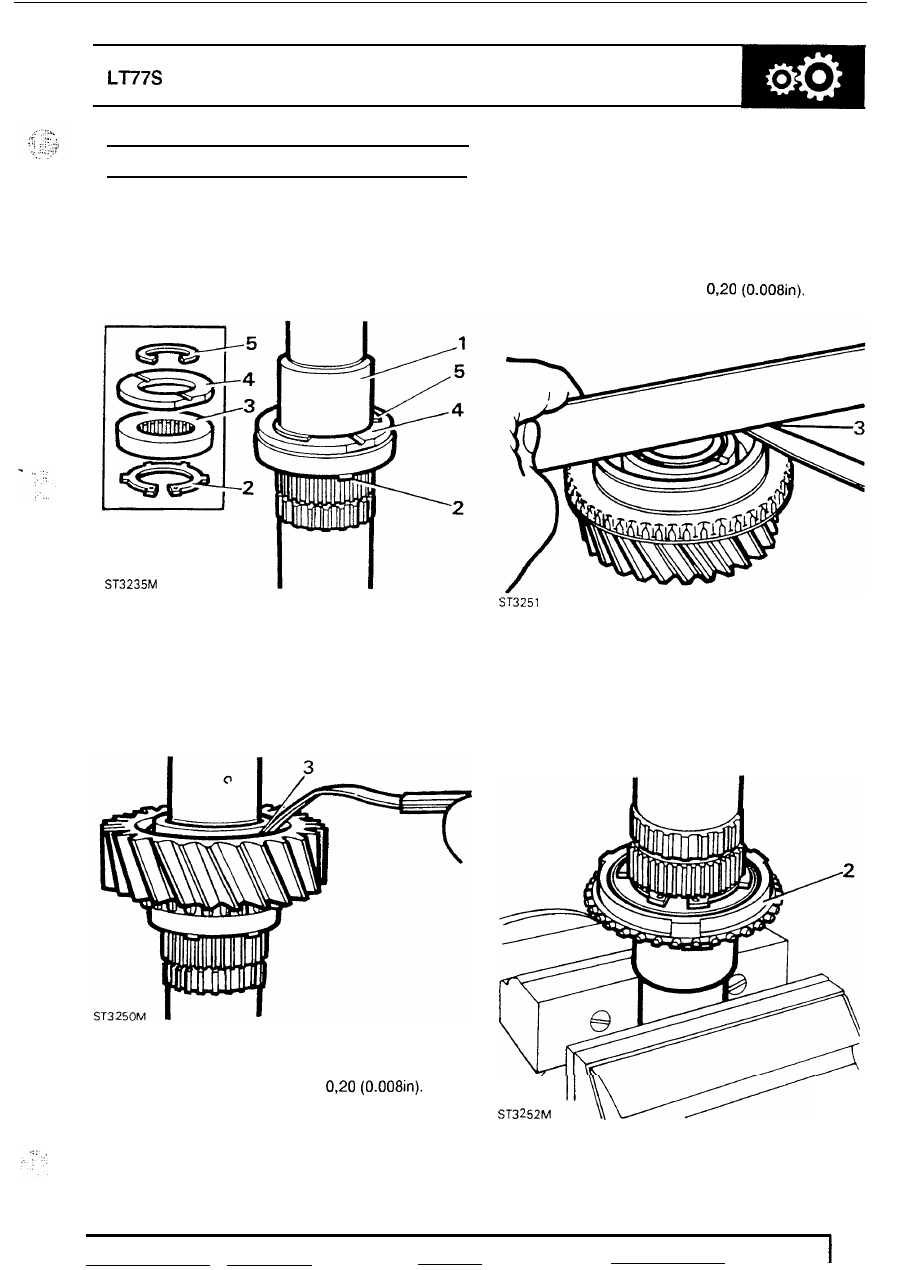

MAINSHAFT GEAR  END FLOAT CHECKS

Third gear end-float.

1.

Hold mainshaft in vice front end downwards.

2.

Fit front  circlip

for

first-second  synchromesh.

3 .   Fit second gear cone.
4.

Fit spacer.

5.

Fit snap ring.

1.

Fit needle roller to third gear.

2.

fit third gear  bush to third gear.

3.  Place gear

on

flat surface,  bush flange

downwards, and with  a straight edge across
gear check clearance between straight edge
and gear.

Not

to exceed

Second gear end-float.

First

gear  bush end-float.

1.

Fit needle roller and second gear

2.

Fit third gear  bush.

3 .

Check clearance between second gear and
bush flange.  Not to exceed

4.

Remove above components.

1.

Invert mainshaft rear end uppermost.

2.

Fit inner and outer second gear  baulk rings.

OVERHAUL

19

MANUALGEARBOX

DEFENDER

3.  Fit first-second synchromesh  hub, fork  groove

8.  Fit first  gear  bush.

4.

Fit circlip.

10.  Fit circlip.

uppermost.

9.  Fit dummy  bearing.

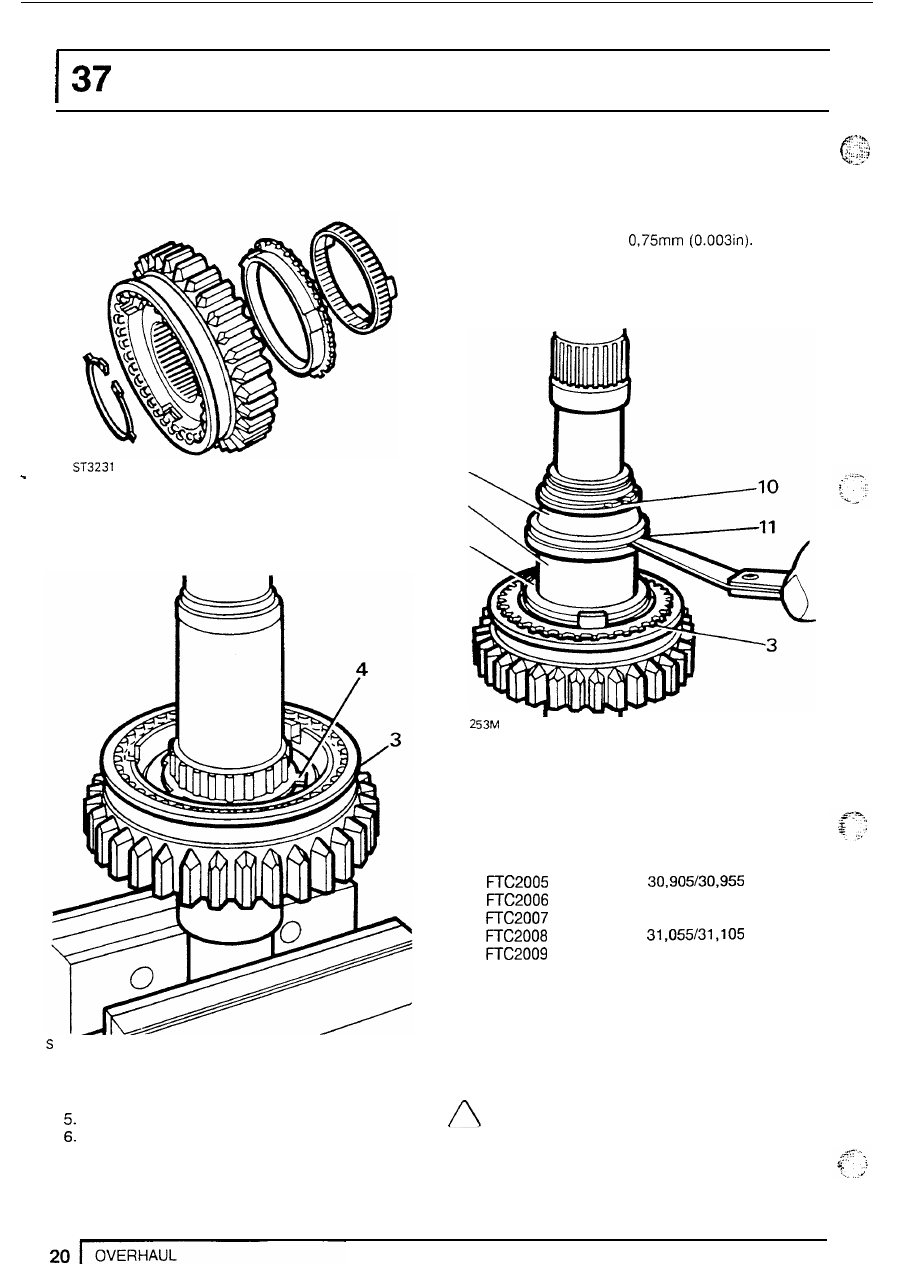

First-second synchromesh assembly

T3

57M

Fit first gear  inner and outer baulk ring.
Fit cone.

7.  Fit spacer.

11.  Check clearance between dummy  bearing and

bush.

Not

to  exceed

12.  Remove circlip, dummy  bearing and bush.

ST3

Selective first gear  bush

Part number

Thickness

30,955131,005
31,005131,055

31

05/31 ,155

Check first gear to  bush end-float.

1.  Fit roller bearing and bush

to

first  gear.

2.  Place bush flange side downwards  on a raised

block on a flat  surface.

NOTE:

the  block should be approximately

the same diameter as the bush flange

so

that the gear  is suspended and does not

rest on the flat surface.
