Defender 90 / 110 / 130. Manual - part 136





ELECTRICAL EQUTPMENT-

FOUR CYLINDER DTSTRIBUTOR

REASSEMBLE

OVERHAUL  LUCAS

DISTRIBUTOR

Four

cylinder engine

Using  Rctinax  ‘A’

or  equivalent  grease  lubricate

the centrifugal weight  pivot posts and lightly smear
the cam pressure pad and contact pivot post.

21.  Fit the pressure pad and spring to the base plate.
22.  Fit  the base plate to the  body,  lining up the  marks,

and secure with  the retaining screw and clip on  the

opposite side to the vacuum unit.
Smear a

little

grease

on

the post  and fit the moving

contact post-plate to t h e  base plate.

24.  Offer  up the  vacuum  unit  to the  body  and  fit  the

25

26.

27.

28.
29.

30.
31.

32.

34.
35.

36.
37.

operating  link  and  serrated  cam

to

the

‘D’ post.

Ensure that  the identification  marks line  up - see
instruction

8.

Secure  the  assembly  with  the  spring

clip.
Secure the vacuum  unit and condenser to the body
with the remaining screw and clip.
Fit  the  fixed  contact  and  loosely  retain  with  the

screw.
Fit the moving contact ensuring that the leaf spring
locates

in the nylon

Fit the connector block to the body.
Fit  the insulation  washer  and retain  assembly with
the spring clip.
Fit condenser lead to connector block.
Place  the  felt pad

in  the top of  the rotor and  add a

few drops of

oil.

Smear a small quantity

of  grease on the rotor cam.

Adjust  the contact  point  gap to a datum  setting of

(0.017 in) with  a  feeler gauge by  turning

the

rotor spindle until  a cam fully opens the points.

Move the fixed contact  plate

to obtain the required

gap and tighten  the retaining screw.
Fit the distributor to the engine.

Fit the dust cover.
Fit the rotor arm and distributor cap.
Connect

the

H.T.

leads  to  the  appropriate  spark

plugs.

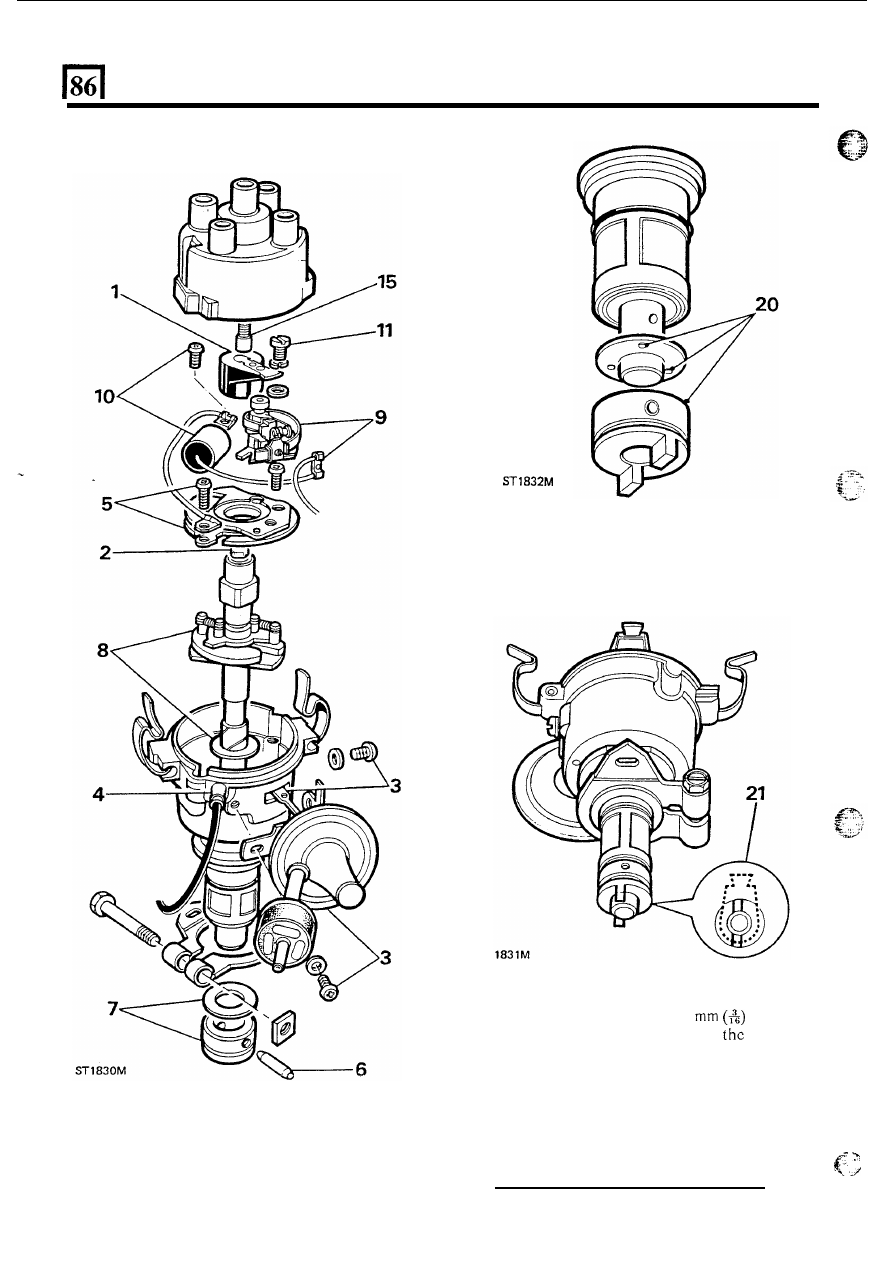

Dismantling

I .   Remove the rotor arm.

2.  Extract the felt pad, if fitted, from the cam.
3 .   Removc  the two vacuum  unit  retaining screws,

tilt

unit

to  disengage  the  operating  arm  and

remove the vacuum unit.

4.  Push  the

low  tension  lead  and  grommet  into  the

inside

of

the body.

5.

Remove  the  securing  screws  and

lift

out  the  base

plate assembly.

6.  Drive out the parallel  pin retaining the drive dog.
7.  Remove the drive dog and thrust washer.
8.  Remove  the  shaft  complete  with  automatic

advance mechanism  and steel washer.

9.  Push  the moving contact spring inwards and detach

the low tension connector from the spring loop.

10.  Removc  the  screw  to  release  the  earth  lead  and

capacitor.

11.

Remove

screw and

lift

off  the contact

set.

Inspection

12.

Do

not  dismantle  the  advance mechanism  beyond

removing  the  control  springs.  If  any of  the  moving
parts  or the  cam  are worn  o r

renew  the

complete shaft assembly.

13.  Check  the

fit

of  the  shaft  in  its  bearing:

allows

side  play,  renew  the

distributor.

14.  Check  the  base  plate  assembly;  if  the  spring

between  the  plates

is  damaged

or

if  the  plates  do

not move freely, renew the assembly.

15.  Check  the  distributor  cap for  signs  of  tracking  or

cracks  and  check  that  the  pick-up  brush  moves

freely in its holder.

16.

the  rotor  arm

damage,  electrode

security, and burning

or

tracking.

Keassem

17.  Reverse  the  procedure  in  1  to

noting

following instructions.

18.  Lubricate  t h e  contact  pivot  post  with  Retinax  ‘A’

or equivalent grease.

19.  Ensure  that  the  steel washer  is  fitted  on  the  shaft

and lubricate the shaft with Rocol MP (Molypad).

20.

Fit  the  thrust  washer  with  its  raised  pips  towards
the drive dog.

continued

ELECTRICAL EQUIPMENT -

FOUR CYLINDER DISTRIBUTOR

21.  Fit  the  drive  dog

so  that  the  driving  tongues  are

parallel with the rotor arm electrode and to the left

of

its  centre  line  when  the  rotor  arm  points

upwards as shown.

S T

22.

If a new shaft is fitted it must be drilled through the
hole

in the drive dog using a 4.76

drill.

23.  During  drilling,  push  the shaft from

cam  end,

pressing the drive dog and washer against the body
shank.

24.  Secure  the  pin  in  the  drive

dog  by  ring-punching

the holes.

If  the shaft  is  new,  tap the drive end

to

flatten  the  washer  pips  and  ensure  the  correct

end-float.

25.  Set the contact points gap.

ELECTRONIC IGNITION -

V8 ENGINE

ELECTRONIC

IGNITION

WITH

DISTRIBUTOR

The Lucas model

distributor has a conventional

vacuum  unit  and  centrifugal  automatic

advance mechanism.
A  pick-up  module,  in  conjunction  with  a  rotating
timing  reluctor  inside  the  distributor  body,  generates
timing  signals.  These  are  applied  to  an  electronic

ignition  amplifier  unit  fitted  under  the  ignition  coil
mounted

on top

of

the left front wing valance.

Key

to illustration

Cap

2.

HT

Brush and spring

3 .

Rotorarm

4.

Insulation cover (Flash shield)

5.

Pick-up and base plate assembly

6.  Vacuum unit

7.

ring oil seal

ELECTRONIC IGNITION -

V8 ENGINE

DISTRIBUTOR

ELECTRONIC IGNITION

ENGINES

Remove and refit

Removing

1.  Disconnect battery.

2.  Disconnect vacuum
3.  Remove distributor cap.
4.

Disconnect low tension lead from coil.

5.

Mark distributor  body in  relation  to  centre line  of
rotor arm.

6.

Add  alignment  marks  to  distributor  and  front
cover.

NOTE:  Marking  distributor  enables  refitting  in

exact original position, but if engine is turned while
distributor

is

removed,  complete  ignition  timing

procedure must be followed.

7.  Release  the  distributor  clamp  and  remove

distributor.

Refitting

NOTE:

If a new distributor is being fitted, mark body in

same reiative position as distributor removed.

8.  Leads  for  distributor  cap  should  be  connected  as

illustrated.
Figures 1 to

inclusive indicate plug lead numbers.

Right  hand  side

of  engine,  when  viewed

from the rear.
LH  Left  hand  side  of  engine,

viewed  from

the rear.

9.  If  engine has not  been turned whilst distributor has

been removed, proceed as follows (items

10 to 17).

10.  Fit new

ring seal to distributor housing.

11.  Turn distributor drive until  centre line

of  rotor arm

is

30" anti-clockwise from  mark  made

on  top edge

of distributor body.

12.  Fit  distributor

in  accordance  with  alignment

markings.

NOTE: It may be necessary to align oil pump drive
shaft to  enable distributor drive shaft to  engage in
slot.

13.  Fit  clamp  and  bolt.  Secure  distributor  in  exact

original position.

14.

Connect  vacuum  pipe  to  distributor  and  low
tension lead to coil.

15.  Fit distributor cap.
16.  Reconnect battery.
17.  Using  suitable  electronic  equipment,  set  ignition

timing as follows.

18.  If,  with  distributor  removed,  engine  has  been

turned

it

will

be  necessary  t o  carry out the

procedure.

19.

engine

No.  1 piston  to static ignition  timing

figure (see section

05) on compression stroke.

20.  T u r n   distributor  drive  until

rotor  arm  is

approximately

30" anti-clockwise  from  number one

sparking

plug lead position o n  cap.

Fit distributor

to

engine.

22.  Check  that  centre  line  of  rotor  arm  is  now  in  line

with number one sparking plug lead o n  cap.

Reposition  distributor

if

necessary.

23.  If  distributor does not  seat correctly  in  fron  cover,

oil  pump  drive  is  not  engaged.  Engage  by  lightly
pressing down distributor while turning engine.
Fit clamp and bolt leaving both

loose at this stage.

25.  Set the timing statically to within

T.D.C.

26.  Connect vacuum

to distributor.

27.

low tension lead to coil.

28.  Fit distributor cap.
29.  Reconnect battery.
30.  Using suitable electronic equipment set

ignition

timing.
