Defender 90 / 110 / 130. Manual - part 73





T

RANSFER GEARBOX

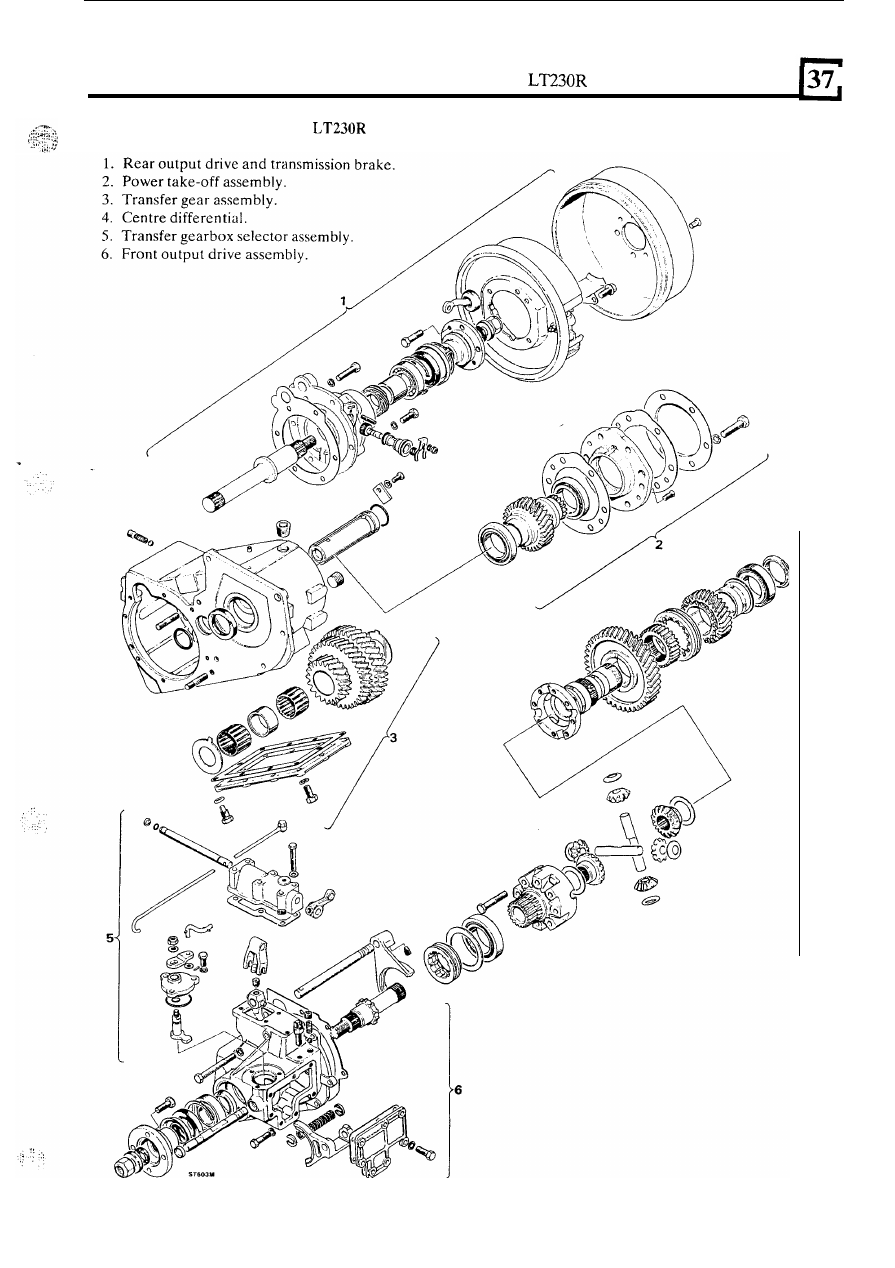

GENERAL ARRANGEMENT

OF

TRANSFER GEARBOX

21

TRANSFER GEARBOX

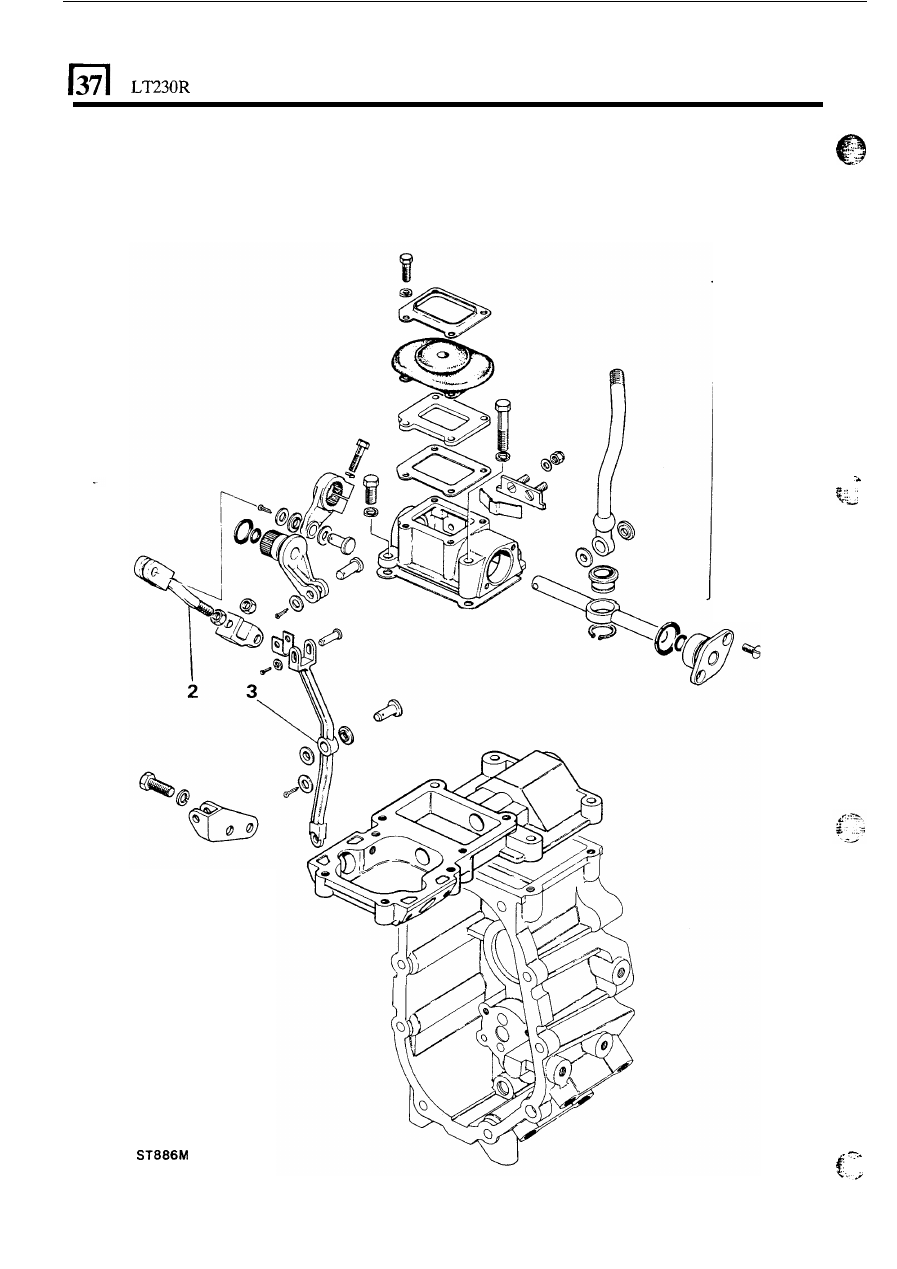

GENERAL ARRANGEMENT OF TRANSFER GEARCHANGE HOUSING

1.  Main selcctor lever.

2.  Transfer gear selector assembly.
3.  Differential  lock selector assembly.

22

TRANSFER GEARBOX

Transmission brake removal

9.

Remove  the  two  countersunk  brake  drum

Removc

t h e

four  bolts  securing  the  brake

retaining screws and pull off  the drum.

backplate, two

of  these also

the oil catcher.

NOTE:  An  hexagonal  type  socket  should  be  used
for these bolts.

Bottom cover removal

the ten bolts retaining the bottom cover.

Intermediate shaft removal

12.  Remove  the  shaft  lock  plate  retained  by

a  single

bolt at the rear face of the transfer box.

13.  Withdraw  the  intermediate  shaft,  using  a  screw

driver in  t h e  slotted  end. Where  the shaft  cannot
be easily withdrawn use extractor

14.  Lift  out  the  intermediate  gear  cluster,  roller

Remove the thrust washers.

16.  Remove the

ring  from  the intermediate  shaft

and the transfer box case.

bearings and spacer.

Power

off cover removal

17.  Remove  the  four  bolts  retaining  the  circular

P.T.O.  cover  and  the  speedometer  cable  clip

plate.

18.  Removc the gasket.

NOTE: The other two bolts were removed with the
gearbox assembly cradle.

TRANSFER

G

EA

RBOX

Input gear removal

30.  Remove  the  centre  differential  unit  with  the

selector

assembly.

19.  Remove  the  two countersunk  screws and  release

the mainshaft bearing housing.

Remove

the gasket.

21.  Remove the input gear assembly.
22.  Prise out and discard the oil seal at the front of  the

transfer case using service tool

1861271.

23.  Drift out the input gear front bearing track.

selector housing removal

24.  Remove  the  six  bolts  to  release  the  selector

25.  Remove the gasket.

housing.

Front output shaft housing removal

26.  Slacken the square headed  set  screw securing the

yoke  to  the

selector  shaft  inside  t h e

selector housing aperture.

27.

If  necessary  use  a  screw  driver

move  the

selector shaft  rearwards and allow

yoke to be

lifted out.

28.  Remove the eight bolts to release the front output

shaft  housing  assembly.

The upper  middle bolt  is

longer.

NOTE:  The ‘radial’ dowel  in the transfer box face
should not be disturbed.

Centre differential removal

29.  Remove  the

selector shaft  detent  plug,

spring and ball.

NOTE:  The ball may be more easily retrieved from
inside  the  transfer  case  after  the  selector  shaft  is
taken out.

24

Rear output shaft housing assembly removal

31.  Remove t h e  six screws

to

the housing. The

32.  Remove the gasket.

upper screw is longer.

NOTE:  Removal  of  the  above  housing  will  reveal

the  centre  differential  rear  bearing  track  in  the
transfer  box  casing.  Before  drifting  out,  either
unscrew the two studs and radial dowel projecting
from  the  transfer  box  front  face  or  use  suitable
wooden blocks to support the box

to avoid damage

to these items.

33.  Drift out the differential  rear bearing track.

NOTE:  If  it is  required  to completely strip down
the  transfer  box  to  the  basic  casting,  remove  the
level, filler and drain plugs.

IMPORTANT:  Clean all parts ensuring any traces
of  Loctite  are  removed  from  faces  and  threads.
Ensure that the magnetic drain plug

is

thoroughly

cleaned.  Renew

oil

seals  and  examine  all  other

parts for wear

or damage, renew as necessary.
