PETROL FUEL SYSTEM

LAND ROVER  110 TWIN TANK INSTALLATION

Description

The fuel system includes two fuel tanks, one at

t h e

rear

of  the  vehicle  and  an  additional  fifteen  gallon

litres) capacity tank

on the right-hand side of  the

vehicle.  Both  tanks  contain

an

electrically  operated

submerged  fuel  pump

in  addition  to  a  fuel  level

indicator  unit  in  each  tank.  An  ignition  controlled
switch

on

the control panel  enables  the driver to select

the  tank  to be used. The switch  also energises the  fuel
level indicator unit of the tank selected and records the
fuel

level on the single indicator dial. When

t h e

ignition

is

switched  ‘on’ the pump in the selected tank will  draw

fuel  into  the  carburetter  float  chamber  via

a  paper

element type filter and  a vapour separator.

To prevent

fuel vapourisation  and  air locks a

return system is

incorporated  in the fuel pipe layout to pass back vapour
and excess fuel from the

vapour separator to the tank in

through  a restrictor and  a solenoid operated  valve.

The  valve,  which  is

by  the  tank  selection

switch,  closes  the  port  to  the  tank  not

i n   use  and

simultaneously opens the port  to

sclccted tank. The

restrictor

is  necessary  to  prevent  fuel  by-passing  the

carburetter  and  flowing  back  to  the  selected  tank
through the spill return
In  addition,  a  non-return  valve  is  enclosed  inside  the
hose  connection  of  the  supply  pipe  from

t h e

rear  and

side  tanks  to  prevent  the  possibility  of

back-flow

of

fuel along the supply lines to

fuel tanks.

A. Fuel tankswitch

LAND ROVER  110 REAK TANK AND

90 SIDE TANK

Description

Fuel  drawn  by  the  electrically  operated in-tank  pump,
is  delivered  to  a  paper  element  type  filter.  Situated

the  right-hand  front  footwell  attached  to  a

chassis  outrigger  from

fuel  enters  a  vapour

separator located

on the left-hand  side

of

the  bulkhead

in

engine  compartment.  Fuel  finally

carburetter  float  chamber from  the  port  at the base  of

the

vapour separator. The vapour separator comprises

part  of  the  spill  return  system  and  its  purpose  is  to
prevent  fuel  vapour  causing  air  locks  in  the  supply  to

the

carburetter. Vapour and excess fuel flows back  into

fitted

return  port

on  the  vapour  separator.  The  restrictor  is

designed  to assist

in maintaining a constant fuel level in

t h e

vapour  separator bowl  and to prevent  fuel  flowing

back to the tank at the same rate as the delivery.

FUEL FILTER

C.

From fuel filter to carburetter via vapour separator

25

PE

TROL

F

U

EL

S

YST

E

VAPOUR SEPARATOR

A. Vapour separator

Spill return

to

side tank

C.

Restrictor and spill return to solenoid valve

Outlet from separator to carburetter

SPILL RETURN SOLENOID VALVE

A .  Solenoid valve

Spill return to side tank

C. Spill return to rear tank

To carburetter via filter and vapour separator

NON-RETURN VALVE

A. Non-return valve

Spring

C.

Ball

FUEL

PUMP

A. Pump and

motor

Filter

C .  Gasket

Electrical terminals

E.

Outlet pipe

F.

Fixing plate to tank

G.

Plastic  tie  clip

See  CAUTION

remove  and

refit pump

27

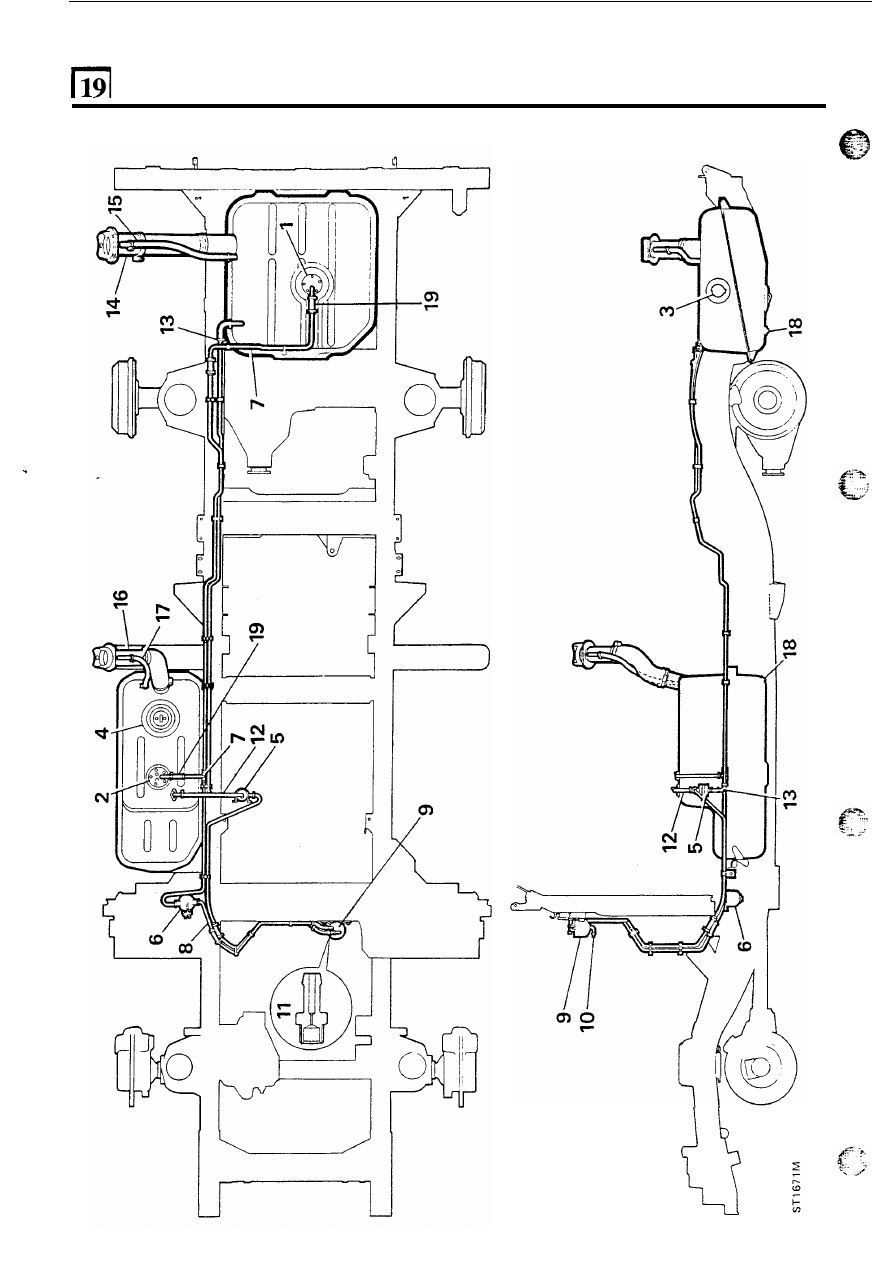

PETROL FUEL SYSTEM

LAND ROVER  110 TWIN

TANK FUEL SYSTEM
